6E±225 ENGINE DRIVEABILITY AND EMISSIONS

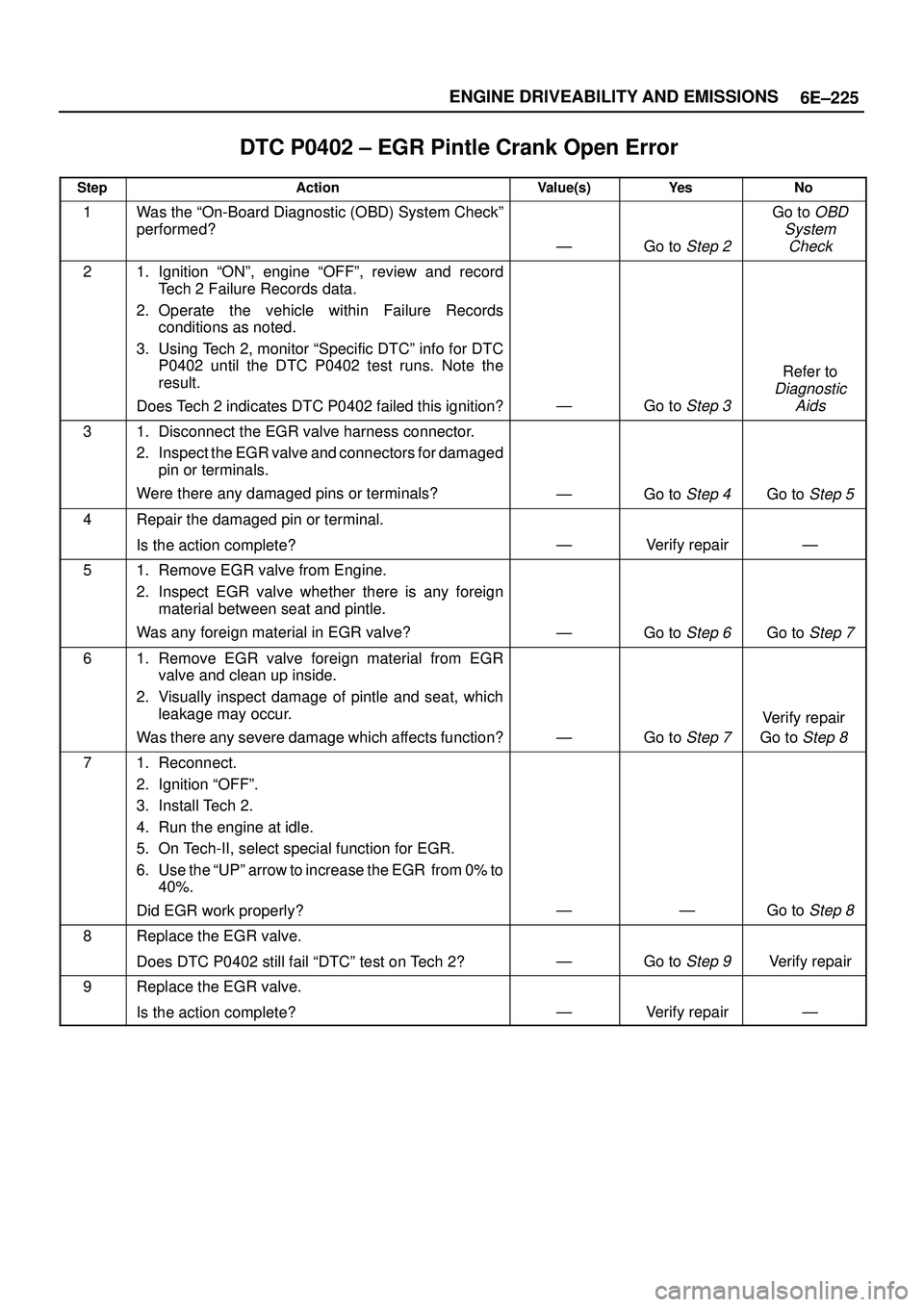

DTC P0402 ± EGR Pintle Crank Open Error

StepActionValue(s)Ye sNo
1Was the ªOn-Board Diagnostic (OBD) System Checkº
performed?
ÐGo to Step 2
Go to OBD
System
Check
21. Ignition ªONº, engine ªOFFº, review and record
Tech 2 Failure Records data.
2. Operate the vehicle within Failure Records
conditions as noted.
3. Using Tech 2, monitor ªSpecific DTCº info for DTC
P0402 until the DTC P0402 test runs. Note the
result.
Does Tech 2 indicates DTC P0402 failed this ignition?
ÐGo to Step 3
Refer to
Diagnostic
Aids
31. Disconnect the EGR valve harness connector.
2. Inspect the EGR valve and connectors for damaged
pin or terminals.
Were there any damaged pins or terminals?
ÐGo to Step 4Go to Step 5
4Repair the damaged pin or terminal.
Is the action complete?
ÐVerify repairÐ
51. Remove EGR valve from Engine.
2. Inspect EGR valve whether there is any foreign
material between seat and pintle.
Was any foreign material in EGR valve?
ÐGo to Step 6Go to Step 7
61. Remove EGR valve foreign material from EGR
valve and clean up inside.
2. Visually inspect damage of pintle and seat, which
leakage may occur.
Was there any severe damage which affects function?
ÐGo to Step 7
Verify repair
Go to
Step 8
71. Reconnect.
2. Ignition ªOFFº.
3. Install Tech 2.
4. Run the engine at idle.
5. On Tech-II, select special function for EGR.
6. Use the ªUPº arrow to increase the EGR from 0% to
40%.
Did EGR work properly?
ÐÐGo to Step 8
8Replace the EGR valve.
Does DTC P0402 still fail ªDTCº test on Tech 2?
ÐGo to Step 9Verify repair
9Replace the EGR valve.
Is the action complete?
ÐVerify repairÐ

6E±226
ENGINE DRIVEABILITY AND EMISSIONS

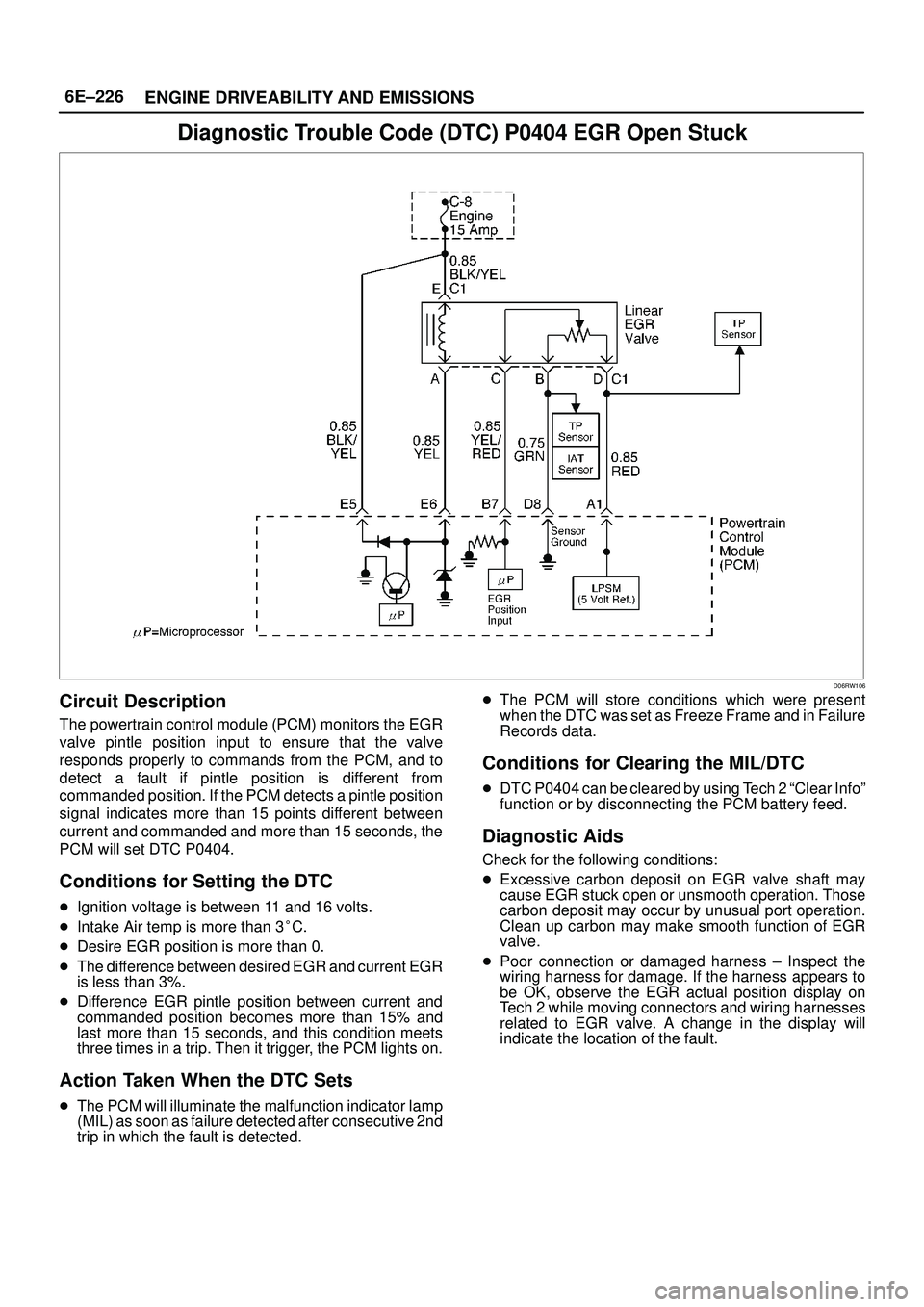

Diagnostic Trouble Code (DTC) P0404 EGR Open Stuck
D06RW106
Circuit Description
The powertrain control module (PCM) monitors the EGR
valve pintle position input to ensure that the valve
responds properly to commands from the PCM, and to
detect a fault if pintle position is different from
commanded position. If the PCM detects a pintle position
signal indicates more than 15 points different between
current and commanded and more than 15 seconds, the
PCM will set DTC P0404.
Conditions for Setting the DTC

Ignition voltage is between 11 and 16 volts.

Intake Air temp is more than 3
C.

Desire EGR position is more than 0.

The difference between desired EGR and current EGR
is less than 3%.

Difference EGR pintle position between current and
commanded position becomes more than 15% and
last more than 15 seconds, and this condition meets
three times in a trip. Then it trigger, the PCM lights on.
Action Taken When the DTC Sets

The PCM will illuminate the malfunction indicator lamp
(MIL) as soon as failure detected after consecutive 2nd
trip in which the fault is detected.
The PCM will store conditions which were present
when the DTC was set as Freeze Frame and in Failure
Records data.
Conditions for Clearing the MIL/DTC

DTC P0404 can be cleared by using Tech 2 ªClear Infoº
function or by disconnecting the PCM battery feed.
Diagnostic Aids
Check for the following conditions:

Excessive carbon deposit on EGR valve shaft may
cause EGR stuck open or unsmooth operation. Those
carbon deposit may occur by unusual port operation.
Clean up carbon may make smooth function of EGR
valve.

Poor connection or damaged harness ± Inspect the
wiring harness for damage. If the harness appears to
be OK, observe the EGR actual position display on
Tech 2 while moving connectors and wiring harnesses
related to EGR valve. A change in the display will
indicate the location of the fault.

6E±227 ENGINE DRIVEABILITY AND EMISSIONS
DTC P0404 ± EGR Open Stuck

StepActionValue(s)Ye sNo
1Was the ªOn-Board Diagnostic (OBD) System Checkº
performed?
ÐGo to Step 2
Go to OBD
System
Check
21. Ignition ªON,º engine ªOFFº, review and record
Tech 2 Failure Records Data.
2. Operate the vehicle within Failure Records
conditions as noted.
3. Using Tech 2, monitor ªSpecific DTCº info for DTC
P0404 until the DTC P0404 test runs. Note the
result.
Does Tech 2 indicates DTC P0404 failed this ignition?
ÐGo to Step 3
Refer to
Diagnostic
Aids
31. Disconnect the EGR valve harness connector.
2. Inspect the EGR valve and connectors for damaged
pin or terminals.
Were there any damaged pins or terminals?
ÐGo to Step 4Go to Step 5
4Repair the damaged pin or terminal.
ÐVerify repair
Is the action
complete?
51. Remove EGR valve from Engine.
2. Inspect EGR valve whether there is any excessive
carbon deposit on EGR shaft.
Was excessive carbon deposit 0n EGR valve shaft?
ÐGo to Step 6Go to Step 7
61. Clean up EGR valve shaft and inside of EGR valve.
2. Visually inspect damage of pintle and seat whether
there is bent, leakage may occur.
Was there any severe damage which affects function?
ÐGo to Step 8
Verify repair
Go to
Step 7
71. Reconnect.
2. Ignition ªOFFº.
3. Install Tech 2.
4. Run the engine at idle.
5. On Tech 2, select F3:Misc. Test; F2:EGR.
6. Use the ªUPº arrow to increase the EGR from 0% to
40%.
Did EGR work properly?
ÐÐGo to Step 8
8Replace the EGR valve.
Does DTC P0404 still fail ªDTCº test on Tech 2?
ÐGo to Step 9Verify repair
9Replace the PCM.
IMPORTANT:The replacement PCM must be
programmed. Refer to
UBS 98model year Immobilizer
Workshop Manual.
Is the action complete?ÐVerify repairÐ

6E±228
ENGINE DRIVEABILITY AND EMISSIONS

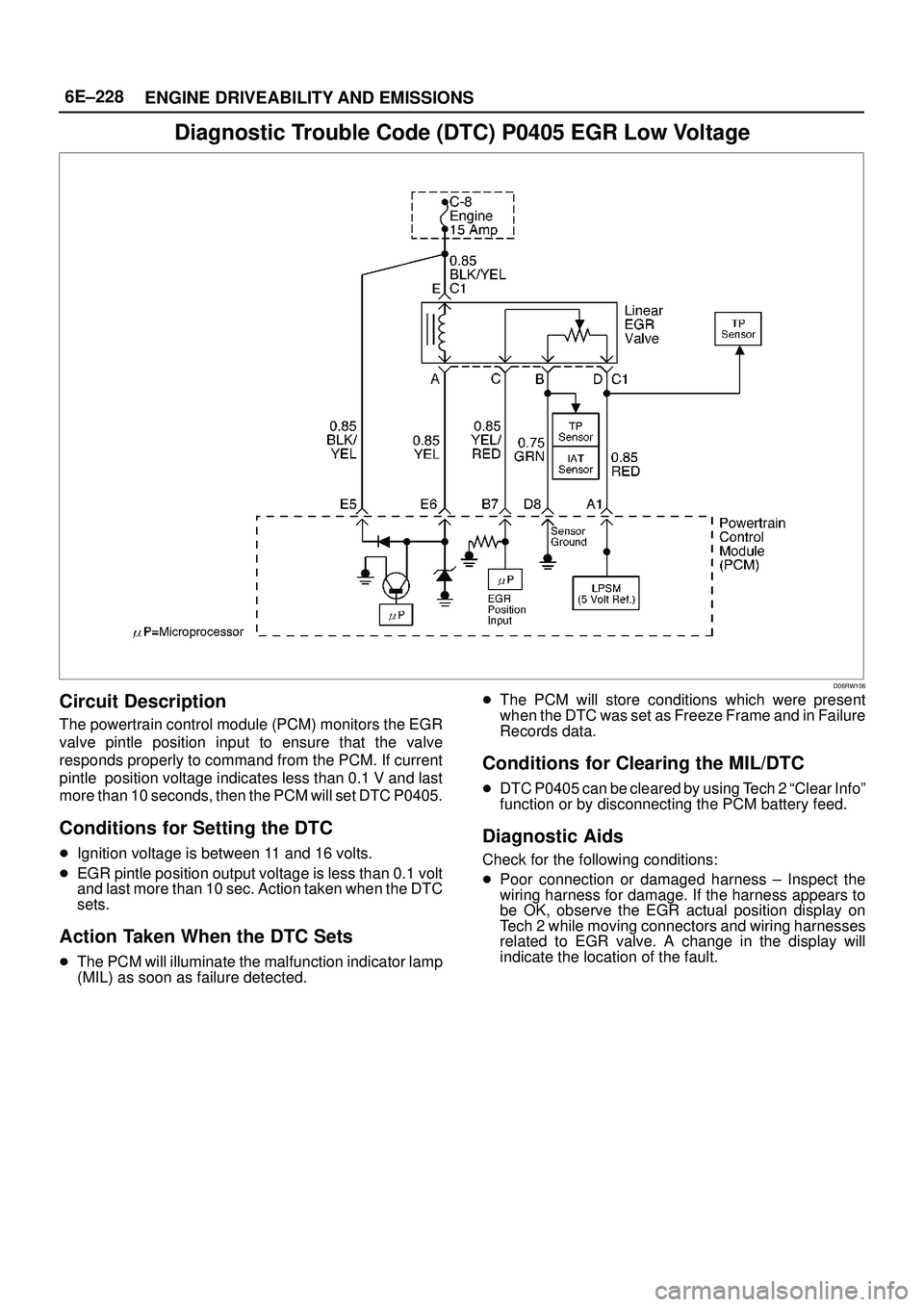

Diagnostic Trouble Code (DTC) P0405 EGR Low Voltage
D06RW106
Circuit Description
The powertrain control module (PCM) monitors the EGR
valve pintle position input to ensure that the valve
responds properly to command from the PCM. If current
pintle position voltage indicates less than 0.1 V and last
more than 10 seconds, then the PCM will set DTC P0405.
Conditions for Setting the DTC

Ignition voltage is between 11 and 16 volts.

EGR pintle position output voltage is less than 0.1 volt
and last more than 10 sec. Action taken when the DTC
sets.
Action Taken When the DTC Sets

The PCM will illuminate the malfunction indicator lamp
(MIL) as soon as failure detected.
The PCM will store conditions which were present
when the DTC was set as Freeze Frame and in Failure
Records data.
Conditions for Clearing the MIL/DTC

DTC P0405 can be cleared by using Tech 2 ªClear Infoº
function or by disconnecting the PCM battery feed.
Diagnostic Aids
Check for the following conditions:

Poor connection or damaged harness ± Inspect the
wiring harness for damage. If the harness appears to
be OK, observe the EGR actual position display on
Tech 2 while moving connectors and wiring harnesses
related to EGR valve. A change in the display will
indicate the location of the fault.

6E±229 ENGINE DRIVEABILITY AND EMISSIONS
DTC P0405 ± EGR Low Volt

StepActionValue(s)Ye sNo
1Was the ªOn-Board Diagnostic (OBD) System Checkº
performed?
ÐGo to Step 2
Go to OBD
System
Check
21. Ignition ªON,º engine ªOFFº, review and record
Tech 2 Failure Records Data.
2. Operate the vehicle within Failure Records
conditions as noted.
3. Using Tech 2, monitor ªDTCº info for DTC P0405
until the DTC P0405 test runs. Note the result.
Does Tech 2 indicates DTC P0405 failed this ignition?
ÐGo to Step 3
Refer to
Diagnostic
Aids
31. Disconnect the EGR valve harness connector.
2. Inspect the EGR valve and connectors for damaged
pin or terminals.
Were there any damaged pins or terminals?
ÐGo to Step 4Go to Step 5
4Repair the damaged pin or terminal.
Is the action complete?
ÐVerify repairÐ
51. Disconnect the EGR harness connector.
2. Ignition ªONº.
3. At the EGR valve, use a DVM to check the voltage
at the 5 volt reference wire (RED) and ground (B).
Did the DVM indicate the specified value?
4±6 VGo to Step 6Go to Step 7
61. Disconnect the EGR harness connector.
2. Measure resistance between terminal B and D.
Was resistance in range?
5±5.5 K
Go to Step 10Go to Step 17
71. Ignition ªONº.
2. At the PCM connector, backprobe with a DVM at the
5 volt reference for the EGR valve.
Did the DVM indicate the specified value?
4±6 VGo to Step 8Go to Step 9
8Repair the open 5 volt reference circuit.
Is the action complete?
ÐVerify repairÐ
9Repair the damaged sensor ground wire.
Is the action complete?
ÐVerify repairÐ
101. Disconnect the EGR harness
2. Use an ohmmeter to measure between the pintle
position pin and the sensor ground pin on the EGR
valve.
NOTE: J-35616 Connector Test Adapter Kit may be
useful for gaining access to the recessed pins on the
valve.
Was the ohmmeter reading approximately equal to the
specified value?
1 to 1.25 K
Go to Step 11Go to Step 17
111. Ignition ªONº.
2. Backprobe with a DVM to measure voltage at EGR
valve pintle position pin and sensor ground pin.
Was voltage in range?
Less than
0.1 V
Go to Step 17Go to Step 12

6E±230
ENGINE DRIVEABILITY AND EMISSIONS
DTC P0405 ± EGR Low Volt


StepNo Ye s Value(s) Action
121. Ignition ªONº.
2. Backprobe with a DVM to measure voltage at PCM
sensor ground pin and pintle position pin.
Was voltage in range?
Less than
0.1 V
Go to Step 13Go to Step 18
131. Ignition ªOFFº.
2. Disconnect the EGR harness.
3. Check short circuit between EGR pintle position
circuit and EGR ground circuit.
Was any short circuit?
ÐGo to Step 14Go to Step 18
14Locate and repair the short to ground in the pintle
position circuit
Is the action complete?
ÐVerify repairÐ
151. Ignition ªOFFº.
2. Disconnect the PCM.
3. Ignition ªONº.
4. Measure the voltage between the EGR pintle
position circuit and ground.
Is the measured voltage near the specified value?
Less than
0.1 V
Go to Step 17Go to Step 16
16Check for a short circuit between other wires and the
pintle position circuit
Was any short circuit?
Ð
Repair short
circuit
Verify repair
Go to Step 17
17Replace the EGR valve.
Does DTC P1404 still fail ªspecific DTC test on Tech 2?
ÐGo to Step 18Verify repair
18Examine the PCM pin and terminal connection.
Was there a damaged terminal?
ÐGo to Step 4Go to Step 19
19Replace the PCM.
IMPORTANT:The replacement PCM must be
programmed. Refer to
UBS 98model year Immobilizer
Workshop Manual.
Is the action complete?ÐVerify repairÐ

6E±231 ENGINE DRIVEABILITY AND EMISSIONS

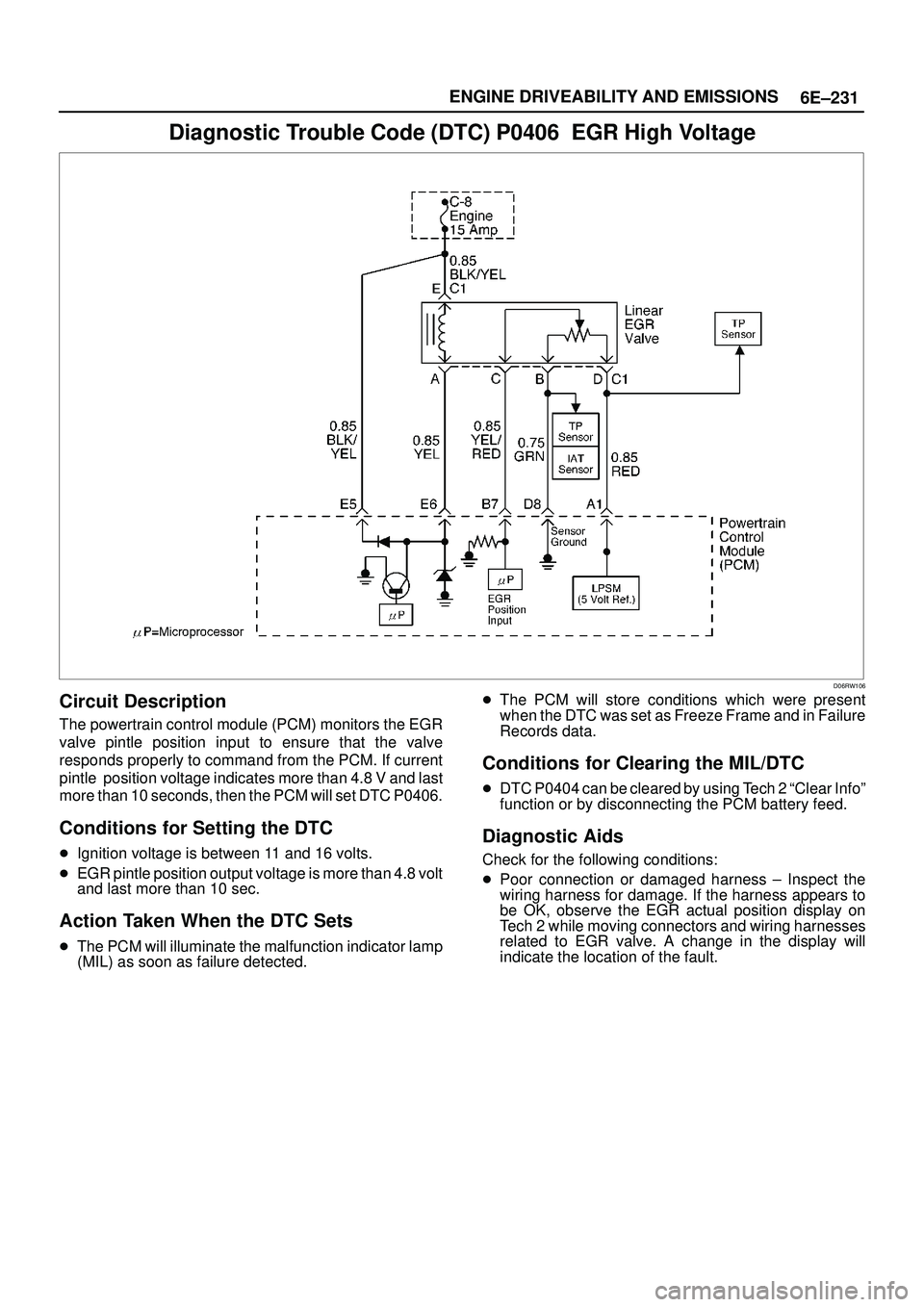

Diagnostic Trouble Code (DTC) P0406 EGR High Voltage
D06RW106
Circuit Description
The powertrain control module (PCM) monitors the EGR
valve pintle position input to ensure that the valve
responds properly to command from the PCM. If current
pintle position voltage indicates more than 4.8 V and last
more than 10 seconds, then the PCM will set DTC P0406.
Conditions for Setting the DTC

Ignition voltage is between 11 and 16 volts.

EGR pintle position output voltage is more than 4.8 volt
and last more than 10 sec.
Action Taken When the DTC Sets

The PCM will illuminate the malfunction indicator lamp
(MIL) as soon as failure detected.
The PCM will store conditions which were present
when the DTC was set as Freeze Frame and in Failure
Records data.
Conditions for Clearing the MIL/DTC

DTC P0404 can be cleared by using Tech 2 ªClear Infoº
function or by disconnecting the PCM battery feed.
Diagnostic Aids
Check for the following conditions:

Poor connection or damaged harness ± Inspect the
wiring harness for damage. If the harness appears to
be OK, observe the EGR actual position display on
Tech 2 while moving connectors and wiring harnesses
related to EGR valve. A change in the display will
indicate the location of the fault.

6E±232
ENGINE DRIVEABILITY AND EMISSIONS
DTC P0406 ± EGR High Voltage

StepActionValue(s)Ye sNo
1Was the ªOn-Board Diagnostic (OBD) System Checkº
performed?
ÐGo to Step 2
Go to OBD
System
Check
21. Ignition ªON,º engine ªOFFº, review and record
Tech 2 Failure Records Data.
2. Operate the vehicle within Failure Records
conditions as noted.
3. Using Tech 2, monitor ªDTCº info for DTC P0406
until the DTC P0406 test runs. Note the result.
Does Tech 2 indicates DTC P0406 failed this ignition?
ÐGo to Step 3
Refer to
Diagnostic
Aids
31. Disconnect the EGR valve harness connector.
2. Inspect the EGR valve and connectors for damaged
pin or terminals.
Were there any damaged pins or terminals?
ÐGo to Step 4Go to Step 5
4Repair the damaged pin or terminal.
Is the action complete?
ÐVerify repair
Is the action
complete?
51. Disconnect the EGR harness connector.
2. Ignition ªONº.
3. At the EGR valve, use a DVM to check the voltage
at the 5 volt reference wire (RED).
Did the DVM indicate the specified value?
4±6 VGo to Step 8Go to Step 6
61. Ignition ªONº.
2. At the PCM connector, backprobe with a DVM at the
5 volt reference for the EGR valve.
Did the DVM indicate the specified value?
4±6 VGo to Step 7Go to Step 16
7Repair the open 5 volt reference circuit
Is the action complete?
ÐVerify repairÐ
81. Ignition ªOFFº
2. Disconnect the EGR harness.
3. Use a DVM to check for an resistance between D (5
V reference) and B (Sensor Ground) at EGR sensor
terminals.
NOTE: J-35616 Connector Test Adapter Kit may be
useful for gaining access to the recessed pins on the
valve.
Was there measured resistance in range?
5 to 5 K
Go to Step 9Go to Step 15
91. Ignition ªOFFº.
2. Disconnect the EGR harness.
3. Use a DVM to check for an resistance between B
and C at EGR sensor terminal.
Was there open circuit?
ÐGo to Step 15Go to Step 10
101. Ignition ªOFFº.
2. Disconnect the EGR harness at PCM connector.
3. Use a DVM to check for shorted wire between A1
and B7.
Was there shorted wire?
ÐGo to Step 14Go to Step 11
