6C±1

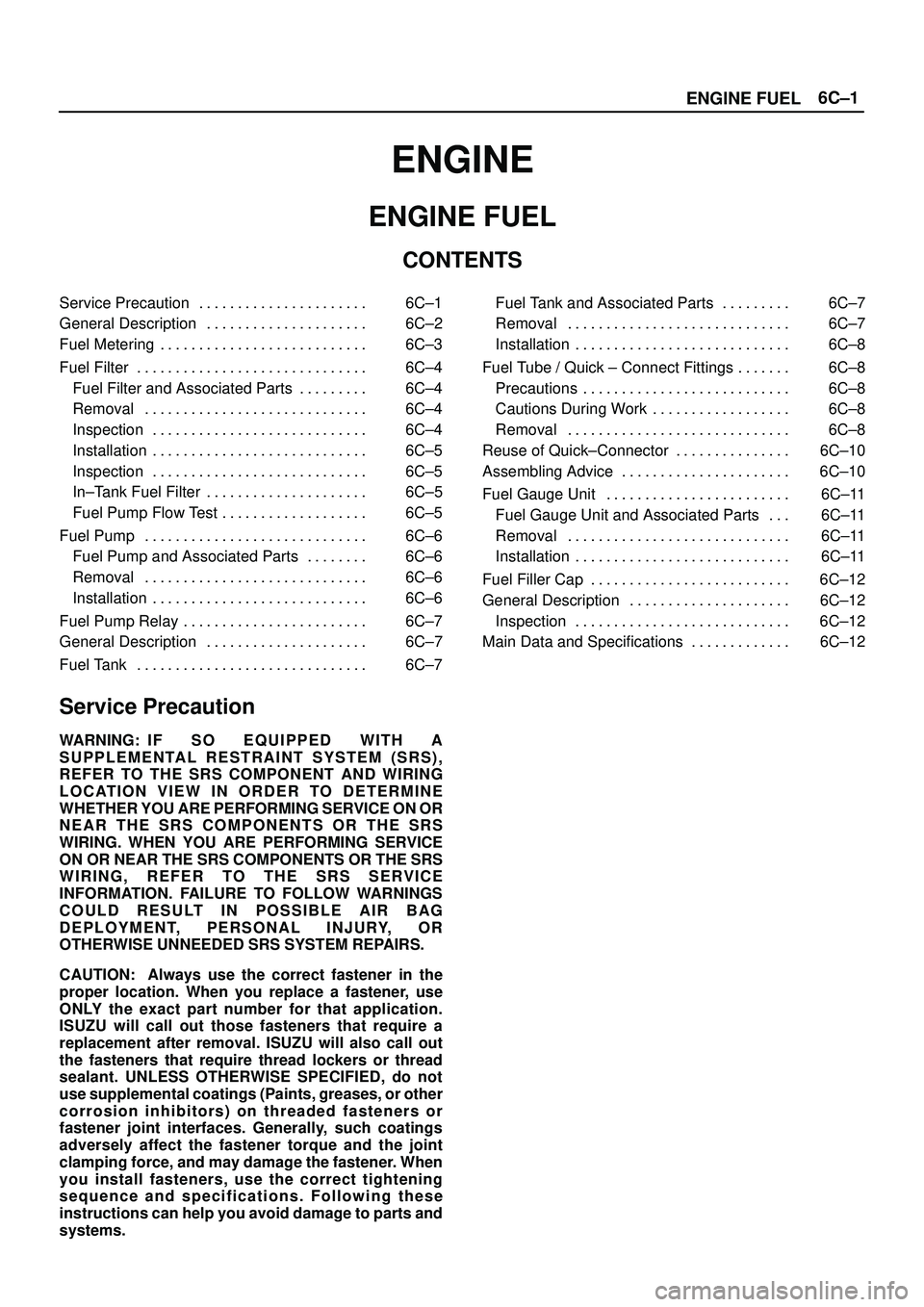

ENGINE FUEL
ENGINE
ENGINE FUEL
CONTENTS
Service Precaution 6C±1. . . . . . . . . . . . . . . . . . . . . .
General Description 6C±2. . . . . . . . . . . . . . . . . . . . .
Fuel Metering 6C±3. . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel Filter 6C±4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel Filter and Associated Parts 6C±4. . . . . . . . .
Removal 6C±4. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Inspection 6C±4. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 6C±5. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Inspection 6C±5. . . . . . . . . . . . . . . . . . . . . . . . . . . .
In±Tank Fuel Filter 6C±5. . . . . . . . . . . . . . . . . . . . .
Fuel Pump Flow Test 6C±5. . . . . . . . . . . . . . . . . . .
Fuel Pump 6C±6. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel Pump and Associated Parts 6C±6. . . . . . . .
Removal 6C±6. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 6C±6. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel Pump Relay 6C±7. . . . . . . . . . . . . . . . . . . . . . . .
General Description 6C±7. . . . . . . . . . . . . . . . . . . . .
Fuel Tank 6C±7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fuel Tank and Associated Parts 6C±7. . . . . . . . .
Removal 6C±7. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 6C±8. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel Tube / Quick ± Connect Fittings 6C±8. . . . . . .
Precautions 6C±8. . . . . . . . . . . . . . . . . . . . . . . . . . .
Cautions During Work 6C±8. . . . . . . . . . . . . . . . . .
Removal 6C±8. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Reuse of Quick±Connector 6C±10. . . . . . . . . . . . . . .
Assembling Advice 6C±10. . . . . . . . . . . . . . . . . . . . . .
Fuel Gauge Unit 6C±11. . . . . . . . . . . . . . . . . . . . . . . .
Fuel Gauge Unit and Associated Parts 6C±11. . .
Removal 6C±11. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 6C±11. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel Filler Cap 6C±12. . . . . . . . . . . . . . . . . . . . . . . . . .
General Description 6C±12. . . . . . . . . . . . . . . . . . . . .
Inspection 6C±12. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Main Data and Specifications 6C±12. . . . . . . . . . . . .
Service Precaution
WARNING: I F S O E Q U IPPED WITH A
SUPPLEMENTAL RESTRAINT SYSTEM (SRS),
REFER TO THE SRS COMPONENT AND WIRING
LOCATION VIEW IN ORDER TO DETERMINE
WHETHER YOU ARE PERFORMING SERVICE ON OR
NEAR THE SRS COMPONENTS OR THE SRS
WIRING. WHEN YOU ARE PERFORMING SERVICE
ON OR NEAR THE SRS COMPONENTS OR THE SRS
WIRING, REFER TO THE SRS SERVICE
INFORMATION. FAILURE TO FOLLOW WARNINGS
COULD RESULT IN POSSIBLE AIR BAG
DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.
CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts and
systems.

6C±5
ENGINE FUEL

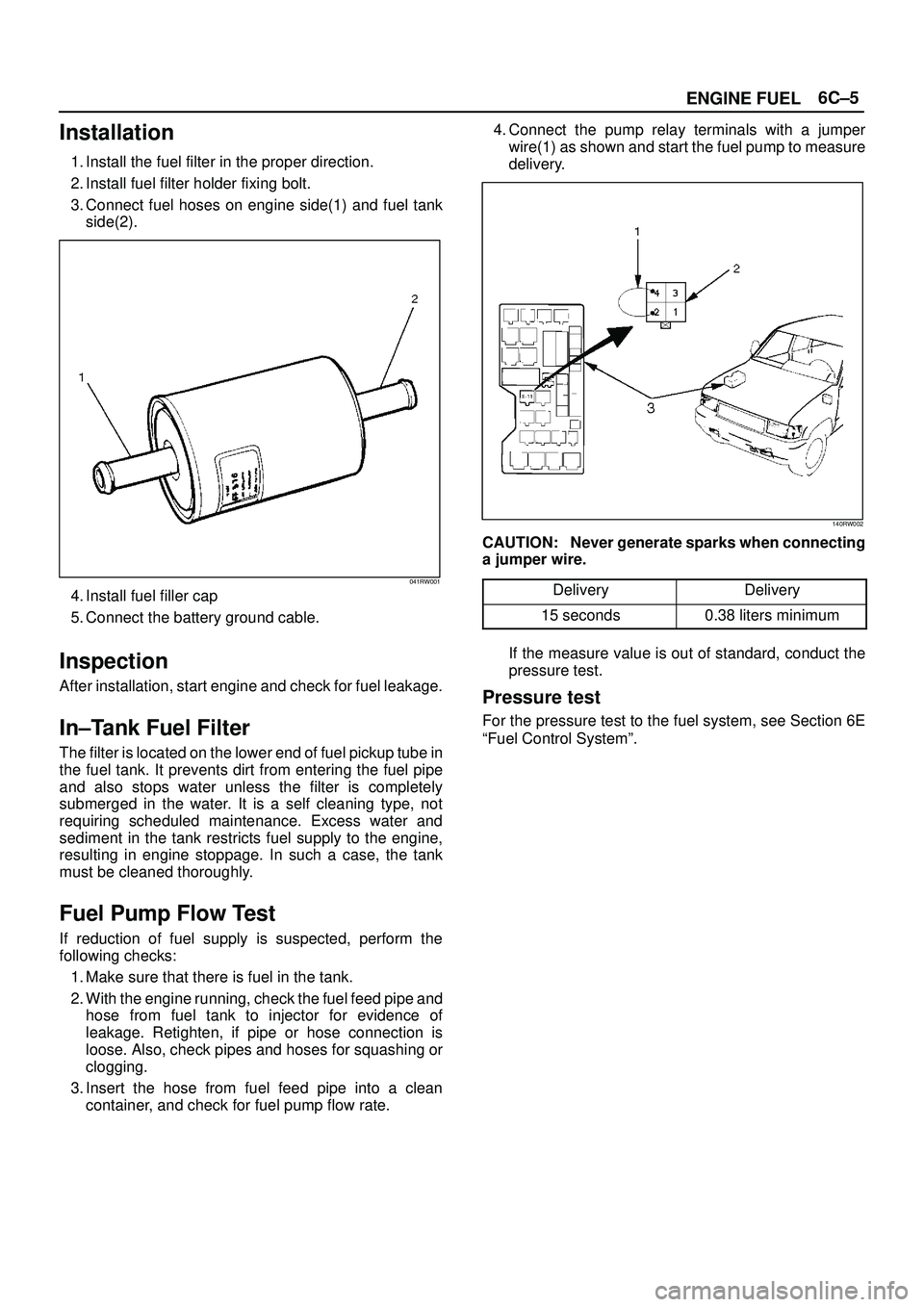

Installation
1. Install the fuel filter in the proper direction.
2. Install fuel filter holder fixing bolt.
3. Connect fuel hoses on engine side(1) and fuel tank
side(2).
041RW001
4. Install fuel filler cap
5. Connect the battery ground cable.
Inspection
After installation, start engine and check for fuel leakage.
In±Tank Fuel Filter
The filter is located on the lower end of fuel pickup tube in
the fuel tank. It prevents dirt from entering the fuel pipe
and also stops water unless the filter is completely
submerged in the water. It is a self cleaning type, not
requiring scheduled maintenance. Excess water and
sediment in the tank restricts fuel supply to the engine,
resulting in engine stoppage. In such a case, the tank
must be cleaned thoroughly.
Fuel Pump Flow Test
If reduction of fuel supply is suspected, perform the
following checks:
1. Make sure that there is fuel in the tank.
2. With the engine running, check the fuel feed pipe and
hose from fuel tank to injector for evidence of
leakage. Retighten, if pipe or hose connection is
loose. Also, check pipes and hoses for squashing or
clogging.
3. Insert the hose from fuel feed pipe into a clean
container, and check for fuel pump flow rate.4. Connect the pump relay terminals with a jumper
wire(1) as shown and start the fuel pump to measure
delivery.
140RW002
CAUTION: Never generate sparks when connecting
a jumper wire.
Delivery
Delivery
15 seconds0.38 liters minimum
If the measure value is out of standard, conduct the
pressure test.
Pressure test
For the pressure test to the fuel system, see Section 6E
ªFuel Control Systemº.

6C±7
ENGINE FUEL
Fuel Pump Relay
General Description
In order to control the FP operation, the FP relay is
provided. When the starter switch is turned to ªONº
position, the FP relay operates the FP for 2 seconds.When it is turned to ªSTARTº position, the Power Train
Control Module (PCM) receives the reference pulse from
the Ignition Control Module and it operates the relay,
again causing the FP to feed fuel.
Fuel Tank
Fuel Tank and Associated Parts
035RW048
Legend
(1) Fender Liner
(2) Fuel Filler Hose and Air Breather Hose and
Evapo Hose
(3) Undercover(4) Fuel Tank Wiring Connector
(5) Evapo Fuel Hose
(6) Fuel Feed Tube and Fuel Return
Tube/Quick±Connect Fittings
(7) Fuel Tank
Removal
CAUTION: When repair to the fuel system has been
completed, start engine and check the fuel system
for loose connection or leakage. For the fuel system
diagnosis, see Section ªDriveability and Emissionº.
1. Disconnect battery ground cable.
2. Loosen fuel filler cap.3. Drain fuel.
Tighten drain plug to the specified torque after
draining fuel.
Torque: 20 N´m (2.0 Kg´m/14 lb ft) Ð M8
4. Remove fender liner (1) of wheel well on rear right
side.
5. Fuel filler hose, air breather hose and evapo hose (2).
6. Remove undercover fixing bolts on both sides and
remove under cover(3).

6D3±2STARTING AND CHARGING SYSTEM
Starting System
General Description
Cranking Circuit
The cranking system consists of a battery, starter, starter
switch, starter relay, etc. These main components are
connected.
Starter
The cranking system employs a magnetic type reduction
starter in which the motor shaft is also used as a pinion
shaft. When the starter switch is turned on, the contacts of
magnetic switch are closed, and the armature rotates. At
the same time, the plunger is attracted, and the pinion is
pushed forward by the shift lever to mesh with the ring
gear.
Then, the ring gear runs to start the engine. When the
engine starts and the starter switch is turned off, the
plunger returns, the pinion is disengaged from the ring
gear, and the armature stops rotation. When the engine
speed is higher than the pinion, the pinion idles, so that
the armature is not driven.

6E±1 ENGINE DRIVEABILITY AND EMISSIONS
ENGINE
ENGINE DRIVEABILITY AND EMISSIONS
CONTENTS
Specifications 6E±5. . . . . . . . . . . . . . . . . . . . . . . . .
Tightening Specifications 6E±5. . . . . . . . . . . . . . .
Vehicle Type Specifications 6E±5. . . . . . . . . . . . .
Diagrams and Schematics 6E±6. . . . . . . . . . . . . . . .
PCM Wiring Diagram (1 of 11) 6E±6. . . . . . . . . . .
PCM Wiring Diagram (2 of 11) For EC,
THAILAND, SOUTH EAST ASIA, LATIN
AMERICA, GULF, SAUDI, CHINA. 6E±7. . . . . .
PCM Wiring Diagram (3 of 11) For SOUTH
AFRICA and EXP. 6E±8. . . . . . . . . . . . . . . . . . . . .
PCM Wiring Diagram (4 of 11) 6E±9. . . . . . . . . . .
PCM Wiring Diagram (5 of 11) 6E±10. . . . . . . . . . .
PCM Wiring Diagram (6 of 11) For
AUSTRALIA, THAILAND, SOUTH EAST
ASIA, LATIN AMERICA, GULF, SAUDI,
LATIN AMERICA. 6E±11. . . . . . . . . . . . . . . . . . . . .
PCM Wiring Diagram (7 of 11) For EC. 6E±12. . .
PCM Wiring Diagram (8 of 11) For EXPORT
and SOUTH AFRICA. 6E±13. . . . . . . . . . . . . . . . .
PCM Wiring Diagram (9 of 11) Except EXP
and SOUTH AFRICA 6E±14. . . . . . . . . . . . . . . . . .
PCM Wiring Diagram (10 of 11) For
EXPORT and SOUTH AFRICA 6E±15. . . . . . . . .
PCM Wiring Diagram (11 of 11) 6E±16. . . . . . . . . .
PCM Pinouts 6E±17. . . . . . . . . . . . . . . . . . . . . . . . . . .
PCM Pinout Table, 32-Way Red
Connector ± Row ªAº 6E±17. . . . . . . . . . . . . . . . . .
PCM Pinout Table, 32-Way Red
Connector ± Row ªBº 6E±19. . . . . . . . . . . . . . . . . .
PCM Pinout Table, 32-Way White
Connector ± Row ªCº (For EC) 6E±20. . . . . . . . . .
PCM Pinout Table, 32-Way White
Connector ± Row ªCº (For except EC) 6E±21. . .
PCM Pinout Table, 32-Way White
Connector ± Row ªDº
(For except EXPORT and SOUTH
AFRICA) 6E±22. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PCM Pinout Table, 32-Way White
Connector ± Row ªDº
(For EXPORT and SOUTH AFRICA) 6E±23. . . . .
PCM Pinout Table, 32-Way Blue
Connector ± Row ªEº
(For except EXPORT and SOUTH
AFRICA) 6E±24. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PCM Pinout Table, 32-Way Blue
Connector ± Row ªEº
(For EXPORT and SOUTH AFRICA) 6E±26. . . . .
PCM Pinout Table, 32-Way Blue
Connector ± Row ªFº 6E±27. . . . . . . . . . . . . . . . . .
Component Locators 6E±28. . . . . . . . . . . . . . . . . . . .
Engine Component Locator (This illustration
is based on RHD model.) 6E±28. . . . . . . . . . . . . . Engine Component Locator Table 6E±29. . . . . . . .
Engine Component Locator Table 6E±31. . . . . . . .
Undercarriage Component Locator 6E±32. . . . . .
Undercarriage Component Locator Table
(Automatic Transmission) 6E±32. . . . . . . . . . . . . .
Undercarriage Component Locator Table
(Manual Transmission) 6E±33. . . . . . . . . . . . . . . .
Fuse and Relay Panel (Underhood
Electrical Center) 6E±33. . . . . . . . . . . . . . . . . . . . .
Sensors and Miscellaneous Component
Locators 6E±34. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Diagnosis 6E±37. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Strategy-Based Diagnostics 6E±37. . . . . . . . . . . . .
Strategy-Based Diagnostics 6E±37. . . . . . . . . . . . .
DTC Stored 6E±37. . . . . . . . . . . . . . . . . . . . . . . . . . .
No DTC 6E±37. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
No Matching Symptom 6E±37. . . . . . . . . . . . . . . . .
Intermittents 6E±37. . . . . . . . . . . . . . . . . . . . . . . . . .
No Trouble Found 6E±37. . . . . . . . . . . . . . . . . . . . .
Verifying Vehicle Repair 6E±37. . . . . . . . . . . . . . . .
General Service Information 6E±38. . . . . . . . . . . . . .
OBD Serviceablity Issues 6E±38. . . . . . . . . . . . . . .
Maintenance Schedule 6E±38. . . . . . . . . . . . . . . . .
Visual / Physical Engine Compartment
Inspection 6E±38. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Basic Knowledge of Tools Required 6E±38. . . . . .
Serial Data Communications 6E±38. . . . . . . . . . . . . .
Class II Serial Data Communications 6E±38. . . . .
On-Board Diagnostic (OBD) 6E±39. . . . . . . . . . . . . .
On-Board Diagnostic Tests 6E±39. . . . . . . . . . . . .
Comprehensive Component Monitor
Diagnostic Operation 6E±39. . . . . . . . . . . . . . . . . .
Common OBD Terms 6E±40. . . . . . . . . . . . . . . . . .
The Diagnostic Executive 6E±40. . . . . . . . . . . . . . .
DTC Types 6E±41. . . . . . . . . . . . . . . . . . . . . . . . . . .
Verifying Vehicle Repair 6E±42. . . . . . . . . . . . . . . .
Reading Diagnostic Trouble Codes Using
A Tech 2 6E±42. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tech 2 Tech 2 6E±43. . . . . . . . . . . . . . . . . . . . . . . . .
Tech 2 Features 6E±43. . . . . . . . . . . . . . . . . . . . . . .
Getting Started 6E±44. . . . . . . . . . . . . . . . . . . . . . . .
Operating Procedure (For Example) 6E±44. . . . .
DTC Modes 6E±45. . . . . . . . . . . . . . . . . . . . . . . . . . .
DTC Information Mode 6E±46. . . . . . . . . . . . . . . . .
Injector Balance Test 6E±46. . . . . . . . . . . . . . . . . . .
EGR Control Test 6E±47. . . . . . . . . . . . . . . . . . . . . .
Idle Air Control System Test 6E±48. . . . . . . . . . . . .

6E±3 ENGINE DRIVEABILITY AND EMISSIONS
Diagnostic Trouble Code (DTC) P0351
Ignition 1 Control Circuit 6E±206. . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0352
Ignition 2 Control Circuit 6E±209. . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0353
Ignition 3 Control Circuit 6E±212. . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0354
Ignition 4 Control Circuit 6E±215. . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0355
Ignition 5 Control Circuit 6E±218. . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0356
Ignition 6 Control Circuit 6E±221. . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0402
EGR Pintle Crank Error 6E±224. . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0404
EGR Open Stuck 6E±226. . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0405
EGR Low Voltage 6E±228. . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0406
EGR High Voltage 6E±231. . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0502
VSS Circuit Low Input 6E±234. . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0562
System Voltage Low 6E±237. . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0563
System Voltage High 6E±239. . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0601
PCM Memory 6E±240. . . . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P1154
HO2S Circuit Transition Time Ratio Bank 2
Sensor 1 6E±241. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P1171
Fuel System Lean During Acceleration 6E±245. . . .
Diagnostic Trouble Code (DTC) P1380
ABS Rough Road ABS System Fault 6E±248. . . . . .
Diagnostic Trouble Code (DTC) P1404
EGR Closed Stuck 6E±249. . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P1508
IAC System Low RPM 6E±251. . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P1509
IAC System High RPM 6E±254. . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P1618
Serial Peripheral Interface (SPI) PCM
Interprocessor Communication Error 6E±257. . . . . .
Diagnostic Trouble Code (DTC) P1625
PCM Unexpected Reset 6E±258. . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P1640
Driver-1-Input High Voltage 6E±259. . . . . . . . . . . . . .
Symptom Diagnosis 6E±262. . . . . . . . . . . . . . . . . . . . .
Default Matrix Table 6E±288. . . . . . . . . . . . . . . . . . . . .
Camshaft Position (CMP) Sensor 6E±291. . . . . . . . . .
Crankshaft Position (CKP) Sensor 6E±292. . . . . . . . .
Engine Coolant Temperature (ECT) Sensor 6E±292.
Heated Oxygen Sensor (HO2S) 6E±293. . . . . . . . . . .
Intake Air Temperature (IAT) Sensor 6E±295. . . . . . .
Knock Sensor (KS) 6E±296. . . . . . . . . . . . . . . . . . . . . . Mass Air Flow (MAF) Sensor 6E±297. . . . . . . . . . . . .
Manifold Absolute Pressure (MAP) Sensor 6E±297.
Malfunction Indicator Lamp (MIL) 6E±298. . . . . . . . . .
Powertrain Control Module (PCM) 6E±298. . . . . . . . .
EEPROM 6E±300. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power Steering Pressure (PSP) Switch 6E±300. . . .
Throttle Position (TP) Sensor 6E±301. . . . . . . . . . . . .
Vehicle Speed Sensor (VSS) 6E±302. . . . . . . . . . . . .
Air Cleaner/Air Filter 6E±303. . . . . . . . . . . . . . . . . . . . .
Idle Air Control (IAC) Valve 6E±304. . . . . . . . . . . . . . .
Common Chamber 6E±305. . . . . . . . . . . . . . . . . . . . . .
Accelerator Cable Assembly 6E±305. . . . . . . . . . . . . .
Accelerator Pedal Replacement 6E±308. . . . . . . . . . .
Fuel Filter Cap 6E±310. . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel Filter 6E±310. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel Gauge Unit 6E±313. . . . . . . . . . . . . . . . . . . . . . . .
Fuel Injectors 6E±314. . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel Pressure Regulator 6E±315. . . . . . . . . . . . . . . . .
Fuel Metering System 6E±317. . . . . . . . . . . . . . . . . . . .
Fuel Pump Assembly 6E±318. . . . . . . . . . . . . . . . . . . .
Fuel Pump Relay 6E±319. . . . . . . . . . . . . . . . . . . . . . . .
Fuel Rail Assembly 6E±319. . . . . . . . . . . . . . . . . . . . . .
Fuel Tank 6E±321. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Throttle Body (TB) 6E±323. . . . . . . . . . . . . . . . . . . . . . .
Electronic Ignition System 6E±324. . . . . . . . . . . . . . . .
Catalytic Converter 6E±325. . . . . . . . . . . . . . . . . . . . . .
Air Conditioning Relay 6E±325. . . . . . . . . . . . . . . . . . .
EVAP Canister Hoses 6E±326. . . . . . . . . . . . . . . . . . . .
EVAP Canister 6E±326. . . . . . . . . . . . . . . . . . . . . . . . . .
EVAP Canister Purge Solenoid 6E±327. . . . . . . . . . . .
Fuel Tank Vent Valve 6E±328. . . . . . . . . . . . . . . . . . . .
Linear Exhaust Gas Recirculation
(EGR) Valve 6E±328. . . . . . . . . . . . . . . . . . . . . . . . . . .
Positive Crankcase Ventilation (PCV) Valve 6E±329.
Wiring and Connectors 6E±330. . . . . . . . . . . . . . . . . . .
PCM Connectors and Terminals 6E±330. . . . . . . . . . .
Wire Harness Repair: Twisted Shielded
Cable 6E±330. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Twisted Leads 6E±331. . . . . . . . . . . . . . . . . . . . . . . . . .
Weather-Pack Connector 6E±332. . . . . . . . . . . . . . . . .
Com-Pack III 6E±333. . . . . . . . . . . . . . . . . . . . . . . . . . .
Metri-Pack 6E±333. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
General Description 6E±335. . . . . . . . . . . . . . . . . . . . .
General Description (PCM and Sensors) 6E±335. . .
58X Reference PCM Input 6E±335. . . . . . . . . . . . . .
A/C Request Signal 6E±335. . . . . . . . . . . . . . . . . . . .
Crankshaft Position (CKP) Sensor 6E±335. . . . . . .
Camshaft Position (CMP) Sensor and
Signal 6E±335. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine Coolant Temperature (ECT) Sensor 6E±335
Electrically Erasable Programmable Read
Only Memory (EEPROM) 6E±336. . . . . . . . . . . . . .
Fuel Control Heated Oxygen Sensors 6E±336. . . .
Intake Air Temperature (IAT) Sensor 6E±336. . . . .

6E±24
ENGINE DRIVEABILITY AND EMISSIONS
PCM Pinout Table, 32-Way Blue Connector ± Row ªEº
(For except EXPORT and SOUTH AFRICA)
TS23346
PINPIN FunctionWire ColorIGN ONENG RUNRefer To
E1Transmission Output Shaft
Sensor (TOSS) HighRED0.0 V0.1 VAutomatic Transmission
(4L30E)
E2Transmission Output Shaft
Sensor (TOSS) LowWHT0.0 V0.0 VAutomatic Transmission
(4L30E)
E3Pressure Control Solenoid
LowPPL/RED0.0 V1.1 VAutomatic Transmission
(4L30E)
E4Pressure Control Solenoid
HighPPL/WHT0.0 V4.9 VAutomatic Transmission
(4L30E)
E5Exhaust Gas Recirculation
(EGR) Control HighBLK/YELB+B+General Description and
Operation, EGR Control
E6Exhaust Gas Recirculation
(EGR) Control LowYELB+B+General Description and
Operation, EGR Control
E7Transmission Range
Signal ªBºBLU/YEL0.0 V0.0 VAutomatic Transmission
(4L30E)
E8Throttle Position (TP)
SensorBLU0.5-0.8 V0.5-0.8 V
(at idle)General Description and
Operation, Throttle Position
Sensor
E9Engine Coolant
Temperature (ECT)
SensorBLU/RED0.5-4.9 V
(depends on
temperature)0.5-4.9 V
(depends on
temperature)General Description and
Operation, Engine Coolant
Temperature (ECT) Sensor
E10Not UsedÐÐÐÐ
E11Crankshaft Position (CKP)
Sensor +5 Volt ReferenceYEL/RED5.0 V or less
than 1.0 V5.0 VGeneral Description and
Operation, Crankshaft
Position Sensor
E12Transmission Range
Signal ªAºBLU/WHTB+B+Automatic Transmission
(4L30E)
E13Fuel Pump (FP) RelayRED/WHT0.0 VB+On-Vehicle Service, Fuel
Pump Relay
E14Shift High (BAND APPLY)BRN/WHTB+B+Automatic Transmission
(4L30E)

6E±26
ENGINE DRIVEABILITY AND EMISSIONS
PCM Pinout Table, 32-Way Blue Connector ± Row ªEº
(For EXPORT and SOUTH AFRICA)
TS23346
PINPIN FunctionWire ColorIGN ONENG RUNRefer To
E1Transmission Output Shaft
Sensor (TOSS) HighRED0.0 V0.1 VAutomatic Transmission
(4L30E)
E2Transmission Output Shaft
Sensor (TOSS) LowWHT0.0 V0.0 VAutomatic Transmission
(4L30E)
E3Pressure Control Solenoid
LowPPL/RED0.0 V1.1 VAutomatic Transmission
(4L30E)
E4Pressure Control Solenoid
HighPPL/WHT0.0 V4.9 VAutomatic Transmission
(4L30E)
E5Not UsedÐÐÐÐ
E6Not UsedÐÐÐÐ
E7Transmission Range
Signal ªBºBLU/YEL0.0 V0.0 VAutomatic Transmission
(4L30E)
E8Throttle Position (TP)
SensorBLU0.5-0.8 V0.5-0.8 V
(at idle)General Description and
Operation, Throttle Position
Sensor
E9Engine Coolant
Temperature (ECT)
SensorBLU/RED0.5-4.9 V
(depends on
temperature)0.5-4.9 V
(depends on
temperature)General Description and
Operation, Engine Coolant
Temperature (ECT) Sensor
E10Not UsedÐÐÐÐ
E11Crankshaft Position (CKP)
Sensor +5 Volt ReferenceYEL/RED5.0 V or less
than 1.0 V5.0 VGeneral Description and
Operation, Crankshaft
Position Sensor
E12Transmission Range
Signal ªAºBLU/WHTB+B+Automatic Transmission
(4L30E)
E13Fuel Pump (FP) RelayRED/WHT0.0 VB+On-Vehicle Service, Fuel
Pump Relay
E14Shift High (BAND APPLY)BRN/WHTB+B+Automatic Transmission
(4L30E)
E15A/C RequestGRN/ORN0.0 V0.0 VElectric Cooling Fans
E16Ignition Feed (1 of 2 F16)RED/BLUB+B+Ð
