1998 HONDA ODYSSEY light

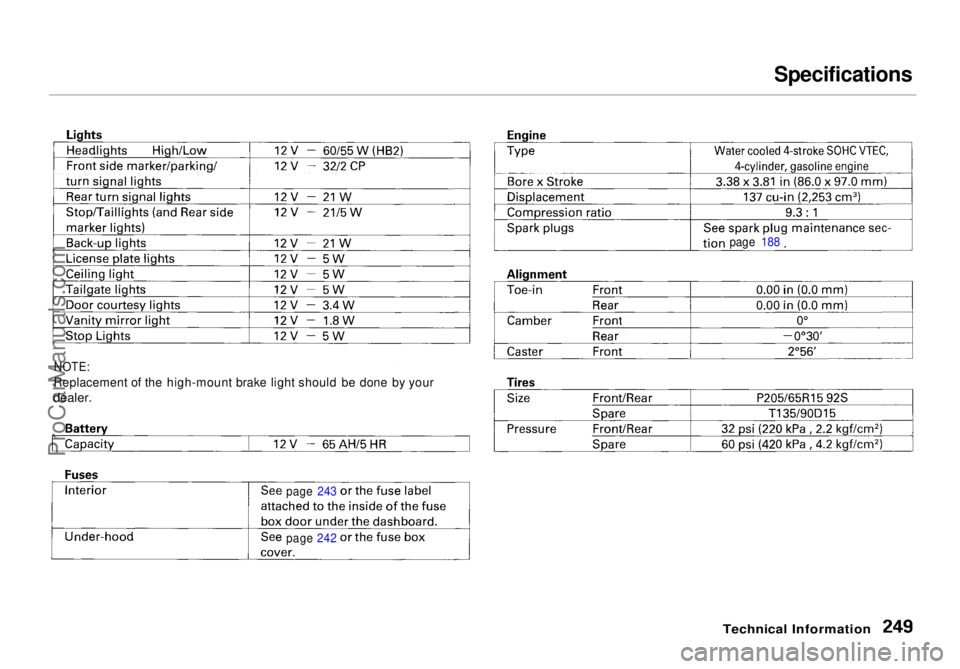

Specifications

Technical Information

NOTE:

Replacement of the high-mount brake light should be done by your

dealer.

page 243
page 242 page 188ProCarManuals.comMain Menu Table of Contents s t

Emissions Controls

The burning of gasoline in your vehicle's engine produces several by-products. Some of these are carbon
monoxide (CO), oxides of nitrogen (NOx) and hydrocarbons (HC).
Gasoline evaporating from the tank
also produces hydrocarbons. Con-
trolling the production of NOx, CO, and HC is important to the environ-
ment. Under certain conditions of sunlight and climate, NOx and HC
react to form photochemical "smog." Carbon monoxide does not contri-
bute to smog creation, but it is a
poisonous gas. The Clean Air Act
The United States Clean Air Act* sets standards for automobile
emissions. It also requires that
automobile manufacturers explain to
owners how their emissions controls
work and what to do to maintain them. This section summarizes how
the emissions controls work.Scheduled maintenance is on page
164.

* In Canada, Honda vehicles comply
with the Canadian Motor Vehicle Safety Standards (CMVSS) for
Emissions valid at the time they are

manufactured.
Crankcase Emissions Control

System

Your vehicle has a Positive Crankcase Ventilation System. This
keeps gasses that build up in the engine's crankcase from going into
the atmosphere. The Positive Crank- case Ventilation valve routes them
from the crankcase back to the intake manifold. They are thendrawn into the engine and burned.
Evaporative Emissions Control
System
As gasoline evaporates in the fuel tank, an evaporative emissionscontrol canister filled with charcoal
adsorbs the vapor. It is stored in this
canister while the engine is off. After
the engine is started and warmed up,
the vapor is drawn into the engine and burned during driving.

Technical InformationProCarManuals.comMain Menu Table of Contents s t

Index

Accessories and Modifications.... 134 Accessories................................. 134
Additional Safety Precaution.... 135Modifications............................. 135
ACCESSORY (Ignition Key
Position)........................................ 70

Adding Automatic Transmission

Fluid........................................ 177

Brake Fluid................................. 183
Engine Coolant........................... 177

Engine Oil................................... 173

Power Steering Fluid................. 184
Windshield Washer Fluid......... 181
Additional Information About
Your Seat Belts........................ 41
Lap Belt......................................... 42
Lap/Shoulder Belt....................... 41
Seat Belt Maintenance................ 42
Seat Belt System Components... 41
Additional Information About
Your SRS.................................. 42
Additional Safety Precautions.... 46 How Your Airbags Work............ 44
How Your SRS Indicator

Works........................................ 46

SRS Components......................... 44

Additives, Engine Oil..................... 175

Adjustments
Mirrors.......................................... 84

Head Restraints........................... 76

Seats.............................................. 74

Steering Wheel............................ 62

Airbag (SRS) ...................................... 7

Air Cleaner Element...................... 185

Air Conditioning............................... 94
Maintenance............................... 194

Usage............................................. 94

Air Outlets (Vents).......................... 96
Air Pressure, Tires........................ 196
Alcohol in Gasoline........................ 128
Antifreeze....................................... 177
Anti-lock Brakes (ABS) Indicator Light..................... 53, 149Operation.................................... 148
Anti-theft Steering Column Lock.. 70
Appearance Care........................... 213
Ashtray.............................................. 89
Audio System................................. 103
Automatic Speed Control................ 64
Automatic Transmission............... 142

Capacity, Fluid........................... 248

Checking Fluid Level................ 182

Shifting........................................ 142

Shift Lever Positions................. 142

Shift Position Indicator............. 142

Shift Lock Release..................... 145

Battery
Charging System
Indicator............................ 52, 235

Jump Starting............................. 230
Maintenance............................... 189

Specifications............................. 249

Before Driving............................... 127

Belts, Seat........................................... 6

Beverage Holder.............................. 86
Body Repair.................................... 219

CONTINUEDProCarManuals.comMain Menu s t

Index

Brakes Anti-lock System (ABS)............ 148
Break-in, New Linings .............. 128

Fluid............................................ 183

Light, Burned-out...................... 196
Parking.......................................... 85
System Indicator.......................... 52
Wear Indicators......................... 147
Brakes, ABS Operation.................................... 148
System Indicator.................. 53, 149
Braking System.............................. 147
Break-in, New Car......................... 128
Brightness Control, Instruments... 59
Brights, Headlights......................... 58
Bulb Replacement Back-up Lights........................... 208
Brake Lights............................... 208
Ceiling Light............................... 210
Front Parking Lights................. 207
Front Side Marker Lights......... 207
Headlights.................................. 206
License Plate Lights.................. 209
Specifications............................. 249
Turn Signal Lights..................... 207
Bulbs, Halogen............................... 206 Cables, Jump Starting With.......... 231
Capacities Chart............................. 248
Carbon Monoxide Hazard.............. 47
Carrying Cargo.............................. 137
Cassette Player Care............................................. 121
Operation............................ 107, 119
CAUTION, Explanation of............... ii
CD Player ............................... 110, 122
Center Pocket.................................. 88
Certification Label......................... 246
Chains............................................. 201
Change Oil
How to......................................... 175

When to....................................... 164

Changing a Flat Tire..................... 223
Changing Engine Coolant............. 179
Charging System Indicator.... 52, 235
Checking Automatic Transmission

Fluid........................................ 182

Battery Condition...................... 189
Brake Fluid................................. 183
Drive Belts.................................. 195
Engine Coolant........................... 132

Engine Oil................................... 131
Fuses........................................... 240
Power Steering Fluid................. 184
Checklist, Before Driving............. 140
Childproof Door Locks................... 72

Cigarette Lighter............................. 89

Cleaner, Air.................................... 185

Cleaning
Aluminum Wheels..................... 215
Carpeting.................................... 216

Exterior....................................... 214

Fabric.......................................... 216

Interior........................................ 216

Seat Belts.................................... 217
Vinyl............................................ 216

Window....................................... 217

CLEAN Light................................. 121

Clock, Setting the ............................ 86

CO in the Exhaust......................... 255

Cold Weather, Starting in............. 141
Compact Spare............................... 222
Consumer Information*................ 260
Controls, Instruments and.............. 49ProCarManuals.comMain Menu s t

Index

Coolant
Adding......................................... 177

Checking..................................... 132

Proper Solution.......................... 177

Temperature Gauge.................... 55

Corrosion Protection..................... 218

Crankcase Emission Control
System......................................... 255

Cruise Control Operation............... 64

Customer Relations Office........... 251

DANGER, Explanation of................. ii
Dashboard........................................ 50 Dashboard Compartment............... 88
Daytime Running Lights................. 58
Dead Battery, What to Do............ 230 Defects, Reporting Safety............. 264
Defogger, Rear Window................. 61
Defrosting the Windows................. 99
DEXRON ®
III Automatic
Transmission Fluid.................... 182
Dimensions..................................... 248
Dimming the Headlights................ 58 Dipstick
Automatic Transmission........... 182
Engine Oil................................... 131
Directional Signals........................... 59

Disabled, Towing Your Car If...... 244

Disc Brake Wear Indicators......... 147
Disposal of Used Oil...................... 176
Doors Locking and Unlocking............... 70
Power Door Locks....................... 70
DOT Tire Quality Grading........... 251
Driver and Passenger Safety............ 3
Drive Belts...................................... 195
Driving............................................ 139 Economy..................................... 133
In Bad Weather.......................... 148
In Foreign Countries................. 254

Economy, Fuel............................... 133

Emergencies on the Road............. 221
Battery, Jump Starting.............. 230

Brake System Indicator............ 237

Changing a Flat Tire................. 223

Chargilng System Indicator ...... 235 Checking the Fuses................... 240
Low Oil Pressure Indicator...... 234
Malfunction Indicator Lamp.... 236
Manually Closing Sunroof........ 238
Overheated Engine................... 232
Emergency Brake............................ 85
Emergency Flashers....................... 61
Emission Controls......................... 255
Engine Belts............................................. 195
Coolant Temperature Gauge ..... 56
Malfunction IndicatorLamp................................. 32, 236
Oil Pressure Indicator......... 32, 234
Oil, What Kind to Use............... 173 Overheating................................ 232
Specifications............................. 249
Ethanolin Gasoline....................... 254 Evaporative Emission Controls.... 255
Exhaust Fumes................................ 47
Expectant Mothers, Use of Seat Belts by......................................... 17
Exterior, Cleaning the................... 214

CONTINUEDProCarManuals.comMain Menu s t

Index

Fabric, Cleaning............................. 216

Fan, Interior...................................... 94

Features, Comfort and Convenience................................. 93
Filling the Fuel Tank..................... 129
Filter
Air................................................ 185

Oil................................................ 175

First Gear Position......................... 144
Flashers, Hazard Warning.............. 61
Flat Tire, Changing a.................... 223

Fluids
Automatic Transmission........... 182
Brake........................................... 183
Power Steering........................... 184
Windshield Washer................... 181
FM Stereo Radio Reception.................................... 117
Folding the Second Seats ............... 78
Folding the Third Seats.................. 80
Foreign Countries, Driving in...... 254
Four-way Flashers........................... 61
Front End, Towing by Emergency
Wrecker...................................... 244
Fuel.................................................. 128

Fill Door and Cap....................... 129
Gauge............................................ 56

Octane Requirement................. 128

Oxygenated................................ 128

Tank, Filling the......................... 129

Fuses, Checking the...................... 240

Gas Mileage, Improving................ 133

Gasohol........................................... 128
Gasoline.......................................... 128

Gauge............................................ 56

Octane Requirement................. 128

Tank, Filling the......................... 129

Gas Station Procedures................. 129

Gauges
Engine Coolant Temperature .... 56

Fuel................................................ 56

Gearshift Lever Positions............. 142
Glass Cleaning............................... 217
Glove Box......................................... 73 Halogen Headlight Bulbs.............. 206
Hazard Warning Flashers............... 61
Headlights......................................... 58
Aiming......................................... 202Daytime Running Lights............. 58
High Beam Indicator................... 54
High Beams, Turning on............ 58
Low Beams, Turning on............. 58
Reminder Chime.......................... 58
Replacing Halogen Bulbs ......... 206

Turning on.................................... 58

Head Restraints............................... 76 Heating and Cooling........................ 94
High Altitude, Starting at.............. 141 High-Low Beam Switch .................. 58
Hood, Opening the ........................ 130 Horn................................................... 57
Hot Coolant, Warning about........ 177 Hydroplaning.................................. 151

Identification Number, Vehicle.... 246

If Your Car Has to be Towed....... 244ProCarManuals.comMain Menu s t

Index

Ignition
Keys............................................... 67

Switch............................................ 69
Timing Control System............. 256
Important Safety Precautions .......... 4
Indicator Lights, Instrument Panel.............................................. 51
Infant Restraint................................ 27
Inflation, Proper Tire .................... 196
Inside Mirror.................................... 84
Inspection, Tire.............................. 198
Instrument Panel............................. 51
Instrument Panel Brightness......... 59
Interior Cleaning............................ 216
Interior Lights.................................. 90 Introduction......................................... i

Jacking up the Car......................... 225

Jack, Tire........................................ 223

Jump Starting................................. 230

Keys................................................... 67
Label, Certification........................ 246

Lane Change, Signaling.................. 59

Lap Belt............................................. 42

Lap/Shoulder Belts......................... 41
Leaking of Exhaust into Car.......... 47
Lighter, Cigarette............................ 89
Lights
Headlight Aiming...................... 204
Bulb Replacement..................... 206
Indicator........................................ 51

Parking.......................................... 58

Turn Signal................................... 59

LOCK (Ignition Key Position)....... 70

Locks
Anti-theft Steering Column........ 50Fuel Fill Door............................. 129
Glove Box..................................... 73
Power Door................................... 70

Tailgate ...................................... 72

Low Coolant Level......................... 177
Lo
w Oil
Pressure Indicator.... 50, 234
Lubricant Specifications Chart.... 248

Luggage.......................................... 137
Maintenance..................................

. 159

Owner Maintenance Checks.... 171

Record.................................. 169- 170

Required Indicator......................
. 56

Safety........................................... 160

Schedule.............................. 164- 168

Malfunction Indicato

r Lamp.. 52, 236

Maximum Allowable Speeds........ 145

Meters, Gauges................................ 55

Methanol in Gasoline.................... 253

Mirrors, Adjusting........................... 84

Neutral Gear Position.................... 144

New Vehicle Break-in ................... 128

NOTICE, Explanation of................... ii

Numbers, Identification................ 246

CONTINUED
ProCarManuals.comMain Menu s t

Index

Octane Requirement, Gasoline.... 128
Odometer.......................................... 55

Odometer, Trip................................ 54

Oil Change, How to ......................... 175

Change, When to....................... 164
Checking Engine....................... 131
Pressure Indicator............... 52, 234
Selecting Proper Viscosity
Chart....................................... 174
ON (Ignition Key Position)............ 70

Opening the Hood......................... 130

Operation in Foreign Countries... 254
Outside Mirrors............................... 84

Overheating, Engine..................... 232

Owner Maintenance Checks........ 171
Panel Brightness Control............... 59
Park Gear Position......................... 143
Parking............................................ 146

Parking Brake.................................. 85

Parking Lights.................................. 58
Parking Over Things that Burn... 257
PGM-FI System.............................. 256
Polishing and Waxing................... 215

Power

Door Locks................................... 70

Mirrors.......................................... 84

Steering....................................... 184
Windows....................................... 82
Pre-Drive Safety Checklist............... 9
Pregnancy, Using Seat Belts.......... 17
Protecting Adults............................. 10
Additional Safety Precautions.... 17
Advice for Pregnant Women...... 17
Protecting Children......................... 19 Protecting Infants........................ 27
Protecting Larger Children........ 35
Protecting Small Children.......... 31
Using Child Seats withTethers...................................... 38

Radiator Overheating.................... 232
Radio/Cassette Sound System .... 103
Rear A/C Unit................................ 102

Rear End Towing........................... 244
Rear Lights, Bulb Replacement... 208
Rear View Mirror............................. 84
Rear Window Defogger.................. 62
Rear Window Wiper and Washer.. 61
Reclining the Seat Backs................ 75
Reclining the Second Seats............ 79 Reminder Lights.............................. 51
Remote Transmitter........................ 71 Removing the Second Seats........... 78
Replacement Information Air Cleaner Element.................. 185
Coolant........................................ 179
Engine Oil and Filter................. 175
Fuses........................................... 240
Light Bulbs................................. 206
Schedule..................................... 162
Spark Plugs................................. 187
Timing Belt................................. 195
Tires............................................ 199
Wiper Blades.............................. 191
Replacing Seat Belts After a Crash............................................. 43
Reserve Tank, Coolant.................. 132 Restraint, Child................................ 19
Reverse Gear Position................... 143
Rotation, Tire................................. 199ProCarManuals.comMain Menu s t
