Instruments and Controls

This section gives information about
the controls and displays thatcontribute to the daily operation of

your Honda. All the essential
controls are within easy reach.

Control Locations............................ 50

Indicator Lights................................ 51

Gauges.............................................. 54
Tachometer.................................. 54

Trip Meter.................................... 54
Speedometer................................ 55

Odometer...................................... 55

Temperature Gauge.................... 55
Fuel Gauge................................... 55

Maintenance Required
Indicator.................................... 56

Controls Near the Steering

Wheel........................................ 57

Headlights.................................... 58
Daytime Running Lights............. 58
Instrument Panel Brightness..... 59
Turn Signals................................. 59

Windshield Wipers...................... 60

Windshield Washers................... 61

Rear Window Wiper and
Washer...................................... 61

Hazard Warning........................... 61

Rear Window Defogger.............. 62

Steering Wheel Adjustment....... 62

Steering Wheel Controls ................ 64
Cruise Control.............................. 64

Keys and Locks................................ 67
Keys............................................... 67

Immobilizer System..................... 68

Ignition Switch............................. 69

Power Door Locks....................... 70
Remote Transmitter.................... 71

Childproof Door Locks............... 72

Tailgate......................................... 72

Glove Box..................................... 73

Seats.................................................. 74
Passenger Seating....................... 74

Seat Adjustments......................... 74

Driver's Seat Power Height
Adjustment............................... 75

Armrests....................................... 76
Head Restraints........................... 76
Third Seat Access........................ 77

Removing the Second Seats
in the Six-Passenger Model.... 78

Folding the Second Seats
in the Seven-Passenger

Model.................................... 78

Reclining the Second Seat.......... 79
Folding the Third Seat
in All Models............................ 80

Power Windows............................... 82

Sunroof.............................................. 83

Mirrors.............................................. 84
Adjusting the Power Mirrors..... 84

Parking Brake.................................. 85

Digital Clock..................................... 86 Beverage Holder.............................. 86
Dashboard Compartment............... 88
Center Pocket.................................. 88
Vanity Mirror................................... 88
Cigarette Lighter............................. 89
Ashtrays............................................ 89 Interior Lights.................................. 90
Ceiling Lights............................... 90

Spotlights...................................... 90

Tailgate Light............................... 91 Courtesy Lights........................... 91

Instruments and ControlsProCarManuals.comMain Menu s t

Indicator Lights
The instrument panel has many indicators to give you important
information about your vehicle.
Lamp Check

These indicator lights come on when you turn the ignition switch ON (II), allowing you to see that they are

working:
SRS Indicator

Malfunction Indicator Lamp
Charging System Indicator
Low Oil Pressure Indicator
Anti-lock Brake System Indicator
Seat Belt Reminder Light

D4 Lamp

Door and Brake Lamp Monitor
Immobilizer System Indicator
If an indicator does not light during
this test, it cannot alert you if that system develops a problem. Have the
dealer check your vehicle for
burned-out bulbs or other problems.
* The U.S. instrument panel is shown. Differences for the Canadian model
are noted in the text.

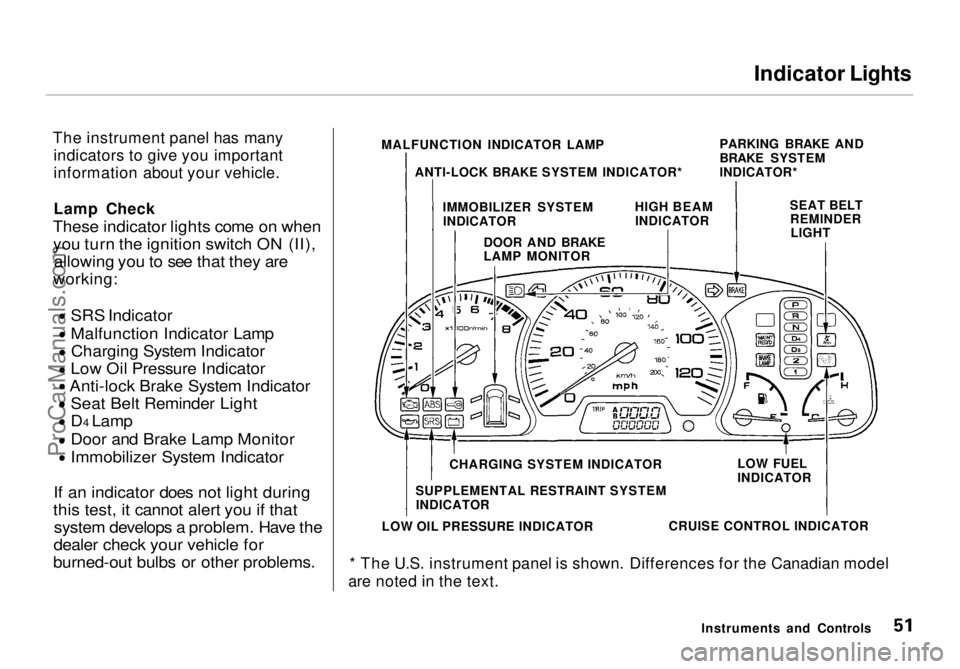

Instruments and Controls
MALFUNCTION INDICATOR LAMP
ANTI-LOCK BRAKE SYSTEM INDICATOR* PARKING BRAKE AND
BRAKE SYSTEM
INDICATOR*
IMMOBILIZER SYSTEM INDICATOR HIGH BEAM
INDICATOR SEAT BELT
REMINDERLIGHT
DOOR AND BRAKE
LAMP MONITOR
CHARGING SYSTEM INDICATOR
SUPPLEMENTAL RESTRAINT SYSTEM INDICATOR
LOW OIL PRESSURE INDICATOR CRUISE CONTROL INDICATORLOW FUEL
INDICATORProCarManuals.comMain Menu Table of Contents s t

Indicator Lights, Gauges

"Daytime Running
Lights" Indicator

Canadian models only

This indicator lights when you turn the ignition switch to ON (II) with
the headlight switch off and the
parking brake set. It should go off if
you turn on the headlights or release
the parking brake. If it comes on at any other time, it means there is a
problem with the DRL. There may also be a problem with the high
beam headlights.
Cruise Control Indicator
This lights when you set the cruise control. See page 64 for informationon operating the cruise control. High Beam Indicator
This light comes on with the high beam headlights. See page 40 for
information on the headlightcontrols.
On Canadian models, this indicator
comes on with reduced brightness
when the Daytime Running Lights (DRL) are on (see page 58).
Immobilizer SystemIndicator
This indicator comes on for a few seconds when you turn the ignition
switch ON (II). It will then go off if
you have inserted a properly-coded ignition key. If it is not a properly-
coded key, the indicator will blink
and the engine will not start (see
page 68).
This indicator also blinks several times when you turn the ignitionswitch from ON (II) to ACCESSORY (I) or LOCK (0).
Tachometer The tachometer shows the enginespeed in revolutions per minute (rpm). To protect the engine from
damage, never drive with the
tachometer needle in the red zone.

Trip Meter

This meter shows the number of miles (U.S.) or kilometers (Canada)
driven since you last reset it.
There are two trip meters, Trip A and Trip B. Each trip meter works
independently, so you can keep trackof two different distances.
To reset a trip meter, display it and then press the Reset button for morethan two seconds. Both trip meters
will reset if the vehicle's battery goes dead or is disconnected.
Instruments and Controls
DRL

CRUISE
CONTROL
ProCarManuals.comMain Menu Table of Contents s t

Controls Near the Steering Wheel

The two levers on the steering column contain controls for driving
features you use most often. The left lever controls the turn signals,
headlights, and high beams. The right lever controls the windshield
washers and wipers.
The rear window defogger switch and hazard warning switch are on
the dashboard
under the center air

vent.

The controls near the left air vent are for the sunroof, cruise control
and instrument panel brightness.
The tilt adjustment lever on the underside of the steering column
allows you to tilt the steering wheel. HAZARD WARNING LIGHT

WINDSHIELD

WIPERS/WASHERS

SUNROOF
SWITCH
SHIFT LEVER

REAR WINDOW

DEFOGGER

CRUISE
CONTROL
INSTRUMENT
BRIGHTNESS
HEADLIGHTS/

TURN SIGNALS
TILT

ADJUSTMENT

HORN

Instruments and ControlsProCarManuals.comMain Menu Table of Contents s t

Steering Wheel Controls

Cruise Control
Cruise control allows you to maintain
a set speed above 25 mph (40 km/h)
without keeping your foot on the accelerator pedal. It should be used
for cruising on straight, open
highways. It is not recommended for conditions such as city driving,
winding roads, slippery roads, heavy rain, or bad weather. You should
have full control of the vehicle under
those conditions. Using the Cruise Control
1. Push in the Cruise Control Master Switch to the left of the steering
column. The indicator in theswitch will light.
2. Accelerate to the desired cruising speed above 25 mph (40 km/h).
Instruments and Controls Improper use of the cruise
control can lead to a crash.
Use the cruise control only
when traveling on open highways in good weather. CRUISE CONTROL MASTER SWITCHProCarManuals.comMain Menu Table of Contents s t

Steering Wheel Controls

3. Press and hold the SET/decel button on the steering wheel until
the CRUISE CONTROL light on
the instrument panel comes on.
This shows the system is now
activated.

The cruise control may not hold the set speed when you are going
up or down hills. Changing the Set Speed
You can increase the set cruising speed in either of two ways:
Press and hold the RESUME/
accel button. The vehicle willaccelerate slowly. When you reach
the desired cruising speed, release
the button.
Push on the accelerator pedal. Ac-
celerate to the desired cruisingspeed and press the SET/decel
button. You can decrease the set cruising
speed in either of two ways: Press and hold the SET/decel
button. The vehicle will decelerate. Release the button when you
reach the desired speed. Tap the brake pedal lightly with
your foot. The CRUISE CONTROL light on the instru-
ment panel will go out. When the
vehicle slows to the desired speed, press the SET/decel button. The
vehicle will then maintain the desired speed.
CONTINUED
Instruments and Controls
RESUME/

accel

SET/decelProCarManuals.comMain Menu Table of Contents s t

Steering Wheel Controls

Even with the cruise control turned
on, you can still use the accelerator

pedal to speed up for passing. After

completing the pass, take your foot
off the accelerator pedal. The vehicle

will return to the set cruising speed.

Resting your foot on the brake pedal
will cause the cruise control to
cancel.
Cancelling the Cruise Control
You can cancel the cruise control in any of these ways: Tap the brake pedal.
Press the SET/decel and RE-
SUME/accel buttons at the same

time.

Press the Cruise Control Master

Switch.

When you tap the brake or clutch
pedal, or press the SET and RE- SUME buttons at the same time, the
CRUISE CONTROL light on the
instrument panel will go out and the
vehicle will begin to slow down. You can use the accelerator pedal in the
normal way.
If you use the brake pedal to cancel
cruise control, the system
remembers the previously-set
cruising speed. To return to thatspeed, accelerate to above 25 mph (40 km/h) and press the RESUME/
accel button until the CRUISE CON-
TROL light comes on. The vehicle will accelerate to the same cruisingspeed as before.
If you cancel cruise control by
pressing the SET and RESUME
buttons at the same time, the
previously-set cruising speed is erased. To use the cruise control,accelerate to the desired cruising
speed and press the SET/decel

button.

Pressing the Cruise Control Master
Switch turns the system completelyoff and erases the previous cruising
speed from memory. To use the
system again, refer to Using the
Cruise Control

Instruments and ControlsProCarManuals.comMain Menu Table of Contents s t

Fuel Economy

The condition of your vehicle and
your driving habits are the two most important things that affect the fuel
mileage you get.
Vehicle Condition Always maintain your vehicle accord- ing to the maintenance schedule.
This will keep it in top operating condition.
An important part of that mainte- nance is the Owner Maintenance
Checks (see page 146). For
example, an underinflated tire
causes more "rolling resistance,"
which uses fuel. It also wears out faster, so check the tire pressure at
least monthly.
In winter, the build-up of snow on
your vehicle's underside adds weight and rolling resistance. Frequent
cleaning helps your fuel mileage and
reduces the chance of corrosion. Driving Habits
You can improve fuel economy by driving moderately. Rapid acceler-
ation, abrupt cornering, and hard
braking use more fuel.
Always drive in the highest gear that allows the engine to run and acceler-
ate smoothly.
Depending on traffic conditions, try
to maintain a constant speed. Every
time you slow down and speed up,
your vehicle uses extra fuel. Use the cruise control, when appropriate, to
increase fuel economy. A cold engine uses more fuel than a
warm engine. It is not necessary to"warm-up" a cold engine by letting it
idle for a long time. You can drive away in about a minute, no matter
how cold it is outside. The engine
will warm up faster, and you get
better fuel economy. To cut clown on the number of "cold starts," try tocombine several short trips into one.
The air conditioning puts an extra load on the engine which makes it
use more fuel. Turn off the A/C tocut down on air conditioning use.
Use the flow-through ventilation
when the outside air temperature is moderate.

Before DrivingProCarManuals.comMain Menu Table of Contents s t
