1998 GMC SIERRA engine coolant

Radiator Pressure Cap
(Gasoline Engine)
The radiator pressure cap must be tightly installed with
the arrows
on the cap lined up with the overflow tube on
the radiator filler neck.
~~~ ~
NOTICE:
Your radiator cap is a 15 psi (105 kPa)
pressure-type cap and must be tightly installed to
prevent coolant loss and possible engine damage
from overheating. Be sure the arrows on the cap
line up with the overflow tube on the radiator
filler neck.
Thermostat
Engine coolant temperature is controlled by a thermostat
in the engine coolant system. The thermostat stops the
flow of coolant through the radiator until the coolant
reaches a preset temperature.
When you replace your thermostat, an
AC@ thermostat
is recommended.
6-32
ProCarManuals.com

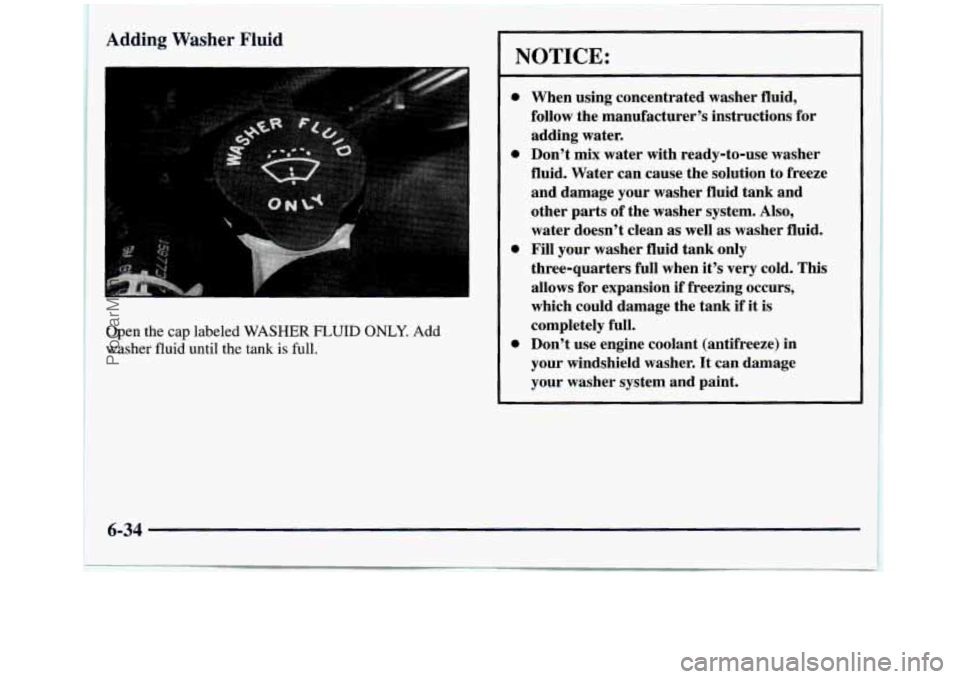

Adding Washer Fluid
Open the cap labeled WASHER FLUID ONLY. Add
washer fluid until the tank is full.
1
NOTICE:
0
0
0
0
When using concentrated washer fluid,
follow the manufacturer’s instructions for
adding water.
Don’t mix water with ready-to-use washer
fluid. Water can cause the solution to freeze
and damage your washer fluid tank and
other parts of the washer system. Also,
water doesn’t clean as well as washer fluid.
Fill your washer fluid tank only
three-quarters full when it’s very cold. This
allows for expansion if freezing occurs,
which could damage the tank if it is
completely full.
Don’t use engine coolant (antifreeze) in
your windshield washer. It can damage
your washer system and paint.
6-34
ProCarManuals.com

FuseKircuit Breaker
3
4
Usage
Courtesy Lamps, Cargo Lamp,
Glove Box Lamp, Dome/Reading
Lamps, Vanity Mirrors,
Power Mirrors
Instrument Cluster, DRL Relay,
Lamp Switch, Keyless Entry,
Low Coolant Module, Illuminated Entry Module,
DRAC (Diesel Engine)
Not Used
Cruise Control
Auxiliary Power Outlet
Crank
License Lamp, Parking Lamps,
Taillamps,
Roof Marker Lamps,
Tailgate Lamps, Front
Sidemarkers, Fog Lamp Relay,
Door Switch Illumination,
Fender Lamps, Headlamp Switch Illumination
FuseKircuit
Breaker
10
11
12
13
14
15
I6
17
18
19
Usage
Air Bag System
Wiper Motor, Washer Pump
A/C,
A/C Blower,
High Blower Relay
Power
Amp, Cigarette Lighter,
Door Lock Relay,
Power Lumbar Seat
4WD Indicator, Cluster, Comfort
Controls, Instrument Switches,
Radio Illumination,
Chime Module
DRL Relay,
Fog Lamp Relay
Front and Rear Turn Signals,
Back-up Lamps, BTSl Solenoid
Radio (Ignition)
4WAL/VCM, ABS. Cruise Control
Radio (Batterv)
6-73
ProCarManuals.com

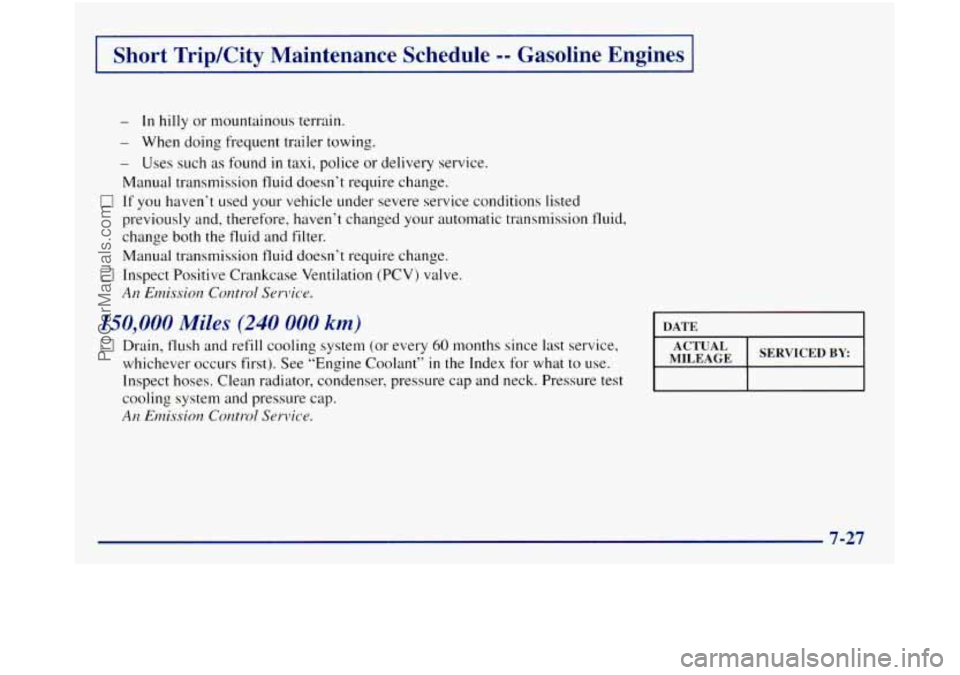

Short TripKity Maintenance Schedule -- Gasoline Engines
- In hilly or mountainous terrain.
- When doing frequent trailer towing.
- Uses such as found in taxi, police or delivery service.
Manual transmission fluid doesn’t require change.
previously and, therefore, haven‘t changed your automatic transmission fluid,
change both the fluid and filter.
Manual transmission fluid doesn’t require change.
17 Inspect Positive Crankcase Ventilation (PCV) valve.
Arz Emission Control Service.
0 If you haven’t used your vehicle under severe service conditions listed
150,000 Miles (240 000 km)
0 Drain, flush and refill cooling system (or every 60 months since last service,
whichever occurs first). See “Engine Coolant”
in the Index for what to use.
DATE
I MILEAGE ACTUAL I SERVICED BY:
Inspect hoses. Clean radiator, condenser, pressure cap and neck. Pressure test I I
cooling system and pressure cap.
AH Emission Control Service.
7-27
ProCarManuals.com

1 Long Tripmighway Maintenance Schedule -- Gasoline Engines
150,000 Miles (240 000 km) DATE
Drain, flush and refill cooling system (or every 60 months since last service,
Inspect hoses. Clean radiator, condenser, pressure cap
and neck. Pressure test
the cooling system and pressure cap.
An Emissim Control Sc~l-~?ic.r.
whichever occurs first). See "Engine Coolant" in the Index for what to use. MILEAGE
7-39
ProCarManuals.com

Part B: Owner Checks and Services
Listed below are owner checks and services which
should be performed at the intervals specified
to help
ensure
the safety, dependability and emission control
performance
of your vehicle.
Be sure any necessary repairs are completed at once.
Whenever
any fluids or lubricants are added to your
vehicle, make sure they are the proper ones.
as shown in
Part D.
At the First 100, 1,000 and 6,000 Miles
(160,1600 and 10 000 km)
For vehicles with dual wheels, check dual wheel nut
torque. For proper torque, see “Wheel Nut Torque” in
the Index.
At Each Fue-
Engine Oil Level Check
Check the engine oil level and add the proper oil if
necessary. See “Engine Oil” in the Index for
further details.
Engine Coolant Level Check
Check the engine coolant level and add DEX-COOL@
coolant mixture if necessary. See “Engine Coolant” in
the Index for further details.
Windshield Washer Fluid Level Check
Check the windshield washer fluid level in the
windshield washer tank and add the proper fluid
if
necessary. See ”Windshield Washer Fluid” in the Index
for ElIrther details.
At Least Once a Month
Tire Inflation Check
Make sure tires are inflated to the correct pressures.
See “Tires”
in the Index for further details.
Cassette Deck Service
Clean cassette deck. Cleaning should be done every
50 hours of tape play. See “Audio Systems“ in the
Index for further details.
ProCarManuals.com

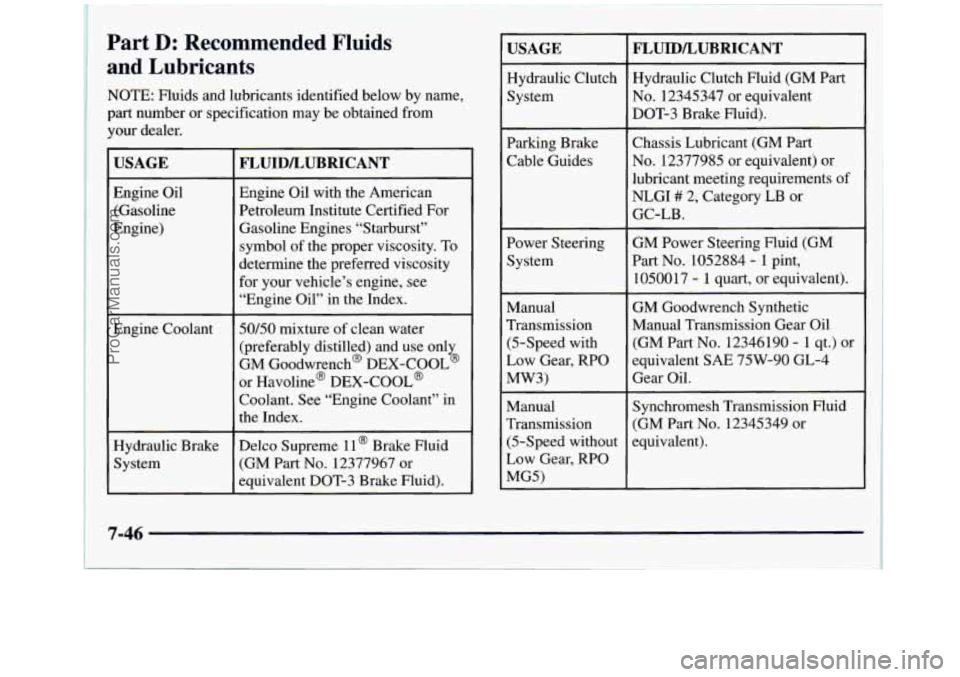

Part D: Recommended Fluids
and Lubricants
NOTE: Fluids and lubricants identified below by name,
part number or specification may be obtained from
your dealer.
USAGE
Engine Oil
(Gasoline
Engine)
Engine Coolant
~~
Hydraulic Brake
System
FLUIDLUBRICANT
Engine Oil with the American
Petroleum Institute Certified For
Gasoline Engines “Starburst”
symbol of the proper viscosity. To
determine the preferred viscosity
for your vehicle’s engine, see
“Engine Oil” in the Index.
50/50 mixture of clean water
(preferably distilled) and use only
GM Goodwrench@ DEX-COOL@
or Havoline@ DEX-COOL@
Coolant. See “Engine Coolant” in
the Index.
Delco Supreme
11 @ Brake Fluid
(GM Part
No. 12377967 or
equivalent
DOT-3 Brake Fluid).
USAGE
Hydraulic Clutch
System
Parking Brake
Cable Guides
~
Power Steering System
Manual
Transmission (5-Speed with
Low Gear, RPO
MW3)
Manual
Transmission (5-Speed without
Low Gear,
RPO
MG5)
FLUID/LUBRICANT
Hydraulic Clutch Fluid (GM Part
No. 12345347 or equivalent
DOT-3 Brake Fluid).
Chassis Lubricant (GM Part
No. 12377985 or equivalent) or
lubricant meeting requirements
of
NLGI # 2, Category LB or
GC-LB.
GM Power Steering Fluid (GM
Part
No. 1052884 - 1 pint,
1050017
- 1 quart, or equivalent).
GM Goodwrench Synthetic
Manual Transmission Gear Oil
(GM Part No. 12346190
- 1 st.) or
equivalent
SAE 75W-90 GL-4
Gear Oil.
Synchromesh Transmission Fluid (GM Part
No. 12345349 or
equivalent).
7-46
ProCarManuals.com

Vinyl ....................................... 6-63
Wheels
..................................... 6-67
Windshield and Wiper Blades
................... 6-65
Clock. Setting the ................................ 3-7
Clutch Fluid. Hydraulic
..................... 6-25. 7-46
Clutch. System Check
........................... 7-41
Comfort Controls
................................ 3-2
Comfort Guides. Rear
........................... 1-40
Compact Disc Care
............................. 3-26
Compact Disc Player
.......................
3-16 . 3-20
Compact Disc Player Care
........................ 3-26
Compass. Rearview Mirror
with ................... 2-46
Console Storage
................................ 2-54
Control
of a Vehicle .............................. 4-5
Convex Outside Mirror .......................... 2-SO
Coolant ............................. 6-28.6-79.7-46
Heater
. Engine ............................... 2- 14
Recovery Tank ............................... 5- I5
Cooling System ................................ 5- IS
Courtesy Transportation ........................... 8-8
Cruise Control
................................. 2-38
Cupholders
.......................... 2.54.2.55. 2-56
Customer Assistance Information ................... 8- I
Customer Satisfaction Procedure .................... 8-2
Climate Control System ....................... 3.2 . 3-3
Customer Assistance for Text Telephone Users
......... 8-4
Damage. Finish
............................... 6-68
Darnage. Sheet Metal
............................ 6-67
Daytime Running Lamps
......................... 2-42
Daytime Running Lamps Indicator Lighl
............ 2-74
Dead Battery
................................... 5-3
Defects. Reporting Safety ........................ 8- 10
Defensive Driving ............................... 4-2
Defogger. Rear Window .......................... 3-6
Defoggng
and Defrosting ......................... 3-6
Dolby B Noise Reduction
....................... 3-15
Dome Lamps
.................................. 2-44
DO0
I.
Locks ....................................... 2-5
Storage Pocket ............................... 2-51
Third
........................................ 2-4
Downshifting
.................................. 2-20
Driver Position ................................. 1-14
Driving City
........................................ 4-31
Defensive
.................................... 4-2
Drunken
..................................... 4-3
Freeway
.................................... 4-32
In a Blizzard ................................. 4-38
In the Rain .................................. 4-28
Night
...................................... 4-27
Off-Road
................................... 4-14
On Curves
................................... 4-9
On Grades While Towing a Trailer ............... 4-58
On Hill and Mountain Roads .................... 4-34
On Snow and Ice
............................. 4-37
Through Water
............................... 4-30
Wet Roads
.................................. 4-28
Winte
l- ...................................... 4-36
With
a Trailer ................................ 4-56
Drunken Driving
................................ 4-3
Dual Tire Operation
............................. 6-56
9-3
