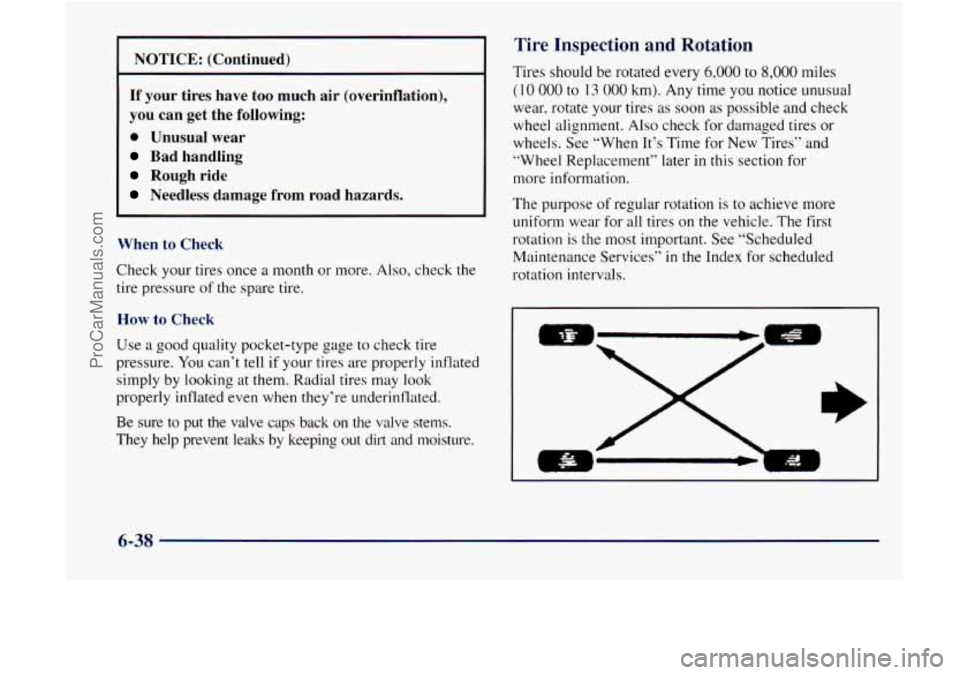

NOTICE: (Continued)
If your tires have too much air (overinflation),
you can get the following:
0 Unusual wear
Bad handling
Rough ride
Needless damage from road hazards.
When to Check
Check your tires once a month or more. Also, check the
tire pressure
of the spare tire.
How to Check
Use a good quality pocket-type gage to check tire
pressure. You can’t
tell if your tires are properly inflated
simply by looking at them. Radial tires may look
properly inflated even when they’re underinflated.
Be sure to put the valve caps back on the valve stems.
They help prevent leaks by keeping out dirt and moisture.
Tire Inspection and Rotation
Tires should be rotated every 6,000 to 8,000 miles
( 10 000 to 13 000 km). Any time you notice unusual
wear, rotate your tires
as soon as possible and check
wheel alignment.
Also check for damaged tires or
wheels. See “When It’s Time for New Tires” and
“Wheel Replacement” later in
this section for
more information.
The purpose of regular rotation is to achieve more
uniform wear for all tires on the vehicle. The first
rotation is the most important. See “Scheduled
Maintenance Services”
in the Index for scheduled
rotation intervals.
6-38
ProCarManuals.com

Wheel Alignment and Tire Balance
The wheels on your vehicle were aligned and balanced
carefully at the factory to give
you the longest tire life
and best overall performance.
Scheduled wheel alignment and wheel balancing are
not needed. However, if you notice unusual tire wear
or your vehicle pulling one way or the other, the
alignment may need to be reset. If you notice your
vehicle vibrating when driving on a smooth road,
your wheels may need to be rebalanced.
Wheel Replacement
Each new wheel should have the same load-carrying
capacity, diameter, width, offset and be mounted the
same way as the one it replaces.
If you need to replace any of your wheels, wheel
bolts or wheel nuts, replace them only with new
GM
original equipment parts. This way, you will be sure to
have the right wheel, wheel bolts and wheel nuts for
your
GMC model.
Replace any wheel that is bent, cracked, or badly rusted
Or wheel nuts on Your vehicle can be dangerous- or corroded. If wheel nuts keep coming loose, the wheel,
Using the wrong replacement wheels, wheel bolts
It could affect the braking and handling of your
wheel bolts and wheel nuts should be replaced. If the
wheel leaks air, replace
it (except some aluminum
wheels, which can sometimes be repaired). See your
dealer if any
of these conditions exist.
Your dealer will know the kind
of wheel you need.
vehicle, make your tires lose air and make you
lose control. You could have a collision in which
you or others could be injured. Always use the
correct wheel, wheel bolts and wheel nuts
for replacement.
6-43
ProCarManuals.com

Section 9 Index
Accessory Inf’lator ............................. 2-50
Acces~~ty
POWC~ Outlets ......................... 2-52
Adcling Sound Equilm1cnt
........................ 3-23
Add-On Equiptnent
............................. 4-43
Air Bag
Adding Equipment ............................ 1-27
How Does it Restrain .......................... 1-25
How it Works ................................ I -23
Location
.................................... 1-23
Readiness Light
......................... 1-22 . 2-63
Servicing
................................... 1-27
What
Makes it Inflate .......................... 1-25
What
You See After it Inflates ................... 1-25
When Should
it Inflate ......................... 1-24
Air Cleaner .................................... 6- 14
Air Conditioning ................................ 3-5
Refripxants
................................. 6-62
Alignment
and Balancc. Tire ...................... 6-13
Atltenn.1.
Fi~d ................................. 3-26
Adcling
Equipment
to the Outside of’ Your Vehicle ...... 6-3
AllIt11inLll11 Wheels . Clea11i11~ ...................... 6-5 1
Anti-Lock Brake System Wa~ming Light ......... 2-66 . 4-7
Appearance
Care ............................... 6-45
Materials
.................................... 6-53
Arbit~-ation Program .............................. 8-9
Ar111rest . Storage ............................... 2-15 Ashtrays
...................................... 2-49
Audio Systems ............................. 3-8. 3-12
Automatic Headlamp System
...................... 2-37
Automatic Transmission Check
...................................... 7-40
Fluid ....................................... 6-15
Operation ................................... 2-18
Park Mechanism Check ........................ 7-42
Shiftin
...................................... 2-18
Starting Your Engine
.......................... 2-15
Front ....................................... 6-21
Rear
....................................... 6-19
Axle
Backglass Wiper. Blade Replacement
.............. 6-36
Battery
....................................... 6-30
Charge LiFht ................................ 2-63
Jump
Startmg ................................. 5-3
Replacement, Keyless
Entry ..................... 2-8
Warnings ................................ 5-3, 5-4
Battery Run-Down Protection ..................... 2-44
BBB Auto
Line ................................. 8-9
Better Business Bureau Mediation
................... 8-9
Blizzard ...................................... 4-38
Brake Fluid .................................... 6-27
9- 1
ProCarManuals.com

Power ....................................... 1-2
Rear ........................................ 1-6
Reclining Front
............................... 1-4
Seats and Restraint Systems
........................ I - 1
SecondGear ................................... 2-19
Security Warning Light
.......................... 2-70
Service
4WD Light ............................. 2-7 I
Service and Appearance Care ...................... 6- I
Service and Owner Publications .............. 8- 1 1. 8- 12
Service Engine Soon Light ....................... 2-67
Service Parts Identificatmn Label
.................. 6-54
Service Work, Doing Your Own
.................... 6-2
Servicing
Your Air Bag-Equipped Vehicle ........... 1-27
Sheet Metal Darnage
............................ 6-5 1
Shifting ....................................... 2-18
Out of Park
.................................. 2-23
Signaling Turns
................................ 2-3 I
SIR .......................................... 1-20
Skidding
...................................... 4-13
Specifications and Capacities
................. 6-60, 6-6 1
Speedometer ................................... 2-61
Stains, Cleaning ................................ 6-47
Starter Switch Check
............................ 7-4 1
Starting Your Engine ............................ 2- 15
Steam
........................................ 5-12
Steering
In Emergencies ............................... 4- 10
Power ....................................... 4-9
Steering Wheel
. Tilt ............................. 2-30
Storage Compartments ........................... 2-42
Into Piirk .................................... 2-21
Speech Impaired. Customer Assistance ............... 8-4 Storage.
Vehicle
................................ 6-31
Storing
a Flat or Spare Tire and Tools ............... 5-29
Stuck:
In Sand. Mud. Ice or Snow .................. 5-32
Sun Visors .................................... 2-50
Sunglasses Storage
.............................. 2-45
Sunroof
....................................... 2-52
Supplemental Inflatable Restraint
.................. 1-20
Symbols. Vehicle .................................. v
Tachometer .................................. 2-61
Taillamp Bulb Replacement
....................... 6-34
Tape Player Care
.......................... 3-247-39
Theft
......................................... 2-10
Thermostat
.................................... 6-25
Third Gear
.................................... 2-19
Tilt Steering Wheel
............................. 2-30
Time. Setting
................................... 3-8
Tire Chains
.................................... 6-44
Tire Inflation Check
............................. 7-39
Ti res
Alignment and Balance
........................ 6-43
Buyin! New
................................. 6-40
Chang~ng a
Flat .............................. 5-21
Cleaning
.................................... 6-51
Inflation ............................... 6-37. 7-39
Inspection and Rotation
........................ 6-38
Pressure
.................................... 6-37
Temperature
................................. 6-42
Traction
.................................... 6-42
Treadwear
................................... 6-42
THEFTLOCK
TM ................................ 3-21
9-9
.
ProCarManuals.com

Weatherstrips .....
Wheel Alignment . .
Wheel Nut Torque .
Wheel Replacement
Windows
Express-Down . .
Lockout Switch .
............................. 6-49
Windshield Wiper .............................. 2-32
............................. 6-43 Bladecheck ................................. 7-40
........................ 5-29, 6-60 Blade Replace~nent ........................... 6-34
............................. 6-43 Fuses ...................................... 4-55
............................. 2-29
WinterDriving ................................. 4-36
............................. 2-29 WreckerTowing ................................. 5-7
Rear ....................................... 2-33
Power ...................................... 2-28
Windshield Washer
............................. 2-32
Fluid ....................................... 6-26
FluidLevelCheck ............................ 7-39
