A CAUTION:
Operating the engine with the air cleaner off can
cause you or others to be burned. The air cleaner
not only cleans the air, it stops flame
if the engine
backfires.
If it isn’t there, and the engine
backfires, you could be burned. Don’t drive with
it
off, and be careful working on the engine with
the
air cleaner off.
NOTICE:
If the air cleaner is off, a backfire can cause a
damaging engine fire. And, dirt can easily get
into your engine, which will damage it. Always
have the air cleaner in place when you’re driving.
Automatic Transmission Fluid
When to Check and Change
A good time to check your automatic transmission fluid
level
is when the engine oil is changed.
Change both the fluid and filter every
15,000 miles
(25 000 km) if the vehicle is mainly driven under one
or more of these conditions:
In heavy city traffic where the outside temperature
regularly reaches
90°F (32°C) or higher.
In hilly or mountainous terrain.
When doing frequent trailer towing.
Uses such as found in taxi, police or delivery service.
If you do not use your vehicle under any of these
conditions, change the fluid and filter every
50,000 miles (83 000 km).
See “Scheduled Maintenance Services’’ in the Index.
ProCarManuals.com
Some driving conditions or climates may cause a brake
squeal when the brakes are first applied or lightly
applied. This does not mean something is wrong with
your brakes.
Properly torqued wheel nuts are necessary to help
prevent brake pulsation. When tires are rotated, inspect
brake pads for wear and evenly torque
wheel nuts in the
proper sequence to
GM specifications.
Brake linings should always be replaced as complete
axle sets.
See “Brake System Inspection” in Section
7 of this manual
under Part
C “Periodic Maintenance Inspections.”
Brakc Jedal Travel
See your dealer if the brake pedal does not return to
normal height, or if there is a rapid increase in pedal
travel. This could be a sign of brake trouble.
Brake Adjustment
Every time you make a brake stop, your disc brakes
adjust for wear.
Replacing Brake System Parts
The braking system on a modern vehicle is complex.
Its many parts have to be
of top quality and work well
together
if the vehicle is to have really good braking.
Your vehicle was designed and tested with top-quality
GM brake parts. When you replace parts of your braking
system
-- for example, when your brake linings wear
down and
you have to have new ones put in -- be sure
you get new approved GM replacement parts.
If you
don’t, your brakes may
no longer work properly. For
example,
if someone puts in brake linings that are wrong
for your vehicle, the balance between your front and
rear brakes can change
-- for the worse. The braking
performance you’ve come to expect can change in many
other ways if someone puts
in the wrong replacement
brake parts.
Battery
Every new vehicle has an ACDelco Freedom@ battery.
You never have to add water to one of these. When it’s
time for a new battery, we recommend an ACDelco
Freedom battery. Get one that has the replacement
number shown on the original battery’s label.
6-30
ProCarManuals.com
Q
+
I
!
When rotating your tires, always use one of the correct
rotation. patterns shown here.
After the tires
have been rotated, adjust the front and rear
inflation pressures as shown on the Certificationflire
label.
Make certain that all wheel nuts are properly tightened.
See “Wheel Nut Torque”
in the Index.
Rust or dirt on a wheel, or on the parts to which
it is fastened, can make wheel nuts become loose
after
a time. The wheel could come off and cause
an accident. When
you change a wheel, remove
any rust or dirt from places where the wheel
attaches
to the vehicle. In an emergency, you can
use a cloth or
a paper towel to do this; but be
sure to use a scraper or wire brush later,
if you
need to, to get all the rust or dirt off. (See
“Changing a Flat Tire”
in the Index.)
6-39
ProCarManuals.com
Normal Maintenance Replacement Parts
Replacement part numbers listed in this section are
based on the latest information available at the time of
printing, and are subject
to change. If a part listed in this
manual is not the same as the part used in your vehicle
when it was built, or if you have any questions, please
contact your GMC dealer.
Thermostat
......................... 1255905 1
Oil Filter ............................... PF52
Air Cleaner Filter
...................... A1 163C
PCV Valve
.......................... CV746C
Automatic Transmission Filter Kit
...... 24200796
Spark Plugs
.......................... .41-932
Fuel Filter
............................. GF48 1
Front Windshield Wiper Blade
................ Trico (20 inched50.8 cm)
Backglass Wiper Blade . . Trico (14 inched35.6 cm)
Capacities (Approximate)
Cooling System* ............. 11.7 quarts (1 1.1 L)
Crankcase* ................... 4.5 quarts (4.3 L)
Automatic Transmission
(Drain and Refill)*
........... 5.0 quarts (4.7 L)
Differential Fluid ............................
Front ....................... 2.6 pints (1.2 L)
Rear ........................ 4.0 pints ( 1.9 L)
Fuel Tank ..................... 18 gallons (68 L)
A/C Refrigerant ........... 30 oz. or 2 lbs. (0.9 kg)
of R- 134a
*After refill, the level
must be checked.
6-61
ProCarManuals.com
Short TripKity Maintenance Schedule I
The services shown in this schedule up to 100,000 miles
( 166 000 km) should be performed after 100,000 miles
( 166 000 km) at the same intervals. The services shown
at
150,000 miles (240 000 km) should be performed at
the same interval after 150,000 miles (240
000 ktn).
See “Owner Checks and Services” and “Periodic
Maintenance Inspections” following.
Footnotes
7 The U.S. Environmental Protection Agency or the
California Air Resources Board has determined that the
failure
to perform this maintenance item will not nullify
the emission warranty or limit recall liability prior to the
completion
of the vehicle’s ~1sefu1 life. We, however.
urge that all recommended maintenance services be
performed
at the indicated intervals and the maintenance
be recorded.
## Lubricate the front suspension, ball joints, steering
linkage, parking brake cable guides, propshaft splines.
universal joints and brake pedal springs.
+ A ~ood time to check your brakes is during tire
rotation. See “Brake System Inspection” under ”Periodic
Maintenance Inspections”
in Part C of this schedule.
.:. .:, -,-*,- Drive axle service (see “Recommended Fluids and
Lubricants“ in the Index for proper lubricant to use):
Locking Differential -- Drain fluid and refill at first
engine oil change.
At subsequent oil changes. check
fluid level and add fluid
as needed. If driving in
dusty areas or towing a trailer, drain fluid and refill
every 15,000 miles
(25 000 km).
Standard Differential -- Check fluid level and add
fluid
as needed at every oil change. If driving in
dusty areas or towing a trailer. drain fluid and refill
every
15,000 miles (25 000 km).
More frequent lubrication may be required for
hea\jy-duty
or off-l-oad use.
7-7
ProCarManuals.com
I Long Tripmighway Maintenance Schedule I
The services shown in this schedule up to 100,000 miles
(166 000 km) should be performed after 100,000 miles
( 166 000 km) at the same intervals. The services shown
at
150,000 miles (240 000 km) should be performed at
the same interval after 150,000 miles (240 000 km).
See “Owner Checks and Services” and “Periodic
Maintenance Inspections” following.
Footnotes
i- The U.S. Environmental Protection Agency or the
California Air Resources Board has determined that the
failure to perform this maintenance item will not nullify
the emission warranty or limit recall liability prior to the
completion
of the vehicle’s useful life. We, however,
urge that all recommended maintenance services be
performed at the indicated intervals and the maintenance
be recorded.
## Lubricate the front suspension, ball joints, steering
linkage and transfer case shift linkage, parking brake
cable guides, propshaft splines, universal joints and
brake pedal springs.
+ A good time to check your brakes is during tire
rotation. See ‘’Brake System Inspection’’ under “Periodic
Maintenance Inspections”
in Part C of this schedule.
:k:k Drive axle service (see “Recommended Fluids and
Lubricants”
in the Index for proper lubricant to use):
Locking Differential -- Drain fluid and refill at first
engine oil change. At subsequent oil changes, check
fluid level and add fluid
as needed.
fluid as needed at every engine
oil change.
Standard Differential -- Check fluid level and add
7-27
1
ProCarManuals.com

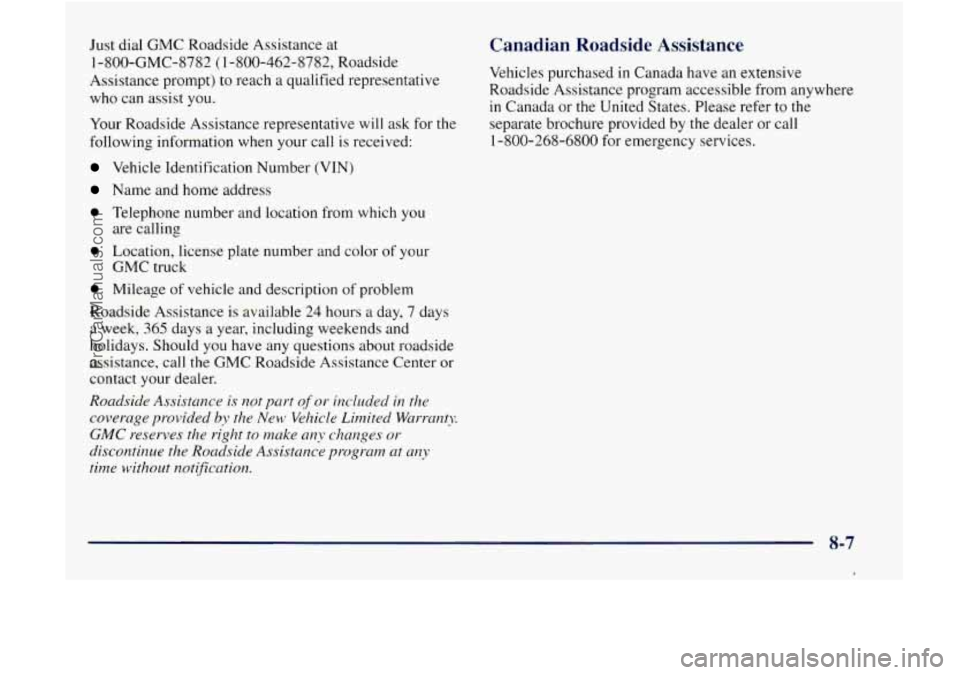

Just dial GMC Roadside Assistance at
1-800-GMC-8782 (1-800-462-8782, Roadside
Assistance prompt) to reach a qualified representative
who can assist you.
Your Roadside Assistance representative will ask for the
following information when your call
is received:
Vehicle Identification Number (VIN)
Name and home address
0 Telephone number and location from which you
0 Location, license plate number and color of your
are calling
GMC
truck
0 Mileage of vehicle and description of problem
Roadside Assistance is available 24 hours a day,
7 days
a week, 365 days a year, including weekends and
holidays. Should you have any questions about roadside
assistance, call the GMC Roadside Assistance Center or
contact your dealer.
Roadside Assistance is
not part of or included in th.e
coverage provided by the New Vehicle Limited Warranty.
GMC reserves the right to make any changes or
discontinue the Roadside Assistance program at any
time without notification.
Canadian Roadside Assi A
Vehicles purchased in Canada have an extensive
Roadside Assistance program accessible from anywhere
in Canada or the United States. Please refer to the
separate brochure provided by the dealer or call
1-800-268-6800 for emergency services.
8-7
ProCarManuals.com

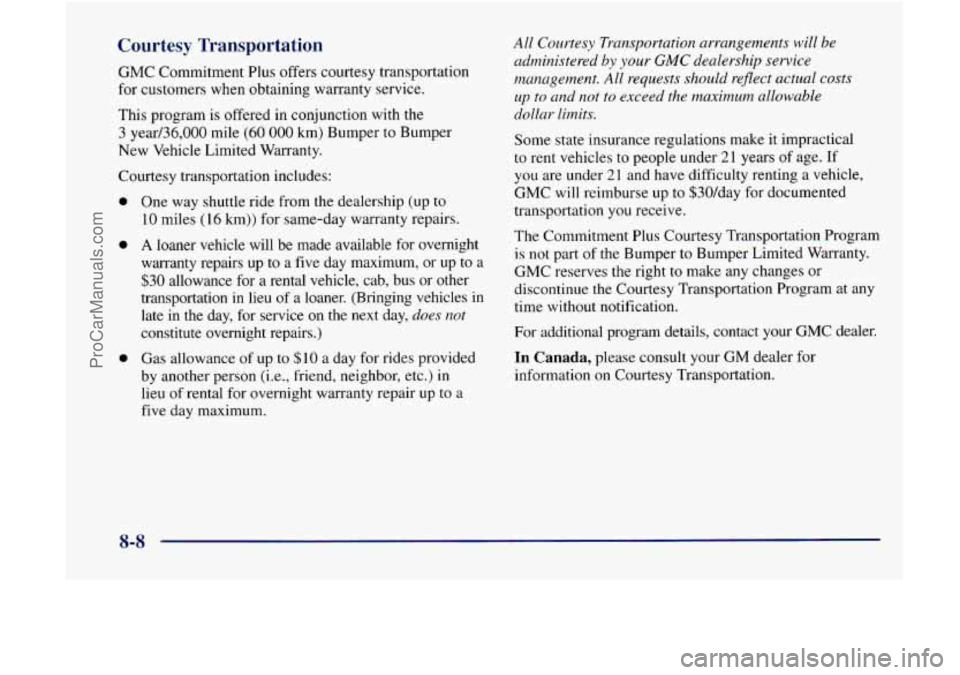

Courtesy Transportation
GMC Commitment Plus offers courtesy transportation
for customers when obtaining warranty service.
This program is offered in conjunction with
the
3 year/36,000 mile (60 000 km) Bumper to Bumper
New Vehicle Limited Warranty.
Courtesy transportation includes:
0
0
0
One way shuttle ride from the dealership (up to
10 miles (16 km)) for same-day warranty repairs.
A loaner vehicle will be made available for overnight
warranty repairs up
to a five day maximum, or up to a
$30 allowance for a rental vehicle, cab, bus or other
transportation
in lieu of a loaner. (Bringing vehicles in
late in the day, for service on the next day, does not
constitute overnight repairs.)
Gas allowance of up
to $10 a day for rides provided
by another person (i.e., friend, neighbor, etc.)
in
lieu of rental for overnight warranty repair up to a
five day maximum. All Courtesy
Transportation arrangements will be
administered by your
GMC dealership service
nzanagement. All requests should reflect actual
costs
c1p to and not to exceed the maximum allowable
dollar limits.
Some state insurance regulations make it impractical
to rent vehicles to people under
21 years of age. If
you are under 21 and have difficulty renting a vehicle,
GMC
will reimburse up to $30/day for documented
transportation you receive.
The Commitment Plus Courtesy Transportation Program
is not part of the Bumper to Bumper Limited Warranty.
GMC reserves
the right to make any changes or
discontinue the Courtesy Transportation Program at any
time without notification.
For additional program details, contact your GMC dealer.
In Canada, please consult your GM dealer for
information
on Courtesy Transportation.
8-8
ProCarManuals.com
