Turn and Lane Change Signals
The turn signal has two upward (for right) and two
downward (for left) positions. These positions allow
you to signal a turn or a lane change.
To signal a turn, move the lever all the way up
or down. When the turn
is finished, the lever
will return automatically.
I 1 I An arrow on the instrument
panel will flash
in the
direction of the turn or
lane change.
To signal a lane change, just raise or lower the lever
until the arrow starts to flash. Hold it there until you
complete your lane change. The lever will return by
itself when you release it.
The signal indicator will flash even if a turn signal bulb
is burned out. Check the front and rear turn signal lamps
regularly
to make sure they are working. If
a bulb is burned out, replace it to help avoid an
accident. If the
arrows don’t go on at all when you
signal a turn, check the fuse (see “Fuses and Circuit
Breakers”
in the Index) and for burned-out bulbs.
Turn Signal On Chime
If your turn signal is left on for more than 3/4 of a mile
(1.2 km), a chime will sound at each flash of the turn
signal.
To turn off the chime, move the turn signal lever
to the off position.
Headlamp High/Low Beam Changer
To change the headlamps from low beam to high or high
to low, pull the multifunction lever all the way toward
you. Then release
it.
When the high beams are
on, this indicator light on
the instrument panel will
also be on.
2-31
ProCarManuals.com

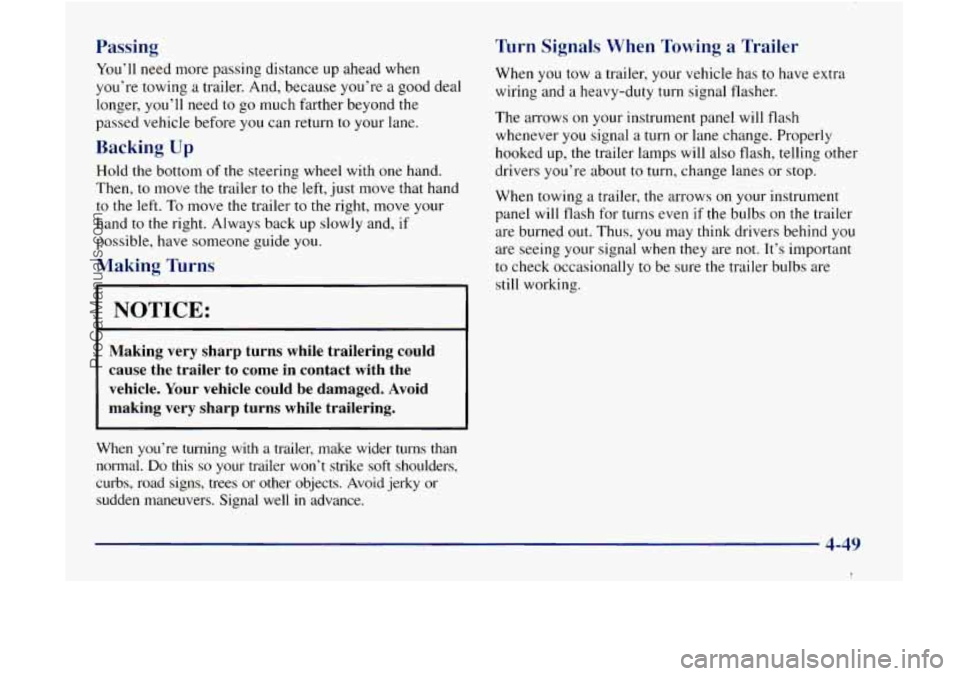

Passing
You’ll need more passing distance up ahead when
you’re towing a trailer. And, because you’re
a good deal
longer,
you’ll need to go much farther beyond the
passed vehicle before you can return to your lane.
Backing Up
Hold the bottom of the steering wheel with one hand.
Then,
to move the trailer to the left, just move that hand
to the left. To move the trailer to the right, move your
hand to the right. Always back up slowly and,
if
possible, have someone guide you.
Making Turns
NOTICE:
~~
Making very sharp turns while trailering could
cause the trailer to come in contact with the
vehicle. Your vehicle could be damaged. Avoid
making very sharp turns while trailering.
When you’re turning with a trailer, make wider turns than
normal.
Do this so your trailer won’t strike soft shoulders,
curbs, road signs, trees or other objects.
Avoid jerky or
sudden maneuvers. Signal well
in advance.
Turn Signals When Towing a Trailer
When you tow a trailer, your vehicle has to have extra
wiring and a heavy-duty turn signal flasher.
The arrows on your instrument panel will flash
whenever you signal a
turn or lane change. Properly
hooked up,
the trailer lamps will also flash, telling other
drivers you’re about to
turn, change lanes or stop.
When towing a trailer, the arrows
on your instrument
panel will flash for turns even
if the bulbs on the trailer
are burned out. Thus, you may think drivers behind you
are seeing your signal when
they are not. It’s important
to check occasionally
to be sure the trailer bulbs are
still working.
4-49
I
ProCarManuals.com

5. Turn the bulb assembly to the left to remove it.
6. Put the new bulb assembly into the headlamp
assembly and turn it to the right until it is tight.
7. Plug in the electrical connector.
8. Put the headlamp lens assembly back into the
vehicle. Install the two retaining clips.
Front Turn Signal Lamp Assembly
1. Remove the headlamp assembly as shown under
“Composite Headlamp System” earlier
in this section.
2. Twist the bulb socket to remove it from the
3. Pull the bulb straight out to remove it from the socket.
4. Push the new bulb into the socket until it snaps
5. Put the bulb socket into the lamp assembly and twist
headlamp
assembly.
into place.
it to the right until it is tight.
6. Put the headlamp assembly back into the vehicle.
Install the two retaining clips.
6-33
ProCarManuals.com

Replacement Bulbs
Lamps
Halogen Headlamps, Composite High Beam
Tail and Stoplamps
Front Sidemarker Lamps
Front Turn Signal Lamps
Turn Signal Lamps
Quantity Number
2 9005 HB3
4 3057
2 194 NA
2 3 157
2 3157 NA
Capacities and Specifications
Type .................................... V6
Firing Order ...................... 1-6-5-4-3-2
Horsepower
................... 190 at 4,400 rpm
Thermostat Specification ........... 195°F (91 “C)
Spark
Plug Gap .......... 0.045 inches (0.114 cm)
Engine Description
............ “VORTEC”
4300
VINCode
.................................W
Wheels and Tires
Wheel Nut Torque ........... 100 lb-ft (140 N-m)
Tire Pressure ...... See the CertificatiodTire label.
See “Loading Your Vehicle” in
the Index.
6-60
ProCarManuals.com

Engine (Continued) .............................. 6-9
Exhaust
..................................... 2-24
FanNoise
................................... 5-20
Identification
................................ 6-54
OilLevelCheck
.............................. 7-39
Overheating
................................. 5-11
Specifications
................................ 6-60
Engine Compartment Fuse Block
.................. 6-58
Engineoil
.................................... 6-10
Adding
..................................... 6-11
Additives
................................... 6-13
Checking
................................... 6-11
Kindtouse
................................. 6-12
Pressure Gage
................................ 2-69
Used
....................................... 6-14
When to Change
.............................. 6- I3
Exhaust, Engine
................................ 2-24
Exit Lighting
.................................. 2-39
Express-Down Window
.......................... 2-29
Fabric Cleaning
............................... 6-46
Filling
a Portable Fuel Container .................... 6-7
FillingYourTank
................................ 6-5
Fi 1 ter
Air
........................................ 6-14
Remote Oil .................................. 6- 14
Finish Care .................................... 6-5 1
Finish Damage ................................. 6-52
Running While
Parked
......................... 2-25
Starting
..................................... 2-15
Engine Coolant
................................. 6-2 1
FirstGear ..................................... 2-20
Flashers. Hazard Warning
......................... 5-2
Flat Tire. Changing
............................. 5-21
Fluids and Lubricants
............................ 7-4.5
FogLampSwitch ............................... 2-38
Foreign Countries. Fuel ........................... 6-5
Four-wheel Drive
......................... 2-26. 6-20
French Language Manual 11
FrontAxle .................................... 6-21
Front Reading Lamps
....................... 2.39. 2.43
Front Storage Area .............................. 2-45
FrontTowing
................................... 5-9
Filling a Portable Container
...................... 6-7
Filling Your Tank
.............................. 6-5
Foreign Countries .............................. 6-5
Engine Compartment
.......................... 6-58
Instrument Panel
............................. 6-56
Fuses and Circuit Breakers
....................... 6-55
Gages
.. ...........................
Front Turn Signal Lamp Bulb Replacement .......... 6-33
Fuel
.......................................... 6-3
Cage
....................................... 2-72
Fuse Block
Engine Coolant Temperature
.................... 2-66
Fuel
....................................... 2-72
Engine Oil Pressure ........................... 2-69
GasCap
....................................... 6-5
Gate A-jar Light ................................ 2-71
GAWR
....................................... 4-40
Gear
Positions ................................. 2-18
9-4
ProCarManuals.com

Power ....................................... 1-2
Rear ........................................ 1-6
Reclining Front
............................... 1-4
Seats and Restraint Systems
........................ I - 1
SecondGear ................................... 2-19
Security Warning Light
.......................... 2-70
Service
4WD Light ............................. 2-7 I
Service and Appearance Care ...................... 6- I
Service and Owner Publications .............. 8- 1 1. 8- 12
Service Engine Soon Light ....................... 2-67
Service Parts Identificatmn Label
.................. 6-54
Service Work, Doing Your Own
.................... 6-2
Servicing
Your Air Bag-Equipped Vehicle ........... 1-27
Sheet Metal Darnage
............................ 6-5 1
Shifting ....................................... 2-18
Out of Park
.................................. 2-23
Signaling Turns
................................ 2-3 I
SIR .......................................... 1-20
Skidding
...................................... 4-13
Specifications and Capacities
................. 6-60, 6-6 1
Speedometer ................................... 2-61
Stains, Cleaning ................................ 6-47
Starter Switch Check
............................ 7-4 1
Starting Your Engine ............................ 2- 15
Steam
........................................ 5-12
Steering
In Emergencies ............................... 4- 10
Power ....................................... 4-9
Steering Wheel
. Tilt ............................. 2-30
Storage Compartments ........................... 2-42
Into Piirk .................................... 2-21
Speech Impaired. Customer Assistance ............... 8-4 Storage.
Vehicle
................................ 6-31
Storing
a Flat or Spare Tire and Tools ............... 5-29
Stuck:
In Sand. Mud. Ice or Snow .................. 5-32
Sun Visors .................................... 2-50
Sunglasses Storage
.............................. 2-45
Sunroof
....................................... 2-52
Supplemental Inflatable Restraint
.................. 1-20
Symbols. Vehicle .................................. v
Tachometer .................................. 2-61
Taillamp Bulb Replacement
....................... 6-34
Tape Player Care
.......................... 3-247-39
Theft
......................................... 2-10
Thermostat
.................................... 6-25
Third Gear
.................................... 2-19
Tilt Steering Wheel
............................. 2-30
Time. Setting
................................... 3-8
Tire Chains
.................................... 6-44
Tire Inflation Check
............................. 7-39
Ti res
Alignment and Balance
........................ 6-43
Buyin! New
................................. 6-40
Chang~ng a
Flat .............................. 5-21
Cleaning
.................................... 6-51
Inflation ............................... 6-37. 7-39
Inspection and Rotation
........................ 6-38
Pressure
.................................... 6-37
Temperature
................................. 6-42
Traction
.................................... 6-42
Treadwear
................................... 6-42
THEFTLOCK
TM ................................ 3-21
9-9
.
ProCarManuals.com
