The fuel gauge indicator may also vary slightly when the
vehicle is in motion. With the ignition OFF, the fuel gauge
indicator may drift from the ignition ON position as well.
[IS10700(ALL)12/95]
10-1/2 pica
art:0050235-A

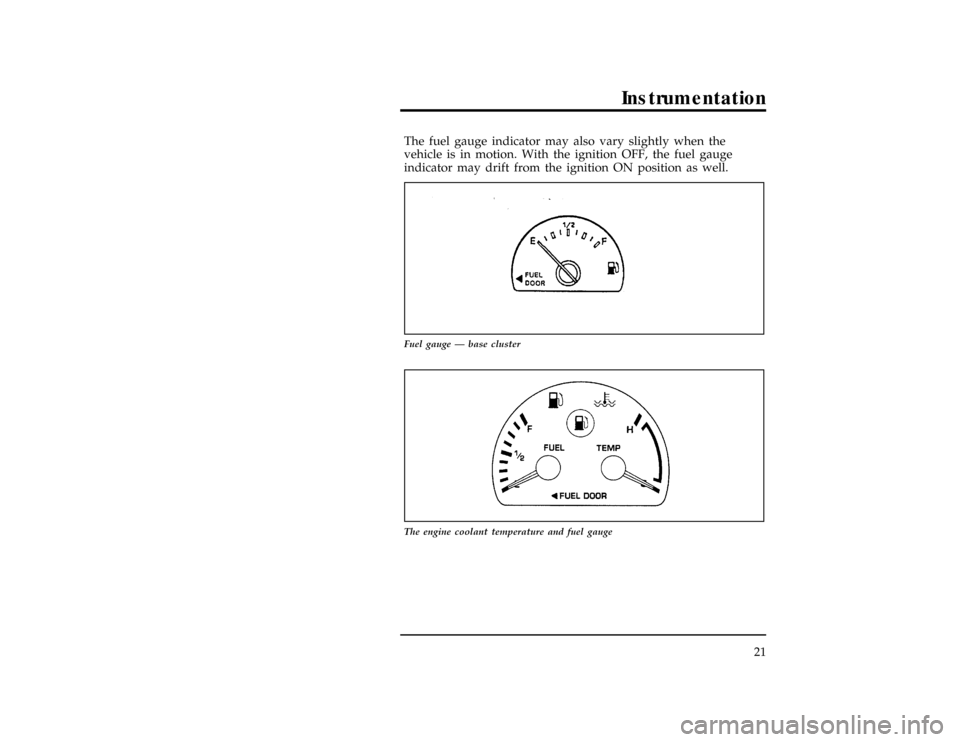

Fuel gauge Ð base cluster
[IS10800(ALL)08/96]
10-1/2 pica
art:0050126-D
The engine coolant temperature and fuel gauge
File:03wniss.ex
Update:Fri Oct 11 10:45:38 1996

22
%*
[IS11400(ALL)08/96]
Engine Coolant Temperature Gauge
*
[IS11500(ALL)02/96]
This gauge indicates the temperature of the engine coolant, not
the coolant level. If the coolant is not at its proper level or
mixture, the gauge indication will not be accurate.
[IS11600(ALL)01/96]
10-1/2 pica
art:0050236-A

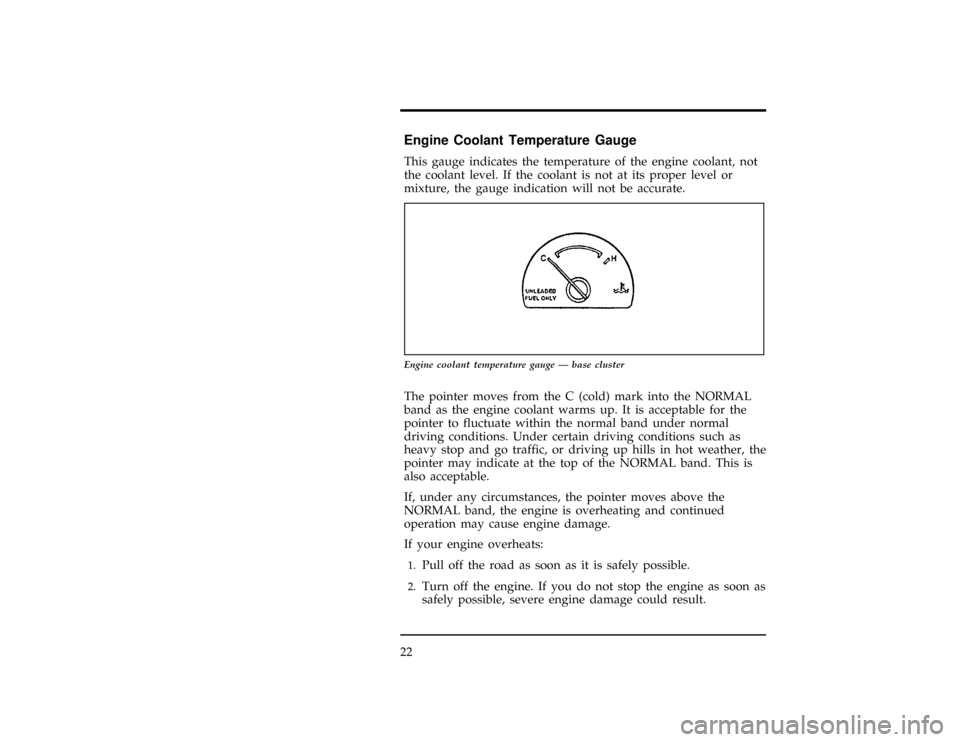

Engine coolant temperature gauge Ð base cluster
[IS11700(ALL)01/96]
The pointer moves from the C (cold) mark into the NORMAL
band as the engine coolant warms up. It is acceptable for the
pointer to fluctuate within the normal band under normal
driving conditions. Under certain driving conditions such as
heavy stop and go traffic, or driving up hills in hot weather, the
pointer may indicate at the top of the NORMAL band. This is
also acceptable.
*
[IS11800(ALL)04/96]
If, under any circumstances, the pointer moves above the
NORMAL band, the engine is overheating and continued
operation may cause engine damage.
*
[IS11900(ALL)08/96]
If your engine overheats:
*
[IS12000(ALL)08/96]1.
Pull off the road as soon as it is safely possible.
*
[IS12100(ALL)08/96]2.
Turn off the engine. If you do not stop the engine as soon as
safely possible, severe engine damage could result.
File:03wniss.ex
Update:Fri Oct 11 10:45:38 1996

Instrumentation
23
*
[IS12200(ALL)08/96]3.
Let the engine cool.DO NOT REMOVE COOLANT
SYSTEM FILL CAP UNTIL THE ENGINE IS COOL.
[IS12300(ALL)08/96]4.
Check the coolant level following the instructions on
checking and adding coolant to your engine in this Owner
Guide. Seeengine coolantin the index. If you do not follow
these instructions, you or others could be injured.
*
[IS12400(ALL)08/96]
If the coolant continues to overheat, have the coolant system
serviced as soon as possible.
%*
[IS13600(ALL)08/96]
Speedometer
*
[IS13700(ALL)03/96]
The speedometer tells you how many miles (kilometers) per
hour your vehicle is moving.
%*
[IS14200(ALL)08/96]
Odometer
*
[IS14300(ALL)01/96]
The odometer records the total distance the vehicle has been
driven.
%*
[IS14700(ALL)01/96]
Trip Odometer
%*
[IS14800(ALL)05/96]
The trip odometer records the distance of individual trips.
Before each trip, set the trip odometer to zero by pushing the
reset control.
[IS14900(ALL)01/96]
10-1/2 pica
art:0050155-C
The speedometer, odometer and trip odometer
File:03wniss.ex
Update:Fri Oct 11 10:45:38 1996

Controls and Features
77
*
[CF03500(ALL)04/96]
Turning On the Heat
[CF03600(ALL)01/96]
Heat will not be available until the engine has been running for
sufficient time as indicated by the engine coolant temperature
gauge.
*
[CF03700(ALL)01/96]
To heat the inside of your vehicle:
[CF03800(ALL)01/96]1.
Turn the Function Selector Knob toR(FLOOR). Outside
air is drawn in and directed into the passenger compartment
through the floor outlets. Small quantities of air are also
directed to the defrost and side window demist outlets.
[CF03900(ALL)01/96]2.
Turn the Temperature Control Knob toward the WARM
(red) area.
[CF04000(ALL)01/96]3.
Turn the Fan Speed Knob to the speed of your choice. When
your vehicle warms up, you may want to set the Fan Speed
Knob to a lower speed, or adjust the Temperature Control
Knob to a lower setting to maintain a comfortable
temperature.
*
[CF04100(ALL)01/96]
To defrost the windshield and side windows:
[CF04200(ALL)01/96]
n
Turn the Function Selector Knob toV(DEFROST), turn the
Temperature Control Knob to the WARM (red) area and turn
the Fan Speed Knob to the position of your choice.
*
[CF04300(ALL)01/96]
To heat and defrost at the same time:
[CF04400(ALL)01/96]
n
Turn the Function Selector Knob toP
(DEFROST/FLOOR),turn the Temperature Control Knob and
the Fan Speed Knob to provide the temperature and fan
speed you prefer.
[CF04500(ALL)01/96]
Do not place objects under the front seats unless your vehicle is
equipped with an under seat storage tray. Improperly stored
objects will interfere with the flow of air to the back seats.
[CF04600(ALL)01/96]
Remove any snow, ice, or leaves from the area below the
windshield on the outside of your vehicle. They could block the
air intake.
File:05wncfs.ex
Update:Tue Oct 8 10:20:34 1996

208
%*
[TO03500(ALL)01/96]
Using the Engine Block Heater (If equipped)
[TO03600(ALL)12/95]
Using your engine block heater is strongly recommended if you
live in a region where temperatures consistently reachs20ÊF
(s29ÊC) orbelow during the winter months. An engine block
heater warms the engine coolant which improves starting,
warms up the engine faster, and allows the heater-defrost
system to respond more quickly.
*
[TO03700(ALL)01/96]
RWARNING
To prevent electrical shock, do not use your heater with
ungrounded electrical systems or two-pronged (cheater)
adapters.
*
[TO03800(ALL)01/96]
For best results, plug the heater in at least three hours before
you start your vehicle. Using the heater for longer than three
hours will not damage the engine, so you can leave it plugged
in all night to start your vehicle the following morning.
*
[TO03900(ALL)12/95]
Guarding Against Exhaust Fumes
[TO04000(ALL)12/95]
Carbon monoxide, although colorless and odorless, is present in
exhaust fumes.
*
[TO04100(ALL)02/96]
RWARNING
Do not start your vehicle in a closed garage or in other
enclosed areas. Exhaust fumes can be toxic. Always open
the garage door before you start the engine.
*
[TO04200(ALL)01/96]
RWARNING
If you ever smell exhaust fumes of any kind inside your
vehicle, have your dealer inspect and fix your vehicle
immediately. Do not drive if you smell exhaust fumes.
These fumes are harmful and could kill you.
File:08wntos.ex
Update:Mon Oct 7 11:45:28 1996

Maintenance and Care
281
%*
[MC08100(ALL)02/96]
Windshield Washer Fluid
%*
[MC08200(ALL)03/96]
Washer Fluid
[MC08300(ALL)01/96]
Check the level of the windshield washer fluid every time you
stop for fuel. The reservoir for washer fluid is located on the
front, passenger side of the engine compartment. This reservoir
contains the fluid for both the windshield and liftgate washers.
*
[MC08400(ALL)01/96]
RWARNING
Do not put windshield washer fluid in the container for
the engine coolant.
[MC08500(ALL)01/96]
13-1/2 pica
art:0050050-B

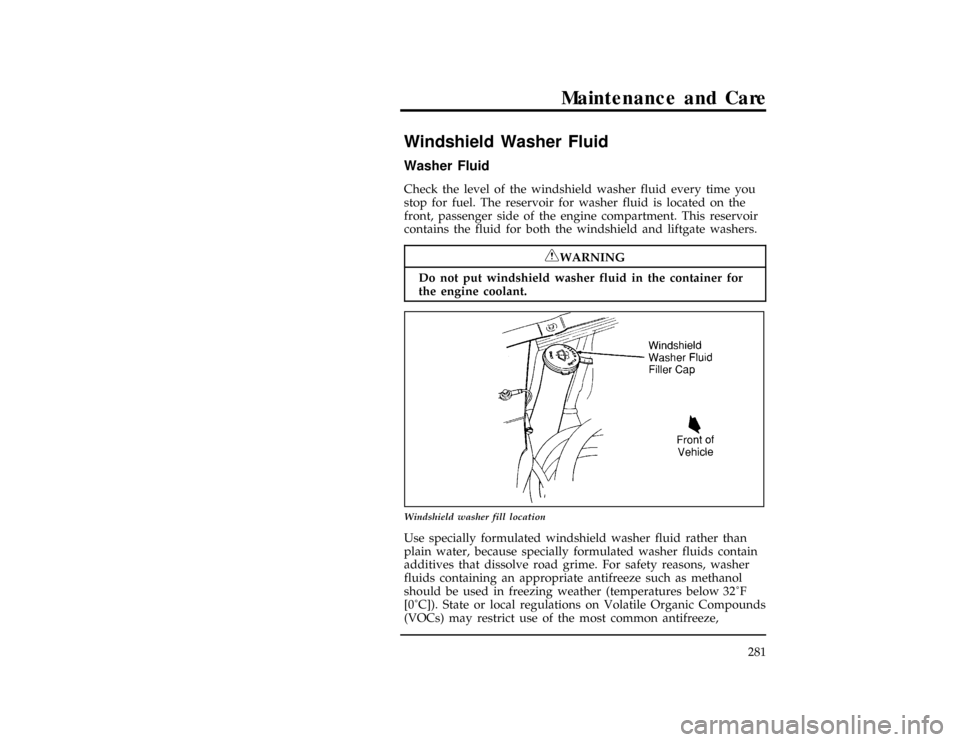

Windshield washer fill location
%*
[MC08600(ALL)02/96
]
Use specially formulated windshield washer fluid rather than
plain water, because specially formulated washer fluids contain
additives that dissolve road grime. For safety reasons, washer
fluids containing an appropriate antifreeze such as methanol
should be used in freezing weather (temperatures below32ÊF
[0ÊC]). State or local regulations on Volatile Organic Compounds
(VOCs) may restrict use of the most common antifreeze,
File:11wnmcs.ex
Update:Tue Oct 8 10:24:50 1996

282methanol. Washer fluids containing non-methanol antifreeze
agents should be used only if they provide cold weather
protection without damaging the vehicle's paint finish, wiper
blades, and windshield washer system.
*
[MC08700(ALL)03/96]
RWARNING
Windshield washer fluid contains methanol which is
poisonous.
[MC08800(ALL)01/96]
When adding windshield washer solution, be sure to observe all
warnings indicated on the washer solution container.
%*
[MC08900(ALL)01/96]
Engine Coolant
%*
[MC09000(ALL)01/96]
Checking the Engine Coolant
[MC09100(ALL)01/96]
Your vehicle's engine coolant protects the engine from
overheating in the summer and from freezing in the winter.
Check the level of the engine coolant at least once a month, but
preferably each time you stop for fuel. Simply check the coolant
reservoir, located in the engine compartment. The coolant
should stay slightly above the ºFULL COLDª mark.
*
[MC09200(ALL)05/96]
Adding Engine Coolant
*
[MC09300(ALL)05/96]
RWARNING
Do not put engine coolant in the container for the
windshield washer fluid.
*
[MC09400(ALL)05/96]
If sprayed to clean the glass, engine coolant or antifreeze could
make it difficult to see through the windshield.
File:11wnmcs.ex
Update:Tue Oct 8 10:24:50 1996

Maintenance and Care
283
[MC09500(ALL)01/96]
17-1/2 pica
art:0050025-B

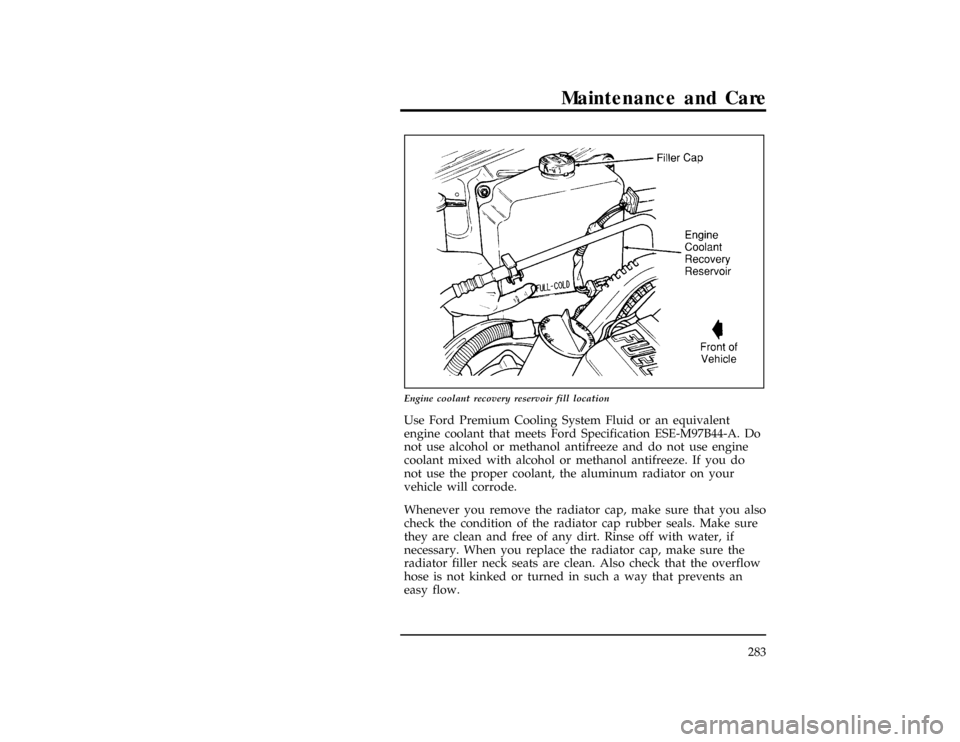

Engine coolant recovery reservoir fill location
%*
[MC09600(ALL)05/96
]
Use Ford Premium Cooling System Fluid or an equivalent
engine coolant that meets Ford Specification ESE-M97B44-A. Do
not use alcohol or methanol antifreeze and do not use engine
coolant mixed with alcohol or methanol antifreeze. If you do
not use the proper coolant, the aluminum radiator on your
vehicle will corrode.
*
[MC09700(ALL)05/96]
Whenever you remove the radiator cap, make sure that you also
check the condition of the radiator cap rubber seals. Make sure
they are clean and free of any dirt. Rinse off with water, if
necessary. When you replace the radiator cap, make sure the
radiator filler neck seats are clean. Also check that the overflow
hose is not kinked or turned in such a way that prevents an
easy flow.
