@ What’s wrong with this?
You can be seriously injured by a twisted belt. In
a crash, you wouldn’t have the full width of the
belt
to spread impact forces. If a belt is twisted,
make it straight
so it can work properly, or ask
your dealer to
fix it.
A: The belt is twisted across the body.
1-48
ProCarManuals.com

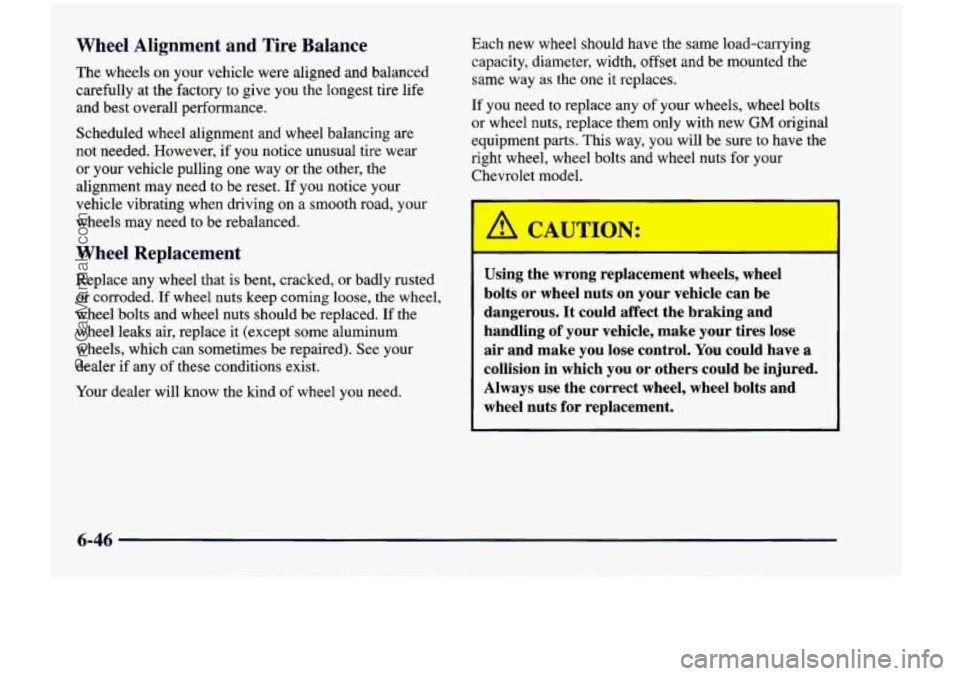

IT T ~1 Alignment and Tire Balance
me wheels on your vehicle were aligned and balanced
carefully at the factory
to give you the longest tire life
and best overall performance.
Scheduled wheel alignment and wheel balancing are
not needed. However, if you notice unusual tire wear
or your vehicle pulling one way or the other, the
alignment may need to be reset. If you notice your
vehicle vibrating when driving on a smooth road, your
wheels may need to be rebalanced.
Wheel Replacement
Replace any wheel that is bent, cracked, or badly rusted
or corroded. If wheel nuts keep coming loose, the wheel,
wheel bolts and wheel nuts should be replaced.
If the
wheel leaks air, replace it (except some aluminum
wheels, which can sometimes be repaired). See your
dealer if any
of these conditions exist.
Your dealer will know the kind of wheel you need. Each
new wheel should have the same load-carrying
capacity, diameter, width, offset and be mounted the
same way as the one it replaces.
If you need to replace any of your wheels, wheel bolts
or wheel nuts, replace them only with new
GM original
equipment parts. This way, you will be sure to have the
right wheel, wheel bolts and wheel nuts for your
Chevrolet model.
I
Using the wrong replacement wheels, wheel
bolts or wheel nuts on your vehicle can be
dangerous. It could affect the braking and
handling of your vehicle, make your tires lose
air and make you lose control. You could have a
collision in which you or others could be injured.
Always use the correct wheel, wheel bolts and
wheel nuts for replacement.
6-46
ProCarManuals.com
I.’ *
Vehicle Dimensions - Regular
Wheel Base
Length ................. 186.9 inches (474.6 cm)
Width
...................... 72 inches (1 83 cm)
Height
................... 67.4 inches (1 7 1.2 cm)
Wheelbase
................ 112 inches (284.5 cm)
Front Tread Width
......... 6 1.5 inches (1 56.2 cm)
Rear Tread Width
.......... 63.3 inches ( 160.8 cm)
Vehicle Dimensions - Extended
Wheel Base
Length ................. 200.9 inches (510.2 cm)
Width
...................... 72 inches (183 cm)
Height
................... 68.1 inches (1 72.9 cm)
Wheelbase
................ 120 inches (304.7 cm)
Front Tread Width
......... 61.5 inches (156.2 cm)
Rear Tread Width
.......... 63.3 inches (160.8 cm)
Normal Maintenance Replacement Parts
Air Cleaner Filter ............. AC Type A- 1208C
Engine Oil Filter
........................ PF47
Spark Plugs
................... AC Type 41-940
Passenger Compartment Air Filter (2)
.... 52470574
Gap:
0.060 inches (1.5 mm)
Windshield Wiper Blades Length
..................... 24 inches (60 cm)
Type
......................... Shepard’s Hook
Length .................... 16 inches (40.6 cm)
Type
......................... Shepard’s Hook
Backglass Wiper Blade
Air Conditioning Refrigerants
Not all air conditioning refrigerants are the same.
If the
air conditioning system in your vehicle needs
refrigerant, be sure the proper refrigerant
is used. If
you’re not sure, ask your dealer.
