1998 CHEVROLET TRACKER engine

Downloaded from www.Manualslib.com manuals search engine When choosing a child restraint, be sure the child
restraint
is designed to be used in a vehicle. If it is, it
will
have a label saying that it meets Federal Motor
Vehicle Safety Standards.
Then follow the instructions for the restraint. You
may
find these instructions on the restraint itself or in a
booklet, or both. These restraints use the belt system in
your vehicle, but
the child also has to be secured within
the restraint to help reduce the chance of personal injury.
The instructions that
come with the infant or child
restraint will show you how
to do that. Both the owner’s
manual and the child restraint instructions are important,
so if either one of these is not available, obtain a
replacement copy from the manufacturer.
Where to Put the Restraint
Accident statistics show that children are safer if they
are restrained in the rear rather than the front seat. We at
General Motors therefore recommend that you put your
child restraint in the rear seat.
Never put a rear-facing
child restraint in the front passenger seat. Here’s why:
A child in a rearfacing child restraint can be
seriously injured
if the right front passenger’s air
bag inflates, even if your vehicle has
reduced-force frontal
air bags. This is because
the back
of a rearfacing child restraint would be
very close to the inflating air bag. Always secure
a rearfacing child restraint in the rear seat.
You may, however, secure
a forward-facing child
restraint in the right front seat, but before you
do, always move the front passenger seat as far
back as it will go.
It is better to secure the child
restraint in
a rear seat.
Wherever you install it, be sure to secure the child
restraint properly. Keep
in mind that an unsecured child restraint can move
around
in a collision or sudden stop and injure people in
the vehicle. Be sure to properly secure any child
restraint
in your vehicle -- even when no child is in it.
1-42

Downloaded from www.Manualslib.com manuals search engine Top Strap If your child restraint has a top strap, it should be
anchored. If
you have a two-door model, don't use a
restraint like that in your vehicle because the top strap
anchor cannot be installed properly.
You shouldn't use
this type of restraint without anchoring the top strap.
If your vehicle is
a four-door model and you need to
have an anchor installed,
you can ask your dealer to put
one in for you. If you want to install an anchor yourself,
your dealer can tell
you how to do it. Use the tether
hardware kit available from the dealer. The hardware
and installation instructions were specifically designed
for this vehicle.
1-43

Downloaded from www.Manualslib.com manuals search engine Securing a Child Restraint in a Rear
Seat Position
You’ll be using the lap-shoulder belt. See the earlier part
about the top strap if the child restraint has one. Be sure
to follow the instructions that came with the child
restraint. Secure the child in the child restraint when and
as the instructions say.
1. Put the restraint on the seat.
2. Pick up the latch plate, and run the lap and shoulder
portions of the vehicle’s safety belt through or
around the restraint. The child restraint instructions
will show
you how.
3. Buckle the belt. Make sure the release button is
positioned so you would be able to unbuckle the
safety belt quickly
if you ever had to.
If the shoulder belt goes in front
of the child’s face or
neck, put it behind the child restraint.
1-44

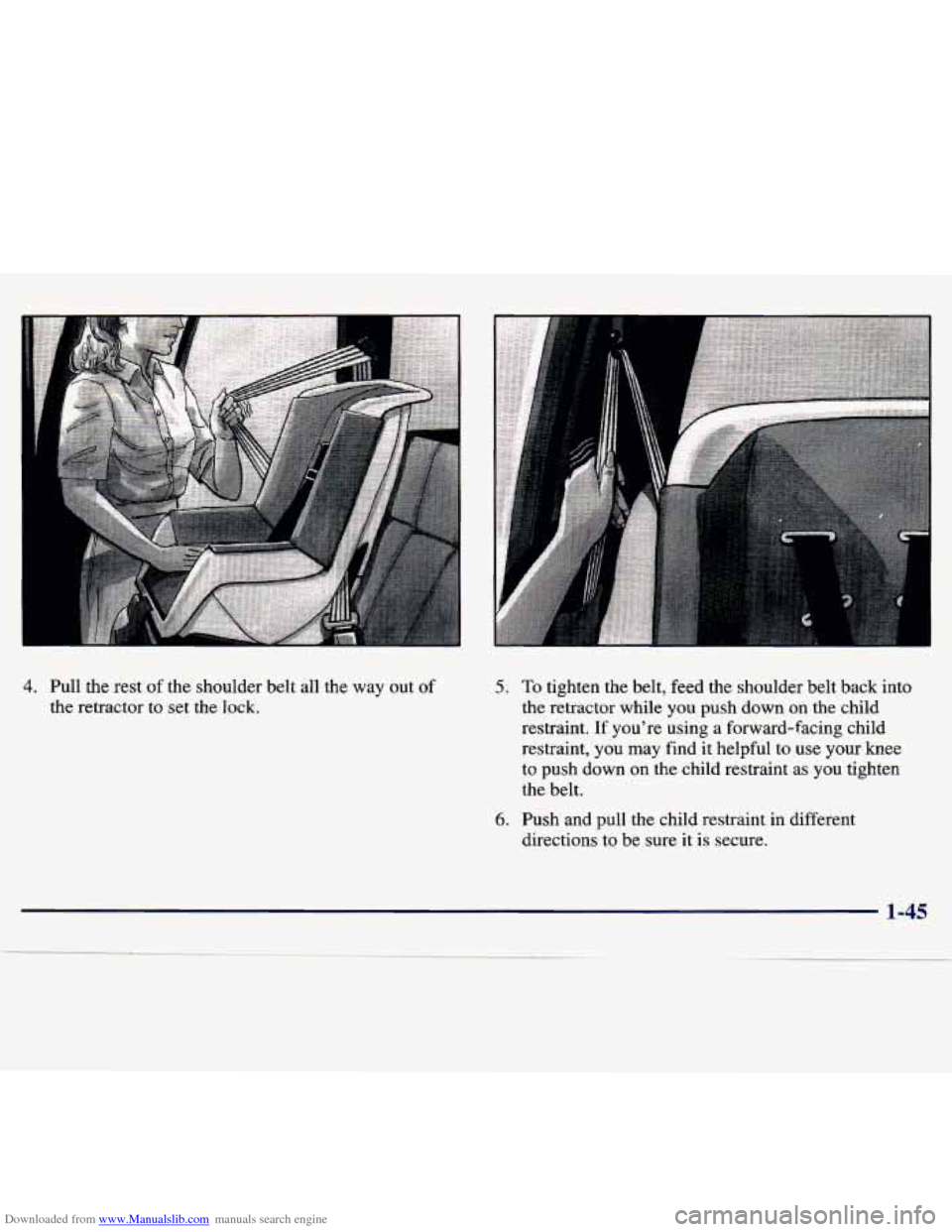

Downloaded from www.Manualslib.com manuals search engine 4. Pull the rest of the shoulder belt all the way out of
the retractor to set the lock. 5. To tighten the belt, feed the shoulder belt back into
the retractor while
you push down on the child
restraint.
If you’re using a forward-facing child
restraint, you may find it helpful to use your knee
to push down on the child restraint
as you tighten
the belt.
6. Push and pull the child restraint in different
directions to be sure
it is secure.
1-45

Downloaded from www.Manualslib.com manuals search engine To remove the child restraint, just unbuckle the vehicle’s
safety belt and let it go back all the way. The safety belt
will
move freely again and be ready to work for an adult
or larger child passenger.
Securing a Child Restraint in the Right
Front Seat Position
Your vehicle has a right front passenger air bag. Never
put a rear-facing child restraint in this seat. Here’s why:
‘ A CA JTION:
A child in a rearfacing child restraint can be
seriously injured
if the right front passenger’s
air bag inflates, even if your vehicle has
reduced-force frontal air bags. This
is because
the back of a rearfacing child restraint would be
very close to the inflating
air bag. Always secure
a rearfacing child restraint in the rear seat.
You’ll be using the lap-shoulder belt. See the earlier
part about the top strap
if the child restraint has one. Be
sure to follow the instructions that came with the child
restraint. Secure the child in the child restraint when and
as the instructions say.
1. Because your vehicle has a right front passenger air
bag, always move the seat as
far back as it will go
before securing a forward-facing child restraint. (See “Seats” in the Index.)
2. Put the restraint on the sear.
1-46

Downloaded from www.Manualslib.com manuals search engine 3. Pick up the latch plate, and run the lap and shoulder
portions
of the vehicle’s safety belt through or
around the restraint. The child restraint instructions
will show you how.
If the shoulder belt goes in front
of the child’s face or
neck, put it behind the child restraint.
4. Buckle the belt. Make sure the release button is
positioned
so you would be able to unbuckle the
safety belt quickly if you ever had
to.
5. Pull the rest of the shoulder belt all the way out of
the retractor
to set the lock.
1-47

Downloaded from www.Manualslib.com manuals search engine 6. To tighten the belt, feed the shoulder belt back into the
retractor while you push down on the child restraint.
You may find it helpful to use your knee to push down
on
the child restraint as you tighten the belt.
directions
to be sure it is secure.
7. Push and pull the child restraint in different
To remove the child restraint, just unbuckle the vehicle’s
safety belt and let it
go back all the way. The safety belt
will move freely again and be ready to work for
an adult
or larger child passenger.
Larger Children
t
Children who have outgrown child restraints should
wear the vehicle’s safety belts.

Downloaded from www.Manualslib.com manuals search engine Accident statistics show that children are safer if they
are restrained
in the rear seat. But they need to use the
safety belts properly.
Children who aren’t buckled up can be thrown out
in
a crash.
0 Children who aren’t buckled up can strike other
people who are.
I
/!1 CAUTION:
I Ne!!! do this.
Here two children are wearing the same belt. The
belt can’t properly spread the impact forces.
In a
crash, the two children can be crushed together
and seriously injured.
A belt must be used by
only one person at
a time.
@’ What if a child is wearing a lap-shoulder belt,
but the child
is so small that the shoulder belt is
very close to the child’s face or neck?
A: Move the child toward the center of the vehicle, but
be sure that the shoulder belt still is
on the child’s
shoulder,
so that in a crash the child’s upper body
would have the restraint that belts provide.
1-49
