1998 CHEVROLET MALIBU steering

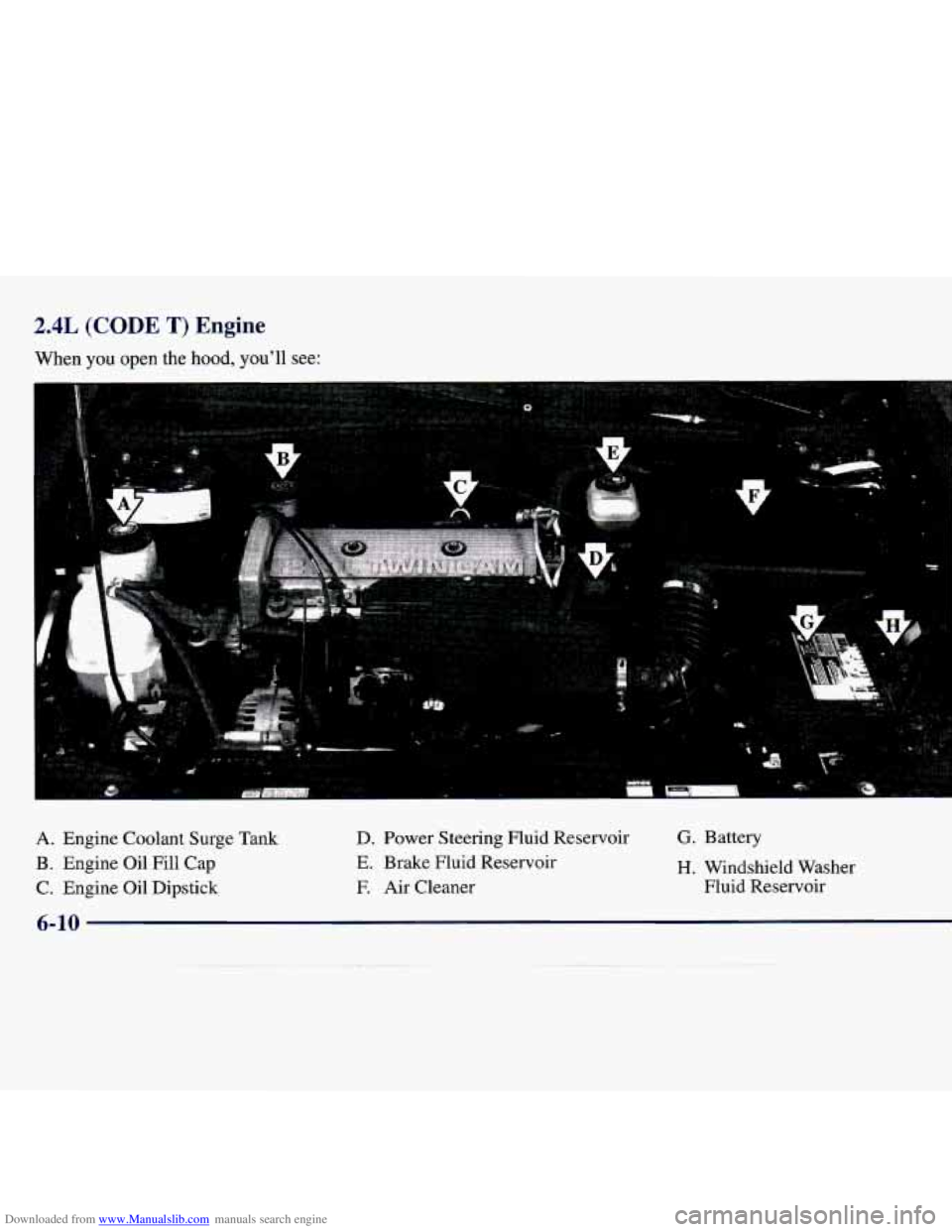

Downloaded from www.Manualslib.com manuals search engine 2.4L (CODE T) Engine
When you open the hood, you’ll see:
A. Engine Coolant Surge Tank
B. Engine Oil Fill Cap
C. Engine Oil Dipstick
D. Power Steering Fluid Reservoir
E. Brake Fluid Reservoir
F. Air Cleaner
G. Battery
H. Windshield Washer
Fluid Reservoir
6-10

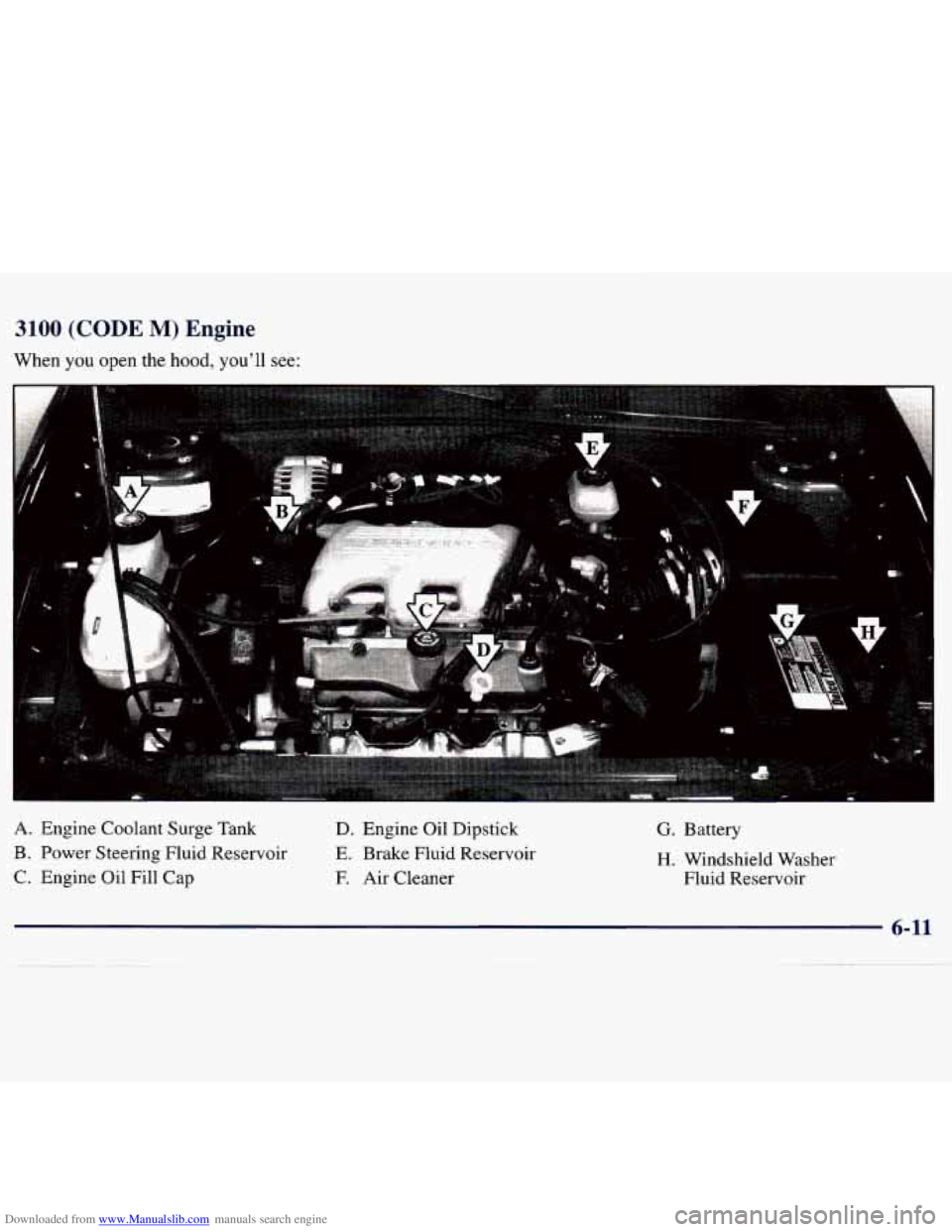

Downloaded from www.Manualslib.com manuals search engine 3100 (CODE M) Engine
When you open the hood, you’ll see:
A. Engine Coolant Surge Tank
B . Power Steering Fluid Reservoir
C. Engine Oil Fill Cap
D. Engine Oil Dipstick
E. Brake Fluid Reservoir
F. Air Cleaner
G. Battery
H. Windshield Washer
Fluid Reservoir

Downloaded from www.Manualslib.com manuals search engine Power Steering Fluid How To Check Power Steering Fluid
When the engine compartment is cool, wipe the cap and
the top
of the reservoir clean, then unscrew the cap and
wipe the dipstick with a clean rag. Replace the cap and
completely tighten it. Then remove the cap again and
look at the fluid level on the dipstick.
The level should be at the
FULL COLD mark. If
necessary, add only enough fluid to bring the level up to
the mark.
What to Use
To determine what kind of fluid to use, see
“Recommended Fluids and Lubricants” in the Index.
Always use the proper fluid. Failure
to use the proper
fluid can cause leaks and damage
hoses and seals.
When to Check Power Steering Fluid
It is not necessary to regularly check power steering
fluid unless you suspect there
is a leak in the system or
you hear an unusual noise.
A fluid loss in this system
could indicate a problem. Have the system inspected
and repaired.

Downloaded from www.Manualslib.com manuals search engine Part C: Periodic Maintenance
Inspections
Listed below are inspections and services which should
be performed at least twice a year (for instance, each
spring and fall). You should let your dealer’s service
department or other qualified service center do these
jobs. Make sure any necessary repairs are completed
at once.
Proper procedures to perform these services may be
found in a service manual. See “Service and Owner
Publications” in the Index.
Steering, Suspension and Front Drive Axle
Boot and Seal Inspection
Inspect the front and rear suspension and steering
system for damaged, loose or missing parts, signs of
wear or lack
of lubrication. Inspect the power steering
lines and hoses for proper hook-up, binding, leaks,
cracks, chafing, etc. Clean and then inspect the drive
axle boot seals
for damage, tears or leakage. Replace
seals if necessary.
Exhaust System Inspection
Inspect the complete exhaust system. Inspect the body
near the exhaust system. Look for broken, damaged,
missing or out-of-position parts as well as open seams,
holes, loose connections or other conditions which could
cause a heat build-up in the floor pan or could let
exhaust fumes into the vehicle. See “Engine Exhaust”
in
the Index.
Engine Cooling System Inspection
Inspect the hoses and have them replaced if they are
cracked, swollen or deteriorated. Inspect all pipes,
fittings and clamps; replace as needed. Clean the outside
of the radiator and air conditioning condenser.
To help
ensure proper operation, a pressure test of the cooling
system and pressure cap
is recommended at least
once a year.

Downloaded from www.Manualslib.com manuals search engine Part D: Recommended Fluids
and Lubricants
NOTE: Fluids and lubricants identified below by name,
part number or specification may be obtained from
your dealer.
USAGE
Engine Oil
Engine Coolant
Hydraulic Brake System
FLUIDLUBRICANT
Engine Oil with the American
Petroleum Institute Certified For
Gasoline Engines “Starburst”
symbol of the proper viscosity.
To
determine the preferred viscosity
for your vehicle’s engine, see “Engine Oil” in the Index.
50/50 mixture of clean water
(preferably distilled) and use only
GM Goodwrench@ DEX-COOL@
or Havoline’ DEX-COOL@
Coolant. See “Engine Coolant”
in
the Index.
Delco Supreme
11 @ Brake Fluid
(GM Part
No. 12377967 or
equivalent DOT-3 Brake Fluid).
USAGE
Power Steering
System
Automatic
Transaxle
Key Lock
Cylinders
Windshield
Washer Solvent
Hood Latch
Assembly, Secondary Latch,
Pivots, Spring
Anchor and
Release Pawl
Hood and Door
Hinges
Weatherstrip Conditioning
FLUIDLUBRICANT
GM Power Steering Fluid (GM
Part No. 1052884
- 1 pint,
105001
7 - 1 quart, or equivalent).
DEXRON@-IIT Automatic
Transmission Fluid.
Multi-Pu ose Lubricant,
Superlube
% (GM Part
No. 12346241 or equivalent).
GM Optikleen@ Washer Solvent
(GM Part No. 1051515) or
equivalent.
Lubriplate@ Lubricant Aerosol
(GM Part
No. 12346293 or
equivalent) or lubricant meeting
requirements of
NLGI # 2,
Category LB or GC-LB.
Multi-Pu ose Lubricant, Superlube
% (GM Part
No. 12346241 or equivalent).
Dielectric Silicone Grease
(GM
Part No. 12345579 or equivalent).
7-35

Downloaded from www.Manualslib.com manuals search engine 1998 CHEVROLET SERVICE PUBLICATIONS ORDERING INFORMATIOP
The following publications covering the operation and servicing of your vehicle can be purchased by filling o
the Service Publication Order Form in this book and mailing it\
in with your check, money order, or credit card information to Helm, Incorporated (address below\
.)
SERVICE MANUALS
CURRENT PUBLICATIONS FOR 1998 CHEVROLET
OWNER’S INFORMATION
Service Manuals have the diagnosis and repair information Owner publications are written directly for Owners and
on engines, transmission, axle, suspension, brakes, intended to provide basic operational information about
t
electrical, steering, body, etc. vehicle. The owner’s manual will include the Maintenanc
RETAIL SELL PRICE:
$90.00 Schedule for all models.
TRANSMISSION, TRANSAXLE, TRANSFER CASE UNIT REPAIR MANUAL
This manual provides information on unit repair service
procedures, adjustments and specifications for the
1998 GM transmissions, transaxles and transfer cases.
RETAIL SELL PRICE:
$40.00
SERVICE BULLETINS
Service Bulletins give technical service information needed
to knowledgeably service General Motors cars and trucks.
Each bulletin contains instructions to assist
in the
diagnosis and service of your vehicle. In-Portfolio: Includes a Portfolio, Owner’s Manual
and
Warranty Booklet. RETAIL SELL PRICE:
$1 5.00
Without Portfolio: Owner’s Manual only.
RETAIL SELL PRICE:
$1 0.00
CURRENT & PAST MODEL ORDER FORMS
Service Publications are available for current and past
model GM vehicles.
To request an order form, please
specify year and model name
of the vehicle.

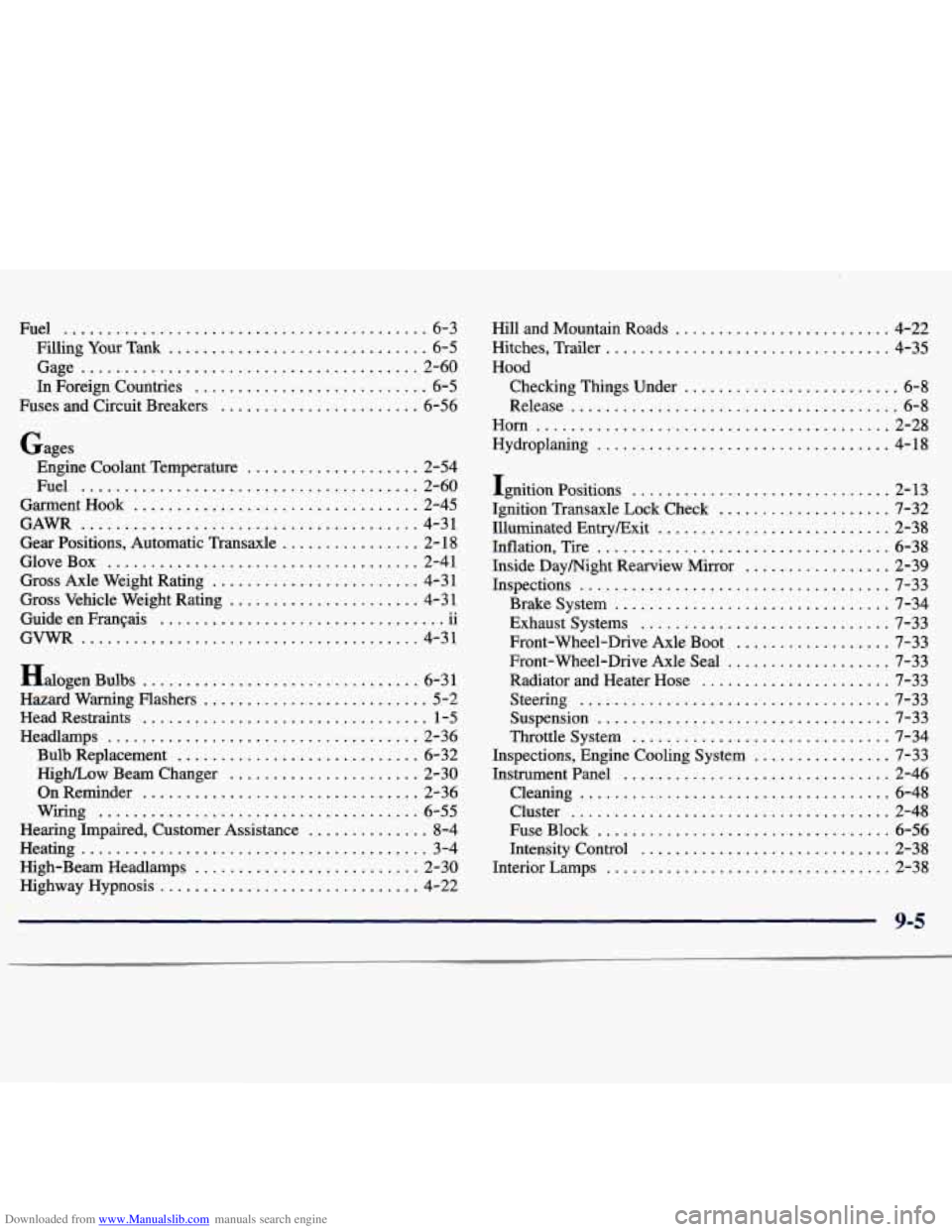

Downloaded from www.Manualslib.com manuals search engine Fuel .......................................... 6-3
FillingYourTank
.............................. 6-5
Gage
....................................... 2-60
In Foreign Countries ........................... 6-5
Fuses and Circuit Breakers
....................... 6-56
Gages Engine Coolant Temperature
.................... 2-54
Fuel
....................................... 2-60
GarmentHook
................................. 2-45
GAM
....................................... 4-31
Gear Positions. Automatic Transaxle
................ 2- 18
GloveBox
.................................... 2-41
Gross Axle Weight Rating
........................ 4-31
Gross Vehicle Weight Rating
...................... 4-31
Guide en Francais
u
GVWR ....................................... 4-31
.. .................................
Halogen Bulbs ................................ 6-31
Hazard Warning Flashers
.......................... 5-2
Head Restraints
................................. 1-5
Headlamps .................................... 2-36
Bulb Replacement
............................ 6-32
High/Low Beam Changer
...................... 2-30
OnReminder
................................ 2-36
Wiring
..................................... 6-55
Hearing Impaired. Customer Assistance
.............. 8-4
Heating
........................................ 3-4
High-BeamHeadlamps
.......................... 2-30
Highway Hypnosis
.............................. 4-22 HillandMountainRoads
......................... 4-22
Hitches. Trailer
................................. 4-35
Hood Checking Things Under
......................... 6-8
Release
...................................... 6-8
Horn
......................................... 2-28
Hydroplaning
.................................. 4-18
Ignition Positions
..............
Ignition Transaxle Lock Check ....
Illuminated Entryfixit ...........
Inflation. Tire ..................
Inside Daymight Rearview Mirror .
Inspections ....................
Brake System ................
Exhaust Systems .............
Front-Wheel-Drive Axle Boot . .
Front-Wheel-Drive Axle Seal ...
Radiator and Heater Hose ......
Steering ....................
Suspension ..................
Throttle System ..............
Inspections. Engine Cooling System
Instrument Panel
...............
Cleaning ....................
Cluster .....................
Fuse Block ..................
Intensity Control .............
Interior Lamps .................
................ 2-13
................ 7-32
................ 2-38
................ 6-38
................ 2-39
................ 7-33
................ 7-34
................ 7-33
................ 7-33
................ 7-33
................ 7-33
................ 7-33
................ 7-33
................ 7-34
................ 7-33
................ 2-46
................ 6-48
................ 2-48
................ 6-56
................ 2-38
................ 2-38

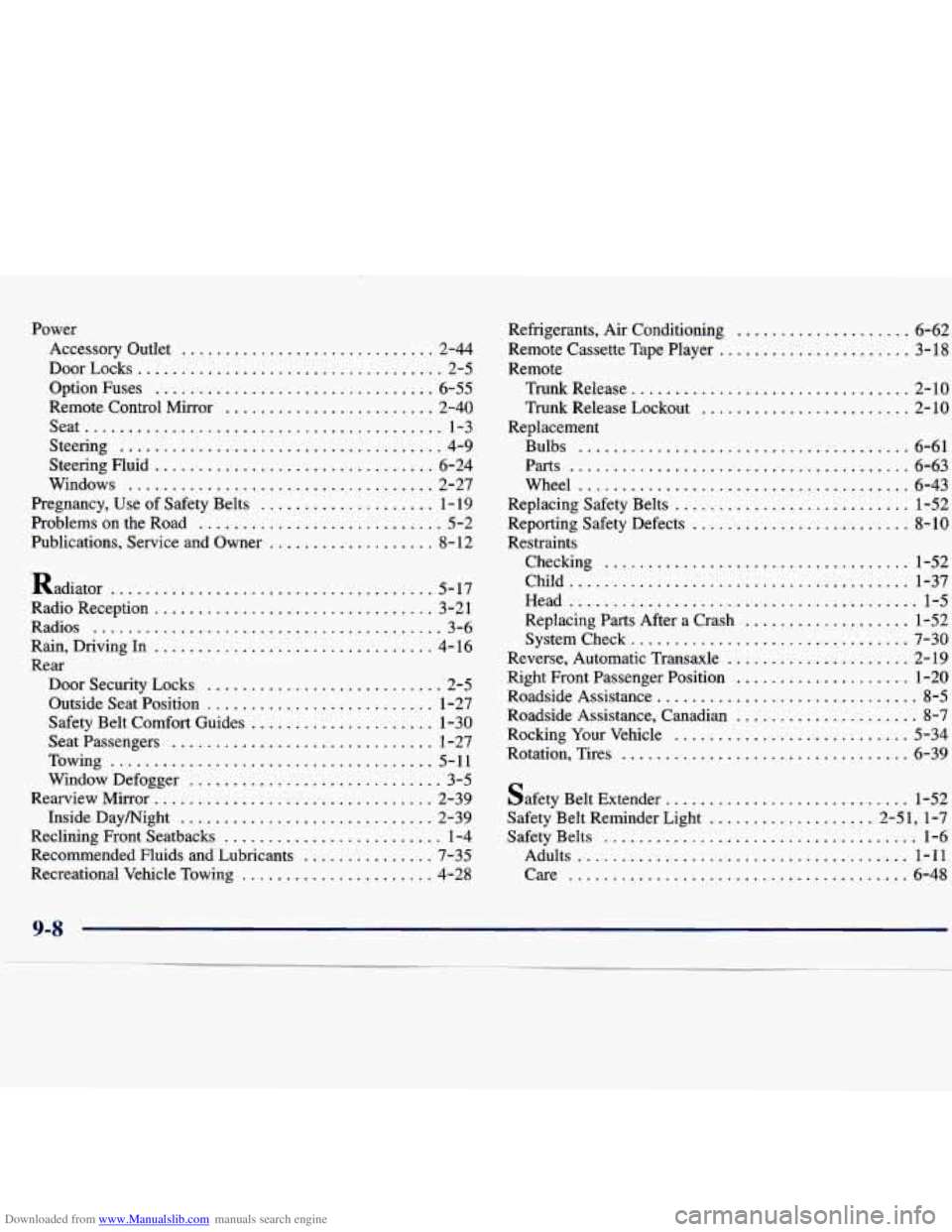

Downloaded from www.Manualslib.com manuals search engine Power Accessory Outlet
............................. 2-44
DoorLocks
................................... 2-5
Option Fuses
................................ 6-55
Remote Control Mirror
........................ 2-40
Seat
......................................... 1-3
Steering
..................................... 4-9
Steering Fluid
................................ 6-24
Windows
................................... 2-27
Pregnancy. Use of Safety Belts
.................... 1 - 19
Problems on the Road
............................ 5-2
Publications. Service and Owner
................... 8-12
Radiator
..................................... 5 . 17
Radio Reception
................................ 3-21
Rain. Driving
In ................................ 4- 16
Door Security Locks
........................... 2-5
Outside Seat Position
.......................... 1-27
Safety Belt Comfort Guides
..................... 1-30
Seatpassengers
.............................. 1-27
Radios
........................................ 3-6
Rear
Towing
..................................... 5-11
Window Defogger
............................. 3-5
Rearview Mirror
................................ 2-39
Reclining Front Seatbacks
......................... 1-4
Recommended Fluids and Lubricants
............... 7-35
Recreational Vehicle Towing
...................... 4-28
Inside
Daymight
............................. 2-39 Refrigerants. Air Conditioning
.................... 6-62
Remote Cassette Tape Player
...................... 3-18
Remote Trunk Release
................................ 2-10
Trunk Release Lockout ........................ 2-10
Bulbs
...................................... 6-61
Parts ....................................... 6-63
Wheel ...................................... 6-43
Replacement
Replacing Safety Belts
........................... 1-52
Reporting Safety Defects
......................... 8-10
Restraints Checking
................................... 1-52
Child
....................................... 1-37
Head
........................................ 1-5
Replacing Parts After a Crash
................... 1-52
Systemcheck
................................ 7-30
Reverse. Automatic Transaxle
..................... 2-19
Right Front Passenger Position
.................... 1-20
Roadside Assistance
.............................. 8-5
Roadside Assistance. Canadian
..................... 8-7
Rocking Your Vehicle
........................... 5-34
Rotation. Tires
................................. 6-39
Safety Belt Extender
............................ 1-52
Safety Belt Reminder Light
................... 2.51. 1-7
Safety Belts
.................................... 1-6
Adults ...................................... 1-11
Care ....................................... 6-48
