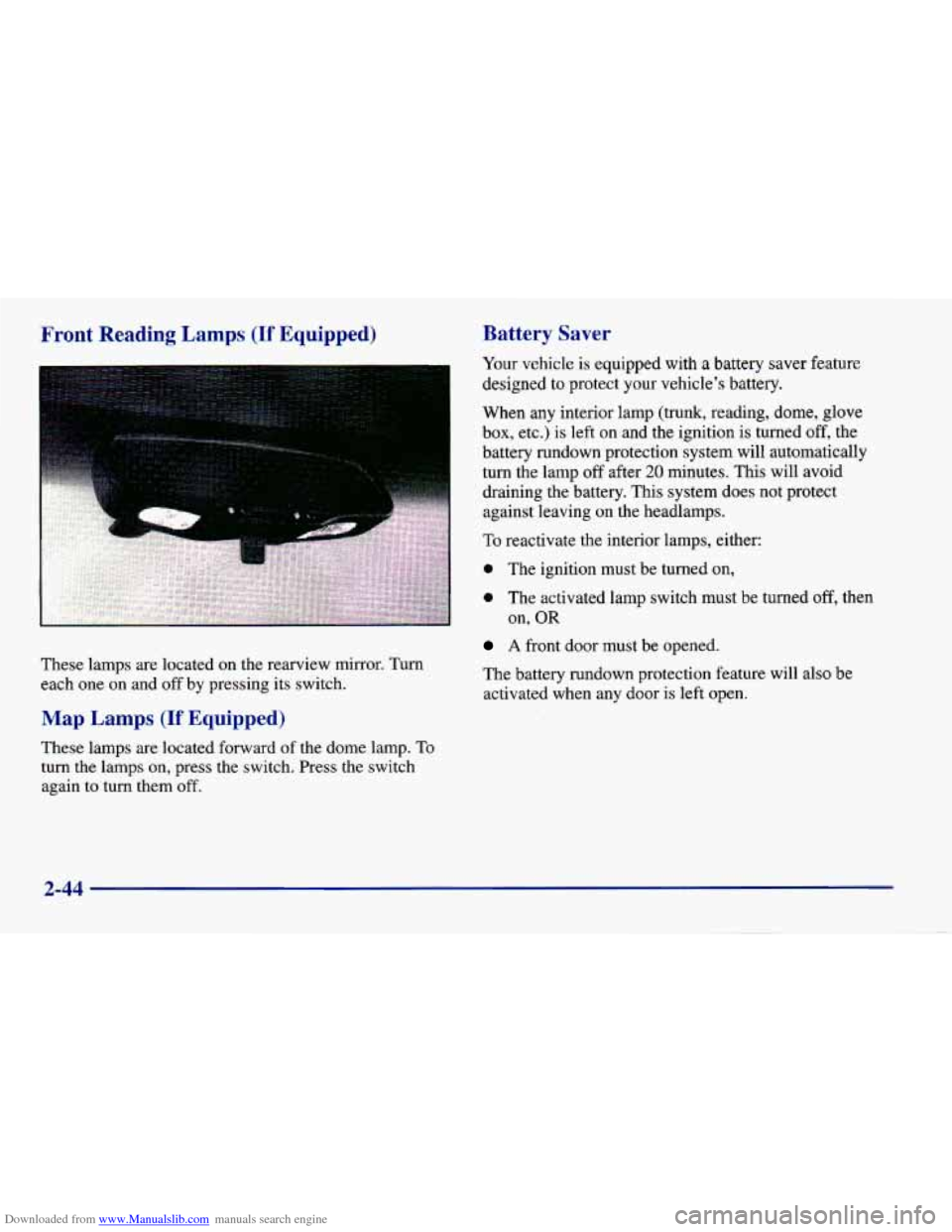

Downloaded from www.Manualslib.com manuals search engine Front Reading Lamps (If Equipped)
. ....
These lamps are located on the rearview mirror. Turn
each one on and off by pressing its switch.
Map Lamps (If Equipped)
These lamps are located forward of the dome lamp. To
turn the lamps on, press the switch. Press the switch
again to turn them off.
Battery Saver
Your vehicle is equipped with a battery saver feature
designed to protect
your vehicle’s battery.
When any interior lamp
(trunk, reading, dome, glove
box, etc.) is left on and the ignition is turned off, the
battery rundown protection system will automatically
turn the lamp
off after 20 minutes. This will avoid
draining the battery. This system does not protect
against leaving on the headlamps.
To reactivate the interior lamps, either:
0 The ignition must be turned on,
0 The activated lamp switch must be turned off, then
A front door must be opened.
The battery rundown protection feature will also be
activated when any door is left open.
on,
OR
2-44

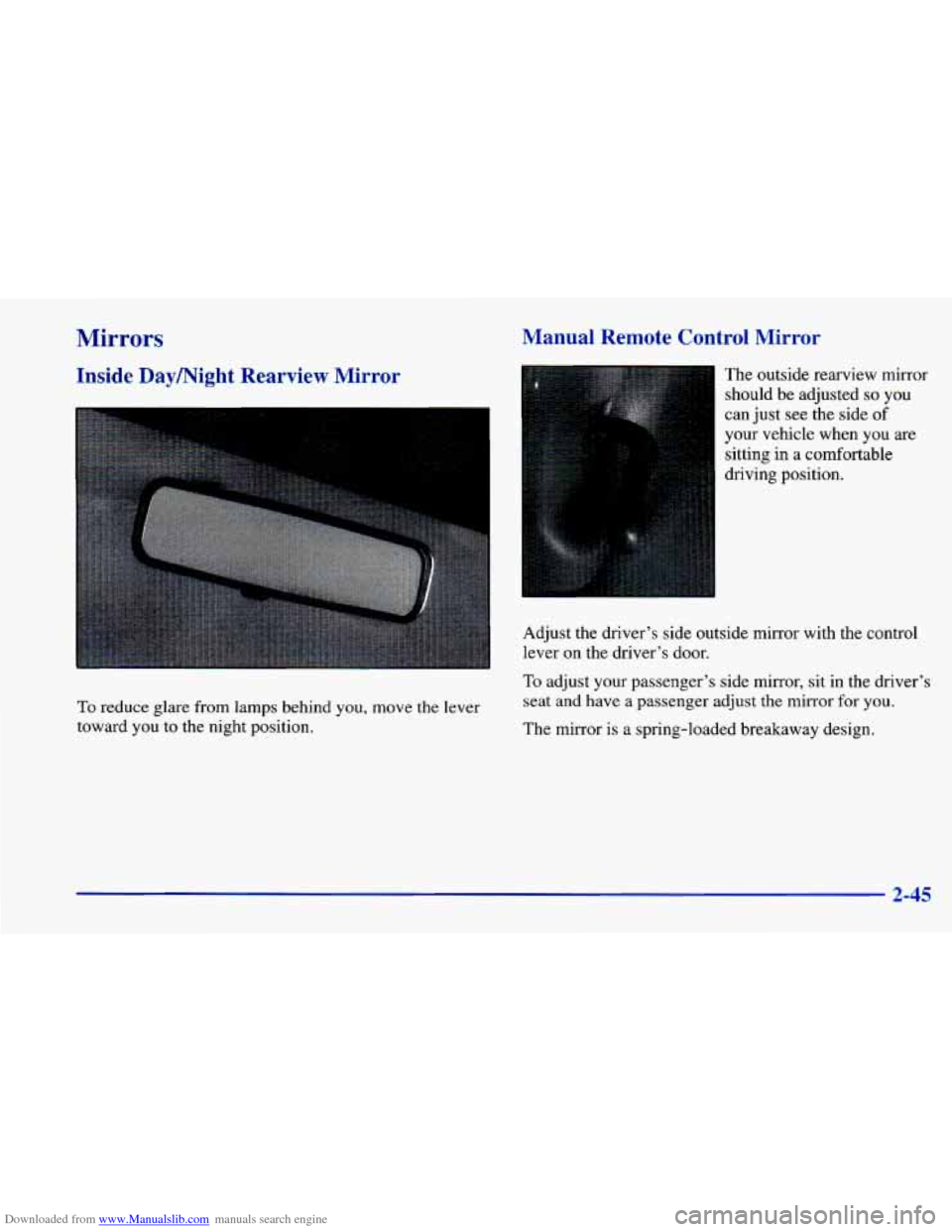

Downloaded from www.Manualslib.com manuals search engine Mirrors
Inside Daymight Rearview Mirror Manual
Remote Control Mirror
To reduce glare from lamps
behind you, move the lever
toward you to the night position. The
outside rearview mirror
should be adjusted
so you
can just see the side
of
your vehicle when you are
sitting in
a comfortable
driving position.
Adjust the driver’s side outside mirror with the control
lever on the driver’s door.
To adjust your passenger’s side mirror, sit in the driver’s
seat and have a passenger adjust
the mirror for you.
The mirror is a spring-loaded breakaway design.
2-45

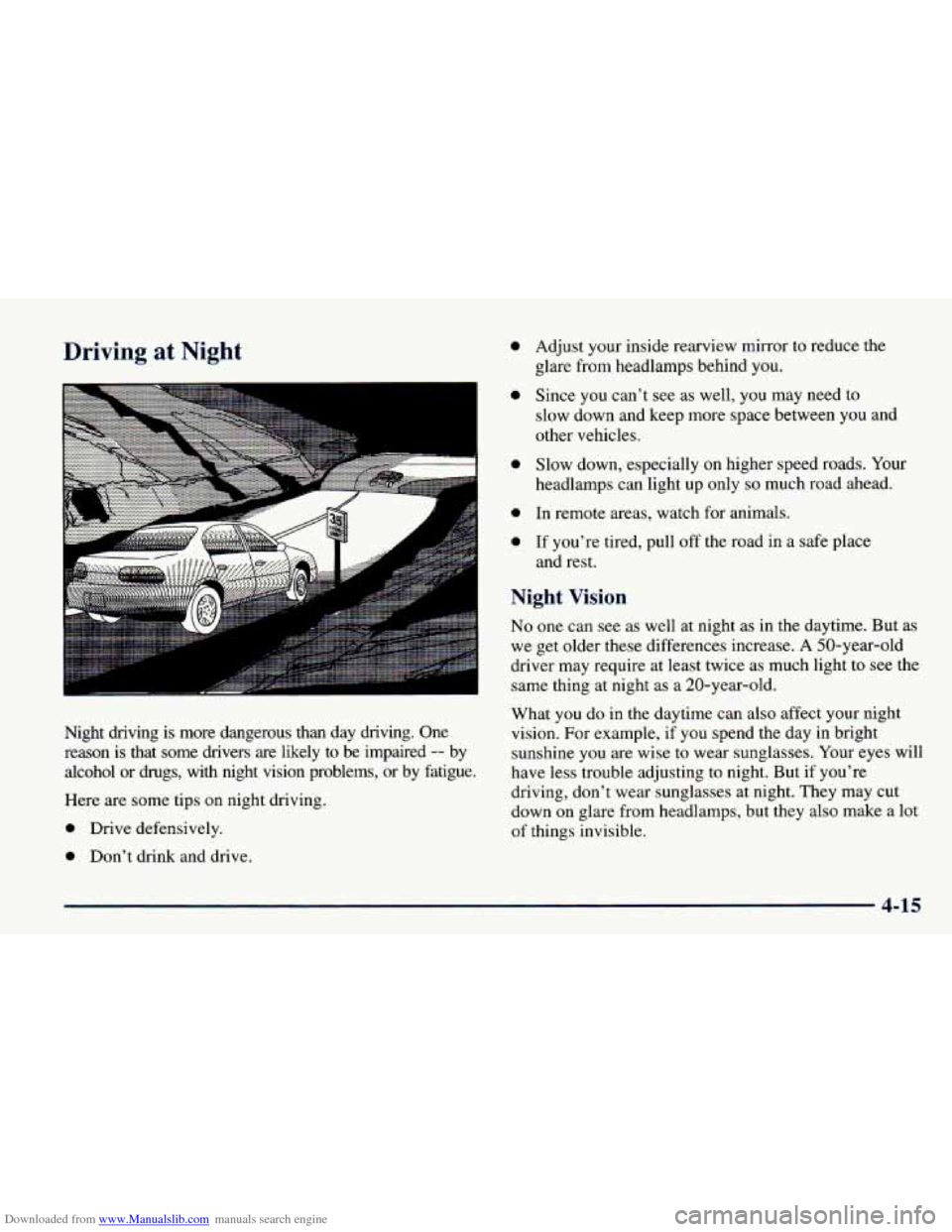

Downloaded from www.Manualslib.com manuals search engine Driving at Night
A
Night driving is more dangerous than day driving. One
reason is that some drivers are likely to be impaired
-- by
alcohol or drugs, with night vision problems, or by fatigue.
Here are some tips on night driving.
0 Drive defensively.
0 Don’t drink and drive.
0
0
0
0
0
Adjust your inside rearview mirror to reduce the
glare from headlamps behind
you.
Since you can’t see as well, you may need to
slow down and keep more space between you and
other vehicles.
Slow down, especially on higher speed roads.
Your
headlamps can light up only so much road ahead.
In remote areas, watch for animals.
If you’re tired, pull
off the road in a safe place
and rest.
Night Vision
No one can see as well at night as in the daytime. But as
we get older these differences increase.
A 50-year-old
driver may require at least twice as much light
to see the
same thing at night as a 20-year-old.
What you do in the daytime can also affect your night
vision. For example, if you spend the day in bright
sunshine
you are wise to wear sunglasses. Your eyes will
have less trouble adjusting to night. But if you’re
driving, don’t wear sunglasses at night. They may cut
down
on glare from headlamps, but they also make a lot
of things invisible.
4-15

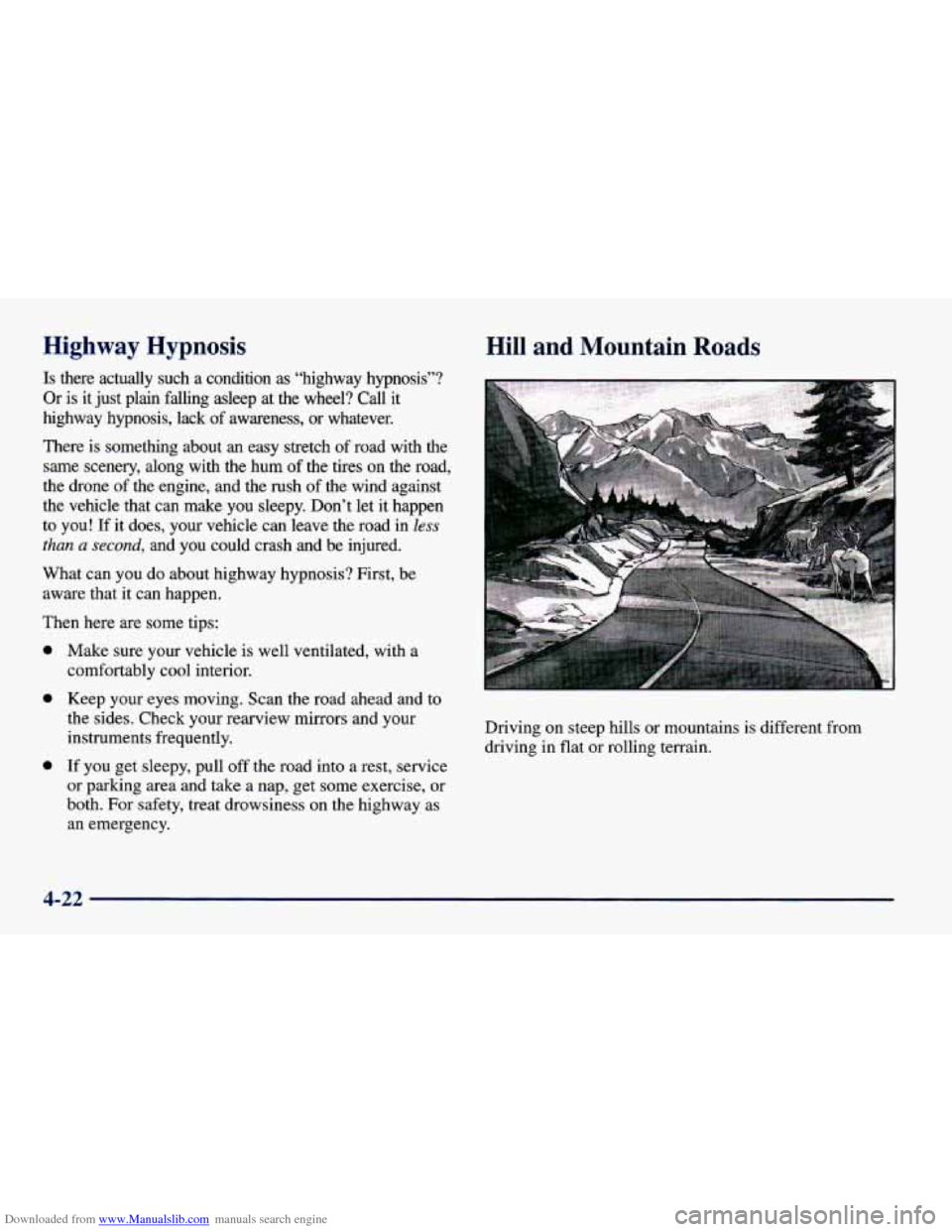

Downloaded from www.Manualslib.com manuals search engine Highway Hypnosis
Is there actually such a condition as “highway hypnosis”?
Or is it just plain falling asleep at the wheel? Call it
highway hypnosis, lack of awareness, or whatever.
There
is something about an easy stretch of road with the
same scenery, along with the hum of the tires on the road,
the drone of the engine, and the rush
of the wind against
the vehicle that can make you sleepy. Don’t let it happen
to you! If it does, your vehicle can leave the road in less
than a second, and you could crash and be injured.
What can
you do about highway hypnosis? First, be
aware that it can happen.
Then here are some tips:
0
0
Make sure your vehicle is well ventilated, with a
comfortably cool interior.
Keep your eyes moving. Scan the road ahead and to
the sides. Check your rearview mirrors and your
instruments frequently.
If you get sleepy, pull off the road into a rest, service
or parking area and take a nap, get some exercise, or
both.
For safety, treat drowsiness on the highway as
an emergency.
Hill and Mountain Roads
Driving on steep hills or mountains is different from
driving in flat or rolling terrain.
4-22

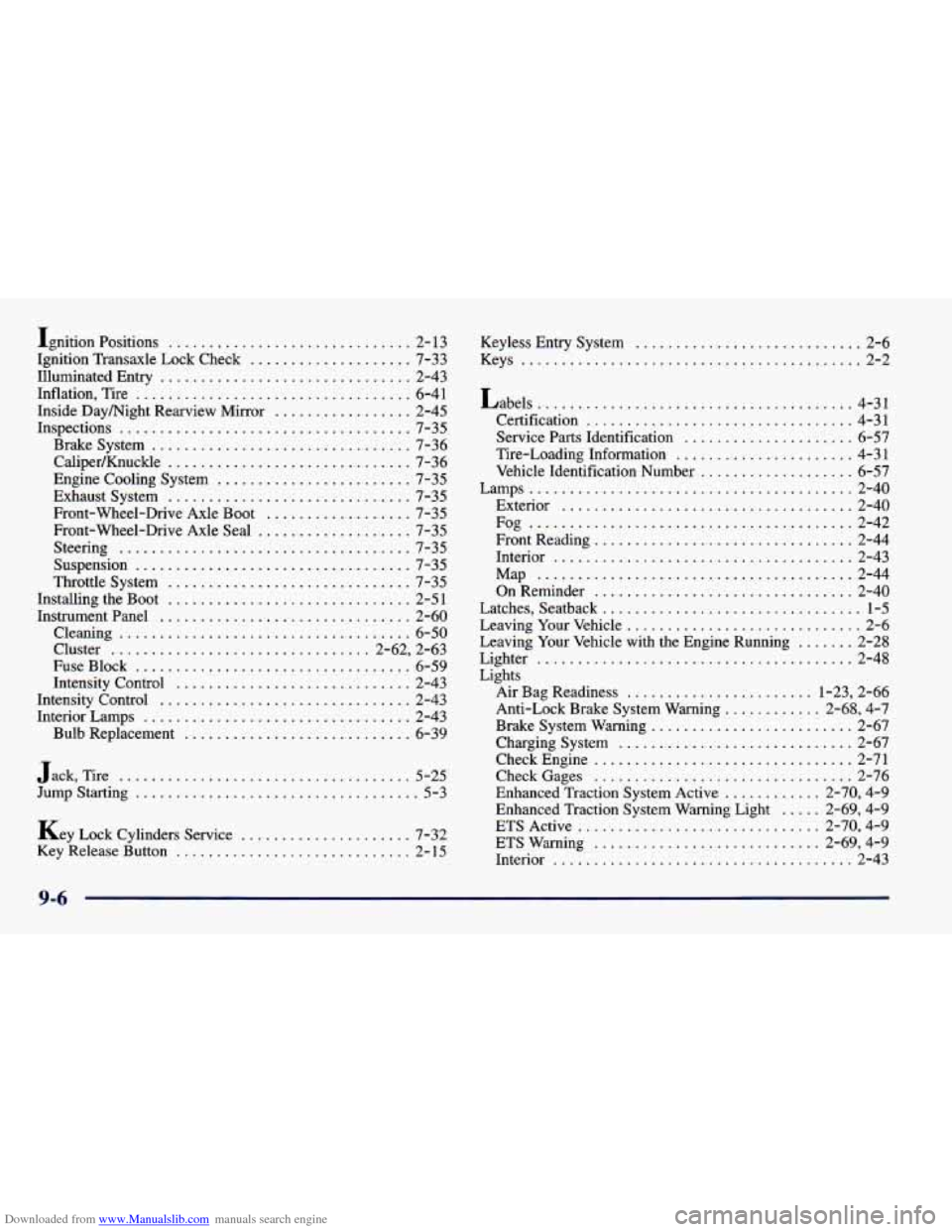

Downloaded from www.Manualslib.com manuals search engine Ignition Positions .............................. 2- 13
Ignition Transaxle Lock Check
.................... 7-33
Illuminated Entry
............................... 2-43
Inflation. Tire
.................................. 6-41
Inside Daymight Rearview Mirror
................. 2-45
Inspections
.................................... 7-35
Brake System
................................ 7-36
CaliperIKnuckle
.............................. 7-36
Engine Cooling System
........................ 7-35
Exhaust System
.............................. 7-35
Front-Wheel-Drive Axle Boot
.................. 7-35
Front-Wheel-Drive Axle Seal
................... 7-35
Steering
.................................... 7-35
Suspension
.................................. 7-35
Throttle System
.............................. 7-35
Installing the Boot
.............................. 2-51
Instrumentpanel
............................... 2-60
Cleaning
.................................... 6-50
Cluster ................................ 2-62. 2-63
FuseBlock
.................................. 6-59
Intensity Control
............................. 2-43
Intensity Control
............................... 2-43
Interior Lamps
................................. 2-43
Bulb Replacement
............................ 6-39
Jack. Tire
.................................... 5-25
Jump Starting
................................... 5-3
Key Lock Cylinders Service
..................... 7-32
Key Release Button
............................. 2- 15 Keyless Entry
System
............................ 2-6
Keys
.......................................... 2-2
Labels
....................................... 4-31
Certification
................................. 4-31
Service Parts Identification
..................... 6-57
Tire-Loading Information
...................... 4-31
Vehicle Identification Number
................... 6-57
Lamps
........................................ 2-40
Exterior
.................................... 2-40
FrontReading
................................ 2-44
Interior
..................................... 2-43
OnReminder
................................ 2-40
Latches, Seatback
................................ 1-5
Leaving Your Vehicle
............................. 2-6
Leaving Your Vehicle with the Engine Running
....... 2-28
Lighter
....................................... 2-48
Lights
Air Bag Readiness
....................... 1-23, 2-66
Anti-Lock Brake System Warning
............ 2-68, 4-7
Brake System Warning
......................... 2-67
Charging System
............................. 2-67
CheckEngine
................................ 2-71
Enhanced Traction System Active
............ 2-70, 4-9
Enhanced Traction System Warning Light ..... 2-69, 4-9
ETS Active .............................. 2-70, 4-9
ETS Warning
............................ 2-69, 4-9
Interior
..................................... 2-43
Fog
........................................ 2-42
Map
....................................... 2-44
CheckGages
................................ 2-76
9-6

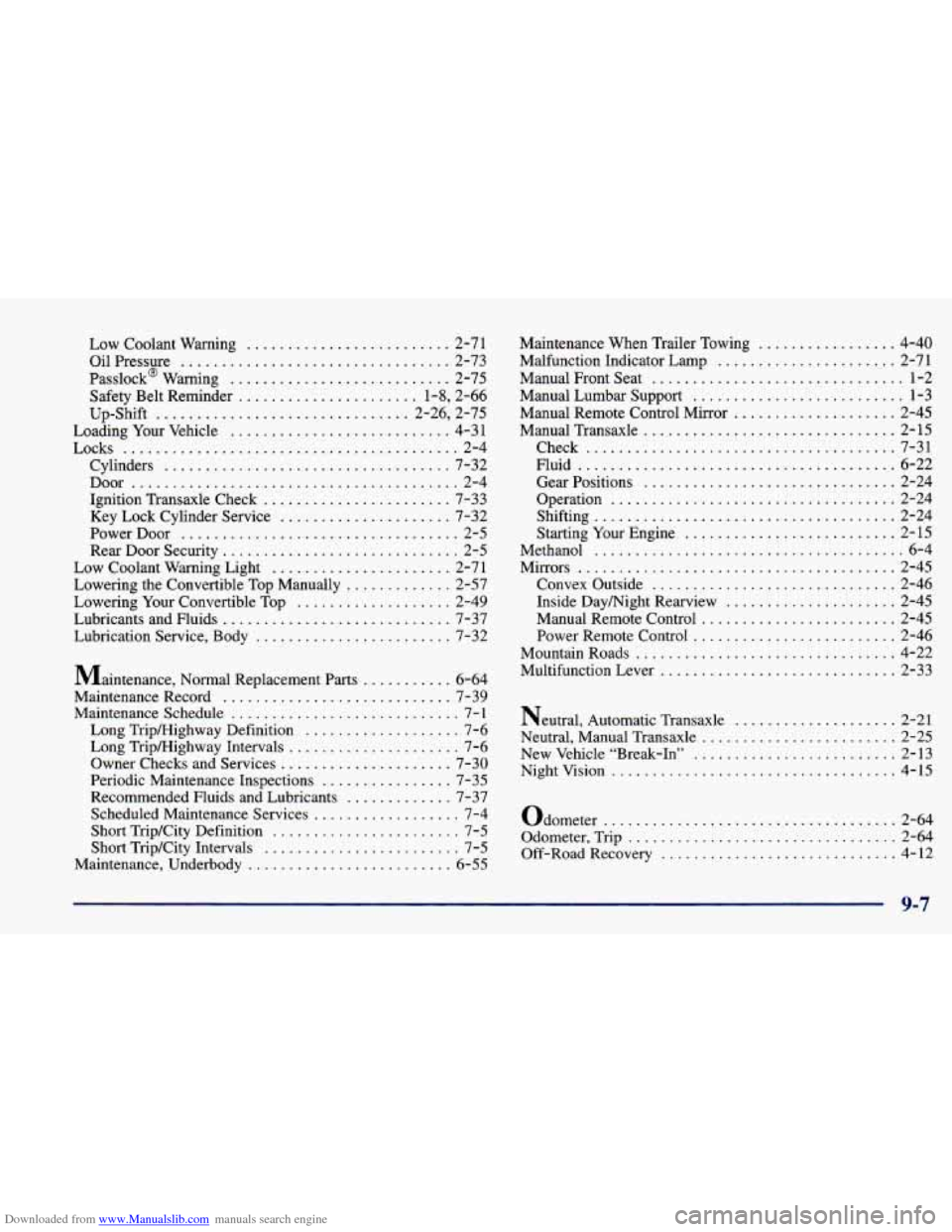

Downloaded from www.Manualslib.com manuals search engine Low Coolant Warning ......................... 2-71
Oil Pressure
................................. 2-73
Passlock@ Warning
........................... 2-75
Safety Belt Reminder
...................... 1.8. 2.66
Up-Shift
............................... 2.26. 2.75
Loading
Your Vehicle ........................... 4-3 1
Locks ......................................... 2-4
Cylinders
................................... 7-32
Door
........................................ 2-4
Ignition Transaxle Check
....................... 7-33
Key Lock Cylinder Service
..................... 7-32
PowerDoor
.................................. 2-5
Rear Door Security
............................. 2-5
Low Coolant Warning Light
...................... 2-71
Lowering the Convertible
Top Manually ............. 2-57
Lowering Your Convertible Top
................... 2-49
Lubricants and Fluids
............................ 7-37
Lubrication Service. Body
........................ 7-32
Maintenance. Normal Replacement parts
........... 6-64
Maintenance Record
............................ 7-39
Maintenance Schedule
............................ 7- 1
Long Tripmighway Definition ................... 7-6
Long Tripmighway Intervals
..................... 7-6
Owner Checks and Services
..................... 7-30
Periodic Maintenance Inspections
................ 7-35
Recommended Fluids and Lubricants
............. 7-37
Scheduled Maintenance Services
.................. 7-4
Short TripKity Definition ....................... 7-5
Short Trip/City Intervals ........................ 7-5
Maintenance. Underbody ......................... 6-55 Maintenance When Trailer Towing
................. 4-40
Malfunction Indicator Lamp
...................... 2-71
Manual Front Seat
............................... 1-2
Manual Lumbar Support
.......................... 1-3
Manual Remote Control Mirror
.................... 2-45
ManualTransaxle ............................... 2-15
Check
...................................... 7-31
Fluid
....................................... 6-22
Gear Positions
............................... 2-24
Operation
................................... 2-24
Shifting
..................................... 2-24
Starting Your Engine
.......................... 2-15
Methanol
...................................... 6-4
Mirrors
....................................... 2-45
Convex Outside
.............................. 2-46
Inside Daymight Rearview
..................... 2-45
Manual Remote Control
........................ 2-45
Power Remote Control
......................... 2-46
Mountain Roads
................................ 4-22
Multifunction Lever
............................. 2-33
Neutral. Automatic Transaxle
.................... 2-21
Neutral. Manual Transaxle ........................ 2-25
New Vehicle “Break-In” ......................... 2-13
Nightvision
................................... 4-15
Odometer
.................................... 2-64
Odometer, Trip
................................. 2-64
Off-Road Recovery
............................. 4-12
9-7

Downloaded from www.Manualslib.com manuals search engine Oil. Engine .................................... 6-12
Oil Pressure Light
.............................. 2-73
Overdrive, Automatic Transaxle
................... 2-23
Overheating Engine
............................. 5- 14
Owner Checks and Services ....................... 7-30
Owner Publications. Ordering
................ 8-1 1, 8-12
Paint Spotting. Chemical
........................ 6-55
Park
Automatic Transaxle
.......................... 2-20
Shifting Into
................................. 2-27
Shifting Out of
............................... 2-29
Parking AtNight
.................................... 2-11
Brake
...................................... 2-26
Brake Mechanism Check
....................... 7-34
Lots
....................................... 2- 12
Over Things That Burn
........................ 2-30
With a Trailer
................................ 4-39
Your Vehicle, Manual Transaxle
................. 2-29
Passenger Position
.................... 1-23, 1-30. 1-36
With
a Trailer ................................ 4-37
Passlock@
..................................... 2-12
Warning Light
............................... 2-75
Periodic Maintenance Inspections
.................. 7-35
Power
DoorLocks
................................... 2-5
Option Fuses ................................ 6-58
Remote Control Mirror ........................ 2-46
Passing
....................................... 4-12 Steering
............................... 4- 10. 6.29
Steering Fluid
................................ 6-29
Windows
................................... 2-32
Pregnancy, Use of Safety Belts
.................... 1-22
Problems on the Road
............................ 5-1
Publications, Service and Owner
.............. 8- 11, 8- 12
Radio Reception .............................. 3-22
Radios
.......................... 3.7.3.9.3.11. 3.16
Rain. Driving In ................................ 4-16
Raising the Convertible Top Manually
.............. 2-57
Raising Your Convertible Top
..................... 2-56
Rear Door Security Locks
........................... 2-5
Outside Seat Position
.......................... 1-30
Safety Belt Comfort Guides
..................... 1-33
Seatpassengers .............................. 1-30
Towing
..................................... 5-12
Window Defogger
............................. 3-6
RearTowing
................................... 5-12
Rear Turn Signal Bulb Replacement
................ 6-37
Rearview Mirror ................................ 2-45
Reclining Front Seatbacks
......................... 1-4
Recommended Fluids and Lubricants
............... 7-37
Recreational Vehicle Towing
...................... 4-28
Refrigerants. Air Conditioning
.................... 6-64
Remote Trunk Release
........................... 2-11
Removing the Boot
............................. 2-54
Rearview Mirror,
Inside Daymight
................. 2-45
9-8
