1998 CHEVROLET CAVALIER fog light

Downloaded from www.Manualslib.com manuals search engine Fuse
TRN-BL
F/P-INJ
RR
DFOG
CLUSTER
I TRN-BIL~ ERLS 1 ALA;' PCMIIGN I IGN 1
FIP- INJ AIR BAG CRUISE
RR DFOG PWR ACC STOP HA L HDLP R HDLP
CLUSTER EXT LAMP INT LAMP
HORN
I I I INST LPS I I I
I I I I
I 02 HTR I HVAC I I I I
1
WIPER RADIO
Usage
Exterior Lamps, Back-up Lamps
Fuel Pump, Fuel Injectors
Rear Window Defogger
Instrument Cluster, Anti-Lock
Brake System
Fuse
CLS/PCM
02 HTR
WIPER
ERLS
AIR BAG
PWR ACC
EXT LAMP
HVAC
Usage
Instrument Cluster, Powertrain
Control Module, Daytime
Running Lamps
Rear
02 Sensor Heater
Windshield Wipers,
Windshield Washers
Automatic Transaxle, Brake
Transaxle Shift Interlock, A/C
Compressor, Cruise Control,
Multiport Fuel Injection
Supplemental Inflatable
Restraint System
Power Door Locks, Convertible
Top (Convertible Model Only)
Exterior Lamps, Instrument
Panel Lights
Heater and NC Control, Engine
Cooling
Fan

Downloaded from www.Manualslib.com manuals search engine Fuse
RADIO
ALARM
CRUISE
STOP/HAZ
CIG
INST LPS
PCWIGN
L HDLP
Usage
Radio, Remote Keyless Entry
Alarm Module
- Interior Lamps,
Warning Chimes
Cruise Control
Exterior Lamps, Anti-Lock
Brake System, Cruise Control,
Turn Signals
Cigarette Lighter
Instrument Panel Lights,
Warning Chimes
Powertrain Control Module
Left Headlamp, Fog Lamp
(2-24 Model Only)
Fuse
INT LAMP
IGN
R HDLP
HORN
Usage
Alarm Module: Illuminated Entry,
Warning Chimes, Overhead
Lamps, Map/Reading Lamps,
Glove
Box Lamp, Trunk Lamp,
Radio, Power Mirrors, Remote
Keyless
Entry
Engine Ignition
Right Headlamp, Fog Lamp
(2-24 Model Only)
Horn, Diagnostic Connectm
PWR WDO/SRF Power Windows, Power Sunroof,
Convertible Top Controls
(Convertible Model Only)
(Circuit Breaker)
DRL Daytime Running Lamps (Relay)
3

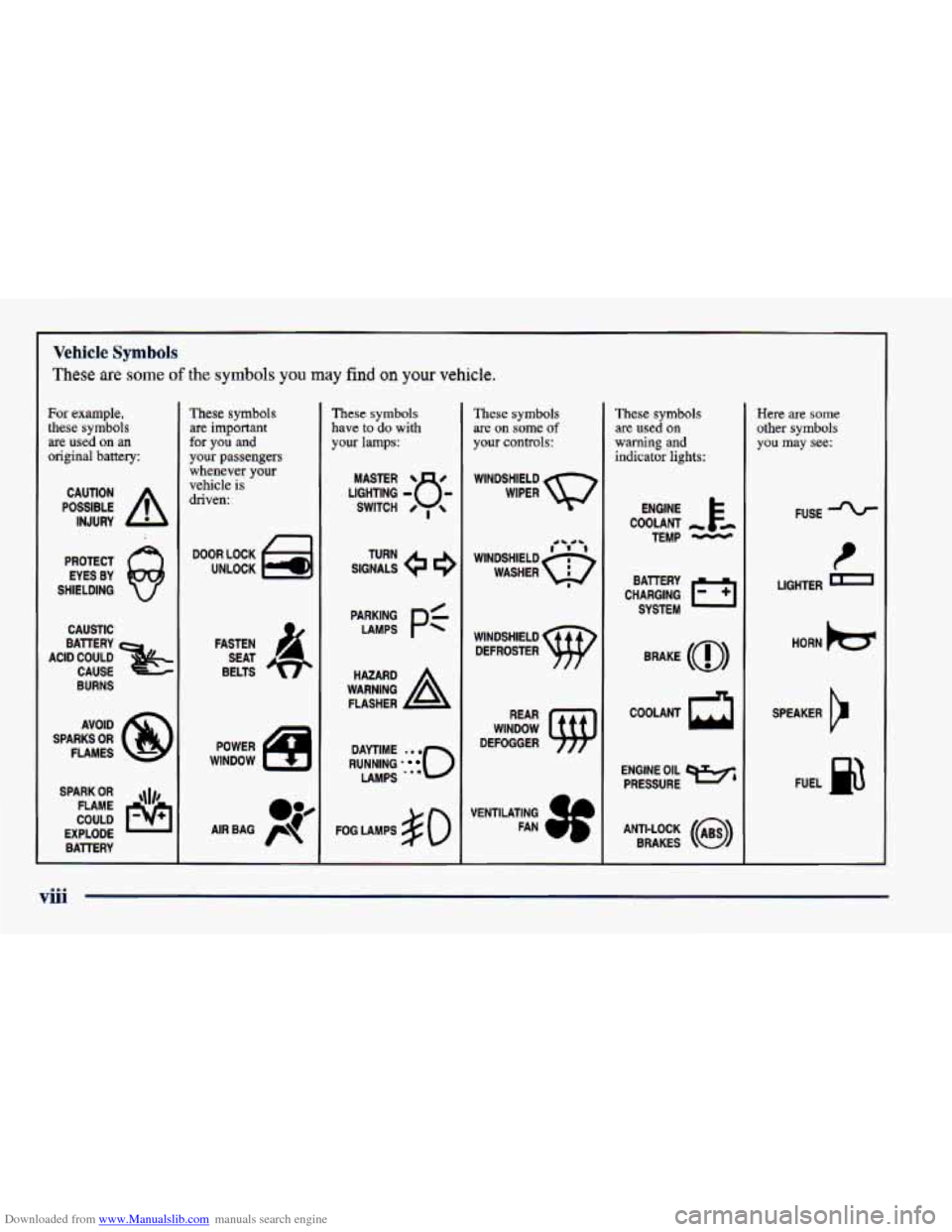

Downloaded from www.Manualslib.com manuals search engine Vehicle Symbols
These are some of the symbols you may find on your vehicle.
For example,
these symbols are used on an
original battery:
POSSIBLE A
CAUTION
INJURY
PROTECT EYES BY
SHIELDING
CAUSTIC
ACID COULD BAlTERY
CAUSE
BURNS
AVOID
SPARKS OR FLAMES
SPARK
OR ,111,
COULD FLAME
EXPLODE BAITERY
These symbols
are important
for you and
your passengers whenever your
vehicle is
driven:
DOOR LOCK
UNLOCK
n
WINDOW ISJ
These symbols
have to do with
your lamps:
RUNNING 0
DAYTIME -0 0
LAMPS '**
FOG LAMPS $0
These symbols
are on some of
your controls:
WINDSHIELD
DEFROSTER
WINDOW
DEFOGGER
VENTILATING FAN
These symbols
are used on
warning and
indicator lights:
CHARGING BAllERY
SYSTEM
BRAKE
(a)
COOLANT a
ENGINE OIL
PRESSURE
ANTI-LOCK
(a)
BRAKES
Here are some
other symbols
you may see:
FUSE
LIGHTER
n
HORN )tr
SPEAKER
b
FUEL p3
1
viii

Downloaded from www.Manualslib.com manuals search engine -0

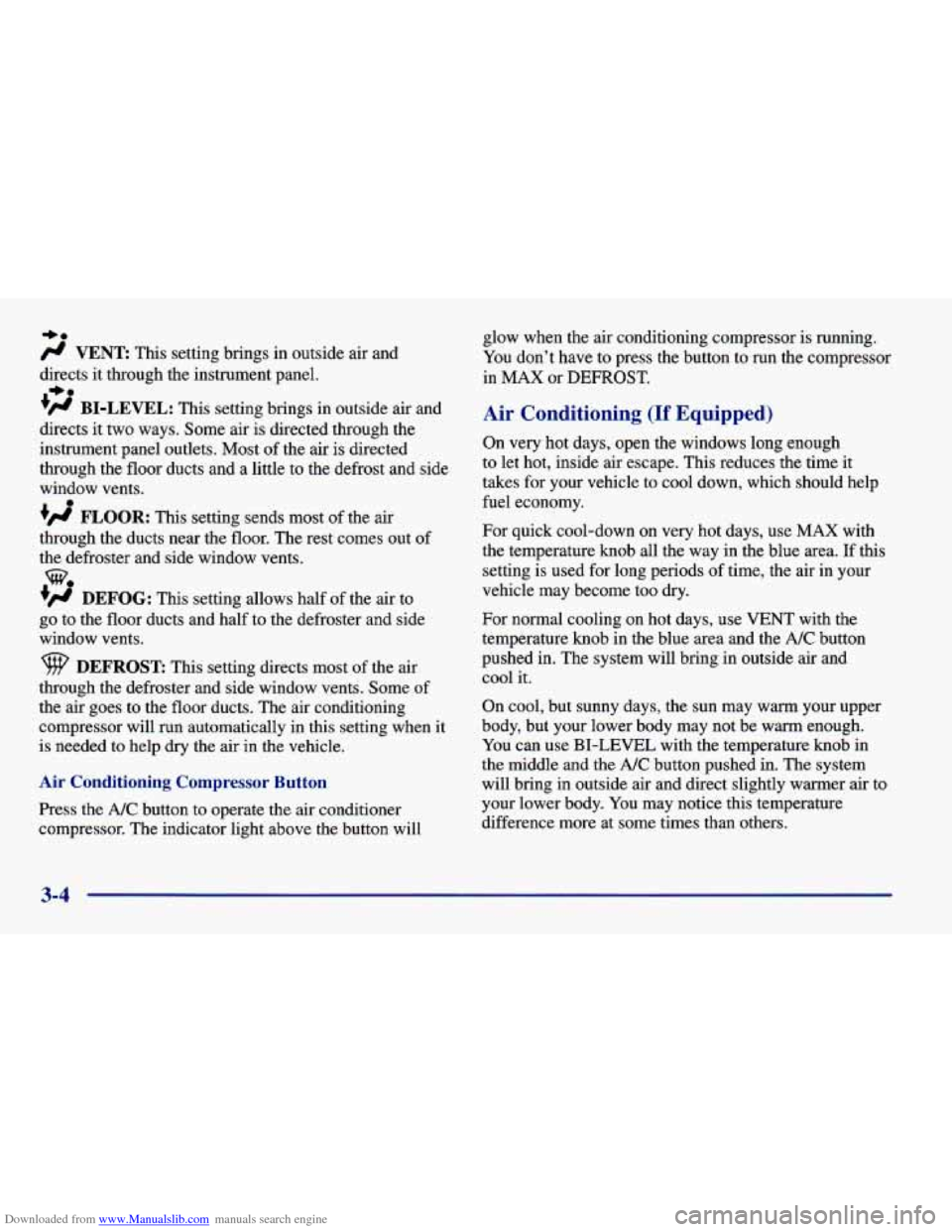

/J VENT This setting brings in outside air and
directs it through the instrument panel.
+fl BI-LEVEL: This setting brings in outside air and
directs it two ways. Some air is directed through the
instrument panel outlets. Most of the air
is directed
through the floor ducts and a little to the defrost and side
window vents.
+# FLOOR: This setting sends most of the air
through the ducts near the floor. The rest comes out of
the defroster and side window vents.
+’ DEFOG: This setting allows half of the air to
go to the floor ducts and half to the defroster and side
window vents.
+e
e
we
DEFROST: This setting directs most of the air
through the defroster and side window vents. Some
of
the air goes to the floor ducts. The air conditioning
compressor will run automatically in
this setting when it
is needed to help dry the air in the vehicle.
Air Conditioning Compressor Button
Press the NC button to operate the air conditioner
compressor. The indicator light above the button will glow
when the air conditioning compressor is running.
You don’t have to press the button to run the compressor
in MAX or DEFROST.
Air Conditioning (If Equipped)
On very hot days, open the windows long enough
to let hot, inside air escape. This reduces the time it
takes for your vehicle to cool down, which should help
fuel economy.
For quick cool-down on very hot days, use
MAX with
the temperature knob all the way in the blue area. If this
setting is used for long periods of time, the air in your
vehicle may become too dry.
For normal cooling on hot days, use VENT with the
temperature knob
in the blue area and the A/C button
pushed in. The system will bring in outside air and
cool it.
On cool, but sunny days, the sun may warm your upper
body, but your lower body may not be warm enough.
You can use BI-LEVEL with the temperature knob in
the middle and the
NC button pushed in. The system
will bring in outside air and direct slightly warmer air to
your lower body. You may notice this temperature
difference more at
some times than others.
3-4

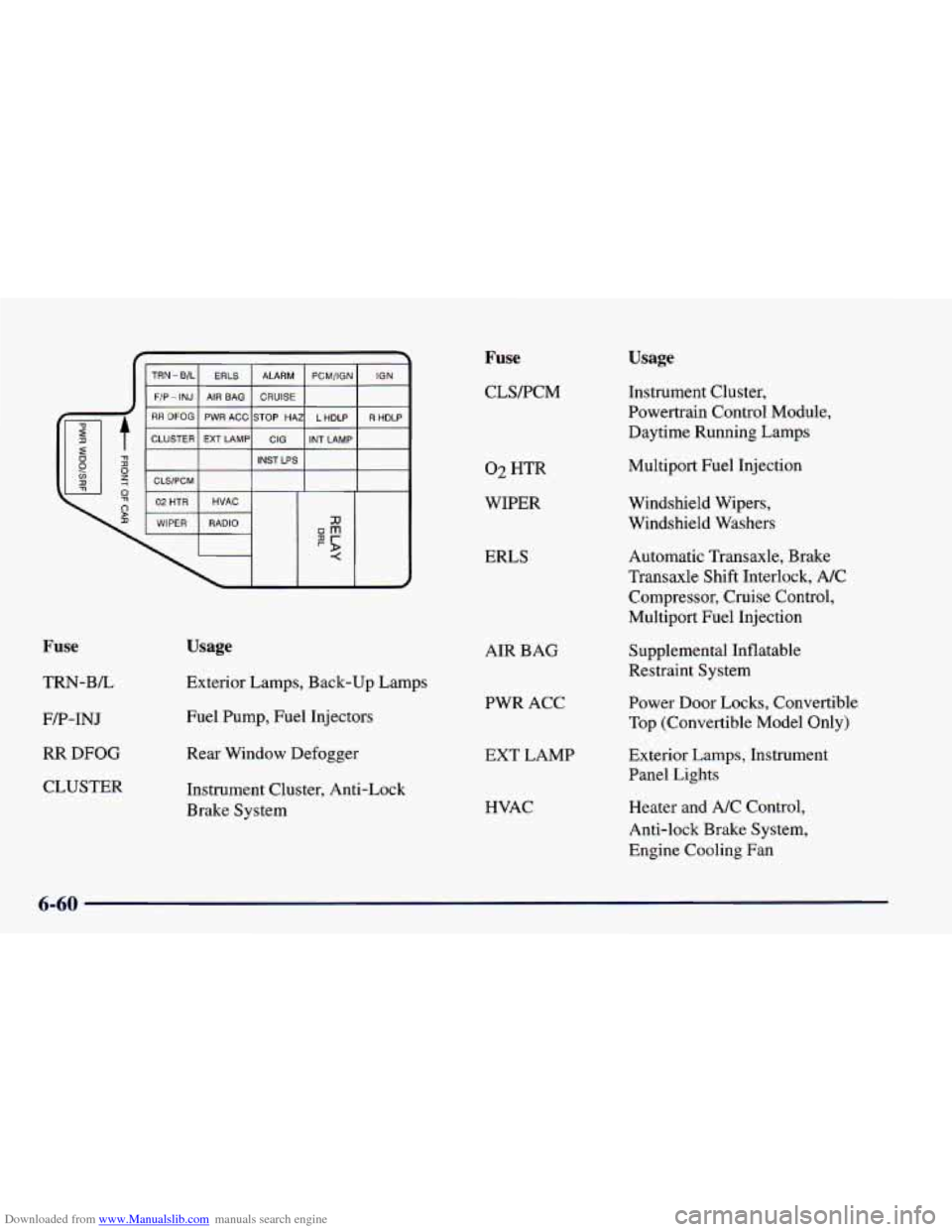

Downloaded from www.Manualslib.com manuals search engine Fuse
TRN-BL FA'-INJ
RR DFOG
CLUSTER
Usage
Exterior Lamps, Back-up Lamps
Fuel Pump, Fuel Injectors
Rear Window Defogger
Instrument Cluster, Anti-Lock
Brake System
Fuse
CLSRCM
02 HTR
WIPER
ERLS
AIR BAG
PWR ACC
EXT LAMP
HVAC
Usage
Instrument Cluster,
Powertrain Control Module,
Daytime Running Lamps
Multiport Fuel Injection
Windshield Wipers,
Windshield Washers Automatic Transaxle, Brake
Transaxle Shift Interlock, A/C
Compressor, Cruise Control,
Multiport Fuel Injection
Supplemental Inflatable
Restraint System
Power Door Locks, Convertible
Top (Convertible Model Only)
Exterior Lamps, Instrument
Panel Lights
Heater and A/C Control,
Anti-lock Brake System,
Engine Cooling Fan
6-60

Downloaded from www.Manualslib.com manuals search engine Fuse
RADIO
ALARM CRUISE STOP/HAZ
CIG
INST LP
PCM/IGN
L HDLP
Usage
Radio, Remote Keyless Entry
Alarm Module
- Interior Lamps,
Warning Chimes
Cruise Control
Exterior Lamps, Anti-Lock
Brake System, Cruise Control,
Turn Signals Cigarette Lighter,
Horn, Interior
Lamps, Diagnostic Connector
Instrument Panel Lights,
Warning Chimes
Powertrain Control Module
Left Headlamp, Fog Lamp
(2-24)
Fuse
INT LAMP
IGN
R HDLP
Usage
Alarm Module: Illuminated Entry,
Warning Chimes, Overhead
Lamps, MapReading Lamps,
Glove Box Lamp, Trunk Lamp,
Radio, Power Mirrors, Remote Keyless
Entry
Engine Ignition
Right Headlamp, Fog
Lamp
(2-24)
PWR WDO/SRF Power Windows, Power Sunroof,
Convertible Top Controls
(Convertible Models)
(Circuit Breaker)
DRL Daylight Running Lamps (Relay)
6-61

Downloaded from www.Manualslib.com manuals search engine Ignition Positions .............................. 2- 13
Ignition Transaxle Lock Check
.................... 7-33
Illuminated Entry
............................... 2-43
Inflation. Tire
.................................. 6-41
Inside Daymight Rearview Mirror
................. 2-45
Inspections
.................................... 7-35
Brake System
................................ 7-36
CaliperIKnuckle
.............................. 7-36
Engine Cooling System
........................ 7-35
Exhaust System
.............................. 7-35
Front-Wheel-Drive Axle Boot
.................. 7-35
Front-Wheel-Drive Axle Seal
................... 7-35
Steering
.................................... 7-35
Suspension
.................................. 7-35
Throttle System
.............................. 7-35
Installing the Boot
.............................. 2-51
Instrumentpanel
............................... 2-60
Cleaning
.................................... 6-50
Cluster ................................ 2-62. 2-63
FuseBlock
.................................. 6-59
Intensity Control
............................. 2-43
Intensity Control
............................... 2-43
Interior Lamps
................................. 2-43
Bulb Replacement
............................ 6-39
Jack. Tire
.................................... 5-25
Jump Starting
................................... 5-3
Key Lock Cylinders Service
..................... 7-32
Key Release Button
............................. 2- 15 Keyless Entry
System
............................ 2-6
Keys
.......................................... 2-2
Labels
....................................... 4-31
Certification
................................. 4-31
Service Parts Identification
..................... 6-57
Tire-Loading Information
...................... 4-31
Vehicle Identification Number
................... 6-57
Lamps
........................................ 2-40
Exterior
.................................... 2-40
FrontReading
................................ 2-44
Interior
..................................... 2-43
OnReminder
................................ 2-40
Latches, Seatback
................................ 1-5
Leaving Your Vehicle
............................. 2-6
Leaving Your Vehicle with the Engine Running
....... 2-28
Lighter
....................................... 2-48
Lights
Air Bag Readiness
....................... 1-23, 2-66
Anti-Lock Brake System Warning
............ 2-68, 4-7
Brake System Warning
......................... 2-67
Charging System
............................. 2-67
CheckEngine
................................ 2-71
Enhanced Traction System Active
............ 2-70, 4-9
Enhanced Traction System Warning Light ..... 2-69, 4-9
ETS Active .............................. 2-70, 4-9
ETS Warning
............................ 2-69, 4-9
Interior
..................................... 2-43
Fog
........................................ 2-42
Map
....................................... 2-44
CheckGages
................................ 2-76
9-6

Downloaded from www.Manualslib.com manuals search engine Oil. Engine .................................... 6-12
Oil Pressure Light
.............................. 2-73
Overdrive, Automatic Transaxle
................... 2-23
Overheating Engine
............................. 5- 14
Owner Checks and Services ....................... 7-30
Owner Publications. Ordering
................ 8-1 1, 8-12
Paint Spotting. Chemical
........................ 6-55
Park
Automatic Transaxle
.......................... 2-20
Shifting Into
................................. 2-27
Shifting Out of
............................... 2-29
Parking AtNight
.................................... 2-11
Brake
...................................... 2-26
Brake Mechanism Check
....................... 7-34
Lots
....................................... 2- 12
Over Things That Burn
........................ 2-30
With a Trailer
................................ 4-39
Your Vehicle, Manual Transaxle
................. 2-29
Passenger Position
.................... 1-23, 1-30. 1-36
With
a Trailer ................................ 4-37
Passlock@
..................................... 2-12
Warning Light
............................... 2-75
Periodic Maintenance Inspections
.................. 7-35
Power
DoorLocks
................................... 2-5
Option Fuses ................................ 6-58
Remote Control Mirror ........................ 2-46
Passing
....................................... 4-12 Steering
............................... 4- 10. 6.29
Steering Fluid
................................ 6-29
Windows
................................... 2-32
Pregnancy, Use of Safety Belts
.................... 1-22
Problems on the Road
............................ 5-1
Publications, Service and Owner
.............. 8- 11, 8- 12
Radio Reception .............................. 3-22
Radios
.......................... 3.7.3.9.3.11. 3.16
Rain. Driving In ................................ 4-16
Raising the Convertible Top Manually
.............. 2-57
Raising Your Convertible Top
..................... 2-56
Rear Door Security Locks
........................... 2-5
Outside Seat Position
.......................... 1-30
Safety Belt Comfort Guides
..................... 1-33
Seatpassengers .............................. 1-30
Towing
..................................... 5-12
Window Defogger
............................. 3-6
RearTowing
................................... 5-12
Rear Turn Signal Bulb Replacement
................ 6-37
Rearview Mirror ................................ 2-45
Reclining Front Seatbacks
......................... 1-4
Recommended Fluids and Lubricants
............... 7-37
Recreational Vehicle Towing
...................... 4-28
Refrigerants. Air Conditioning
.................... 6-64
Remote Trunk Release
........................... 2-11
Removing the Boot
............................. 2-54
Rearview Mirror,
Inside Daymight
................. 2-45
9-8
