1998 CADILLAC DEVILLE CD player

Downloaded from www.Manualslib.com manuals search engine Section 3 Comfort Controls and Audio Systems
In this section, you’ll find out how to operate the comfort control and audio systems offered with your vehicle. Be
sure to read about the particular systems supplied
with your vehicle.
3-2 Comfort Controls 3-22
AM-FM Stereo with Cassette Tape and
3-2 Digital
Cluster Climate Control.Pane1
Systems
(RDS) and Digital Signal Processing
(DeWlle and DeVille d’Elegance Only) Compact Disc Player with Radio Data
. .
3-6 Analog Cluster Climate Control Panel
(DSP) (If Equipped)
. (DeVille Concours Only) 3-3 1 Radio Data Systems (RDS) Program Type
3-
10 Air Conditioning. 3-32 Trunk Mounted CD Changer (If Equipped)
3-10
’ Heating
3- 11 Ventilation System
3-4
1 Power Antenna Mast Care 3- 18 AM-FM Stereo with Cassette Tape and 3-41 Care
of Your Compact Disc Player
3-14 AM-FM Stereo with Cassette Tape Player 3-40 Care
of Your
Compact Discs
3-14 Setting the Clock 3-39 Care
of Your
Cassette Tape Player
3-14 Audio Systems 3-38 Tips
About Your
Audio System
3-13 Climate Control Personalization If (Equipped) 3-38 Understanding Radio Reception
3-13 HVAC Steering Whed Controls 3-37 Audio Steering Wheel Controls
(If Equipped) 3-12 Rear Window Defogger 3-36 Theft-Deterrent Feature
3- 12 Defogging and Defrosting 3-36 Radio Personalization (If Equipped)
319
Electronic Solar Sensor
(PTY) Selections
.-- 3-35 CD Adapter Kits
Compact Disc Player
(If Equipped)
3-1

Downloaded from www.Manualslib.com manuals search engine Audio Systems AM-FM Stereo with Cassette Tape Player
Your Cadillac audio system has been designed to operate
easily and give years
of listening pleasure. You will
get the most enjoyment out of it if you acquaint yourself
with it first. Find out what your audio system can do
and how
to operate all its controls, to be sure you're
getting the most out of the advanced engineering that
went into it.
Setting the Clock
Press and hold HR or MN until the time display begins
to change. Release the button as you get close to the
correct time. The time may be set anytime the clock is
displayed. There is a two-second delay before the clock
goes into time-set mode.
Playing the Radio
PWRNOL: Press this knob lightly to turn the system
on. Press the knob again to
turn the system off. To
increase volume,
turn the knob to the right. Turn it to
the left to decrease volume. The volume level will
appear
on the display.
DSPL: Press this button to display the station
being played.
3-14

Downloaded from www.Manualslib.com manuals search engine Playing a Cassette Tape

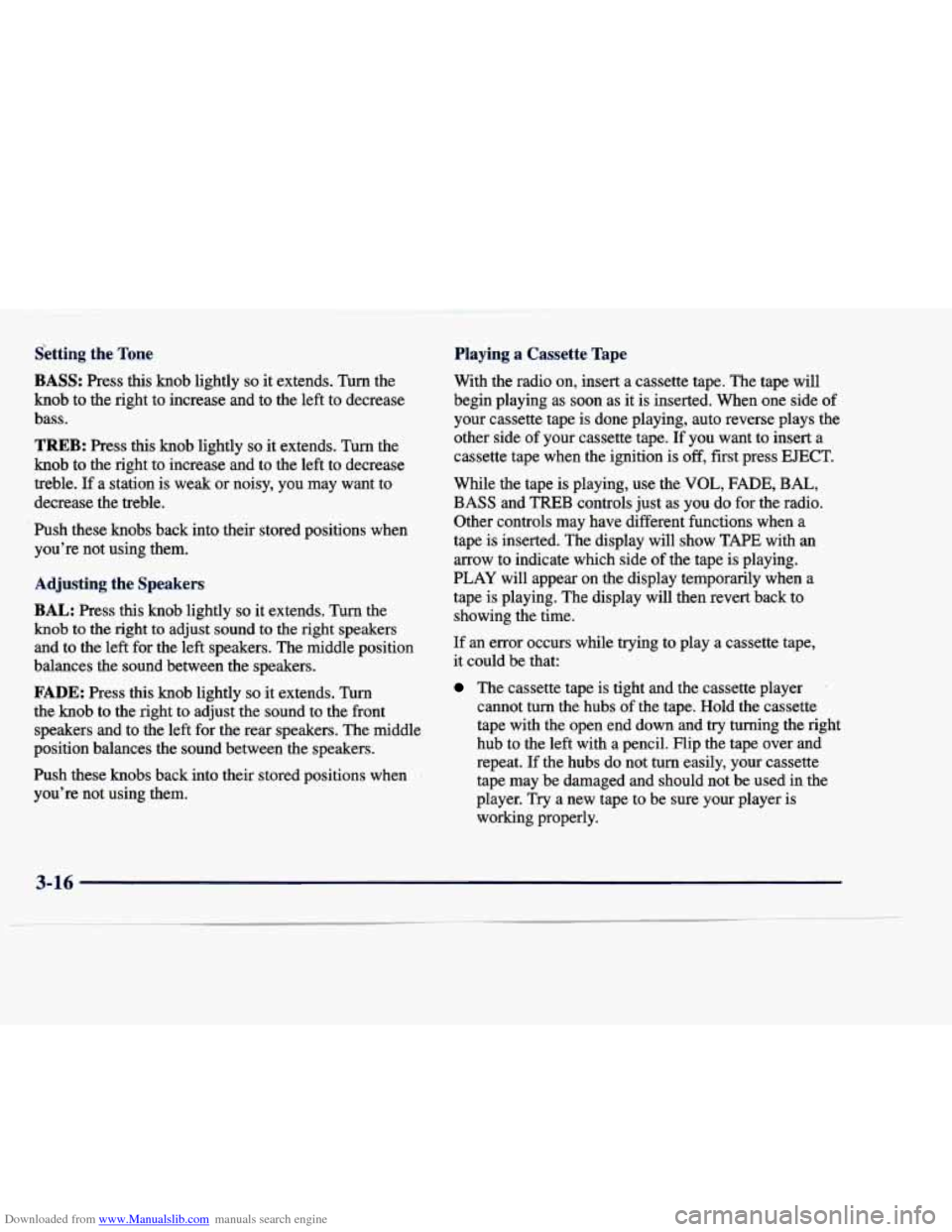

setting the Tone
BASS: Press this knob lightly so it extends. Turn the
knob to the right to increase and to the left to decrease
bass.
TREB: Press this knob lightly so it extends. Turn the
knob to the right to increase and to the left to decrease
treble.
If a station is weak or noisy, you may want to
decrease the treble.
Push these knobs back into their stored positions when
you’re not using them.
Adjusting the Speakers
BAL:
Press this knob lightly so it extends. Turn the
knob
to the right to adjust sound to the right speakers
and to the left for the left speakers. The middle position
balances the sound between the speakers.
FADE: Press this knob lightly so it extends. Turn
the knob to the right to adjust the sound to the front
speakers and to the left for the rear speakers. The middle
position balances the sound between the speakers.
Push these knobs back into their stored positions when
you’re not using them. With the radio on, insert
a cassette tape. The tape will
begin playing as soon as it is inserted. When one side of
your cassette tape is done playing, auto reverse plays the
other side of your cassette tape. If you want to insert a
cassette tape when the ignition is
off, first press EJECT.
While the tape is playing, use the
VOL, FADE, BAL,
BASS and TREB controls just as you do for the radio.
Other controls may have different functions when a
tape is inserted. The display
will show TAPE with an
arrow to indicate which side of the tape is playing.
PLAY will appear on the display temporarily when a
tape is playing. The display will then revert back to
showing the time.
If an error occurs while trying to play a cassette tape,
it could be that:
The cassette tape is tight and the cassette player .
cannot turn the hubs of the tape. Hold the cassette
tape with the open end down and
try turning the right
hub to the left with a pencil. Flip the tape over and
repeat.
If the hubs do not turn easily, your cassette
tape may be damaged and should not be used in the
player.
Try a new tape to be sure your player is
working properly.
3-16

Downloaded from www.Manualslib.com manuals search engine The cassette tape is broken. (Check to see if your
REV: Press the left arrow to rewind the tape rapidly.
The radio will play while the tape reverses and
REV
will appear on the display. You may use your station
pushbuttons to tune to another radio station while
in
REV mode. Press the left arrow again to return to
playing speed.
FF: Press the right arrow to fast forward to another part
of the tape. The radio will play while the tape advances
and
FF will appear on the display. You may use your
station pushbuttons to tune to another radio station
while in
W mode. Press the right arrow again to
return to playing speed.
SEEK-TUNE: Press the right arrow to seek to the next
selection on the tape. Press the left arrow to search for
the previous selection on the tape (REP will appear on
the display). Your tape must have at least three seconds
of silence between each selection for SEEK-TUNE to
work. The sound will mute while seeking.
SCAN: Press this button. SCAN FF will appear on the
display until the next selection is found and then SCAN
PLAY will appear on the display. Use SCAN to listen
to
selections for a few seconds. The tape will go to a
selection, stop for a few seconds, then
go on to the next
selection. Press
this button again to stop scanning.
tape
is broken. Try a new tape.)
SIDE: Press this button to change the side of the tape
that is playing. (PLAY shows on the display.)
SOURCE: Press this button to select a source. If no
cassette tape is
in the tape player, CASS appears on the
display and then the radio station appears briefly. The
display then reverts back to showing the time of day. Press
this button again or BAND to switch back to the radio.
A EJECT Press the upward triangle button to remove
a tape. The radio will play. Eject may be activated with
the radio
off. Cassette tapes may be loaded with the radio
off but they will not start playing until the PWR button is
pressed. Press PWR or
turn the ignition key off to stop
the cassette tape player. The tape will stay in the player
and resume play at the point where it stopped.
CLN: If this message appears on the display, the
cassette tape player needs to be cleaned.
It will still play
tapes, but you should clean it as soon as possible to
prevent damage to the tapes and player. See “Care
of
Your Cassette Tape Player” in the Index. After you clean
the player, press and hold EJECT for five seconds to
reset the CLN indicator. The radio will display
--- to
show the indicator was reset.
Dolby Noise Reduction is manufactured under a license
from Dolby Laboratories Licensing Corporation. Dolby and the double-D symbol are trademarks
of Dolby
Laboratories Licensing Corporation.
3-17

Downloaded from www.Manualslib.com manuals search engine AM-FM Stereo with Cassette Tape and
Compact Disc Player
(If Equipped)
SOURCE: Press this button to select a source. Sources
include cassette and compact disc. The audio source
must be loaded to play. Available loaded sources are
shown on the dispiay.-If a source is being used, it will be
underlined on the display. If none of the audio sources
are loaded,
NO SOURCE LOADED will appear on the
display. Press this button again or
BAND to switch back
to the radio.
Playing the Radio
PWRNOL:
Press this knob lightly to turn the system
on. Press the knob again to turn the system off. To
increase volume, turn the knob to the right. Turn it to
the left to decrease volume.
MUTE: Press this button to silence the system. Press it
again to turn
on the sound.
Finding a Station
BAND:
Press this button to select AM, FMl or FM2
and preset stations.
TUNE-SEEK: When this button is pressed it has two
positions. Press this button to the first position to
manually tune to higher or lower stations. If
this button
is held at the first position for
a few seconds, the radio
will continue tuning until this button is released. Press
this button
to the second position and release to seek to
the next higher or lower radio station.
SCAN: Press this button for less than two seconds to
scan radio stations. The radio will go to
a station, stop
for five seconds, then
go on to the next station. Press
this button again to stop scanning.

Downloaded from www.Manualslib.com manuals search engine mile the tape is playing, use the VOL, TONE, LEVEL,
and SPEAKER controls just as you do for the radio.
Other controls may have different functions when a tape
is inserted. The display will show
an underlined tape
symbol. TAPE
PLAY will appear on the display when a
tape is playing, with an arrow to indicate which side of
the tape is playing.
If an error occurs while trying to play a cassette tape, it
could be that:
The cassette tape is tight and the cassette player
cannot turn the hubs of the tape. Hold the cassette
tape with the open end down and try turning the right
hub to the left with a pencil. Flip the tape over and
repeat.
If the hubs do not turn easily, your cassette
tape may be damaged and should not be used in the
player. Try a new tape to be sure your player is
working properly.
The cassette tape is broken. (Check to see if your
RW Press the left arrow to rewind the tape rapidly. The
radio will play while the tape rewinds. You may use
your station pushbuttons to tune to another radio station
while
in RW mode. Press the left arrow again to return
to playing speed. tape is broken.
Try a new tape.)
FF: Press the right arrow to fast forward to another part
of the tape. The radio will play while the tape advances.
You may use your station pushbuttons to tune to another
radio station while in
FF mode. Press the right arrow
again to return to playing speed.
TUNE-SEEK: When this button is pressed, it has two
positions. This button works the same, whether it is
pressed to the first or second position. Press this button
to seek to the next or previous selection on the tape.
Your tape must have at least three seconds of silence
between each selection for TUNE-SEEK to work. The sound will mute while seeking.
SCAN: Press this button to listen to selections for a few
seconds. The tape will go to a selection, stop for a few
seconds, then go on to the next selection. Press this
button again to stop scanning.
SIDE: Press this button to change the side of the tape
that is playing.
A EJECT: Press the upward triangle button to remove
a tape. The
radio will play. Eject may be activated with
the radio off andor the vehicle ignition off.
3-20

Downloaded from www.Manualslib.com manuals search engine CLEAN TAPE: If this message appears on the display,
the cassette tape player needs to be cleaned. It will
still
play tapes, but you should clean it as soon as possible to
prevent damage
to the tapes and player. See “Care of
Your Cassette Tape Player” in the Index. After you clean
‘the player, press and hold EJECT for three seconds to
reset the CLEAN TAPE indicator.
Dolby Noise Reduction is manufactured under a license
from Dolby Laboratories Licensing Corporation. Dolby
and the double-D symbol are trademarks of.Dolby
Laboratories Licensing Corporation.
Auto Cr02 allows the cassette tape player to adjust to
I
the type of cassette tape for cle’arer sound for CrO2
cassette tapes.
Playing a Compact Disc
Insert a disc partway into the slot, label side up. The
player will pull it in.
If the ignition and the radio are on
;and the underlined compact disc symbol appears on the
display, the disc
will begin playing. Compact discs may
be loaded with the radio
off but they will not start
playing until the radio is on. If you want to insert a disc
when the ignitioh is
off, first press EJECT.
The integral CD player can play the smaller 8 cm .
compact discs. Full-size compact discs and the smaller
compact discs are loaded in the same manner.
If you’re driving on a very rough road or if it’s very
hot, the disc may not play.
If the disc comes out, it
could be that:
The disc is upside down.
-
It is dirty, scratched or wet.
’ The air is very humid. (If so, wait about an hour
and
try again.)
If any error occurs repeatedly or if an error can’t be
corrected, please contact your dealer.
3-21

Downloaded from www.Manualslib.com manuals search engine RW Press and hold the left arrow to reverse the
compact disc. Release it to return to playing speed.
FF: Press and hold the right arrow to fast forward to
another part of the compact disc. Release it to return to
playing speed.
TUNE-SEEK: When this button is pressed, it has
two positions. This button works the same, whether
it is pressed to the first or second position. Press this
button to
seek to the next or previous selection on the
compact disc.
SCAN: Press this button to listen to selections for a few
seconds. The compact disc will go to a selection, stop
for a
few seconds, then go on to the next selection. Press
this button again to stop scanning.
RDM: Press this button to hear the tracks in random,
rather than sequential, order. Press
RDM again to turn
off random play.
EJECT: Press the upward triangle button to remove a
compact disc. The radio will play. Eject
may be activated with the radio
off and/or the vehicle
ignition
off.
AM-FM Stereo with Cassette Tape and
Compact
Disc Player with Radio Data
Systems
(RDS) and Digital Signal
Processing
(DSP) (If Equipped)
Playing the Radio
PWRNOL:
Press this knob lightly to turn the system
on. Press the knob again to
turn the system off. To
increase volume, turn the
knob to the right. Turn it to the
left to decrease volume.
3-22
