press and hold the
RDS button for two seconds.
REGION:
ON will appear on the display. While
REGION: ON appears, on the display, press the RDS
button again to turn the region function off. REGION:
OFF will appear on the display. The region function can
be turned on again by pressing the
RDS button.
TA (2): Press the RDS SELECT button, ,followed by
this button to receive traffic announcements. The radio
will-turn on the TA'display.
TP will appear on the
display if the tuned station broadcasts traffic
announcements. You may
also receive traffic
announcements from stations in the network related to
the tuned station.
If the current tuned station does not
broadcast traffic announcements, the radio will seek to a
station which does. When the radio finds -a station which
broadcasts traffic announcements, it will stop.
If no
station is found, NONE
FOUND will appear on the
display. When SEEK or SCAN
is pressed with the
traffic announcement function on, the radio will only
stop at stations which broadcast traffic announcements.
While a tr&c announcement plays, the radio uses a
special
type of volume called TA volume. To increase TA
volume,
turn the PWRNOL knob to the right. Turn it to
the left to decrease volume. TA VOLUME 'will appew, on
the display while the volume
is being adjusted. When a traffic announcement
comes on the tuned radio
station or a related network station, you will hear it,
even
if the volume is muted or a cassette tape or
compact disc
is playing. If the radio tunes to a related
network station for a traffic announcement, it will return
,
to the original station when the announcement is
finished. If the cassette tape or compact disc player was
being used, the tape or compact disc will stay in the
player and resume play at the point where
it stopped.
Press the
RDS SELECT button, followed by this button
again
to turn TA off.
MSG. (3): When RDS is on, if the current station has a
message,
MSG will appear on the' display. Press the
RDS SELECT button, followed by this button to see the
message.
If the whole message does not appear on the
display, parts of the message will appear every three
seconds until the message is' completed.
To see the parts
of the message faster than every three seconds, press
this
button again. A new group of words will appear on the
display. Once the complete message-has been displayed,
MSG will disappear from the display until another new
MSG is received. Each message can only be read once.
PTY (4): This button is used to turn on and off Program'
Tjq~ (PTY) seeks adscans. ,hss the RDS SELECT
button, followed ,by
this button. The PTY display will turn
on. RDS SELECT: PTY NEWS will appear on the display
3-25

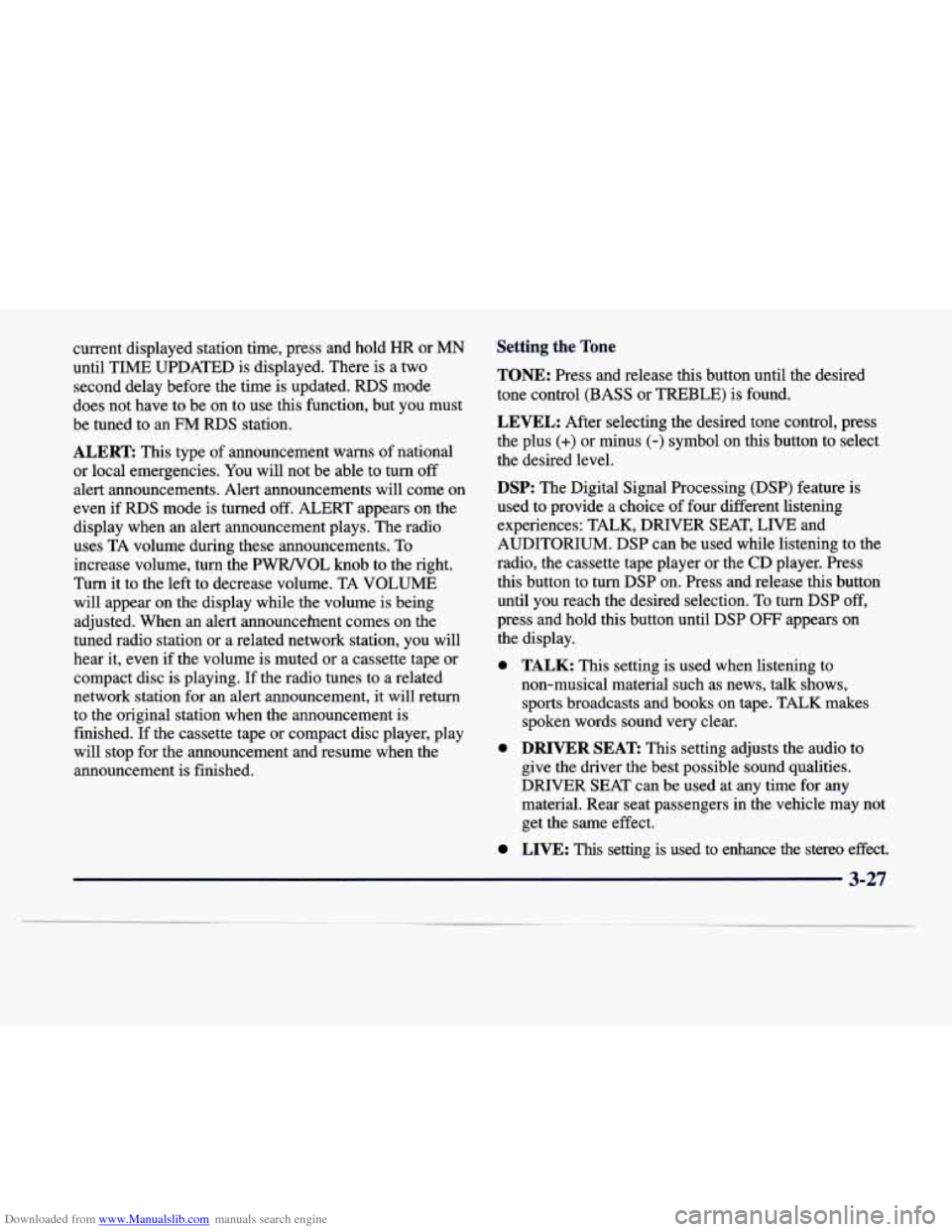

Downloaded from www.Manualslib.com manuals search engine current displayed station time, press and hold HR or MN
until TIME UPDATED is displayed. There is a two
second delay before the time is updated.
RDS mode
does not have to be on to use this function, but you must
be tuned to an
FM RDS station.
ALERT: This type of announcement warns of national
or local emergencies. You will not be able to turn off
alert announcements. Alert announcements will come on
even if
RDS mode is turned off. ALERT appears on the
display when an alert announcement plays. The radio
uses TA volume during these announcements. To
increase volume, turn the
PWRNOL knob to the right.
Turn it to the left to decrease volume. TA VOLUME
will appear on the display while the volume is being
adjusted. When an alert announcehent comes on the
tuned radio station or a related network station, you will
hear it, even if the volume is muted or a cassette tape or
compact disc is playing. If the radio tunes to a related
network station
for an alert announcement, it will return
to the original station when the announcement is
finished. If the cassette tape or compact disc player, play
will stop for the announcement and resume when the
announcement is finished.
Setting the Tone
TONE: Press and release this button until the desired
tone control (BASS or TREBLE) is found.
LEVEL: After selecting the desired tone control, press
the plus
(+) or minus (-) symbol on this button to select
the desired level.
DSP: The Digital Signal Processing (DSP) feature is
used to provide a choice of four different listening
experiences: TALK, DRIVER SEAT, LIVE and
AUDITORIUM. DSP can be used while listening to the
radio, the cassette tape player or the CD player. Press
this button to turn DSP on. Press and release this button
until you reach the desired selection.
To turn DSP off,
press and hold this button until DSP
OFF appears on
the display.
0 TALK: This setting is used when listening to
non-musical material such as news, talk shows, sports broadcasts and books on tape. TALK
makes
spoken words sound very clear.
0 DlUVER SEAT: This setting adjusts the audio to
give the driver the best possible sound qualities.
DRIVER SEAT can be used at any time for any
material. Rear seat passengers
in the vehicle may not
get the same effect.
LIVE: This setting is used to enhance the stereo effect.
3-27

Downloaded from www.Manualslib.com manuals search engine AUDITORIUM: This setting is used to make the
listening space seem larger.
LEVEL: Press the plus (+) or minus (-) symbol on
this button to adjust the amount of effect desired
when in DSP mode.
Adjusting the Speakers
TONE:
Press and release this button until the desired
BALANCE or
FADE control is found.
LEVEL: After selecting the desired BALANCE or
FADE control, press the plus
(+) or minus (-) symbol on
this button to select the desired level.
Playing a Cassette Tape
With the radio on, insert a cassette tape. The tape will
begin playing as soon as it is inserted. When one side of
your cassette tape is done playing, auto reverse plays the
other side of your cassette tape. Cassette tapes may be
loaded with the radio off but they will not start playing
until the radio is on. If you want to insert a cassette tape
when the ignition is off, first press EJECT. tape is playing, with
an arrow
to indicate which side of
the tape is playing.
If an error occurs while trying to play a cassette tape, it
could be that:
The cassette tape is tight and the cassette player
cannot turn the hubs of the tape. Hold the cassette
tape with the open end down and
try turning the right
hub to the left with a pencil. Flip the tape over and repeat. If the hubs do not turn easily, your cassette
tape may be damaged and should not be used in the
player. Try a new tape to be sure your player is working properly.
The cassette tape is broken. (Check to see if your
tape is broken. Try'a new tape.)
RW Press the left arrow to rewind the tape rapidly. The
radio will play while the tape rewinds. You may use
your station pushbuttons
to tune to another radio station
while in RW mode. Press the left arrow again to return
to playing speed.
While the tape is playing, use the VOL, TONE, LEVEL
and DSP controls just as you do for the radio. Other
controls may have different functions when a tape is
inserted. The display will show an underlined tape
symbol. TAPE PLAY will appear on the display when a
3-28
FF: Press the right arrow to fast forward to another part
of the tape. The radio will play while the tape advances.
You may use your station pushbuttons to tune to another
radio station while in
FF mode. Press the right arrow
again to return to playing speed.

Downloaded from www.Manualslib.com manuals search engine TUNE-SEEK: When this button is pressed, it has two
positions. This button works the same, whether it is
pressed to the first or second position. Press this button
to seek to the next or previous selection on the tape.
Your tape must have at least three seconds
of silence
between each selection for
TUNE-SEEK to work. The
sound will mute while seeking.
SCAN: Press this button to listen to selections for a few
seconds. The tape will go to a selection, stop for a few
seconds, then go on to the next selection. Press this
button again to stop scanning.
SIDE: Press this button to change the side of the tape
that is playing.
A EJECT Press the upward triangle button to
remove a tape. The radio will play. Eject may be
activated with the radio
off andor the vehicle
ignition
off.
CLEAN TAPE: If this message appears on the display,
the cassette tape player needs to be cleaned. It will still
play tapes, but you should clean it as soon as possible to
prevent damage to the tapes and player. See “Care of
Your Cassette Tape Player” in the Index. After
you clean
the player, press and hold EJECT for three seconds to
reset the CLEAN TAPE indicator. Dolby Noise Reduction
is manufactured under a license
from Dolby Laboratories Licensing Corporation. Dolby
and the double-D symbol are trademarks
of Dolby
Laboratories Licensing Corporation.
Auto CrO2 allows the cassette tape player to adjust to
the type of cassette tape for clearer sound for CrO2
cassette tapes.
Playing a Compact Disc
Insert a disc partway into the slot, label sidedp. The
player
will pull it in. If the ignition and the radio are on
and the underlined compact disc symbol appears on the
display, the disc will begin playing. Compact discs may
be loaded with the radio
off but they will not start
playing until the radio is on. If you want to insert a disc
when the ignition is
off, first press EJECT.
The integral CD player can play the smaller
8 cm
compact discs. Full-size compact discs and the smaller
compact discs are loaded in the same manner.

Downloaded from www.Manualslib.com manuals search engine Once you have loaded the discs in the magazine, slide
open the door of the compact disc
(CD) changer. Push
the magazine into the changer in the direction
of the
arrow marked on
top of the magazine. Close the door
by sliding
it all the way to the left.
When the door is closed, the changer will begin checking for discs in the magazine. This will continue
for up to one and a half minutes, depending on the
number of discs loaded.
To eject the magazine from the player, slide the CD
changer door all the way open. The magazine will automatically eject. Remember to keep the door closed
whenever possible to keep dirt and dust from getting
inside the changer.
3-33

Downloaded from www.Manualslib.com manuals search engine Whenever a CD magazine with discs is loaded in the
changer, the CD changer symbol will appear on the
magazine for CDs, the CD symbol will flash on the
display until the changer is ready to play. When a
CD begins playing, a disc and track number will be
displayed. The disc numbers are listed on the front of the magazine.
All
of the CD functions are controlled by the radio
buttons, except for ejecting the CD magazine.
PUSHBUTTONS: Press buttons one through six to
select compact discs one through six. Press and hold
one of the six pushbuttons until a beep sounds to select
compact discs
7 through 12. These pushbuttons
represent the order
of: the discs loaded in the changer.
DSPL: Press and hold this button to see the track
elapsed time (available on the
AM-FM Stereo with
Cassette Tape Player only).
REV/RW Press and hold this button to reverse
quickly through a track selection.
FF: Press and hold this button to advance quickly
through a track selection.
If your vehicle is equipped with the
AM-FM Stereo
with Cassette Tape Player, use SEEK-TUNE. For all
other audio systems, use TUNE-SEEK.
I radio display. If the CD changer is checking the
SEEK-TUNE: Press the right arrow to seek to the next
selection. Press the left arrow to search for the previous
track selection. The sound
will mute while seeking.
TUNE-SEEK: When this button is pressed, it has
two positions. This button works the same, whether
it is pressed to the first or second position. Press this
button to seek to the' next or previous selection on the
compact disc.
SCAN: Press this button. You will hear the first few
seconds for the first track
on each disc. Press this button
again to stop scanning. (This button
is available on the
AM-FM Stereo with Cassette Player only.)
TRACK SCAN: Press SCAN for less than two seconds.
You will hear the first few seconds of each track on a
disc. Press SCAN again to stop TRACK SCAN. The CD
will mute while scanning and SCAN will appear on the
display. (This function is not available on the AM-FM
Stereo with Cassette Tape Player.)
DISC SCAN: Press SCAN for more than two seconds,
you will hear the first few seconds of the first track
on
each disc. Press SCAN again to stop DISC SCAN. The
CD will mute while scanning and SCAN will appear on
the display.(This function is not available on the
AM-FM Stereo with Cassette Tape Player.)
3-34

Downloaded from www.Manualslib.com manuals search engine RDM: Press this button to hear the tracks in random,
rather than sequential, order. RANDOM will appear on the display. Press TUNE-SEEK while RDM is on
the display to randomly seek through discs and tracks.
Press RDM again to turn
off random play. (This button
is not available on the
AM-FM Stereo with Cassette
Tape Player.)
SIDE: Press this button to select the next disc in the
changer. If your vehicle
is equipped with the AM-FM
Stereo with Cassette Tape Player, CD and the disc
number will appear on the display each time you press
this button.
If your vehicle is equipped with any other
audio system, DISC LOADING will appear on the
display and the disc number on the radio display will
go to that of the next available CD each time you press
this button.
SOURCE: Press this button to select a source. The
audio source must be loaded to play.
If none of the audio
sources
are loaded, NO SOURCE LOADED will appear
on the display. Press this button again or BAND to
switch back to the radio. (CD will be displayed
for a
few seconds instead on the AM-FM Stereo with Cassette
Tape Player, then the radio will play.)
EJECT Slide the CD changer door all the way open
and the disc holder will automatically eject.
Compact Disc Changer Errors
CD CHANGER ERROR could be displayed for the
following:
The road is too rough. The disc should play when
the road is smoother.
The disc is dirty, scratched, wet or loaded label
0 The air is very humid. If so, wait about an hour and
CD CHANGER DOOR OPEN is displayed when the
CD changer door
is left open. (CHEK DOOR will be
displayed instead on the AM-FM Stereo with Cassette
Tape Player.) Completely close the changer door to
restore normal operation.
If any error occurs repeatedly or if an error cannot be
corrected, please contact your dealer. side
up.
try again.
3-35

Downloaded from www.Manualslib.com manuals search engine CD Adapter Kits
It is possible to use a CD adapter kit with your cassette
tape player after activating the bypass feature on your
tape player.
To activate the bypass feature, use the following steps:
Turn the ignition to RUN or ACCESSORY.
Turn the radio off.
Press and hold the SOURCE button for two seconds.
The tape symbol on the display will flash three
times, indicating the feature is active.
Insert the adapter.
This override routine will remain active until EJECT
is pressed.
Radio Personalization (If Equipped)
If your vehicle is equipped with the AM-FM Stereo
with Cassette Tape Player and
1 (H or A) or 2 (H or A)
appears in the display when the radio is first turned on,
your vehicle is equipped with this feature. If your
vehicle is equipped with any other audio system and
DRIVER
1 (HOME or AWAY) PRESETS or DRIVER 2
(HOME or AWAY) PRESETS appears in the display
when the radio is first turned
on, your vehicle is
equipped with this feature.
A A/
With this feature, your vehicle will recall the latest
radio settings as adjusted the last time your vehicle was
operated. This feature allows two different drivers to
store and recall their own radio settings. The settings
recalled by the radio are determined by which RKE
transmitter
(“1” or “2”) was used to enter the vehicle.
The number on the back of the RKE transmitter
corresponds to driver
1 or to driver 2. The radio settings
will automatically adjust to where they were last set by
the identified driver. The settings can also be recalled by
briefly pressing the memory seat buttons
1 or 2 located
on the driver’s door.
Your radio can store home and away presets. Home and
away presets allow you to use one set of preset radio
settings in the area where
you live, and another set when
you go out of town. That way, you will not need to
reprogram your presets every time you travel. With the
radio
off and the clock displayed, use FF and RW to
select home or away presets.
To select the away presets,
press and hold
FF for five counts until you hear a beep.
The next time the radio comes on, the away presets will
be active. To select the home presets, press and hold RW
for five counts until you hear a beep. The next time the
radio comes on, the home presets will be active.
3-30
