5. Reinstall the headlamp housing socket back into the
headlamp assembly.
Front nrn Signal Lamps
1. The turn signal lamps are located below the
headlamps. To access, lift
off the headlamp cover
(see Step
1 under “Headlamps”).
2. Turn the housing socket to the right to unlock the
socket from the lamp housing.
6-34

Downloaded from www.Manualslib.com manuals search engine r-
Center High-Mounted Stoplamp (CHMSL)
3. Remove the turn signal lamp housing socket and
replace the bulb.
1. Lift the trim cover to remove.
2. Twist the socket to the left and remove the socket
and bulb from the housing.
6-35

Downloaded from www.Manualslib.com manuals search engine i

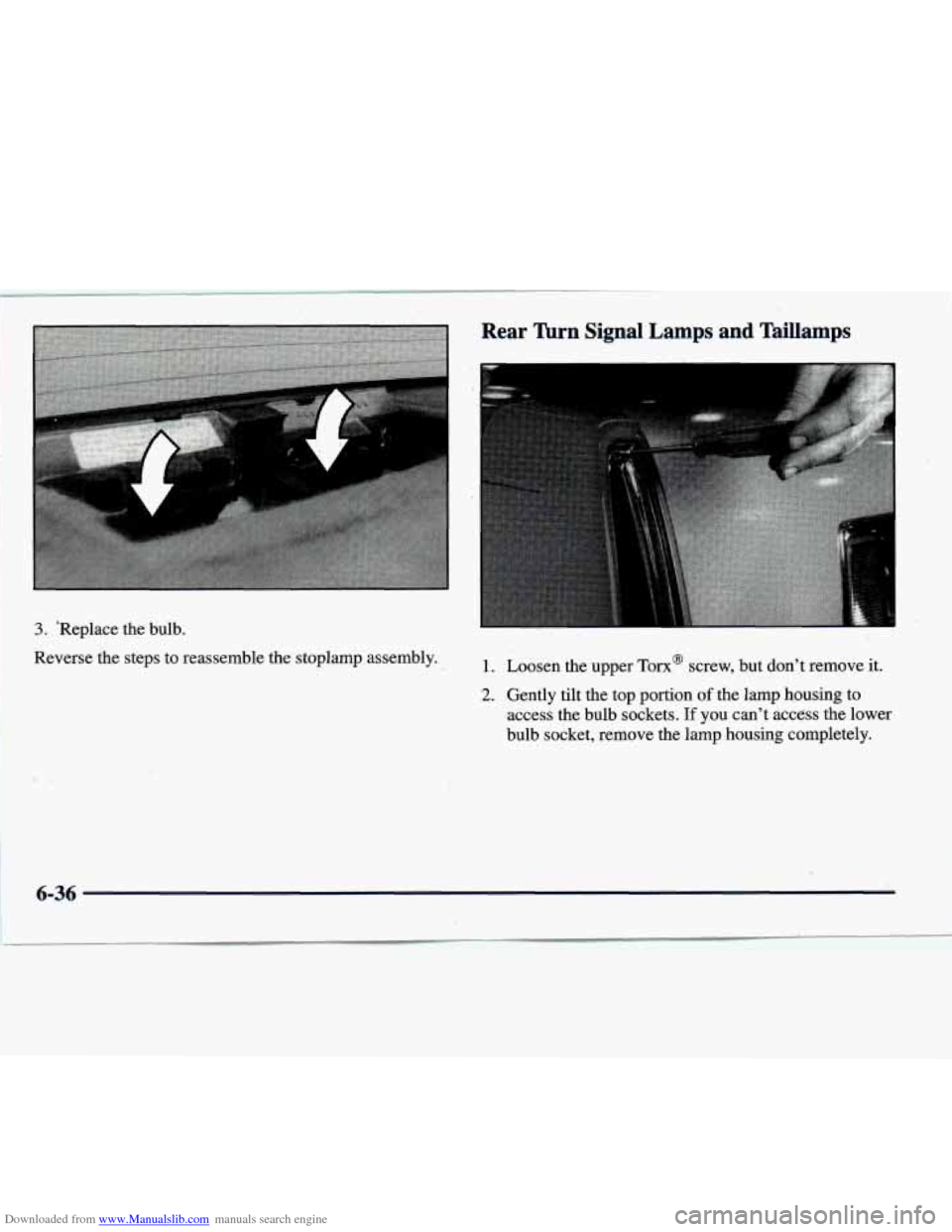

Rear Thm
A
3. ‘Replace the bulb.
Reverse the steps to reassemble the stoplamp assembly.
1. Loosen the upper Tom@ screw, but don’t remove it.
2. Gently tilt the top portion of the lamp housing to
access the bulb sockets.
If you can’t access the lower
bulb socket, remove the lamp housing completely.
6-36 t.

Downloaded from www.Manualslib.com manuals search engine 3. Press the bulb socket housing lever ind rotate the
socket to the left to remove it. 4. Replace the bulb by pressing and turning it to
the left.
5. Once you have installed the new bulb and socket into
the lamp housing, insert the tab on the lower portion
of the lamp housing first, then gently fit the rest of
the housing in place.
6-37

Downloaded from www.Manualslib.com manuals search engine Windshield Wiper Blade
Replacement
It’s a good iaea to clean or replace the wiper blade
assembly on a regular basis or when worn. For proper
windshield wiper blade length and type, see “Normal
Maintenance Replacement Parts” later in this section.
To replace the wiper blade assembly:
1. Turn the ignition to ACCESSORY and turn the
wipers on. Position the wipers on the windshield in
the
“mid” wipe position. Then with the door open,
turn the ignition to
OFF.
2. Insert a screwdriver into the slot as shown and press
down to release the wiper blade assembly.
3. Align the wiper arm pin with the hole on the wiper
blade assembly and snap it into place to install.
Headlamp Aiming
Your vehicle has the composite headlamp system. These
headlamps have horizontal and vertical aim indicators.
The
aim has been pre-set at the factory and should need
no further adjustment.
If your vehicle is damaged in an accident and the
headlamp aim seems to be affected, see your dealer.
Headlamps on damaged vehicles may require
recalibration of the horizontal aim by your dealer.
To check the aim, the vehicle should be properly
prepared as follows:
Place the vehicle on a level pad or surface.
The vehicle should not have any snow, ice or mud
The vehicle should be fully assembled and all other
work stopped while headlamp aiming is being done.
attached to it.
6-38

Downloaded from www.Manualslib.com manuals search engine 0 There should not be any cargo or loading of the
vehicle, except it should have a full tank of gas and
one person or 160 lbs. (75 kg) on the driver’s seat.
Tires should be properly inflated.
0 Rock the vehicle to stabilize the suspension.
NOTICE:
L
To make sure your headlamps are aimed
properly, read all the instructions before
beginning. Failure to follow these instructions could cause damage to headlamp parts.
For the vertical adjustment, state inspection stations
generally will allow a reading of plus 0.76 degrees or
minus 0.76 degrees from the center of the bubble.
It is recommended that the upper limit not exceed plus
0.4 degrees from the center of the bubble. Other drivers
may flash their high beams at you if your adjustment
is
much above plus 0.4 degrees. If you
find that the headlamp aiming needs adjustment,
follow these steps:
..
. ,..
1. Start by opening the hood and locating the vertical
and horizontal aim indicators. The aiming screw for
the horizontal aim indicator is on the outboard side
of the headlamp cover and the aiming screw for the
vertical aim indicator is on the inboard side.
6-39

Downloaded from www.Manualslib.com manuals search engine 2. Check the vertical headlamp aim first. Keep in mind
that your vehicle needs to be on a level surface. Turn
the vertical aiming screw until the bubble inside the
level is centered at
“0.”
3. After the vertical aim is correct, check the horizontal
aim for each headlamp and adjust as necessary. Turn
the horizontal aiming screw until the end of the
screw aligns with the
“0.”
correct after the horizontal aim adjustment. Adjust
as necessary.
4. Recheck the vertical aim to make sure it remains
6-40

Downloaded from www.Manualslib.com manuals search engine Tires
Your ~ew vehicle comes with high-quality tires made by
a leading tire manufacturer. If you ever have questions
about your tire warranty and where ,to obtain service, see
your-Cadillac Warranty booklet for details.
I-
A CAUTION:
L
Poorly maintained and improperly used tires
are dangerous.
Overloading your tires can cause
overheating as
a result of too much friction.
You could have an air-out and a serious
accident. See “Loading Your Vehicle” in the Index.
‘0 Underinflated tires pose the same danger as
overloaded tires. The resultihg accident
could cause serious injury. Check all tires
frequently to maintain the recommended’
pressure. Tire pressure should be checked when
your tires are cold.
CAUTION: (Continued) CAUTION:
(Continued)
0 Overinflated tires are more likely to be
cut, punctured or broken by
a sudden
impact
-- such las when you hit a pothole.
Keep tires at the recommended pressure.
0 Worn, old tires can cause accidents. If your
tread is badly worn, or
if your tires have
been damaged, replace them.
See “Inflation
-- Tire Pressure’’ in this section
for .inflation pressure adjustment for higher
speed driving.
Inflation -- Tire Pressure
The Tire-Loading Information label, which is located on
the rear edge of the driver’s door, shows the correct
inflatiop pressures for your tires when they’re cold.
“Cold” means your vehicle has been sitting for, at least.
three’ hours or driven no more than
1 mile (1.6 km).
6-41
