1998 CADILLAC DEVILLE engine

Downloaded from www.Manualslib.com manuals search engine Replacement Bulbs
Application Numbei.
Headlamps, Composite Inner High Beam
....................... 9005
. FrontTurn Signal ..................... 3157NA
Outer
Low Beam ... 1 ................... 9006
Center High-Mounted Stoplamp (CHMSL)
... 1156
Rear
Turn Signal and Taillamp, .............. 2057
Capacities and Specifications
Engine Specifications
......... 1 Displacement 279 cubic inches
(4 565 cc)
Qpe .......................... .4.6L DOHC V8
VIN Engine Code DeVille and DeVdle d’Elegance
............ Y
Concours ............................... 9
Horsepower DeVille and DeVille d’Elegance
............ 275 (bhp) @ 5600 rpm
Concours
............. 300 (bhp) @ 6000 rpm
205 (kW)
@ 5600 rpm
224 (kW)
@ 6000 rpm Torque
DeVille and DeVille d’Elegance
........... 300 (lb-ft) 0 4000 rpm
Concours
............. 295 (lb-ft) @ 4400 rpm .
407 (N-m) @ 4000 rprn
400 (N-m)
@ 4400 rpm
Thermostat Starts To Open
. . 177-184°F (81-85°C)
Firing Order ................... 1-2-7-3-4-5-6-8
Capacities
Transaxle (4T80-E) ............ 15 quarts (14.2 L)
Crankcase (Engine Oil with Filter Change)
........... 7.5 quarts (7.1 L)
Engine Cooling System ...... 10.68 quarts (l0.i L)
Fuel Tank ................... 20 gallons (75.7 L)
R- 134a Refrigerant .............. 2 lbs. (0.91 kg)
Wheel Base
............. 113.8 inches (289.1 cm)
Length
................ 209.78 inches (532.6 cm)
Height,.
.................. 56.4 inches (143.2 cm)
Width
................... 76.5 inches (194.3 cm)
Front Tread
............... 60.9 inches (154.6 cm)
Rear Tread
............... 60.9 inches (154.6 cm)
Wheel Nut Torque ........... 100 lb-f t (140 Nam)
Vehicle Dimensions
6-66

Downloaded from www.Manualslib.com manuals search engine Air Conditioning Refrigerants
Not all air conditioning refrigerants are the same.
If the air conditioning system in your vehicle needs
refrigerant, be sure the proper refrigerant is used.
If
you’re not sure, ask your dealer.
Normal Maintenance
Replacement Parts
Air Filter Element ............ AC Type A- 1208C
Fuel Filter Element
............ AC Type GF-624
Engine Oil Filter
................ AC Type PF-58
PCV Valve
.................. AC Type CV-774C
Thermostat
.................... AC Type 131-66
Windshield Wiper Blade (Pin Type)
................ .22 inches (56.5 cm)
Spark
Plugs ................... AC Type 41 -950
6-67

Downloaded from www.Manualslib.com manuals search engine 6-68

Downloaded from www.Manualslib.com manuals search engine .e -A
Section 7 Customer Assistance Information
Here you will find out how to contact Cadillac if you need assistance. This section also tells you how to obtain service
publications and how to report any safety defects.
7-2
7-4
7-5
7-7
7-8
7-9
7-1
1
Customer Satisfaction Procedure
Customer Assistance for Text Telephone
(TTY) Users
Roadside Service
Roadside Service for the Hearing or
Speech Impaired
Gold Key Courtesy Transportation
Transportation Options GM Participation in an Alternative Dispute
Resolution Program
7- 12
7- 12
7- 13
7- 13
7-13
Warranty Information Reporting Safety Defects to the United
States Government
Reporting Safety Defects to the
Canadian Government
Reporting Safety Defects to
General Motors
Ordering Service and Owner Publications
in Canada

Downloaded from www.Manualslib.com manuals search engine Customer Satisfaction Procedure Cadillac dealers have the facilities, trained technicians
and up-to-date information to promptly address any
concerns you may have. However, if a concern has not
been resolved to your complete satisfaction, take the
following
steps:
1
I
STEP ONE -- Discuss your concern with a member
of dealership management. Normally, concerns can
be quickly resolved at that level. If the matter has
7-2

Downloaded from www.Manualslib.com manuals search engine STEP TWO -- If after contacting a member of
dealership management, it appears your concern cannot
be resolved by the dealership without further help,
contact the Cadillac Customer Assistance Center,
24 hours a day, by calling 1-800-458-8006. In Canada,
contact
GM of Canada Customer Communication
Centre in Oshawa by calling
1-800-263-3777 (English)
or
1-800-263-7854 (French).
For help outside of the United States and Canada,
call the following numbers as appropriate:
In Mexico: (525) 625-3256
In Puerto Rico: 1-800-496-9992 (English) or
1-800-496-9993 (Spanish)
In the U.S. Virgin Islands: 1-800-496-9994
In the Dominican Republic: 1-800-75 1-4135
(English) or 1-800-751-4136 (Spanish)
In the Bahamas: 1-800-389-0009
In Bermuda, Barbados, Antigua and the British
Virgin Islands:
1-800-534-0122
In all other Caribbean countries: (809) 763- 13 15
In other overseas locations, call GM Overseas
Distribution Corporation in Canada at:
(905) 644-4 1 12.
7-3

Downloaded from www.Manualslib.com manuals search engine For prompt assistance, please have the following
information available to give the Customer
Assistance Representative:
0 Your name, address, home and business
telephone numbers
0 Vehicle Identification Number (This is available
from the vehicle registration or title, or the plate
at
the top left of the instrument panel and visible
through the windshield.)
0 Dealership name and location
Vehicle delivery date and present mileage
0 Nature of concern
We encourage you to call
us so we can give your inquiry
prompt attention. However, if you wish to write
Cadillac, address your inquiry to:
Cadillac Customer Assistance Center
Cadillac Motor Car Division
P.O.
Box 436004
Pontiac, MI 48343-6004 In Canada, write to:
General Motors
of Canada Limited
Customer Communication Centre, 163-005
1908 Colonel
Sam Drive
Oshawa, Ontario L1H
8P7
Refer to your Warranty and Owner Assistance Information
booklet for addresses of GM Overseas offices.
When contacting Cadillac, please remember that your concern will likely be resolved in the dealership, using
the dealer’s facilities, equipment and personnel. That is
why we suggest you follow Step One first if
you have
a concern.
Customer Assistance for Text
Telephone (TTY) Users
To assist customers who are deaf, hard of hearing, or
speech-impaired and who use Text Telephones
(TTYs),
Cadillac has TTY equipment available at its Customer
Assistance Center. Any TTY user can communicate with
Cadillac by dialing: 1-800-833-CMCC. (TTY users in
Canada can dial 1-800-263-3830.)
7-4

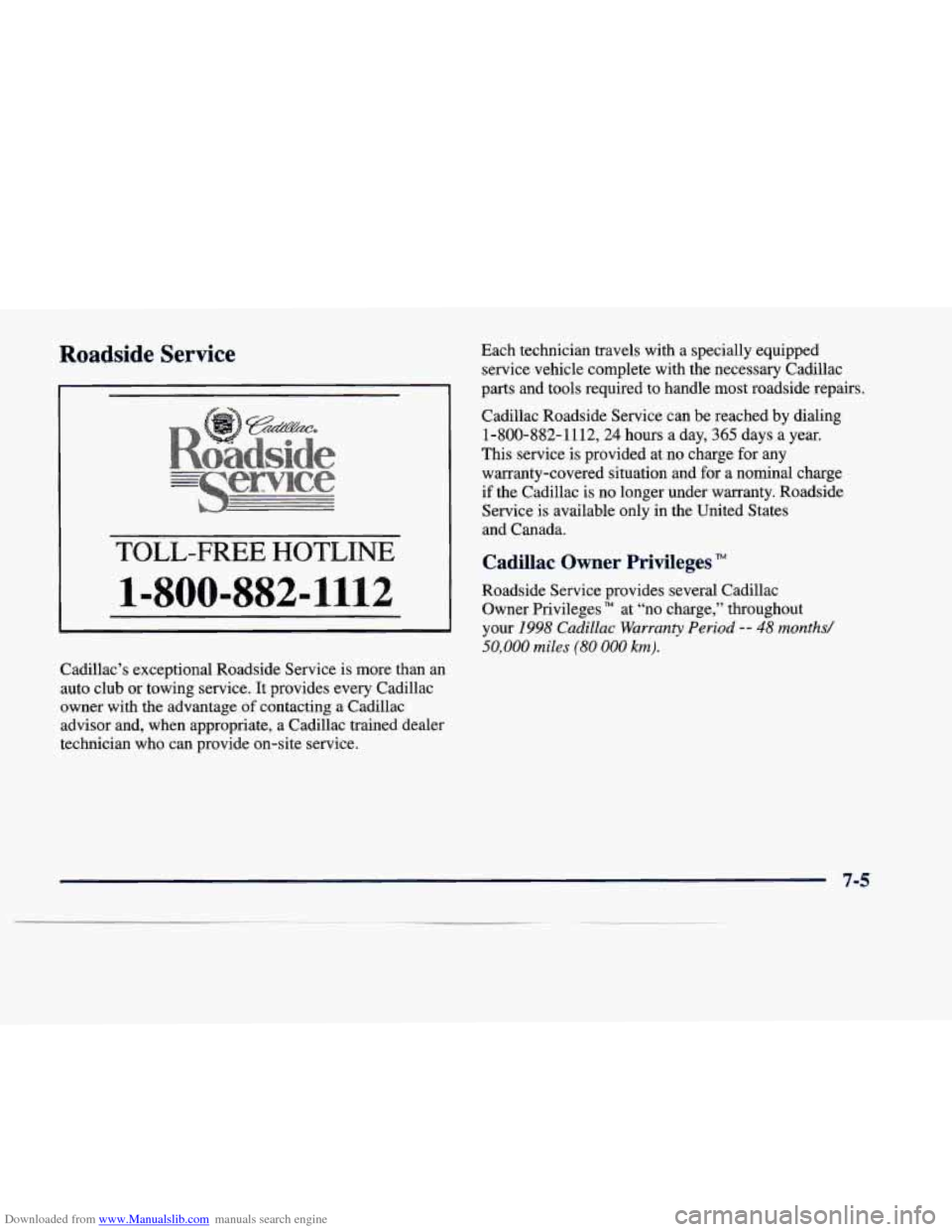

Downloaded from www.Manualslib.com manuals search engine Roadside Service
TOLL-FREE HOTLINE
1=800=882=1112
Cadillac’s exceptional Roadside Service is more than an
auto club or towing service. It provides every Cadillac
owner with the advantage
of contacting a Cadillac
advisor and, when appropriate, a Cadillac trained dealer
technician who can provide on-site service. Each technician travels with
a specially equipped
service vehicle complete with the necessary Cadillac
parts and tools required to handle most roadside repairs.
Cadillac Roadside Service can be reached by dialing
1-800-882-1112,24 hours
a day, 365 days a year.
This service is provided at no charge for any
warranty-covered situation and for a nominal charge
if the Cadillac is no longer under warranty. Roadside
Service is available only in the United States
and Canada.
Cadillac Own ~ -’rivileges TM
Roadside Service provides several Cadillac
Owner Privileges
TM at “no charge,” throughout
your
1998 Cadillac Warranty Period - - 48 months/
50,000 miles (80 000 km).
7-5
