1998 CADILLAC DEVILLE seat memory

Downloaded from www.Manualslib.com manuals search engine ,For the 1948 model, Cadillac introduced the legendary
tail fin which once more set the trend in automotive
styling
for nearly two decades. This was closely
followed with the two door hardtop Coupe DeVille and
the industry's fist modern overhead valve, high
Engineering innovations, conveniences and styling dominated
the '50s and '60s. Cruise control, automatic
3 climate control, tilt and telescoping steering wheels,
twilight sentinel and four door hard tops all debuted in
these years.
In 1957 the Eldorado Brougham featured
- compression V8 engine on the 1949 model. advances such as
air suspension, memory
seat,
automatic electric door locks, transistor radio, a brushed
stainless steel
roof and low profile tires.
1957 Eldorado Brougham
The Eldorado, introduced in 1953, was redesigned for
1967 as the first fkont wheel drive personal luxury car.
1
The 472 cu. in. V8 engine used in all Cadillacs in 1968 ~
and 1969 was enlarged to 500 cu. in. for all 1970
through 1976 Eldorados. The Track Master computerized skid control braking system option debuted on 1970 Eldorados.
A driver and passenger Air Cushion Restraint
system
(air bag) was available on all 1974,1975 and
1976 Cadillacs.
Analog Electronic Fuel Injection was available, on 1975 Cadillacs and standard on the new international
size 1976 Seville. In 1978, the Trip Computer option
incorporated the
first on-board microprocessor.
ix

Downloaded from www.Manualslib.com manuals search engine Seats and Seat Controls
This section tells you about the power seats -- how to
adjust them, and
also about the reclining front seatbacks,
memory seats, lumbar adjustments, heated seats
and
head restraints.
Power Seats
The power seat controls, located on the front doors,
move and adjust
the angle of the seat.
0
0
0
0
Move the seat cushion control forward or rearward
to move the entire seat.
Moving the seat cushion control
up or down adjusts
the seat height.
To adjust the angle of the front seat cushion,
lift up
or press down on the front of the control.
Lifting up or pressing down on the rear
part of the
seat control adjusts the rear
angle of the seat cushon.
1-2

Downloaded from www.Manualslib.com manuals search engine Power Lumbar Control (If Equipped) Memory Seat and Mirrors (If Equipped)
The
LUMBAR control is
located on the outboard side
of each front seat. It
provides additional support
to your lower back and it
works independently of the
other seat controls. Use the
power seat control first to
get the proper position.
Then proceed with the
lumbar adjustment.
To reshape the lower seatback, move the LUMBAR
switch forward to increase support and rearward to
decrease support. Move the LUMBAR switch side to
side to raise or lower the support mechanism to suit
your preference.
Keep in mind that as your seating position changes, as it
may during long trips,
so should the position of your
lumbar support. Adjust the seat as needed.
If you have the optional personalization package, the
power lumbar control can be programmed for memory
recall. For more information, see “Programmable, Memory and Personalization Features” in the Index. Automatic seat and mirror movement will occur if the
Remote Keyless Entry
(RE) transmitter is used to
enter the vehicle. The number on the back of the
transmitter corresponds to the
1 or 2 seat and
mirror position.
After the unlock button is pressed on the
RKE
transmitter (the ignition must be in LOCK) or when the
key is placed in the ignition, the seat and mirrors will
automatically adjust to the appropriate position.
1-3

Downloaded from www.Manualslib.com manuals search engine Automatic seat and mirror movement is programmed
through the Driver Information Center (DIC)
so that the
driver can select whether or not movement will occur
using the
RKE transmitter or by placing the ignition key
in the ignition. For programming information, see
“Programmable, Memory and Personalization
Features” in the Index.
Heated Front Seat (Option)
The control is located on the outboard side of each front
seat. Move the
SEAT HEAT control to either LO or HI to turn on the heating elements in the seat.
The
LO
setting warms the seatback and cushion until the seat
approximates body temperature. The
HI setting heats the
seat to a slightly higher temperature.
A telltale light in
the control reminds you that the heating system is in use.
The heated seats can only be used when the ignition is
turned on.
Reclining Front Seatbacks
Press the recliner control forward or rearward to adjust
the seatback.
1-4

Downloaded from www.Manualslib.com manuals search engine Operation
When you press this symbol to unlock the driver’s
door, the parking lamps on your vehicle will blink twice.
(You can program your vehicle
so the parking lamps
will not flash. For more information, see “LocMUnlock
Confirmation” later in
this section.) Pressing this
symbol again within five seconds will unlock the other
doors. Pressing
this symbol will also disarm the optional
theft-deterrent system and turn on the interior lamps
at night.
8 When you press this symbol to lock the doors, the
parking lamps will blink once. (You can program your
vehicle
so the parking lamps will not flash. For more
information, see “LocMUnlock Confirmation”
later in this section.) This also arms the optional
theft-deterrent system.
Press this symbol to open the trunk. (The valet
lockout button must be
off for this feature to work.)
Press this button to open the fuel door.
(The valet lockout button must be
off for this feature
to work.) The
remote keyless entry transmitter can also be used to
recall the memory settings for up to two drivers.
For
more information, see “Memory Seat and Mirrors” in
the Index.
Note that pressing the transmitter buttons numerous
times (approximately
500 times) out of the vehicle’s
operating range may cause the transmitter not to work.
Replacing the battery and pressing the transmitter
buttons 10 or more times out of range will also cause the
transmitter not to work. To reset the transmitter, you
must be within the vehicle’s operating range. Press and
hold the trunk button, and within one second, press and
hold the lock button. Continue to hold both buttons for
approximately three seconds. See your dealer for service
if your transmitter still doesn’t work properly.
Matching Transmitter(s) To Your Vehicle
Each remote keyless entry transmitter is coded to
prevent another transmitter from unlocking your vehicle.
If a transmitter is lost or stolen, a replacement can be
purchased through your dealer. Once your dealer has
coded the new transmitter, the lost transmitter will not
unlock your vehicle. Each vehicle can have only two
transmitters matched to it.
2-8

Downloaded from www.Manualslib.com manuals search engine Compass Calibration
If the letter “C” appears in the compass display, the
mirror may need calibration.
The mirror can be calibrated in one
of two ways:
0 Drive the vehicle in circles at 5 mph (8 km/h) or less
0 Drive the vehicle on’your everyday routine.
until the display reads a direction, or
The control on the
driver’s door armrest
operates both outside
rearview
mirrors. Rotate the
control knob to choose the
right or left mirror.
To adjust the mirror, push the control knob in the
direction you want the mirror to
go. Adjust each mirror
so you can see the side of your vehicle and the area
behind your vehicle.
When you operate the rear window defogger, it
also
warms both outside mirrors to help clear them of fog
or ice.
The mirrors can also be programmed for personalization
if you have the optional memory package. For more
information, see “Memory Seat and Mirrors” in
the Index.
Driver’s Outside Auto-Dimming Rearview Mirror
Only the driver’s side outside mirror will adjust for the
glare
of headlamps behind you. This feature is
controlled by the on and
off settings on the
electrochromic mirror. See “Electrochromic Daymight
Rearview Mirror” earlier in this section.
2-52

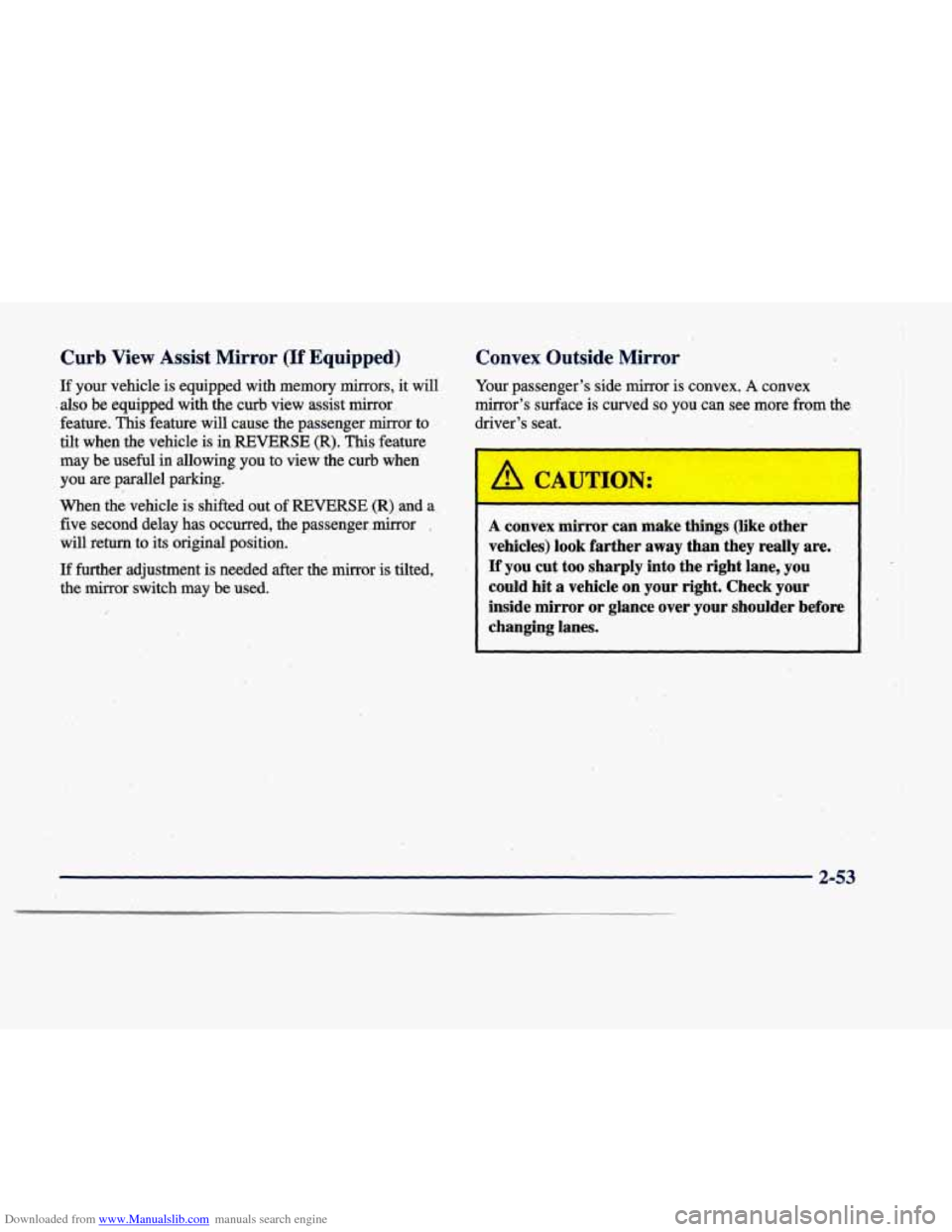

Downloaded from www.Manualslib.com manuals search engine Curb View Assist Mirror (If Equipped)
If your vehicle is equipped with memory mirrors, it will
. also be equipped with the curb view assist mirror
feature.
This featbre, will cause the passenger mirror to
tilt when the vehicle is in REVERSE (R). This feature
may be useful
in allowing you to view the curb when
you are parallel
parking.
When the vehicle is shifted out of REVERSE (R) and a,
five second delay has occurred, the passenger.mirror
,
will return to its original position.
If mer adjustment is needed after the mirror is tilted,
the mirror switch may be used.
,,
Convex Outside Mirror
Your passenger’s side mirror is convex. A convex
mirror’s surface is curved
so you can see more from the,
driver’s seat.
A convex mirror can make things (like other
vehicles) look farther away than they really are.
If you cut too sharply into the right lane, you
could hit a vehicle on your right. Check your
inside mirror
or glance over your shoulder before
changing lanes.
L
2-53

Downloaded from www.Manualslib.com manuals search engine Programmable, Memory and Personalization
r atures (If Equipped)
Your vehicle may be equipped with the following
features that can be individually programmed,
memorized or personalized for up to two drivers. For a
brief description of each feature (except for climate
control and radio personalization), see each feature
in
the Index.
Memory Seat and Mirrors
To begin programming, adjust the driver’s seat
(including lumbar adjustments) and both outside mirrors
to a comfortable position and then press the SET button.
Within five seconds, press button
“1.”
A second mirror and seating position may be
programmed by repeating the above steps and pressing
button
“2” instead of button 1. Note that each time a
memory button is pressed, a single beep will sound
through the left front speaker.
If your vehicle is in PARK (P), you can recall mirror and
seating positions by briefly pressing button
1 or 2. This
will adjust the seat and mirrors to where you have
previously programmed them.
If you have accidentally
pressed one of the memory recall buttons
and want to stop
seat or mirror movement, press one of the manual seat or
mirror control buttons.
This cancels a memory recall.
You can also recall a seat and mirror position if your
vehicle is not in PARK (P). Press and hold either the
1
or 2 button until seat and mirror movement is complete.
Releasing the buttons will stop adjustment.
The EXIT button can be programmed to allow easy exit
for up to two drivers. Adjust the seat to a comfortable
“exit” position and then press the
SET button followed
by the EXIT button.
While your vehicle is in PARK (P),
briefly press the EXIT button to recall your programmed
exit position.
