1998 AUDI A4 AWM Engine Cooling System Components Workshop Manual

19-30

Note:
To prevent damage to the condenser and
refrigerant lines/hoses, ensure that the lines and
hoses are not stretched, kinked or bent.

Note:
Protect fender panel from damage. - Remove air cowls from radiator -4- (left and right).
- Remove securing bolts -1- and -2- for condenser.
- Disconnect connector -3- from air conditioner pressure switch -F129-.
- Pull condenser up out of its bracket, pivot toward side and secure to
right-hand front wheel with wire.

- Release two retaining pins for radiator and pull out upward -arrows-.
- Pivot radiator toward front and lift out.
Pa
ge 33 of 38 Coolin
g system com
ponents, removin
g and installin
g
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE06.19.1

19-31

Installing
Installation is carried out in the reverse order of
removal; note the following:

- Install front bumper:

Repair Manual, Body Exterior, Repair Group
63


- Top up coolant Page 19
-7 .

Vehicles with automatic transmission:

- Attach ATF lines.

Repair Manual, 5 Spd. Automatic
Transmission 01V, Repair Group 37


- Check ATF level:

Repair Manual, 5 Spd. Automatic
Transmission 01V, Repair Group 37


Tightening torques
Pa
ge 34 of 38 Coolin
g system com
ponents, removin
g and installin
g
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE06.19.1

Component
Nm
Condenser to radiator 10
Cooling lines to radiator 10
Hose clamps for coolant hoses 2
Pa
ge 35 of 38 Coolin
g system com
ponents, removin
g and installin
g
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE06.19.1

19-32

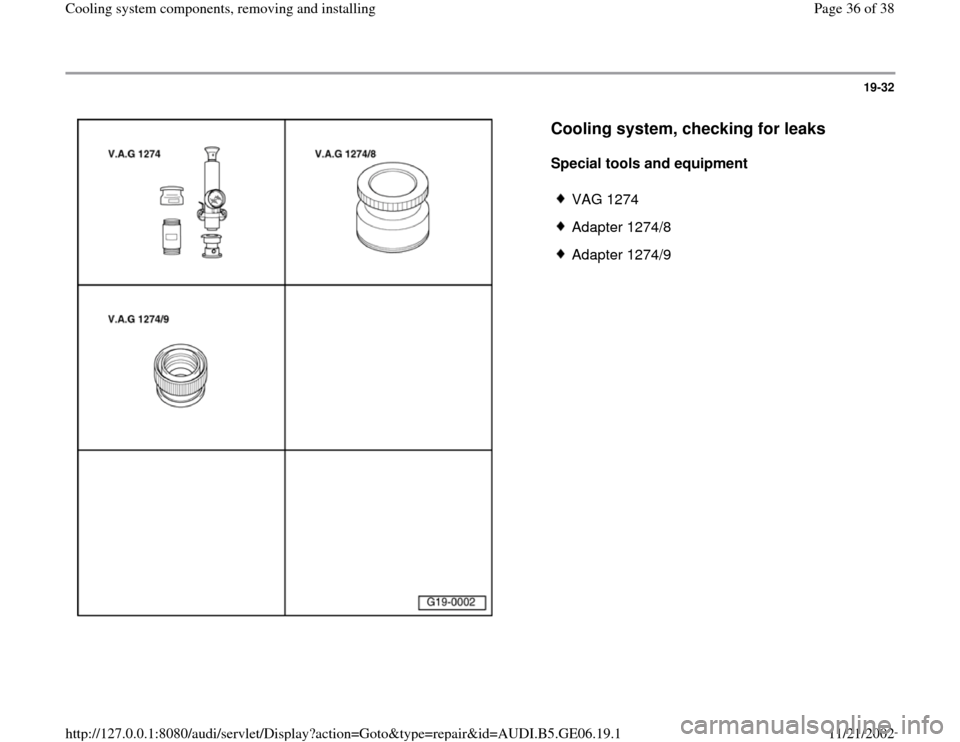

Cooling system, checking for leaks

Special tools and equipment

VAG 1274
Adapter 1274/8
Adapter 1274/9
Pa
ge 36 of 38 Coolin
g system com
ponents, removin
g and installin
g
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE06.19.1

19-33

Test requirements:

Engine at operating temperature.

WARNING!

Hot steam can escape when opening the cap
on the expansion tank: Cover cap with a cloth
and open carefully.

- Open cover of coolant expansion tank

Testing pressure relief valve in filler cap - Install tester VAG 1274 with adapter VAG 1274/8 onto expansion tank.
- Using hand pump on tester, build up a pressure of approx. 1.0 bar.
- If this pressure is not maintained, locate and repair leaks.

Pa
ge 37 of 38 Coolin
g system com
ponents, removin
g and installin
g
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE06.19.1

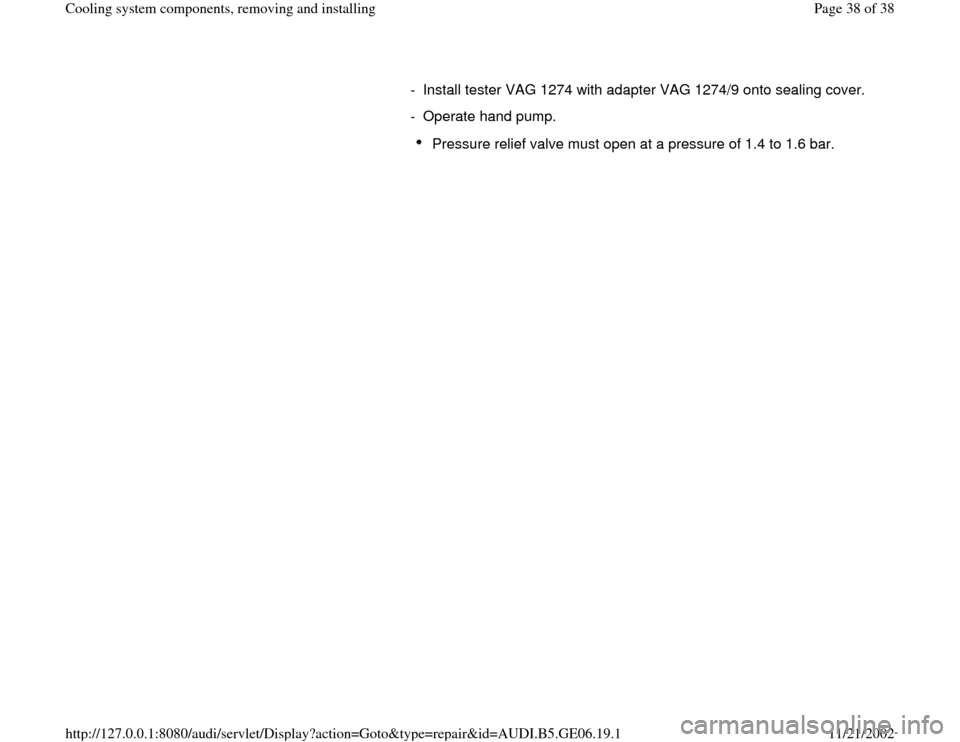

- Install tester VAG 1274 with adapter VAG 1274/9 onto sealing cover.
- Operate hand pump.
Pressure relief valve must open at a pressure of 1.4 to 1.6 bar.
