19-16
20 -

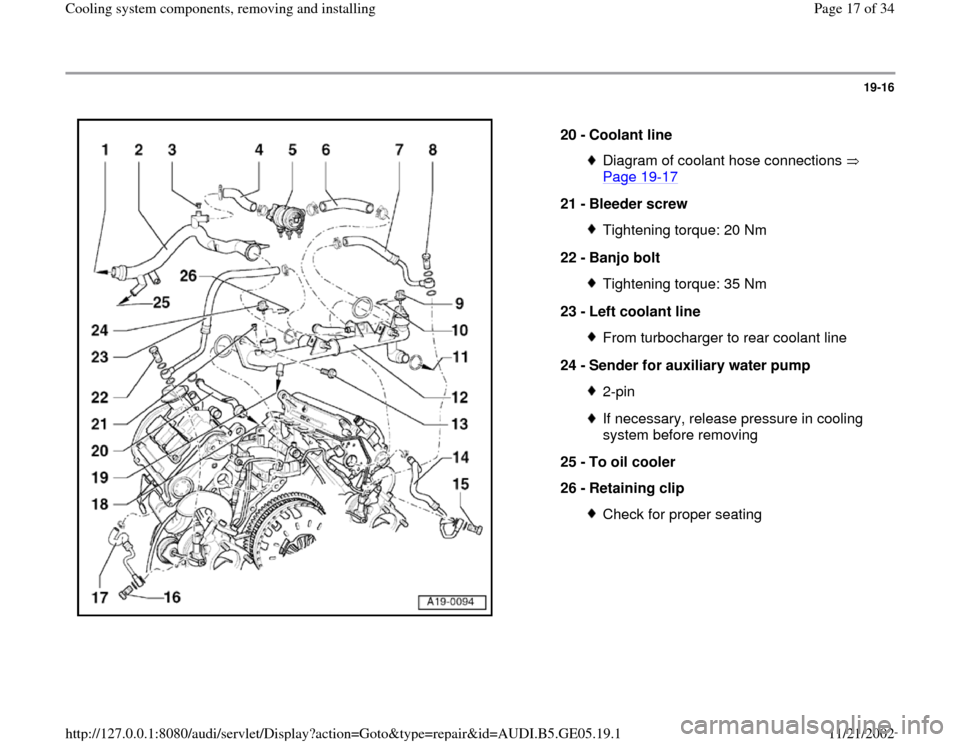

Coolant line
Diagram of coolant hose connections
Page 19
-17
21 -
Bleeder screw
Tightening torque: 20 Nm
22 -
Banjo bolt Tightening torque: 35 Nm
23 -
Left coolant line From turbocharger to rear coolant line
24 -
Sender for auxiliary water pump 2-pinIf necessary, release pressure in cooling
system before removing
25 -
To oil cooler
26 -
Retaining clip Check for proper seating
Pa
ge 17 of 34 Coolin
g system com
ponents, removin
g and installin
g
