19-19

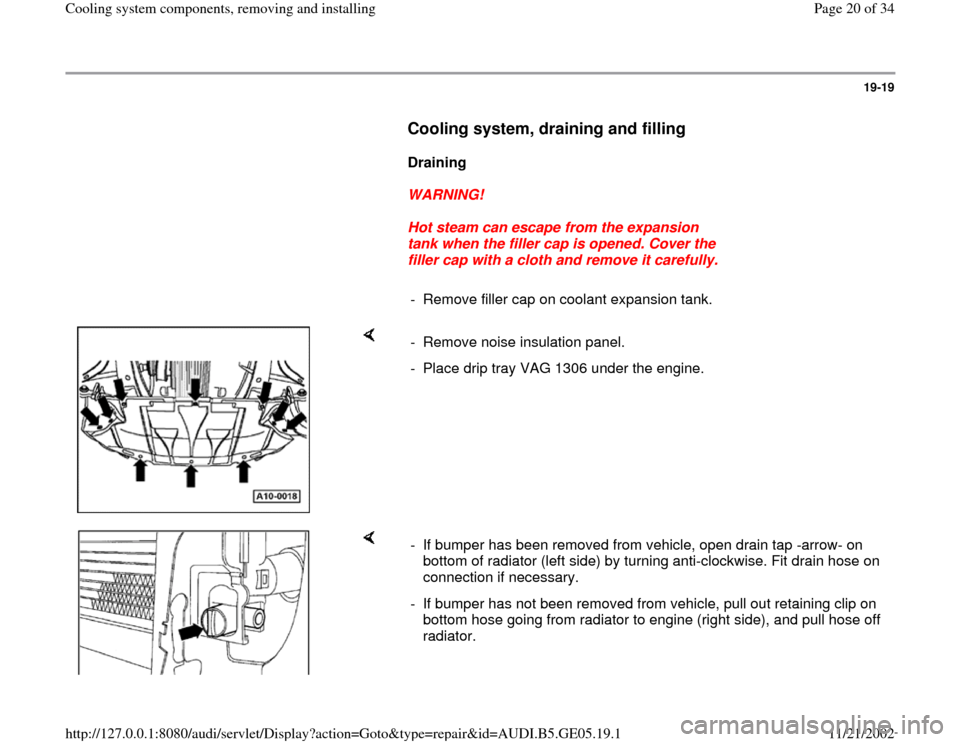

Cooling system, draining and filling
Draining
WARNING!
Hot steam can escape from the expansion
tank when the filler cap is opened. Cover the
filler cap with a cloth and remove it carefully.
- Remove filler cap on coolant expansion tank.
- Remove noise insulation panel.
- Place drip tray VAG 1306 under the engine.
- If bumper has been removed from vehicle, open drain tap -arrow- on
bottom of radiator (left side) by turning anti-clockwise. Fit drain hose on
connection if necessary.
- If bumper has not been removed from vehicle, pull out retaining clip on
bottom hose going from radiator to engine (right side), and pull hose off
radiator.
