1998 AUDI A4 01W Transmission Pinion Shaft Ring Gear Adjustment Workshop Manual

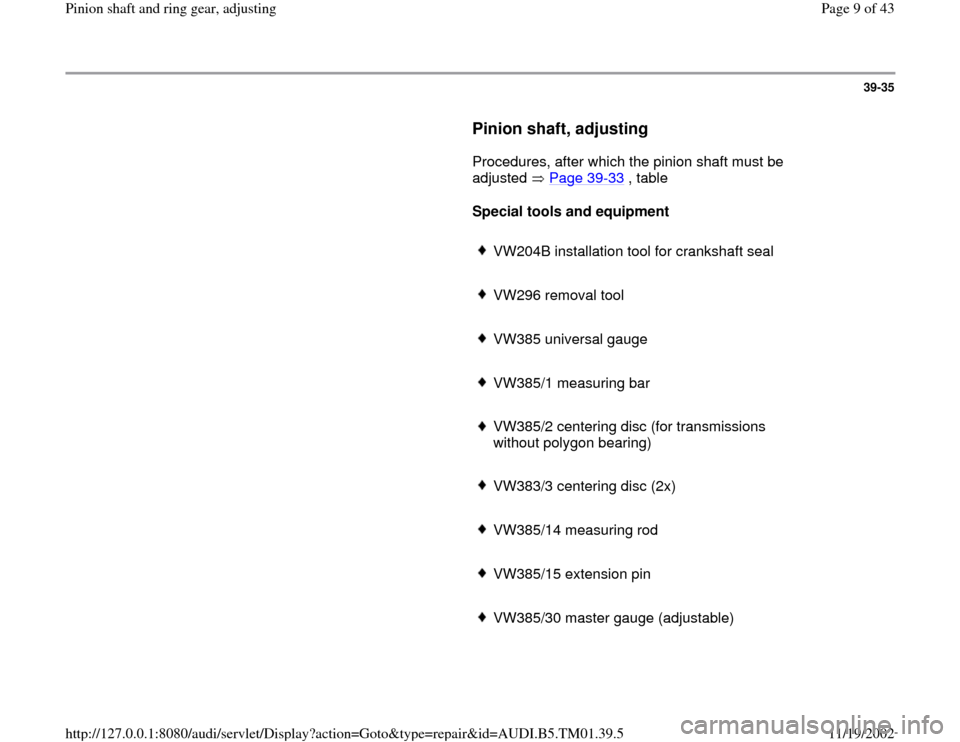

39-35

Pinion shaft, adjusting

Procedures, after which the pinion shaft must be
adjusted Page 39
-33
, table

Special tools and equipment

VW204B installation tool for crankshaft seal
VW296 removal tool
VW385 universal gauge
VW385/1 measuring bar
VW385/2 centering disc (for transmissions
without polygon bearing)
VW383/3 centering disc (2x)
VW385/14 measuring rod
VW385/15 extension pin
VW385/30 master gauge (adjustable)

Pa
ge 9 of 43 Pinion shaft and rin
g gear, ad
justin
g
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.TM01.39.5

VW385/33 end gauge
VW387 Dial Gauge Holder
VW401 thrust plate
VW407 punch
Pa
ge 10 of 43 Pinion shaft and rin
g gear, ad
justin
g
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.TM01.39.5

39-36

VW519 sleeve
VW792 installation arbor
3005 thrust pad
Torque gauge 0-600 Ncm
Dial indicator
Dial indicator extension 9.3 mm
Dial indicator extension 6.5 mm
Dial indicator extension 30 mm
Pa
ge 11 of 43 Pinion shaft and rin
g gear, ad
justin
g
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.TM01.39.5

39-37

Determining total shim thickness Stotal for
shims S3 + S4

- Adjust preload of tapered roller bearing for
pinion shaft.

Differential removed

- Pressing on double tapered roller bearing inner
race Page 35
-21
.

Note:
The illustration shows the pinion shaft without gears. - Secure lower tapered roller bearing (arrow).

Pressure plates with a thickness of 14.8 mm or 15.3 mm can be installed. - Install tapered roller bearing outer race for pinion shaft without shims
into transmission housing Fig. 3, Page 35
-30
.
- Install rubber washer (item 40 , Page Page 35
-28
) and pressure
plate (item - 39 -, Page Page 35
-28
) into transmission cover.
Pa
ge 12 of 43 Pinion shaft and rin
g gear, ad
justin
g
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.TM01.39.5

39-38


Note:
A shim S4 with a thickness of 1.0 mm is installed for initial measurement.
It is referred to in the following text as S4*. After determining
measurement "e," S4* is replaced with the appropriate shim S4. - Install tapered roller bearing outer race for pinion shaft with shim S4*
(1.0 mm thickness) into transmission cover Fig. 8, Page 35
-32
.
- Install fully assembled pinion shaft into transmission housing.
- Install transmission cover and tighten to 22 Nm (16 ft lb).
- Turn transmission so that the transmission cover points downward.

- Press down on face of pinion shaft using VW296 removal tool until
tapered roller bearing outer race contacts transmission cover.
- While maintaining pressure, turn pinion shaft by hand to seat tapered
roller bearing.
Pa
ge 13 of 43 Pinion shaft and rin
g gear, ad
justin
g
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.TM01.39.5

39-39


Note:
Make sure dial indicator extension contacts machined surface on face of
drive shaft. - Assemble measuring equipment, use 30mm dial indicator extension.
- Set dial indicator (3 mm measuring range) to 0 with 1mm preload.
-
Turn transmission 180 , so transmission cover faces upward.- Turn pinion shaft 5 rotations in each direction to seat the tapered roller
bearing.

Note:
If the measurement has to be repeated, first turn pinion shaft 5 rotations in
both directions to seat the tapered roller bearing. Set dial indicator to 0
with 2mm preload. - Read play on dial indicator and note.
Dimension in the following example: 0.45 mm
Pa
ge 14 of 43 Pinion shaft and rin
g gear, ad
justin
g
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.TM01.39.5

39-40

Formula:
"Stotal"
=
"S4*" + measured value + bearing
preload

Example:

Installed shim "S4*" 1.00
mm
+ Dimension (example) 0.45
mm
+ Bearing preload (constant) 0.15
mm
=
Total shim thickness "Stotal" for "S3
+ S4"
1.60
mm
Pa
ge 15 of 43 Pinion shaft and rin
g gear, ad
justin
g
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.TM01.39.5

39-41

Determining thickness of shim "S3*"

Formula:
"S3*"
=
"Stotal" - "S4*"

Example:


Total shim thickness "Stotal" for "S3
+ S4"
1.60
mm
- Installed shim "S4*" 1.00
mm
= Thickness of shim "S3*" 0.60
mm

- Remove tapered roller bearing outer race, install
shim "S3*" into transmission housing and re-
install outer race Fig. 3, Page 35
-30
.

- Install fully assembled pinion shaft into
transmission housing.

- Install transmission cover and tighten to 22 Nm
(16 ft lb).
Pa
ge 16 of 43 Pinion shaft and rin
g gear, ad
justin
g
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.TM01.39.5
