1997 TOYOTA RAV4 Owners Manual

8
LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key downward.
To unlock: Turn the keyupward.
Vehicles with power door lock sys-
temÐAll side doors and back door lock
and unlock simultaneously with either
front door. In the driver's door lock, turning
the key once will unlock the driver's door
and twice in succession will unlock all the
side doors and back door simultaneously.LOCKING AND UNLOCKING WITH IN-
SIDE LOCK BUTTON Move the lock button.
To lock: Push the button downward.
To unlock: Pull the button upward.
Closing the door with the lock button
pushed in w ill also lock the door. Be care-
ful not to lock your keys in the vehicle.Driver's side
Passenger 's side
Side doors

9
LOCKING AND UNLOCKING WITH POWER DOOR LOCK SWITCH Push the switch.
To lock: Push the switch on the front side.
To unlock: Push the switch on the rear side Operating the switch simultaneously
locks or
unlocks all the side doors and the
back door.
REAR DOOR CHILD-PROTECTORS
Move the lock lever to the LOCKº
position as shown on the label.
This feature allows you to lock a rear door
so it can be opened from the outside only,
not from inside. We recommend using
this feat ure whenever small children are in
the vehicle.
CAUTION!
Before driving, be sure that the
doors are closed and locked, espe-
cially when small children are in the
vehicle. A long with the proper use of
seat belts, locking the doors helps
prevent the driver and passengers
from being thrown out from the ve-
hicle during an accident. It also
helps prevent the doors from being
opened unintentionally.

10
The windows can be operated with the
switch on each door.
The power windows work when the igni- tion switch is in the ONº position. Howev-
er, if both doors are closed, they work for 45 seconds even after the ignition switch
is turned off. They stop working when ei-ther door is opened.
OPERATING THE DRIVER'S WINDOW
Use the switch on the driver's door.
Normal operation: The window moves
as long as you hold the switch.
To open: Lightly push down the switch.
To close: Pull up the switch.Automatic operation (to open only):
Push the switch completely down and
then rel ease it. The window will fully open.
To stop the window partway, lightly pull the
switch up and then release it.OPERATING THE PASSENGERS' WINDOWS
Use the switch on each passengers'
door or the switches on the dirver's
door that control each passengers'
window.
The windows move as long as you hold the switch.
To open: Push down the switch.
To close: Pull up the switch.
If you push in the window lock button on
the driver's door, the passenger's win-
dows cannot be operated.
Power windows

11
CAUTION!
To avoid serious personal injury, you
must do the following. Always make sure the head, hands
and other parts of the body of all oc-
cupants are kept completely inside
the vehicle before you close the
power windows. If someone's
neck, head or hands gets caught in
a closing window, it could result in
a serious injury. When anyone
closes the power windows, be sure
that they operate the windows safe-
ly.
When small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the WINDOW LOCKº
button to prevent them from mak-
ing unexpected use of the switches.
Never leave small children alone in
the vehicle, especially with the igni-
tion key still inserted. They could
use the power window switches
and get trapped in a window. Unat-
tended children can become in-
volved in serious accidents.
To open the quarter window, pull the
latch handle toward you and swing it
fully out.
When closing the window, make sure it is completely closed.
Quarter window
(right side onlyÐ2-door models)

12
LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key counterclockwise.
To unlock: Turn the key clockwise.
When closing the backdoor, make sure it is fully closed. See Luggage stowage precautionsº in
Part 2 for precautions to observe in load- ing luggage.
CAUTION!
Keep the back door closed while
driving. This not only keeps the
luggage from being thrown out but
also prevents exhaust gases from
entering the vehicle.
If the open back door hides the rear
stop and tail lights or rear turn sig-
nal lights while you are parked, oth- er road users must be warned of the
presence of your vehicle by a warn-
ing triangle or other device.
To open the hood, do the following.
1. Pull the hood lock release lever.
The hood will spring up slightly.
Before driving, be sure that the hood
is securely locked. Otherwise, the
hood may open unexpectedly while
driving and an accident may occur.
CAUTION!
Back door
Hood

13
2. In front of the vehicle, pull up on theauxiliary catch lever and lift the hood.3. Hold the hood open by insertingthe support rod into the slot.
Before closing the hood, check that you
have not forgotten any tools, rags, etc.
and return the support rod to its clip-this
prevents ra ttles. Then lower the hood until
it is about 20 cm (8 in.) above the engine
compartment and release it. If the hood is
still not fully closed, lift and release the
hood again. After closing the hood, make sure it is securely locked.
If you notice while driving that the hood is not securely locked, stop the vehicle at
once and close the hood.
Right after driving the support rod may be hot, so only touch the part coated with nylon.
After inserting the rod into the slot,
make sure the rod supports the
hood securely from falling down on
to your head or body.
When closing the hood, be careful
not to get your hands caught be-
tween the hood and the vehicle
body.
NOTICE
Do not press on the hood, or you may deform the hood.
! CAUTION

14
1. To open the fuel filler door, pull thelever up.
CAUTION!
Do not smoke, cause sparks or al-
low open flames when refuelling.
The fumes are flammable.
When opening the cap, do not re-
move the cap quickly. In hot weath-
er, fuel under pressure could cause
injury by spraying out of the filler
neck if the cap is suddenly re- moved.
2. To remove the fuel tank cap, turn
the cap slowly counterclockwise,
then pause slightly before remov-
ing it. After removing the cap, hang
it on the cap hanger.
It is not unusual to hear a slight swoosh
when the cap is opened. When installing,
turn the cap clockwise till you hear a click.
If the cap is not tightened securely, themalfunction indicator lamp comes on.
Make sure the cap is tightened securely.
The indicator lamp goes off after driving several times. If the indicator lamp does
not go off, contact your Toyota dealer as soon as possible.
CAUTION!
Make sure the cap is tightened se-
curely to prevent fuel spillage in
case of an accident.
Use only a genuine Toyota fuel tankcap for replacement. It has a built incheck valve to reduce fuel tank vac- uum.
Fuel tank cap

15
Sliding operation
Tilting operationTo operate the moon roof, use the
switches beside the personal light. The key must be in the ONº position. Sun shade operationÐThe sun shade can be opened or closed by hand. Sliding operationÐ
To open: Push the switch on the SLIDEº side.
The sun shade will be opened together with the roof.
To close: Push the switch on the opposite
side of the SLIDEº side.
As a precaution when closing, the roof
stops at the three-quarters closed posi- tion before fully closing. Therefore, re-
lease the switch and then push it again to
close it completely.
Tilting operationÐ
To tilt up: Push the switch on the UPº side.
To lower: Push the switch on the opposite
side of the UPº side.
You may stop the moon roof at any de-
sired
position. The roof will move while the
switch is being pushed and stop when re-leased.

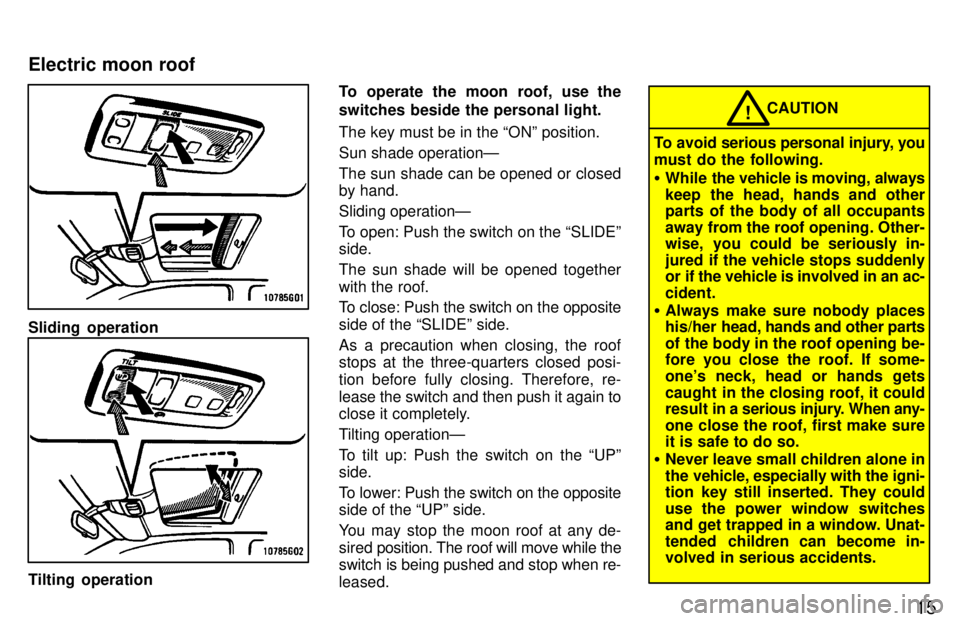

CAUTION!
To avoid serious personal injury, you
must do the following. While the vehicle is moving, always
keep the head, hands and other
parts of the body of all occupants away from the roof opening. Other-
wise, you could be seriously in-
jured if the vehicle stops suddenly
or if the vehicle is involved in an ac- cident.
Always make sure nobody places
his/her head, hands and other parts
of the body in the roof opening be-
fore you close the roof. If some-
one's neck, head or hands gets
caught in the closing roof, it could
result in a seri ous injury. When any-
one close the roof, first make sure
it is safe to do so.
Never leave small children alone in
the vehicle, especially with the igni-
tion key still inserted. They could
use the power window switches
and get trapped in a window. Unat-
tended children can become in-
volved in serious accidents.
Electric moon roof
