Part 1Ignition switch with steering lock
67
OPERATION OF INSTRUMENTS ANDCONTROLSÐ
Chapter 1-6 Ignition switch,
Transmission and Parking brake
Ignition swi
tch with steering lock
Automatic transmission
Four-wheel drive system
Front and rear differential lock system
Parking brake
Cruise control
STARTº ÐStarter motor on. The key will return to the ONº position when released.
For starting tips, see Part 3.
ONº ÐEngine on and all accessories on.
This is the normal driving position. ACCº - Accessories such as the ra-
dio operate, but the engine is off.
If you leave the key in the ACCº or
LOCKº position and open the driver's
door, a buzzer will remind you to remove
the key. LOCKº ÐEngine is off and the steer-
ing wheel is locked. The key can be re-
moved only at this position.
To turn the key from ACCº to the LOCKº position,
you must put the selector lever in
the Pº position. When starting the engine, the key may
seem stuck at the LOCKº position. To
free it, first be sure the key is pushed all
the way in, and then rock the steering
wheel slightly while turning the key gently.
NOTICE
Do not leave the key in the ONº position if the engine is not running.
The battery will discharge and the ignition could be damaged.
Never remove the key when the
vehicle is moving, as this will lock
the steering wheel and result in loss
of steering control. CAUTION
!

68Automatic transmission
When the cruise control is being used, even if you downshift the transmission by turning off the overdrive switch, engine braki
ng
will not be applied because the cruise control is not cancelled. For ways to decrease the vehicle speed, see Cruise controlº i n
this chapter.

69
Your automatic transmission has a shift
lock system to minimize the possibility of
incorrect operation. This means you can
only shift out of Pº position when the brake
pedal is depressed (with the ignition
switch in ONº position and the lock re-
lease button depressed). (a) Normal driving
1. Start the engine as instructed in How to start the engineº in Part 3. The trans- mission must be in Pº or Nº.
2. With your foot holding down the brake pedal, shift the selector lever to Dº.
In Dº position, the automatic transmis-
sion system will select the most suitable
gear for running conditions such as nor-
mal cruising, hill climbing, hard towing, etc.
Always turn the overdrive switch on for
better fuel economy and quieter driving. If
the engine coolant temperature is low, thetransmission will not shift into overdrive
gear even with the overdrive switch on.
Never put your foot on the accelerator pedal while shifting. CAUTION
!
3. Release the parking brake and brake pedal. Depress the accelerator pedal
slowly for smooth starting.
(b) Using engine braking
To use engine braking, you can downshift the transmission as follows: Turn off the overdrive switch. The O/D
OFFº indicator light will come on and the transmission will downshift to the
third gear.
Shift into the 2º position. The trans-
mission will downshift to the second
gear when the vehicle speed drops down to or lower than the following speed, and more powerful engine
braking will be obtained.
Four-wheel drive control lever
in Hº 116 km/h (72 mph) . . . . . . . . .
Four-wheel drive control lever
in Lº 40 km/h (25 mph) . . . . . . . . . . .
Shift into the Lº position. The trans-
mission will downshift to the first gear.
When the vehicle speed drops down to
or lower than the following speed, and
maximum engine braking will be ap- plied.
Four-wheel drive control lever
in Hº 56 km/h (34 mph) . . . . . . . . . .
Four-wheel drive control lever
in Lº 13 km/h (8 mph) . . . . . . . . . . . .
When the cruise control is being used, even if you downshift the transmission by
turning off the overdrive switch, engine
braking will not be applied because the
cruise control is not cancelled. For ways
to decrease the vehicle speed, see
Cruise controlº in this chapter.
Be careful when downshifting on a
slippery surface. Abrupt shifting
could cause the vehicle to spin orskid. CAUTION
!

70(c) Using the 2º and Lº positions
The 2º and Lº positions are used for
strong engine braking as described pre-
viously. With the selector lever in 2º or Lº, you
can start the vehicle in motion as with the
lever in Dº. With the selector lever in 2º, the vehicle
will
start in the first gear and automatically
shift to the second gear.
With the selector lever in Lº, the trans-
mission is engaged in the first gear.
NOTICE
Be careful not to overrev the en- gine. Watch the tachometer to
keep engine rpm from going intothe red zone. The approximate
maximum allowable speed foreach position is given below for
your reference:MAXIMUM ALLOWABLE SPEEDS
km/h (mph)
Transmission Transfer
L H2 44 (27) 109 (67)
L 22 (13) 56 (34)
Do not continue hill climbing orhard towing for a long time in the
2º or Lº position. This maycause severe automatic transmis-
sion damage from overheating.To prevent such damage, use Dº
position for hill climbing or hardtowing.
(d) Backing up
1. Bring the vehicle to a complete stop.
2. With the brake pedal held down with
your foot, shift the selector lever to the
Rº position.
NOTICE
Never shift into reverse while the vehicle is moving.
(e) Parking
1. Bring the vehicle to a complete stop.
2. Pull the parking brake lever up fully to securely apply the parking brake.
3. With the brake pedal pressed down, shift the selector lever to the Pº posi- tion. If the four-wheel drive control is in the Nº
position while the selector lever is in the
Pº position, the transmission will damage
and the wheels will not lock.
While the vehicle is moving, never
attempt to move the selector lever
into Pº position under any circum-
stances. Serious mechanical dam-
age and loss of vehicle control may result.
CAUTION
!
(f) Good driving practice If the transmission is repeatedly up-
shifted and downshifted between third
gear and overdrive when climbing a
gentle slope, the overdrive switch
should be turned off. Be sure to turn the switch on immediately afterward.
When towing a trailer, in order to main-
tain engine braking efficiency, do not use overdrive.

71
Always keep your foot on the brake
pedal while stopped with the engine
running. This prevents the vehicle
from creeping.CAUTION
!
NOTICE
Do not hold the vehicle on an upgrade with the accelerator pedal.
It can cause the transmission tooverheat. Always use the brake
pedal or parking brake.
(g) Rocking your vehicle if stuck
If you rock your vehicle to make it
out when it becomes stuck in snow,
mud, sand, etc., first check that there are no objects or people
around the vehicle. During opera-
tion, the vehicle may suddenly move forward or backward as it be-
comes unstuck, causing injury or
damage to nearby people or ob- jects. CAUTION
!
NOTICE
If you rock your vehicle, observe the following precautions to prevent
damage to the transmission andother parts.
Do not depress the acceleratorpedal while shifting the selector
lever or before the transmission is
completely shifted to forward or
reverse gear.
Do not race the engine and avoidspinning the wheels.
If your vehicle remains stuck after
rocking the vehicle several times,consider other ways such as tow-ing.
(h) Driving in PWRº (Power) mode
In the PWRº mode, the transmission is shifted up and down at a higher vehicle
speed than in the Normal mode and a
more powerful acceleration is achieved.
To set the PWRº mode, push in the driv-
ing pattern selector button. The PWRº mode indicator light comes on.
For ordinary driving, Toyota recommends
using the Normal mode to improve fuel
economy. (i) If you cannot shift the selector lever
out of Pº position
If you cannot shift the selector lever fromPº position even though the brake pedal
is depressed, use the shift lock override
button. For instructions, see If you can- not shift automatic transmission selector leverº in Part 4.
(j) If the O/D OFFº indicator light flasher
Contact your Toyota dealer as soon as
possible. There may be trouble in the transmission system.
(k) Driving in 2nd STRTº (second start) mode.
In the 2nd STRTº (Second start) mode, the transmission system shifts up from
second gear. Use this mode when starting
your vehicle in sand, mud, ice or snow.
To set the 2nd STRTº mode, push the
2nd button. In the 2nd STRTº mode, the
2nd STRTº indicator light comes on.
The PWRº mode is automatically can-
celled when you push the 2ndº button.

72
Use the four-wheel drive control lever
to select the following transfer modes.
Hº (high speed position, center dif-
ferential unlocked): Lever at Hº
Use this for normal driving on all types of
roads, from dry hard-surfaced roads to
wet, icy or snow-covered roads. This
position gives greater economy, quietest ride, least wear and better vehicle control.
Nº (neutral position): Lever at Nº
No power is delivered to the wheels. Thevehicle must be stopped. Lº (low speed position, four-wheel
drive):
Lever at Lº
Use this for maximum power and traction,
when you experience a loss of power, such as wheel slipping or hard pulling, in the Hº position.
The indicator light tells when the center
differential lock is engaged. Note that the
differential is not s till locked as long as the
indicator light remains off.
If the indicator light does not come on
when the lever is in the Lº position, haveyour vehicle checked by your Toyota deal-
er as soon as possible.
See (b) shifting procedure (with anti-lock brake system)º for further instructions.
In this position, the anti-lock brake sys-
tem does not operate. See Brake sys-
temº in Part 2. To shift between Hº and Lº
, stop the
vehicle, put the transmission into Nº and
move the four-wheel drive control lever.
Never move the four-wheel drive
control lever if wheels are slipping.
Stop the slipping or spinning before
shifting. CAUTION
!
Four-wheel drive systemÐ (a) Four-wheel drive control
(b) Shifting procedure

73
The front and rear differential lock sys- tem is provided for use only when
wheel spinning occurs in a ditch or ona slippery or ragged surface.
This differential lock system is effective in
case one or either right or left pair of the wheels are spinning.
First shift the four-wheel drive control into
Lº with the center differential locked to see if you can move forward. If this does
not work, use the front and rear differential
lock system also.

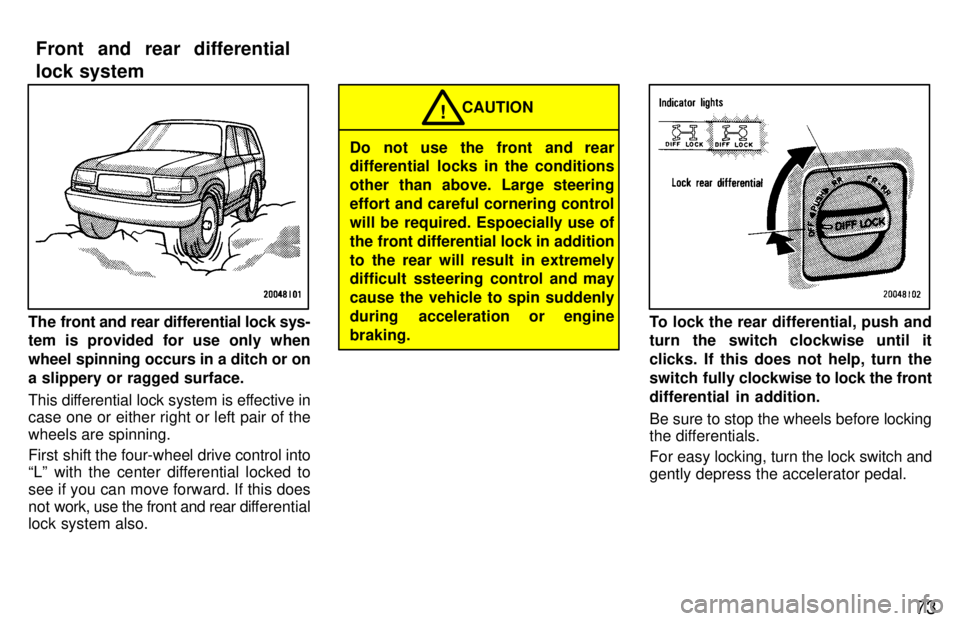

Do not use the front and rear
differential locks in the conditions
other than above. Large steering
effort and careful cornering control
will be required. Espoecially use of
the front differential lock in addition
to the rear will result in extremely
difficult ssteering control and may cause the vehicle to spin suddenly
during acceleration or enginebraking. CAUTION
!
To lock the rear differential, push and
turn the switch clockwise until it
clicks. If this does not help, turn the
switch fully
clockwise to lock the front
differential in addition.
Be sure to stop the wheels before locking
the differentials.
For easy locking, turn the lock switch and gently depress the accelerator pedal.
Front and rear differential
lock system
