1997 TOYOTA CAMRY Owners Manual

Part 2Break-in period
Fuel
129
INFORMATION
BEFORE DRIVING
YOUR TOYOTA

Break-in period

Fuel

Operation in foreign countries

Three-way catalytic converter

Engine exhaust cautions

Facts about engine oil consumption

Twin ground electrode spark plugs

Brake system

Brake pad wear limit indicators

Luggage stowage precautions

Your Toyota's idenitification

Theft prevention labels

Suspension and chassis

Types of tiresDrive gently and avoid high speeds.
Your vehicle does not need an elaborate
break-in. But following a few simple tips
for the first 1600 km (1000 miles) can add
to the future economy and long life of your
vehicle:

Do not drive over 88 km/h (55 mph).

Run the engine at moderate speed be-
tween 2000 and 4000 rpm.

Avoid full-throttle starts.

Try to avoid hard stops during the first
300 km (200 miles).

Do not drive slowly with the manual
transmission in a high gear.

Do not drive for a long time at any
single speed, either fast or slow.

Do not tow a trailer during the first 800
km (500 miles)FUEL TYPE
Your new vehicle must use only un-
leaded gasoline.
To help prevent gas station mixups, your
Toyota has a new smaller fuel tank opening.
The special nozzle on pumps with unleaded
fuel will fit it, but the larger standard nozzle
on pumps with leaded gas will not.
Do not use leaded gasoline. Use of
leaded gasoline will cause the
three-way catalytic converter to
lose its effectiveness and the emis-
sion control system to function im-
properly. Also, this can increase
maintenance costs.
NOTICE
OCTANE NUMBER
5S-FE engine: Select Research Octane
Number 91 (Octane Rating 87) or higher.
1MZ-FE engine: Select Research Oc-
tane Number 91 (Octane Rating 87) or
higher. For improved vehicle perfor-
mance, the use of premium unleaded
gasoline with a research Octane Num-
ber of 96 (Octane Rating 91) or higer is
recommended.
ProCarManuals.com

130
Use of unleaded fuel with an octane num-
ber or rating lower than stated above will
cause persistent heavy knocking. If se-
vere, this will lead to engine damage.
If your engine knocks...
If you detact heavy knocking even when
using the recommended fuel, or if you
hear steady knocking while holding a
steady speed on level roads, consult your
Toyota dealer.
However, now and then, you may notice
light knocking for a short time while accel-
erating or driving up hills. This is no cause
for concern.
GASOLINES CONTAINING DETER-
GENT ADDITIVES
Toyota recommens use of gasolines
that contain detergent additives to
avoid build-up of engine deposits.
For further details, ask your Toyota dealer
or a local gasoline retailer.GASOLINES CONTAINING MTBE
Gasolines that contain MTBE (Methyl
Tertiary-Butyl Ether) are available in
the market. If you use a gasoline mixed
with MTBE, make certain that it does
not contain more than 15% of MTBE.
If the use of gasolines containing MTBE
causes poor driveability and/or poor fuel
economy, you should discontinue the use
of fuels containing MTBE.
GASOLINES CONTAINING ALCOHOL
If the use of gasolines in your Toyota,
be sure that it is unleaded, has an oc-
tane rating no lower than 87 and does
not contain more than 10% ethanol.
Gasohol is a mixture of gasoline and etha-
nol.
Toyota does not recommend the use of
gasolines containing methonol. If you use
gasoline containing methonol, use only
gasoline meeting the requirements above
and also containing less than 5% metha-
nol with cosolvents and corrosion inhibi-
tors for methanol.NOTICE
Do not use gasohol other than
stated above. It will cause fuel
system damage or vehicle perfor-
mance problems
If driveablity problems are encoun-
tered (poor hot starting, vaporiz-
ing, engine knock, etc.), discontin-
ue the use.
Take care not to spill gasohol dur-
ing refueling. Gashol may cause
paint damage.
FUEL TANK CAPACITY
70 L (18.5 gal., 15.4 Imp. gal)
ProCarManuals.com

131
If you plan to drive your Toyota in
another country...
First, comply with the vehicle registration
laws.
Second, confirm the availability of the
correct fuel (unleaded and minimum oc-
tane number).
Type A
Type BThe three-way catalytic converter is
an emission control device installed in
the exhaust system.
The purpose is to reduce pollutants in the
exhaust gas.
CAUTION!

Keep people and combustible ma-
terials away from the exhaust pipe
while the engine is running. The ex-
haust gas is very hot.

Do not drive, idle or park your ve-
hicle over anything that might
burn easily such as grass, leaves,
paper or rags.
Three-way catalytic converter Operation in foreign countries
ProCarManuals.com

132
A large amount of unburned gases
flowing into the three-way catalytic
converter may cause it to overheat
and create a fire hazard. To prevent
this and other damage, observe the
following precautions:
Use only unleaded gasoline.
Do not drive with an extremely low
fuel level; running out of fuel
could cause the engine to misfire,
creating an excessive load on the
three-way catalytic converter.
Do not allow the engine to run at
idle speed for more than 20 min-
utes.
Avoid racing the engine.
Do not push-start or pull-start
your vehicle.
Do not turn off the ignition while
the vehicle is moving.
NOTICEKeep your engine in good running
order. Malfunctions in the engine
electrical system, electronic igni-
tion system/distributor ignition
system or fuel systems could
cause an extremely high three-
way catalytic converter tempera-
ture.
If the engine becomes difficult to
start or stalls frequently, take your
vehicle in for a check-up as soon
as possible. Remember, your To-
yota dealer knows your vehicle
and its three-way catalytic con-
verter system best.
To ensure that the three-way cata-
lytic converter and the engine
emission control system operate
properly, your vehicle must re-
ceive the periodic inspections re-
quired by the Toyota Maintenance
Schedule. For scheduled mainte-
nance information, refer to the
separate Owner's Manual Sup-
plement/Maintenance Scheduleº.
CAUTION!

Avoid inhaling the engine ex-
haust. It contains carbon monox-
ide, which is a colorless and odor-
less gas. It can cause uncon-
sciousness or even death.

Make sure the exhaust system
has no holes or loose connec-
tions. The system should be
checked from time to time. If you
hit something, or notice a change
in the sound of the exhaust, have
the system checked immediately.

Do not run the engine in a garage
or enclosed area except for the
time needed to drive the vehicle in
or out. The exhaust gases cannot
escape, making this a paticularly
dangerous situation.

Do not remain for a long time in a
parked vehicle with the engine
running. If it is unavoidable, how-
ever, do so only in an unconfined
area and adjust the heating or
cooling system to force outside
air into the vehicle.
Engine exhaust cautions
ProCarManuals.com

133

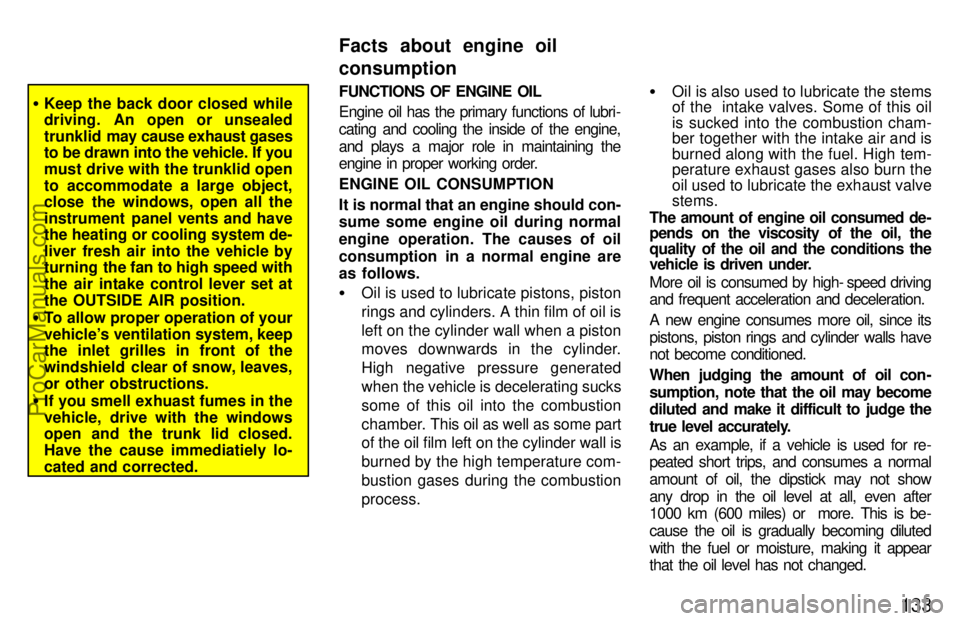

Keep the back door closed while
driving. An open or unsealed
trunklid may cause exhaust gases
to be drawn into the vehicle. If you
must drive with the trunklid open
to accommodate a large object,
close the windows, open all the
instrument panel vents and have
the heating or cooling system de-
liver fresh air into the vehicle by
turning the fan to high speed with
the air intake control lever set at
the OUTSIDE AIR position.

To allow proper operation of your
vehicle's ventilation system, keep
the inlet grilles in front of the
windshield clear of snow, leaves,
or other obstructions.

If you smell exhuast fumes in the
vehicle, drive with the windows
open and the trunk lid closed.
Have the cause immediatiely lo-
cated and corrected.FUNCTIONS OF ENGINE OIL
Engine oil has the primary functions of lubri-
cating and cooling the inside of the engine,
and plays a major role in maintaining the
engine in proper working order.
ENGINE OIL CONSUMPTION
It is normal that an engine should con-
sume some engine oil during normal
engine operation. The causes of oil
consumption in a normal engine are
as follows.

Oil is used to lubricate pistons, piston
rings and cylinders. A thin film of oil is
left on the cylinder wall when a piston
moves downwards in the cylinder.
High negative pressure generated
when the vehicle is decelerating sucks
some of this oil into the combustion
chamber. This oil as well as some part
of the oil film left on the cylinder wall is
burned by the high temperature com-
bustion gases during the combustion
process.
Oil is also used to lubricate the stems
of the intake valves. Some of this oil
is sucked into the combustion cham-
ber together with the intake air and is
burned along with the fuel. High tem-
perature exhaust gases also burn the
oil used to lubricate the exhaust valve
stems.
The amount of engine oil consumed de-
pends on the viscosity of the oil, the
quality of the oil and the conditions the
vehicle is driven under.
More oil is consumed by high- speed driving
and frequent acceleration and deceleration.
A new engine consumes more oil, since its
pistons, piston rings and cylinder walls have
not become conditioned.
When judging the amount of oil con-
sumption, note that the oil may become
diluted and make it difficult to judge the
true level accurately.
As an example, if a vehicle is used for re-
peated short trips, and consumes a normal
amount of oil, the dipstick may not show
any drop in the oil level at all, even after
1000 km (600 miles) or more. This is be-
cause the oil is gradually becoming diluted
with the fuel or moisture, making it appear
that the oil level has not changed.
Facts about engine oil
consumption
ProCarManuals.com

134
The diluting ingredients evaporate out
when the vehicle is then driven at high
speeds, as on an expressway, making it
appear that oil is excessively consumed
after driving as high speeds.
IMPORTANCE OF ENGINE OIL LEVEL
CHECK
One of the most important points in proper
vehicle maintenance is to keep the engine
oil at the optimum level so that oil function
will not be impaired. Therefore, it is essen-
tial that the oil level be checked regularly.
Toyota recommends that the oil level be
checked every time you refuel the vehicle.
NOTICE
Failure to check the oil level regular-
ly could lead to serious engine
trouble due to insufficient oil.
For detailed information on the oil level
check, see Checking the engine oil levelº
in Chapter 7-2.
Your engine is fitted with twin ground elec-
trode spark plugs.
NOTICE
Use only twin ground electrode
spark plugs for your engine perfor-
mance.
TANDEM MASTER CYLINDER BRAKE
SYSTEM
The tandem master cylinder brake sys-
tem is a hydraulic system with two sepa-
rate sub-systems. If either sub-system
should fail, the other will still work. Howev-
er, the pedal will be harder to press, and
your stopping distance will be longer.
Also, the brake system warning light may
come on.
CAUTION!
Do not drive your vehicle with only
a single brake system. Have your
brakes fixed immediately.
BRAKE BOOSTER
The brake booster uses engine vacuum to
power-assist the brakes. If the engine
should quit while you are driving, you can
bring the vehicle to a stop with normal
pedal pressure. There is enough reserve
vacuum for one or two stops - but no
more!
Twin ground electrode
spark plugsBrake system
ProCarManuals.com

135
CAUTION!

Do not pump the brake pedal if the
engine stalls. Each push on the
pedal uses up your vacuum re-
serve.

Even if the power assist is com-
pletely lost, the brakes will still
work. But you will have to push
the pedal hardÐmuch harder
than normal. And your braking
distance will be longer.
ANTI-LOCK BRAKE SYSTEM (with
ABSº warning light)
The anti- lock brake system is designed to
automatically help prevent lock- up of the
wheels during sudden braking or braking on
slippery road surfaces. This assists in pro-
viding directional stability and steering per -
formance of the vehicle under these cir -
cumstances.
The anti- lock brake system becomes op-
erative after the vehicle has accelerated to
a speed in excess of approximately 10 km/h
(6 mph). It stops operating when the vehicle
decelerates to a speed below approximate-
ly 5 km/h (3 mph).You may hear a sound in the engine
compartment for a few seconds when the
engine is started or just after the vehicle
is started. This means that the anti-lock
brake system is in the self check mode,
and does not indicate a malfunction.
Effective way to press the ABSº brake
pedal: When the anti-lock brake system
function is in action, you may feel the
brake pedal pulsating and hear a noise.
In this situation, to let the anti-lock brake
system work for you, just hold the brake
pedal down more firmly. Do not pump
the brake. This will result in reduced
braking performance.
The brake pedal pulsation caused by the
anti-lock brake system may indicate haz-
ardous road surface conditions. Although
the anti-lock brake system assists in pro-
viding vehicle control, it is still important to
drive with all due care, because the anti-
lock brake system cannot overcome the
laws of physics that act on your vehicle:

Braking capability is dependent on tire
friction with the road surface.
Even though the anti-lock brake sys-
tem is operating, a driver cannot main-
tain full control on certain slippery road
surfaces, when cornering at high
speeds, or in violent maneuvers.

Avoid high speeds on wet roads. The
anti-lock brake system cannot elimi-
nate the risk of hydroplaning and loss
of tire friction.
Always maintain a safe distance from the
vehicle in front of you. Compared with ve-
hicles not fitted with an anti-lock brake
system, your vehicle may require a longer
stopping distance in the following cases:

Driving on rough, gravel or snow-cov-
ered roads.

Driving with tire chains installed.

Driving on roads where the road sur-
face is pitted or has other differences
in surface height.
ProCarManuals.com

136
ABSº warning light
This light comes on when the ignition key
is turned to the ONº position. After about
3 seconds, the light will go off.
If either of the following conditions occurs,
this indicates a malfunction somewhere in
the parts monitored by the warning light
system. Contact your Toyota dealer as
soon as possible to service the vehicle.

The light does not come on as de-
scribed above, or remains on.

The light comes on while driving.Even if the anti-lock brake system should
fail, the brake system will still operate con-
ventionally. However, when the `ABS''
warning light is on (and the brake system
warning light is off), the anti-lock brake
system is not assisting brake perfor-
mance so that the wheels can lock-up
during sudden braking or braking on slip-
pery road surfaces. Have your vehicle
checked by your Toyota dealer as soon as
possible
DRUM-IN-DISC TYPE PARKING
BRAKE SYSTEM (1MZ-FE engine)
Your vehicle has a drum-in-disc type
parking brake system. This type brake
system needs bedding-down of the brake
shoes periodically or whenever the park-
ing brake shoes and/or drums are re-
placed.
Have your Toyota dealer perform the bed-
ding-down.The brake pas wear limit indicators on
your disc brakes give a warning noise
when the brake pads are worn to
where replacement is required.
If you hear a squealing or scraping noise
while driving, have the brake pads
checked and replaced by your Toyota
dealer as soon as possible. Expensive ro-
tor damage can result if the pads are not
replaced when necessary.
Brake pad wear limit indicator
ProCarManuals.com
