1997 TOYOTA 4RUNNER Owners Manual

36
In the following cases, contact your Toyo-
ta dealer as soon as possible: The SRS airbag has been inflated.
The front part of the vehicle (shaded in the illustration) was involved in an ac-
cident not of the extent to cause the
SRS airbags to inflate
The pad section of the steering wheel
(shaded in the illustration) is scrat-
ched, cracked, or otherwise damaged. Toyota strongly urges the use of child
restraint systems for children small
enough to use them.
The laws of all fifty states in the U.S.A.
and Canada now require the use of a child
restraint system.
Your vehicle conforms to SAEJ1819.
If a child is too large for a child restraint
system,
the child should sit in the rear seat
and must be restrained using the vehicle's
seat belt. See Seat beltsº for details.
CAUTION!
For effective protection in auto-
mobile accidents and sudden
stops, children must be properly
restrained using a seat belt or
child restraint system depending
on the age and size of the child.
Holding a child in your arms is not
a substitute for a child restraintsystem. In an accident, the child
can be crushed against the wind-
shield, or between you and the ve-
hicle's interior.
Toyota strongly urges use of a
proper child restraint system that
conforms to the size of the child
on the rear seat. According to acci-
dent statistics, the child is safer
when properly restrained in the
rear seat than in the front seat.
Never install a rear-facing child re-
straint system on the front seat. In
the event of an accident, the force
of the rapid inflation of the airbag can cause severe injury in a rear-
facing child restraint system is
installed on the front seat.
Unless it is unavoidable, do not
install a forward-facing child re-
straint system on the front seat.
If you must install a forward-fac-
ing child restraint system on the
front seat, move the seat as far back as possible.
Make sure that you have complied
with all installation instructions
provided by the child restraint
manufacturer and that the system is properly secured.
Child restraintÐ ÐChild restraint precautions

37
A child restraint system for a small
child or baby must itself be properly
restrained on the seat with either the
lap belt or the lap portion of the lap/
shoulder belt. You must carefully con-
sult the manufacturer's instructions
which accompany your child restraint system.
To provide proper restraint, use a
child re-
straint system following the manufactur-
er's instructions about the appropriate
age and size of the child for the child re-
straint system. Install the child restraint system correctly
following the instructions provided by its
manufacturer of the system. General di- rections are also provided under the fol-
lowing illustrations.
The child restraint system should be
installed on the rear seat. According to ac-
cident statistics, the child is safer when
properly restrained in the rear seat than in
the front seat.

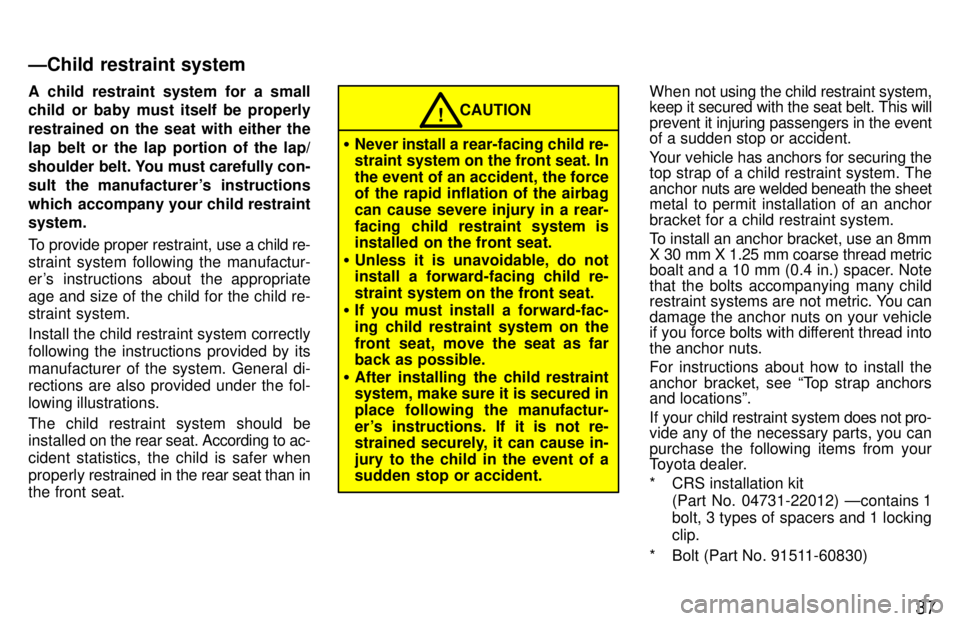

CAUTION!
Never install a rea r-facing child re-
straint system on the front seat. In
the event of an accident, the force
of the rapid inflation of the airbag can cause severe injury in a rear-
facing child restraint system is
installed on the front seat.
Unless it is unavoidable, do not
install a forward-facing child re-
straint system on the front seat.
If you must install a forward-fac-
ing child restraint system on the
front seat, move the seat as far back as possible.
After installing the child restraintsystem, make sure it is secured in
place following the manufactur-
er's instructions. If it is not re-
strained securely, it can cause in-
jury to the child in the event of a
sudden stop or accident. When not using the child restraint system, keep it secured with the seat belt. This
will
prevent it injuring passengers in the event
of a sudden stop or accident.
Your vehicle has anchors for securing the
top strap of a child restraint system. The
anchor nuts are welded beneath the sheet
metal to permit installation of an anchor
bracket for a child restraint system.
To install an anchor bracket, use an 8mm
X 30 mm X 1.25 mm coarse thread metric
boalt and a 10 mm (0.4 in.) spacer. Note
that the bolts accompanying many child
restraint systems are not metric. You can
damage the anchor nuts on your vehicle
if you force bolts with different thread into the anchor nuts.
For instructions about how to install the
anchor bracket, see Top strap anchors
and locationsº.
If your child restraint system does not pro-
vide any of the necessary parts, you can
purchase the following items from your
Toyota dealer.
* CRS installation kit
(Part No. 04731-22012) Ðcontains 1
bolt, 3 types of spacers and 1 locking clip.
* Bolt (Part No. 91511-60830)
ÐChild restraint system

38
Child restraint systems are classified into the following 3 types depending on the
child's age and size.
(A) Infant seat
(B) Convertible seat
(C) Booster seat
Install the child restraint system following the instructions provided by its manufac-
turer.
ÐTypes of child restraint system

39
(A) INFANT SEAT INSTALLATION

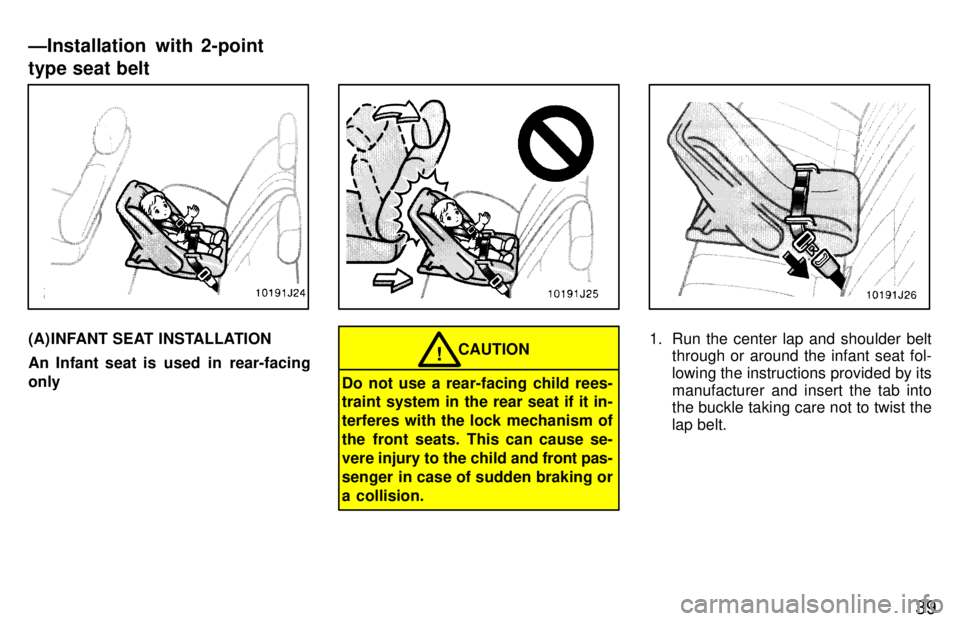

An Infant seat is used in rear-facing onlyCAUTION!
Do not use a rear-facing child rees- traint system in the rear seat if it in- terferes with the lock mechanism of
the front seats. This can cause se-
vere injury to the child and front pas-
senger in case of sudden braking ora collision.
1. Run the center lap and shoulder belt through or around the infant seat fol-
lowing the instructions provided by its
manufacturer and insert the tab into the buckle taking care not to twist the lap belt.
ÐInstallation with 2-point type seat belt

40

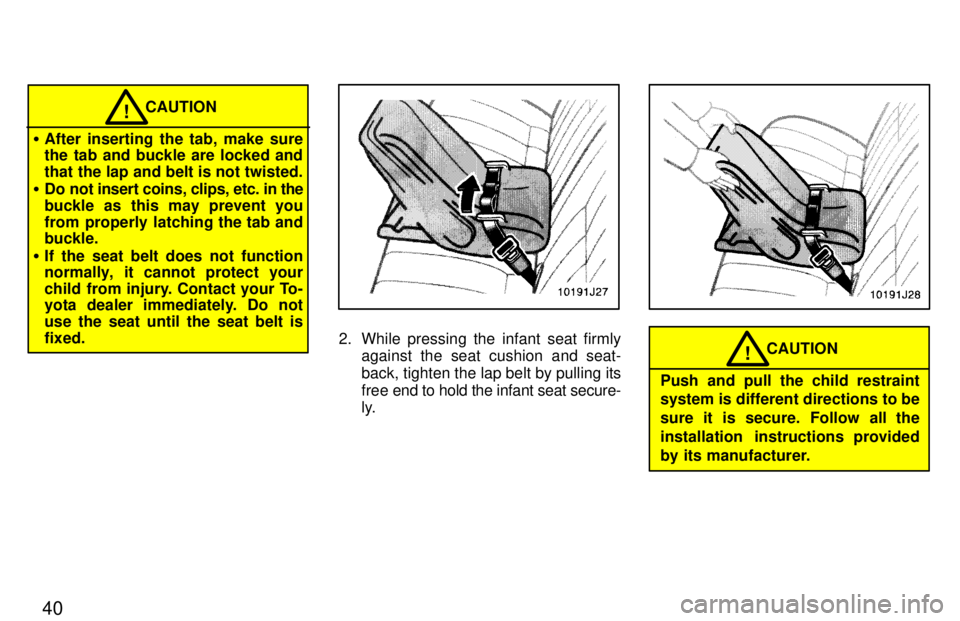

CAUTION!
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and belt is not twisted.
Do not insert coins, clips, etc. in the
buckle as this may prevent you
from properly latching the tab and buckle.
If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your To-
yota dealer immediately. Do not
use the seat until the seat belt isfixed.
2. While pressing the infant seat firmly
against the seat cushion and seat-
back, tighten the lap belt by pulling its
free end to hold the infant seat secure-
ly.CAUTION!
Push and pull the child restraint
system is different directions to be
sure it is secure. Follow all the
installation instructions provided
by its manufacturer.

41
3. To remove the infant seat, press thebuckle-release button.(B) CONVERTIBLE SEAT INSTALLA-
TION
A convertible seats is used in forward-
facing and rear-facing depending on
the child's age and size. When instal-
ling, follow the manufacturer's in-
struction about the applicable child's
age and size as well as direction for

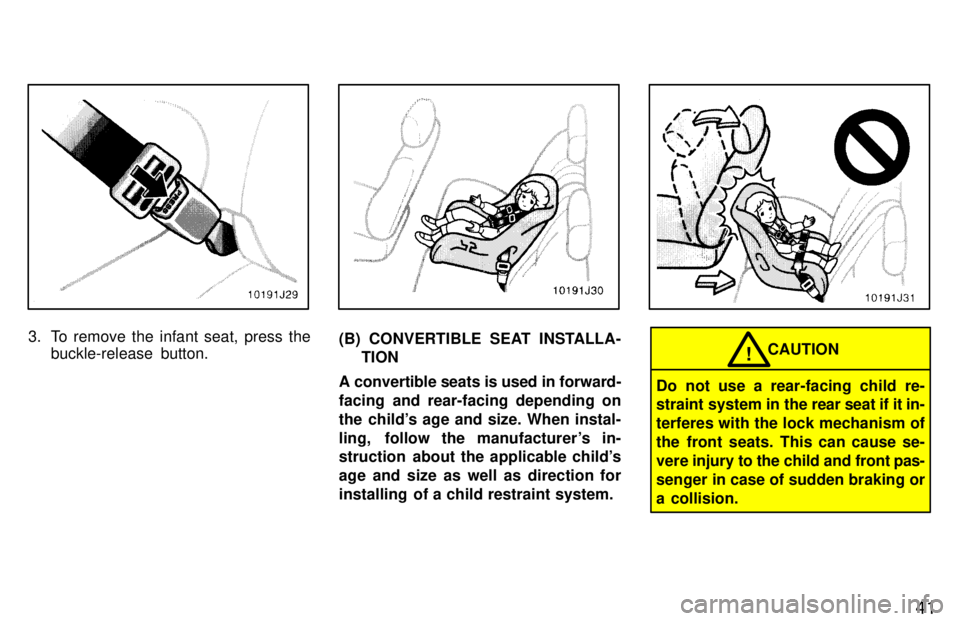

installing of a child restraint system.CAUTION!
Do not use a rear-facing child re-
straint system in the rear seat if it in-
terferes with the lock mechanism of
the front seats. This can cause se-
vere injury to the child and front pas-
senger in case of sudden braking ora collision.

42
1. Run the center belt through or aroundthe convertible seat following the in-
structions provided by its manufactur-er and insert the tab into the buckle taking care not to twist the lap belt.

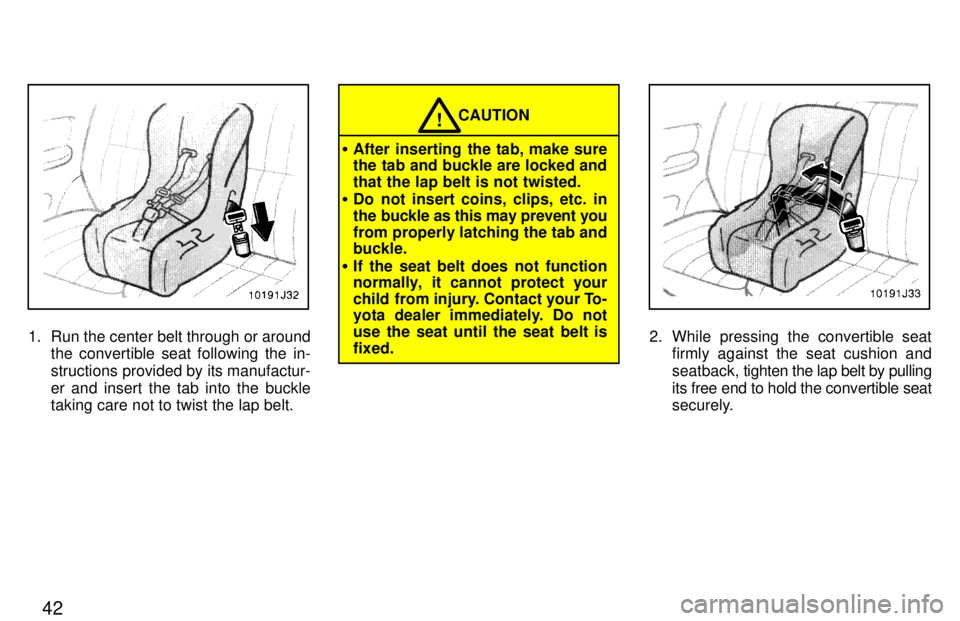

CAUTION!
After inserting the tab, make sure
the tab and buckle are locked and that the lap belt is not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and buckle.
If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your To-
yota dealer immediately. Do not
use the seat until the seat belt isfixed.
2. While pressing the convertible seat
firmly against the seat cushion and
seatback, tighten the lap belt by pulling
its free end to hold the convertible seat
securely.

43

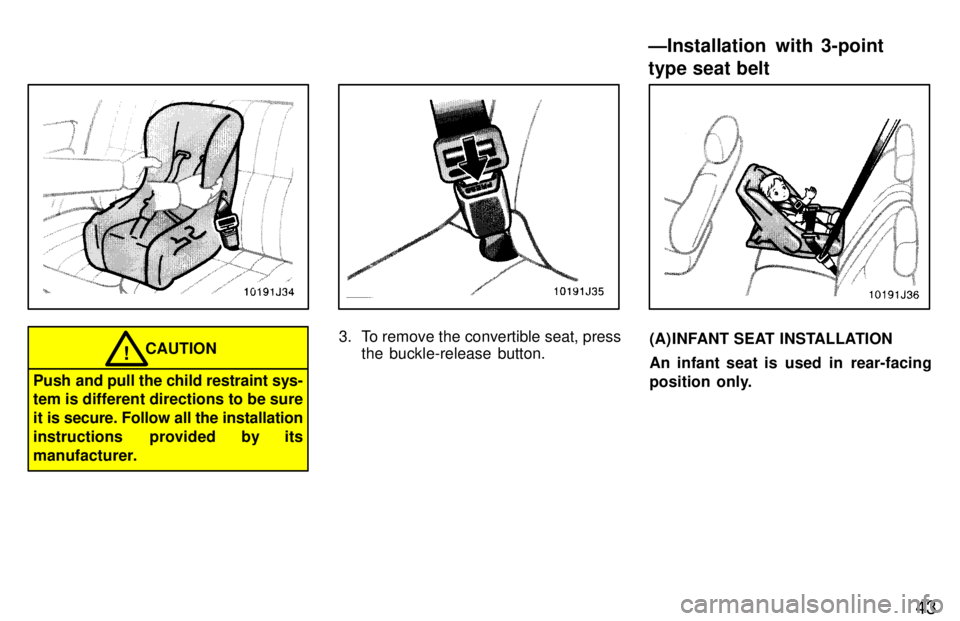

CAUTION!
Push and pull the child restraint sys- tem is different directions to be sure
it is secure. Follow all the installation
instructions provided by its
manufacturer.
3. To remove the convertible seat, press the buckle-release button.(A) INFANT SEAT INSTALLATION
An infant seat is used in rear-facing
position only.
ÐInstallation with 3-point type seat belt
