1997 RENAULT KANGOO Trim And Upholstery Workshop Manual

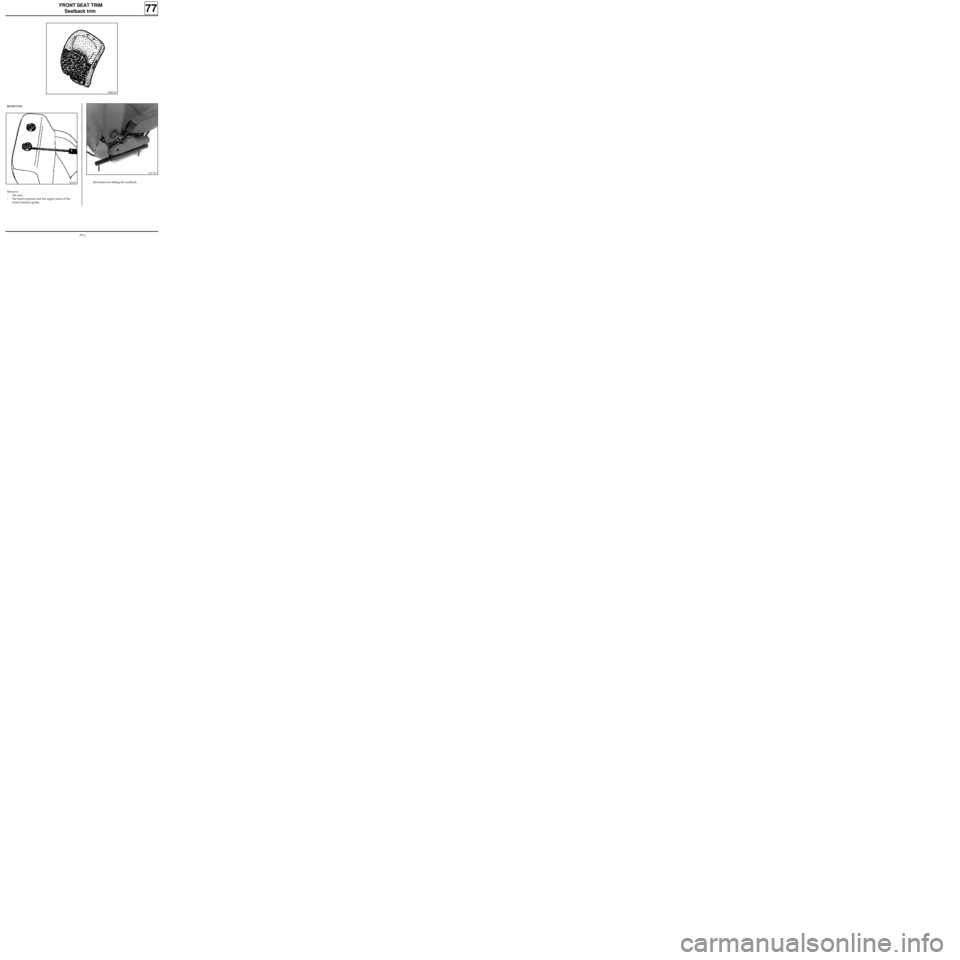

FRONT SEAT TRIM
Seatback trim
- the button for tilting the seatback.
77
REMOVING
PRB7701
94121S
13178-1
Remove :
- the seat,
- the head restraint and the upper parts of the
head restraint guide,
77-1

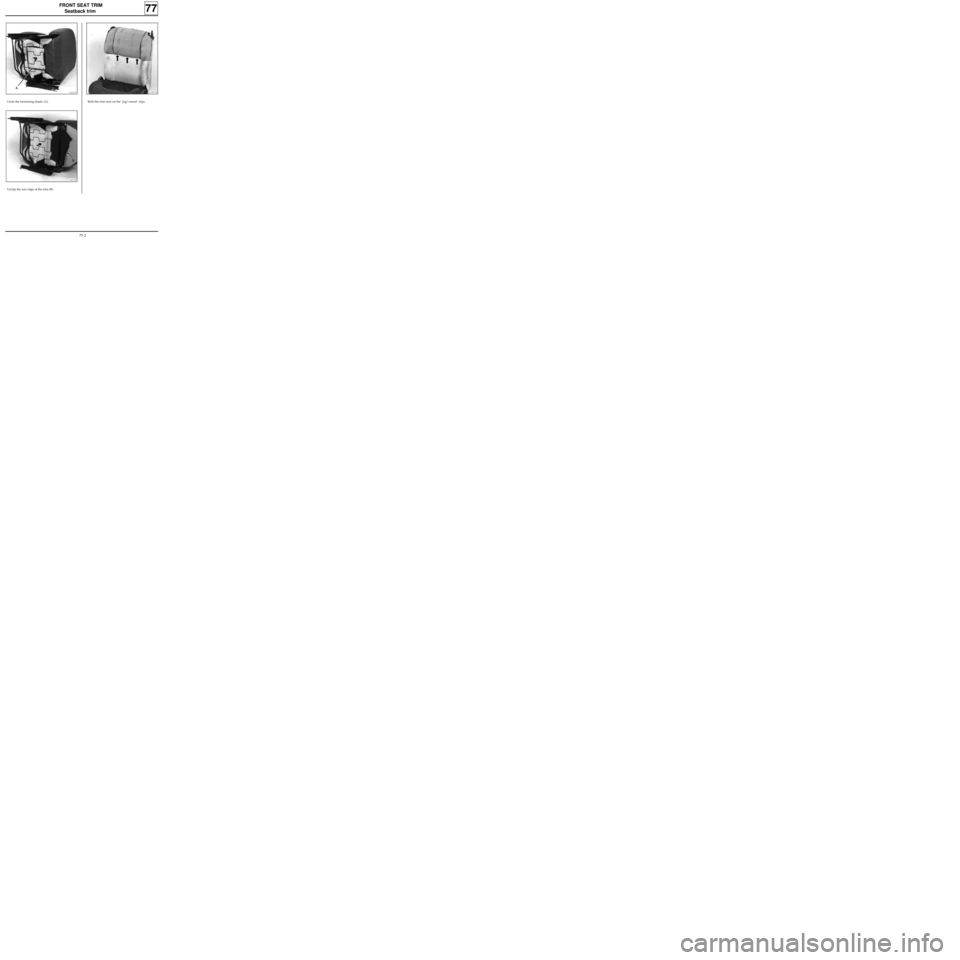

FRONT SEAT TRIM
Seatback trim
Refit the trim and cut the "pig’s snout" clips.
77
Undo the tensioning elastic (A).
13177
13176
Unclip the rear edge of the trim (B).
13175
77-2

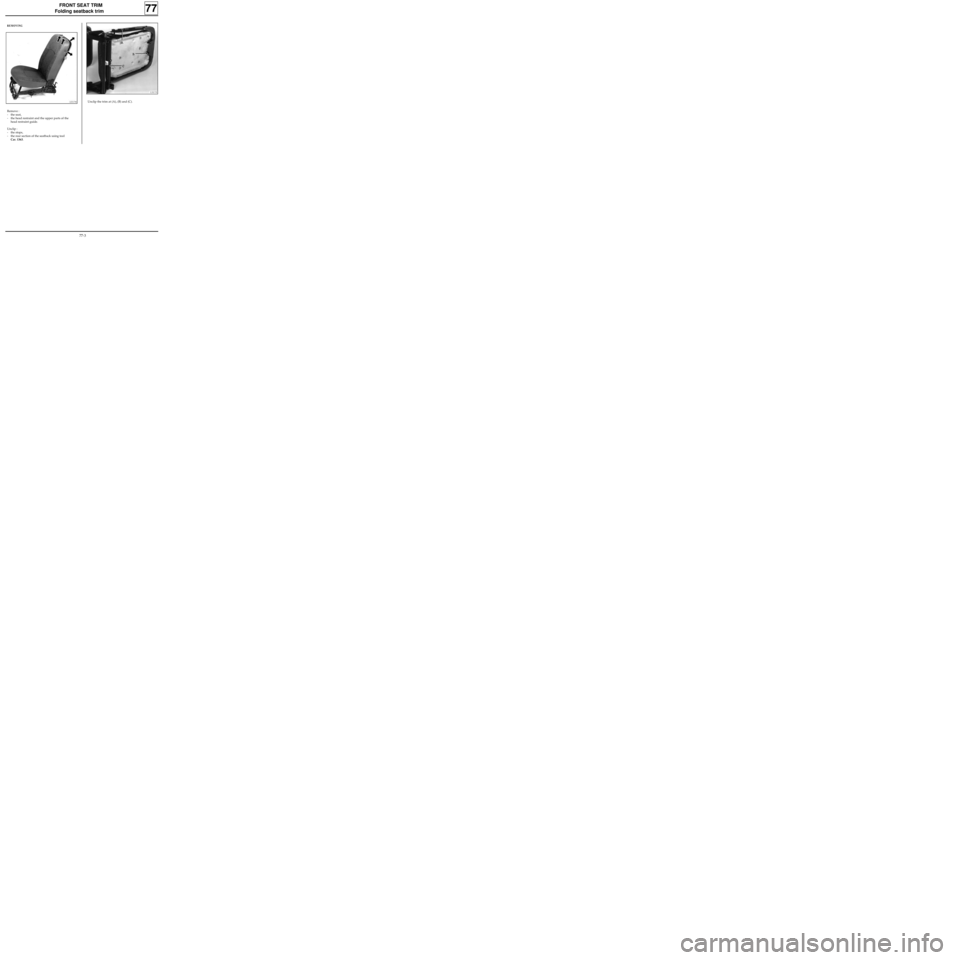

FRONT SEAT TRIM
Folding seatback trim
Unclip the trim at (A), (B) and (C).
77
REMOVING
13174
Remove :
- the seat,
- the head restraint and the upper parts of the
head restraint guide.
Unclip :
- the stops,
- the rear section of the seatback using tool
Car. 1363.
13173
77-3

FRONT SEAT TRIM
Seat squab trim
Folding seat squab
77
REMOVING
PRB7702
13176-1
Remove the seat.
Unclip the rear edge of the seatback trim (B) and
the seat squab trim (C).
Cut the "pig’s snout" clips (D).
Release the front section of the trim (E).
13172
Unclip the trim edges.
77-4

PRB7801

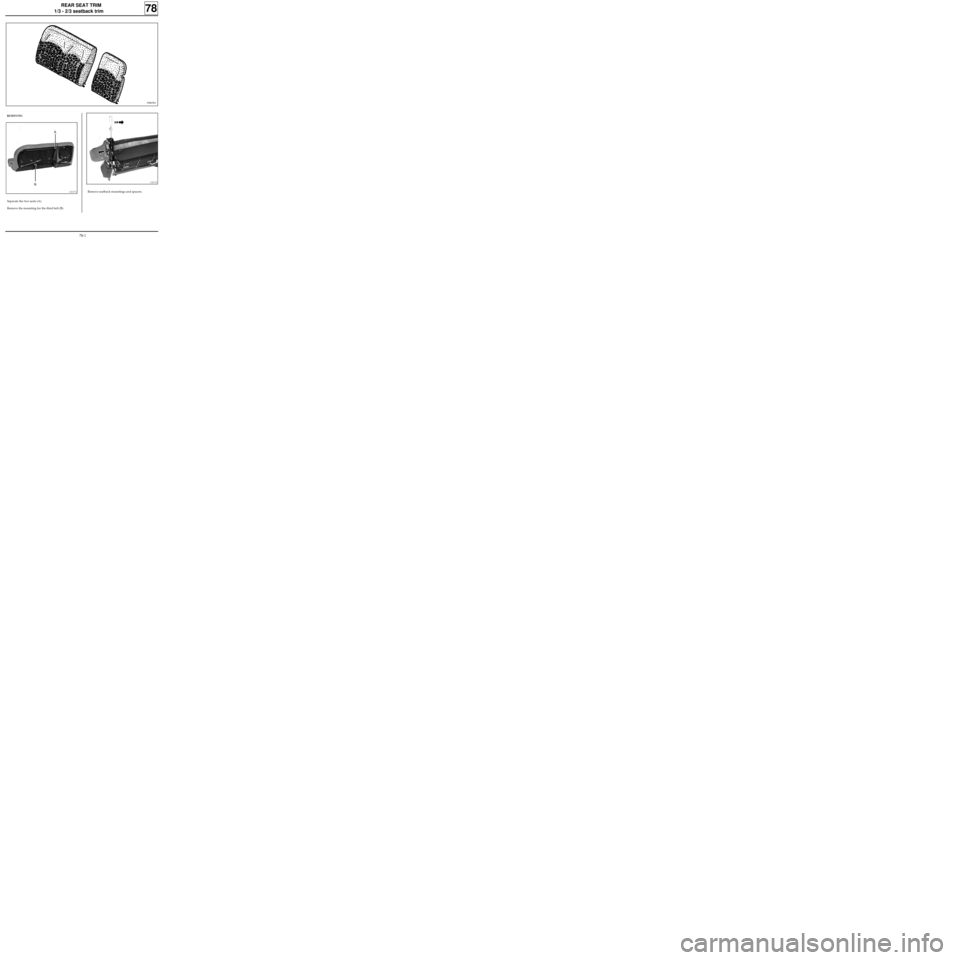

REAR SEAT TRIM
1/3 - 2/3 seatback trim
Remove seatback mountings and spacers.
78
REMOVING
Separate the two seats (A).
Remove the mounting for the third belt (B).
13170
13171
78-1

REAR SEAT TRIM
1/3 - 2/3 seatback trim
Undo the zip fastener.
Refit the trim and cut the "pig’s snout" clips.
1/3 section of seatback
78
Unclip :
- the cover for the third belt and the seatback,
and the upper parts of the head restraint
guide.
13169
13168
- Unclip the two sections of the cover.
13167
Remove the seatback mountings and the upper
parts of the head restraint guide.
13166
78-2

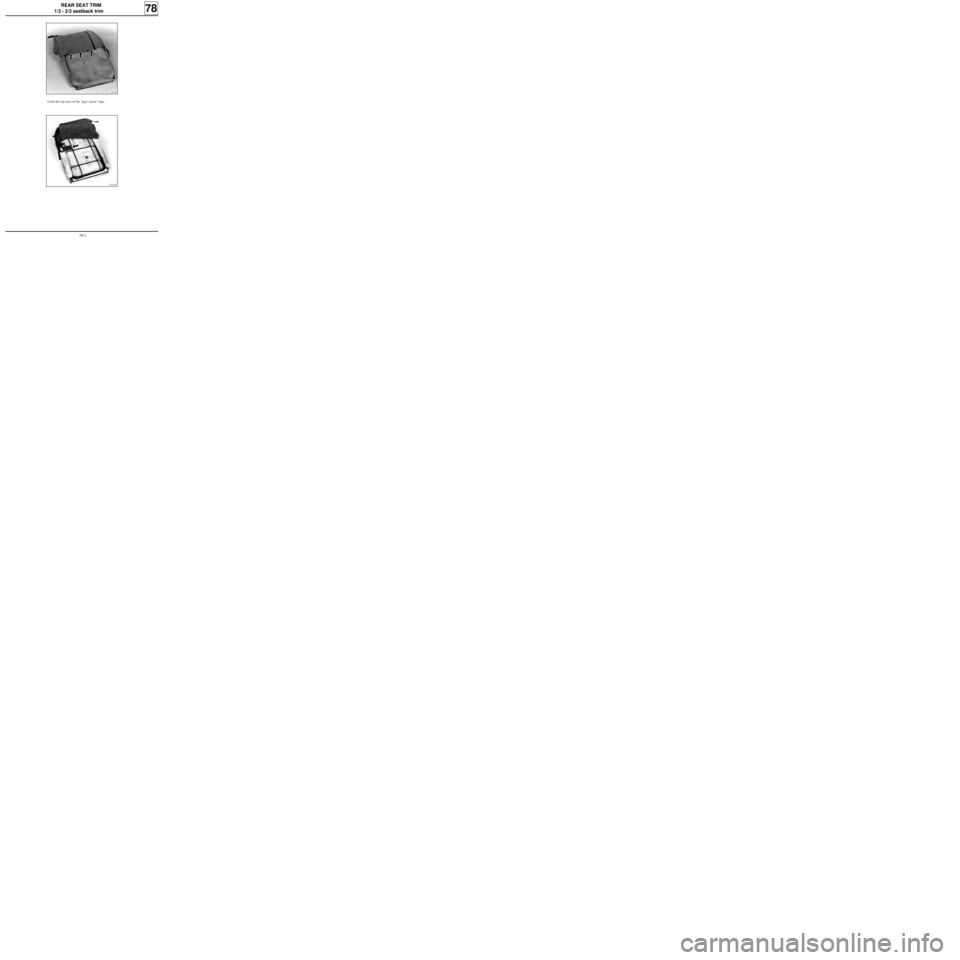

REAR SEAT TRIM
1/3 - 2/3 seatback trim
78
Undo the zip and cut the "pig’s snout" clips .
13165
13164
78-3

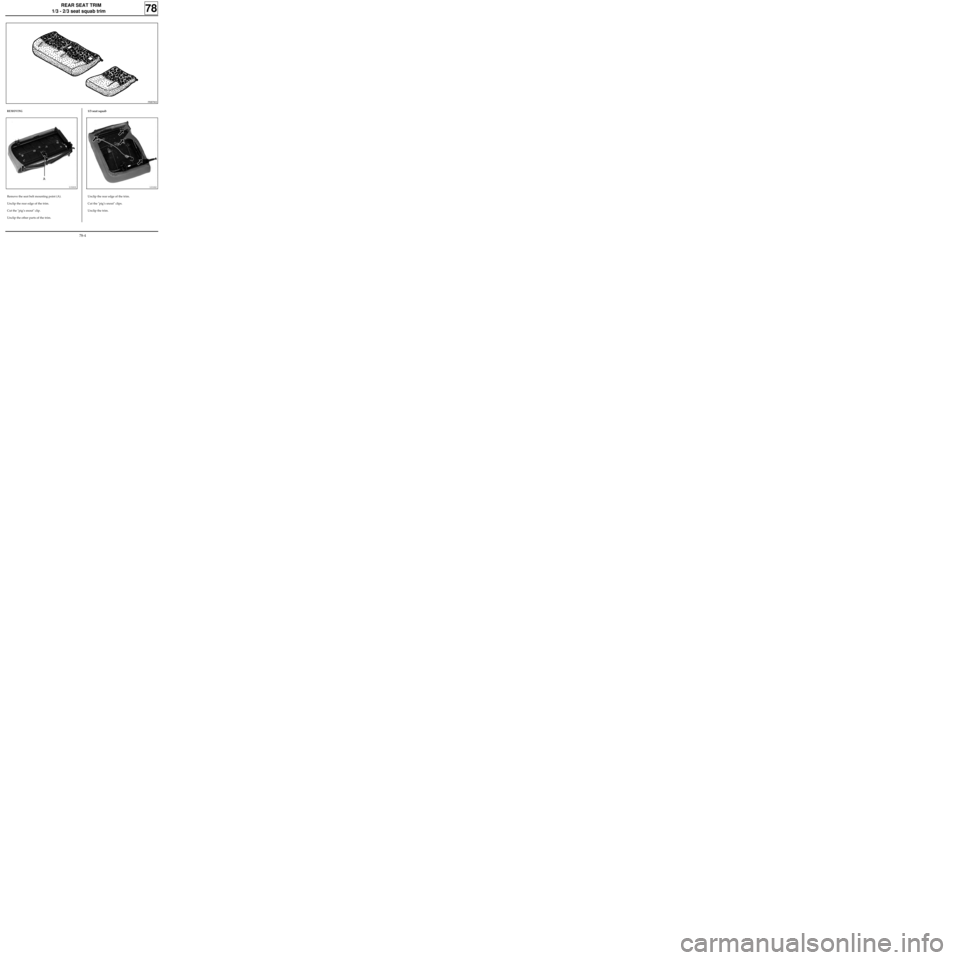

REAR SEAT TRIM
1/3 - 2/3 seat squab trim
Unclip the rear edge of the trim.
Cut the "pig’s snout" clips.
Unclip the trim.
78
REMOVING
PRB7802
13163
Remove the seat belt mounting point (A).
Unclip the rear edge of the trim.
Cut the "pig’s snout" clip.
Unclip the other parts of the trim.
13162
1/3 seat squab
78-4
