1997 PONTIAC PONTIAC instrument cluster

Fog Lamps Interior Lamps
Instrument Panel Intensity Control
The fog lamps switch is located in the upper, left corner of the
instrument panel, to the left of the instrument panel cluster.
To turn the fog lamps on, press the right side of the fog
lamps switch. A light will glow on the switch to let you
know that they are on. (Your parking lamps must be on,
or
your fog lamps won’t come on.) Press the left side of
the switch to turn the fog lamps off.
You can brighten or dim the instrument panel lights by
moving the interior lamps dial. Turn the dial to the right
to increase the brightness of the instrument panel lights,
to the left to decrease the brightness. Turn the control
all the way to the left to turn them off.
The fog lamps will
go off whenever you change to
high-beam headlamps. When you return to low beams.
the fog lamps will come on again.
2-40
ProCarManuals.com

Instrument Panel -- Your Information System
LOW -1 FUEL
I -E
w
UNWED FUEL ONLY
>> LOW OIL
APPLY BAAKE TO SHIFT FROM PARK TEMP

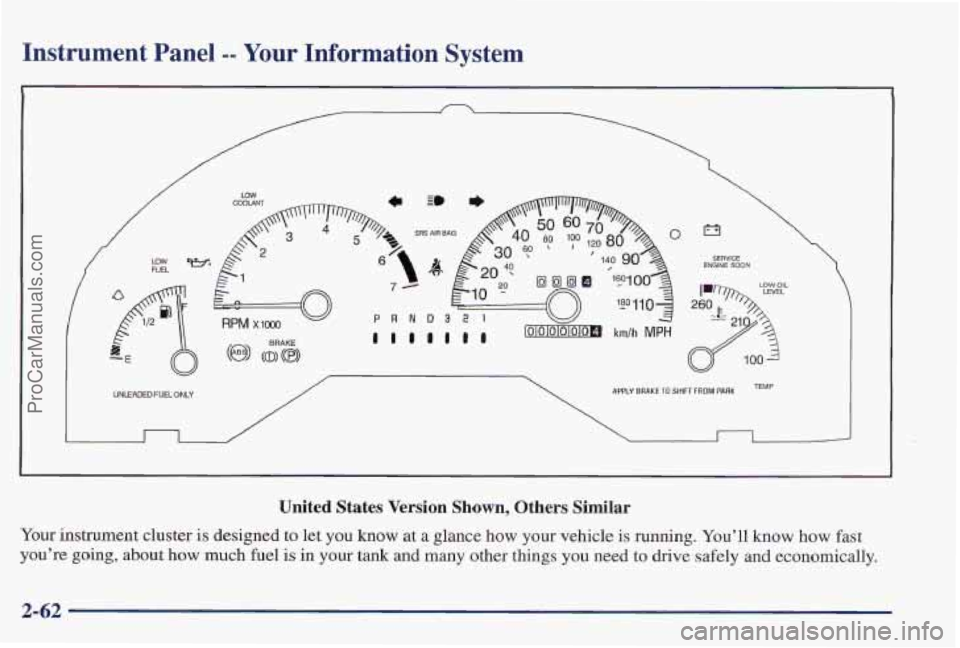

United States Version Shown, Others Similar
Your instrument cluster is designed to let you know at a glance how your vehicle is running. You’ll know how fast
you’re going, about how much fuel is in your tank and many other things you need to drive safely and economically.
2-62
ProCarManuals.com

Speedometer/Odometer
Your speedometer lets you see your speed in both miles
per hour (mph) and kilometers per hour
(km/h). Your
odometer shows how far your vehicle has been driven
in
either miles (used in the United States) or .in kilometers
(used in Canada).
Your Pontiac has a tamper-resistant odometer.
If you see
silver lines between the numbers, you’ll know someone
has probably tampered with it and the numbers may not
be correct.
Tachometer
You may wonder what happens if your vehicle needs a
new odometer installed. If
the new one can be set to the
mileage total
of the old odometer, then that will be d’one.
If it can’t, then it will be set at zero and a label must be
put on the driver’s door to show the old mileage reading
when the new odometer was installed.
Trip Odometer
Your trip odometer tells how far you have driven since
you last reset
it. To set it to zero, press the RESET
button on the right side of the instrument cluster.
L
Ill I
3
4
The tachometer displays the engine speed in thousands
of revolutions per minute (rpm).
NOTICE:
Do not operate the engine with the tachometer in
the red area, or engine damage may occur.
