Section 6 Service and Appearance Care
Here you will find information about the care of your Pontiac. This section begins with service and fuel information,
and then it shows how to check important fluid and lubricant levels. There
is also technical information about your
vehicle, and a part devoted to its appearance care.
6-2
6-3 6-5
6-5
6-7
6- 14
6-2 1
6-26
6-32
6-33 6-36
6-37
6-37 6-44
6-46
Doing Your Own Service Work
What Kind of Fuel to Use
Using Fuel in Foreign Countries
Where to Put the Fuel and Filling the Tank
Checking
Things Under the Hood
Checking Your Engine Oil
Automatic Transaxle Fluid
Engine Coolant
Where to Fill the Windshield Washer Fluid
Important Brake Information
Information on Your Vehicle’s Battery
Tips on Vehicle Storage
Bulb Replacement Procedures
Windshield Wiper Blade Replacement
How and When to Check Tire Inflation 6-50
6-52
6-55
6-58
6-59
6-61
6-63
6-64
6-65 6-66
6-66
6-72
6-72
6-73
6-73 When
it is Time to Buy New Tires
Wheel Alignment
Cleaning the Inside of Your Vehicle
Care of the Safety Belts and Built-in
Child Restraint
Cleaning the Outside of Your Vehicle
How to Clean Aluminum Wheels
Underbody Maintenance
Recommended Appearance
Care Materials
Your Vehicle Identification Number (VIN)
The Electrical System
Fuses and Circuit Breakers
Replacement Bulb Types for Your Vehicle
Capacities and Specifications
Air Conditioning Specifications
Normal Replacement Parts
ProCarManuals.com

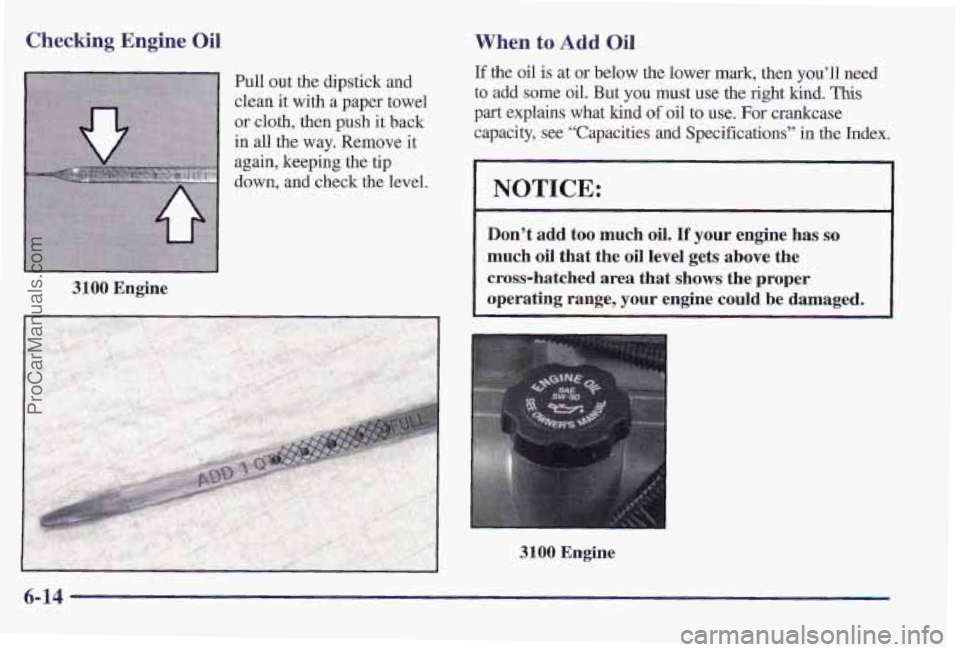

Checking Engine Oil
Pull out the dipstick and
clean it with
a paper towel
or cloth, then push
it back
in all
the way. Remove it
again, keeping the tip
down, and check
the level.
3100 Engine
When to Add Oil
If the oil is at or below the lower mark, then you’ll need
to add some oil. But you must use the right kind. This
part explains what kind of oil to use, For crankcase
capacity, see “Capacities and Specifications” in
the Index.
I NOTICE:
Don’t add too much oil. If your engine has so
much oil that the oil level gets above the
cross-hatched area that
shows the proper
operating
range, your engine could be damaged.
3100 Engine
ProCarManuals.com

Replacement Bulbs
Exterior Lamps Bulb Number
Back-up ............................... 3 156
Center High-Mounted Stop
................ 1141
Front Parking/Turn Signal
.............. .3357NA
Headlamps ............................. 9007
Stop/Tail/Turn Signal ..................... 3057
Front/Rear Side Marker .................... 194
Capacities and Specifications
Please refer to “Recommended Fluids and Lubricants”
in the Index for more information.
Automatic Transaxle with Overdrive .
Pan Removal and Replacement ... 7.4 quarts (7.0 L)
After Complete Overhaul ......... 10 quarts (9.5 L)
When drainingheplucing converter or auxiliary coolel;
more fluid may be needed,
Cooling System Including Reservoir
3100 (Code M) .............. 11.0 quarts (10.42 L)
3800 (Code K) .............. 10.2 quarts (9.63 L)
3800 Supercharged (Code 1) ... 10.2 quarts (9.63 L)
Refrigerunt (R- 134a),
Air Conditioning” ............. 1.9 pounds (0.85 kg)
Engine Crankcase (Oil Change with Filter Change)
3 100 (Code M) ................ 4.5 quarts (4.3 L)
3800 (Code K) ................ 4.5 quarts (4.3 L)
3800 Supercharged (Code 1) ....... 5 quarts (4.7 L)
Fuel Tank ................. 18.0 gallons (68.0 L)
*See “Air Conditioning Refrigerants ’’ later in this section.
3100 (Code M) Engine Specifications
Type .................................... V6
Displacement ............... 191 CID (3.1L L82)
Firing Order ...................... 1-2-3-4-5-6
Thermostat Temperature
........... 195°F (91°C)
Horsepower
............................. 160
3800 (Code K) Engine Specifications
Type .................................... V4
Displacement ............... 231 CID (3.8L L36)
Firing Order ...................... 1-6-5-4-3-2
Thermostat Temperature
........... 195°F (91°C)
Horsepower ................ ......... 195
6-72
