1997 PONTIAC PONTIAC washer fluid

When you put the cap back on, turn it to the right
(clockwise) until you hear at least three clicks. Make
sure you fully install the cap.
NOTICE:
If you need a new cap, be sure to get the right
type. Your dealer can get one for you.
If you get
the wrong type, it may not
fit or have proper
venting, and your fuel tank and emissions system
might be damaged.
Checking Things Under the Hood
A CAUTION:
An electric fan under the hood can start up and
injure you even when the engine is not running.
Keep hands, clothing and tools
away from any
underhood electric fan.
Things that burn can get on hot engine parts and
start
a fire. These include liquids like gasoline,
oil, coolant, brake fluid, windshield washer and
other fluids, and plastic
or rubber. You or others
could
be burned. Be careful not to drop or spill
things that will burn onto
a hot engine.
6-7
ProCarManuals.com

When you open the hood of the 3 100 engine, you’ll see:
A. Windshield Washer Fluid
B. Radiator Fill Cap
C. Remote Positive Terminal
D. Power Steering Fluid Reservoir
E. Engine Oil Fill Cap
E Engine Oil Dipstick
G. Automatic Transaxle Dipstick
H. Brake Fluid Reservoir
I. Engine Coolant Reservoir
J. Air Cleaner
6-9
ProCarManuals.com

When you open the hood of the 3800 engine, you’ll see:
A. Windshield Washer Fluid E Engine Oil Fill Cap
€3. Radiator Fill Cap G. Automatic Transaxle Dipstick
C. Remote Positive Battery Terminal H. Brake Fluid Reservoir
D. Power Steering Fluid Reservoir I. Engine Coolant Reservoir
E. Engine Oil Dipstick J. Air Cleaner
6-10
ProCarManuals.com

When you open the hood of the 3800 Supercharged engine, you'll see:
- : I: .,,
A. Windshield Washer Fluid
B. Radiator Fill Cap
C. Remote Positive Battery Terminal
D. Power Steering Fluid Reservoir
E. Engine Oil Dipstick F,
Engine Oil Fill Cap
G. Automatic Transaxle Dipstick
H. Brake Fluid Reservoir
I. Engine Coolant Reservoir
J. Air Cleaner
6-11
ProCarManuals.com

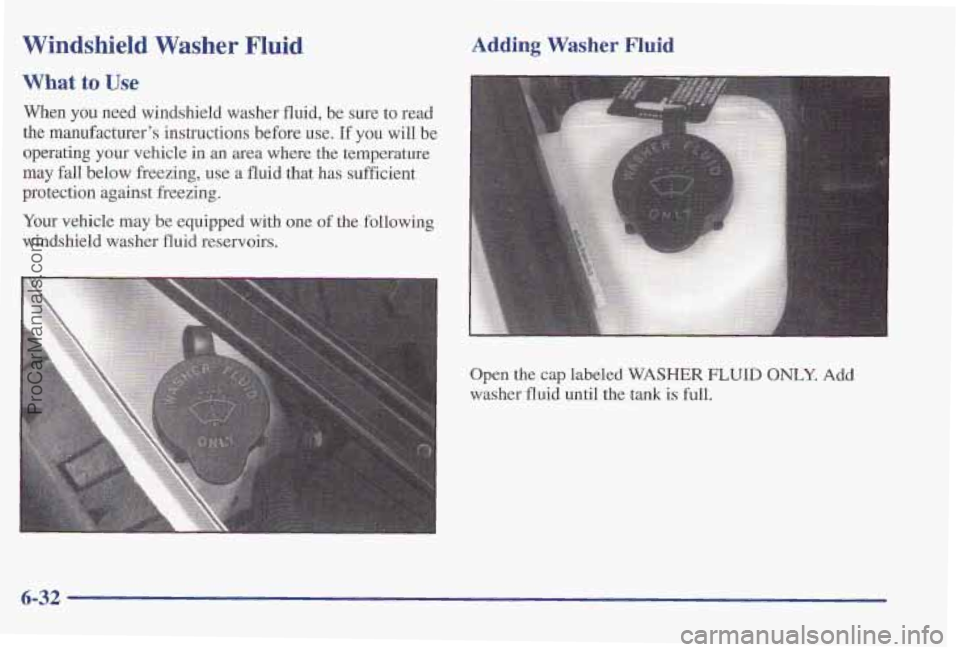

Windshield Washer Fluid
What to Use
When you need windshield washer fluid, be sure to read
the manufacturer's instructions before use. If you will be
operating your vehicle
in an area where the temperature
may fall below freezing, use a
fluid that has sufficient
protection against freezing.
Your vehicle may be equipped with one of
the following
windshield washer fluid reservoirs.
Adding Washer Fluid
Open the cap labeled WASHER FLUID ONLY. Add
washer fluid until the tank
is full.
6-32
ProCarManuals.com

NOTICE:
0
0
0
0
When using concentrated washer fluid,
follow the manufacturer’s instructions for
adding water.
Don’t mix water
with ready-to-use washer
fluid. Water can cause the solution to freeze
and damage your washer fluid tank and
other parts of the washer system.
Also,
water doesn’t clean as well as washer fluid.
Fill your washer fluid tank only
three-quarters full when it’s very cold. This
allows for expansion, which could damage
the tank if it is completely full.
Don’t use radiator antifreeze in your
windshield washer. It can damage your
washer system and paint.
Brakes
Brake Fluid
Your brake master cylinder reservoir is here. It is filled
with DOT-3 brake fluid.
6-33
ProCarManuals.com

Part B: Owner Checks and Services
Listed below are owner checks and services which
should be performed at the intervals specified to help
ensure the safety, dependability and emission control
performance
of your vehicle.
Be sure any necessary repairs are completed at once.
Whenever any fluids or lubricants are added to your
vehicle, make sure they are the proper ones, as shown
in Part
D.
At Each Fuel Fill
It is important for you or a service station attendant to
perform these underhood checks at each fuel
fill.
Engine Oil Level Check
Check the engine oil level and add the proper oil if
necessary. See “Engine Oil” in the Index for
further details.
Engine Coolant Level Check
Check the engine coolant level and add the proper
coolant mix if necessary. See “Engine Coolant” in the
Index for further details.
Windshield Washer Fluid Level Check
Check the windshield washer fluid level in the windshield washer tank and add the proper fluid if
necessary. See “Windshield Washer Fluid” in
the Index
for further details.
At Least Once a Month
Tire Inflation Check
Make sure tires are inflated to the correct pressures. See
“Tires” in the Index for further details.
Cassette Deck Service
Clean cassette deck. Cleaning should be done every
50 hours of tape play. See “Audio Systems” in the
Index for further details.
7-39
ProCarManuals.com

USAGE
Chassis
Lubrication
Windshield Washer Solvent
Hood Latch
Assembly,
Pivots, Spring Anchor and
Release Pawl
~~
FLUIDLUBRICANT
Chassis lubricant (GM Part
No. 1052497 or equivalent) or
lubricant meeting requirements
of NLGI
## 2, Category LB
or GC-LB.
GM Optikleen@ Washer Solvent
(GM Part
No. 1051515)
or equivalent.
Lubriplate lubricant aerosol (GM Part
No. 12346293 or
USAGE
(GM Part No. 12346241
Hinges Multi-purpose lubricant, Superlube@
Hood
and Door
FLUIDLLUBRICANT
or equivalent).
Fuel Door Hinge
Engine oil or Lubriplate Lubricant
and Trunk
(GM Part
No. 10501.09).
Access Panel
Hinges
Weatherstrip Dielectric Silicone
Grease (GM
Conditioning Part
No. 12345579
or equivalent).
equivalent) or lubricant meeting See “Replacement Parts” in the Index for recommended
requirements of NLGI
# 2, replacement filters and spark plugs.
Category LB or GC-LB.
