1997 PONTIAC GRAND AM Owners Manual

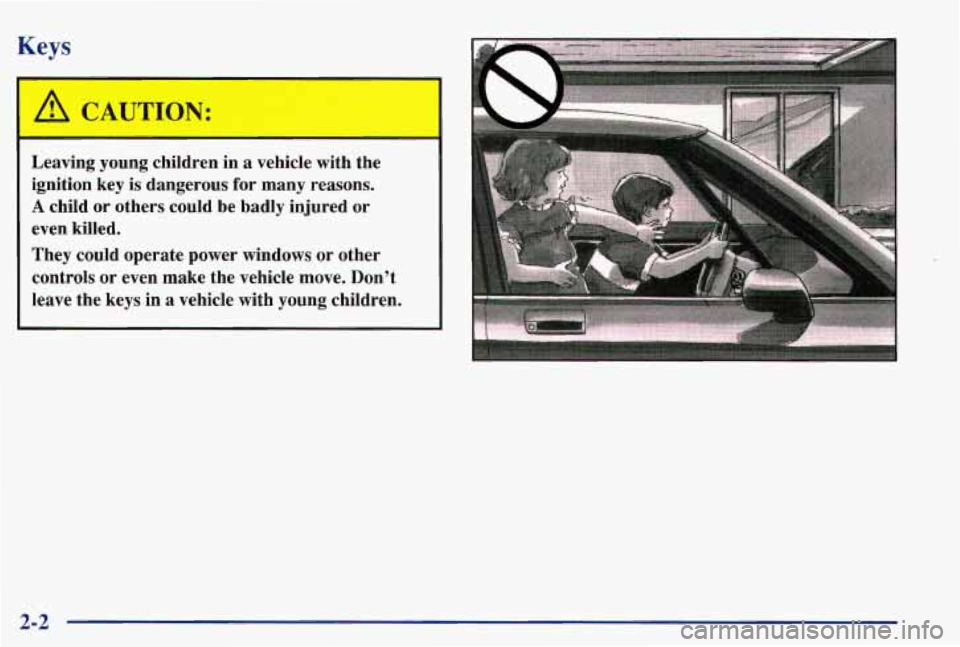

Keys
A CAUTION:
Leaving young children in a vehicle with the
ignition key
is dangerous for many reasons.
A child or others could be badly injured or
even killed.
They could operate power windows or other
controls or even make the vehicle move. Don’t
leave the keys in a vehicle with young children.
.* ...... ....... ........ >..* ..o..*..*.L..L... ........ .........
2-2

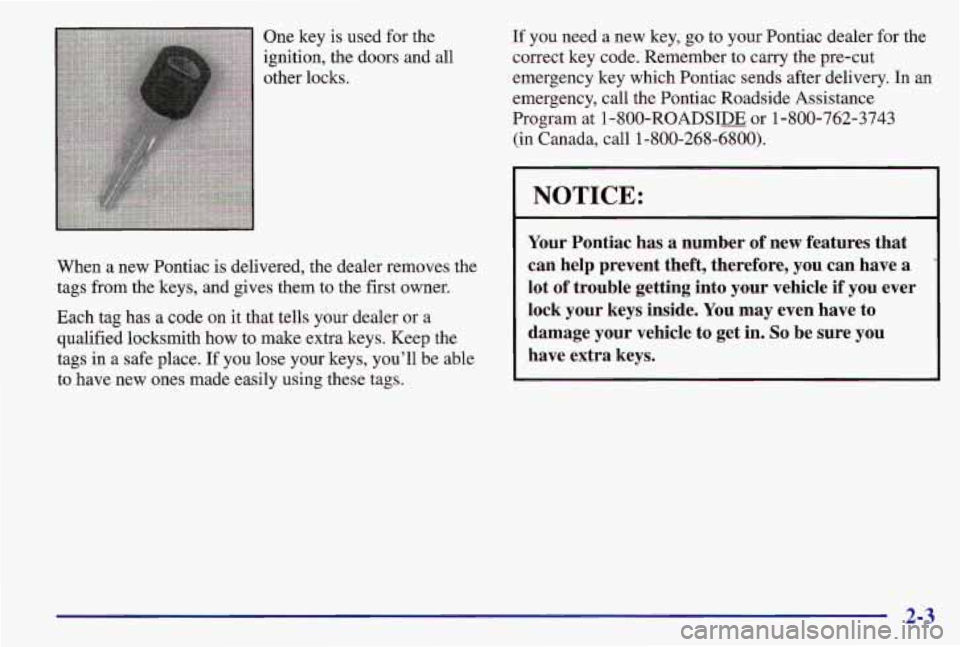

One key is used for the
ignition, the doors and all
other locks. If you need
a new key, go to your Pontiac dealer for the
correct key code. Remember to carry the pre-cut
emergency key which Pontiac sends after delivery. In an
emergency, call the Pontiac Roadside Assistance
Program at
1 -800-ROADSIE or 1-800-762-3743
(in Canada, call 1-800-268-6800).
When a new Pontiac is delivered, the dealer removes the
tags from the keys, and gives them to the first owner.
Each tag has a
code on it that tells your dealer or a
qualified locksmith how to make extra keys. Keep the
tags in a safe place.
If you lose your keys, you’ll be able
to have new ones made easily using these tags.
I NOTICE:
Your Pontiac has a number of new features that
can help prevent theft, therefore, you can have a
lot of trouble getting into your vehicle if you ever
lock your keys inside. You may even have to
damage your vehicle
to get in. So be sure you
have extra keys.
2-3

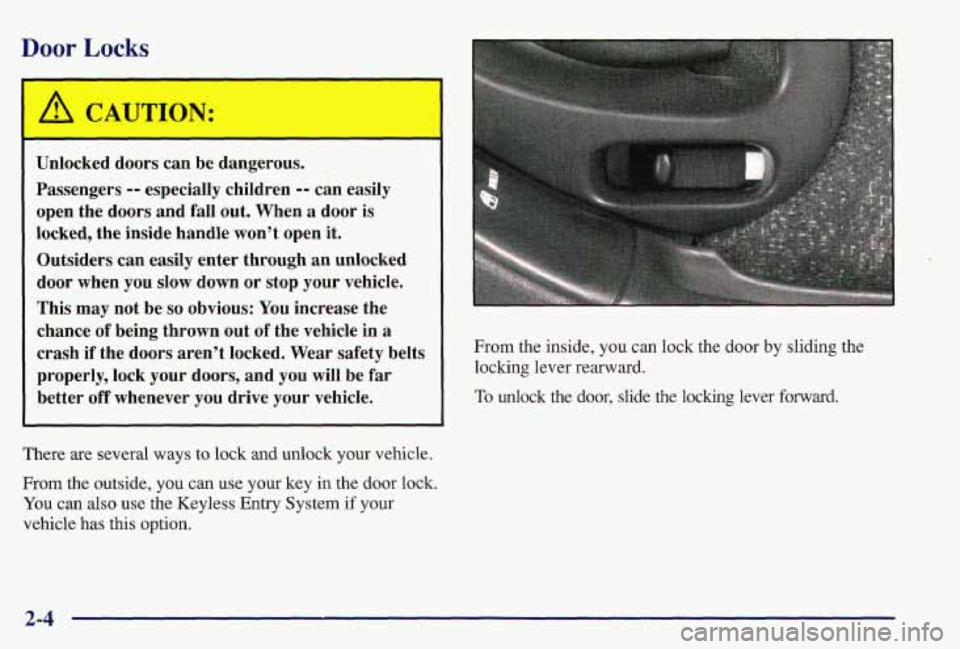

Door Locks
A CAUTION: '" '
Unlocked doors can be dangerous. .
Passengers -- especially children -- can easily
open the doors and
fall out. When a door is
locked, the inside handle won't open it.
Outsiders can easily enter through an unlocked
door when you slow down or stop your vehicle.
This may not be
so obvious: You increase the
chance of being thrown out
of the vehicle in a
. .. . *_
---
crash if the doors aren't locked. Wear safety belts
properly, lock your doors, and you will be far
better off whenever you drive your vehicle.
There are several ways to lock and unlock your vehicle.
From the outside, you can use your key in the door lock.
You can also use the Keyless Entry System if your
vehicle has this option. From
the inside, you can lock the door by sliding the
locking lever rearward.
To unlock the door, slide the locking lever forward.
2-4

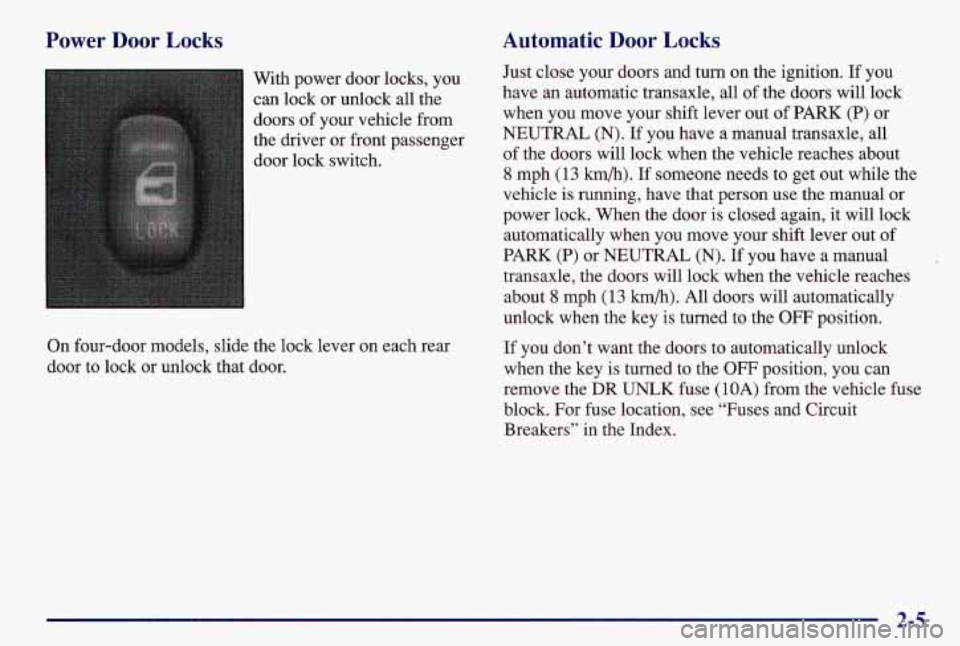

Power Door Locks
With power door locks, you
can lock or unlock all the
doors of your vehicle from
the driver or front passenger door lock switch.
On four-door models, slide the lock lever on each rear
door to lock or unlock that door.
Automatic Door Locks
Just close your doors and turn on the ignition. If you
have an automatic transaxle, all of the doors will lock
when
you move your shift lever out of PARK (P) or
NEUTRAL (N). If you have a manual transaxle, all
of the doors will lock when the vehicle reaches about
8 mph (13 km/h). If someone needs to get out while the
vehicle is running, have that person use the manual or
power lock. When the door is closed again,
it will lock
automatically when you move your shift lever out
of
PARK (P) or NEUTRAL (N). If you have a manual
transaxle, the doors will lock when the vehicle reaches about
8 mph (13 km/h). All doors will automatically
unlock when the key
is turned to the OFF position.
If you don’t want the doors to automatically unlock
when the key
is turned to the OFF position, you can
remove the DR UNLK fuse (1OA) from the vehicle fuse
block. For fuse location, see “Fuses and Circuit
Breakers” in the Index.
2-5

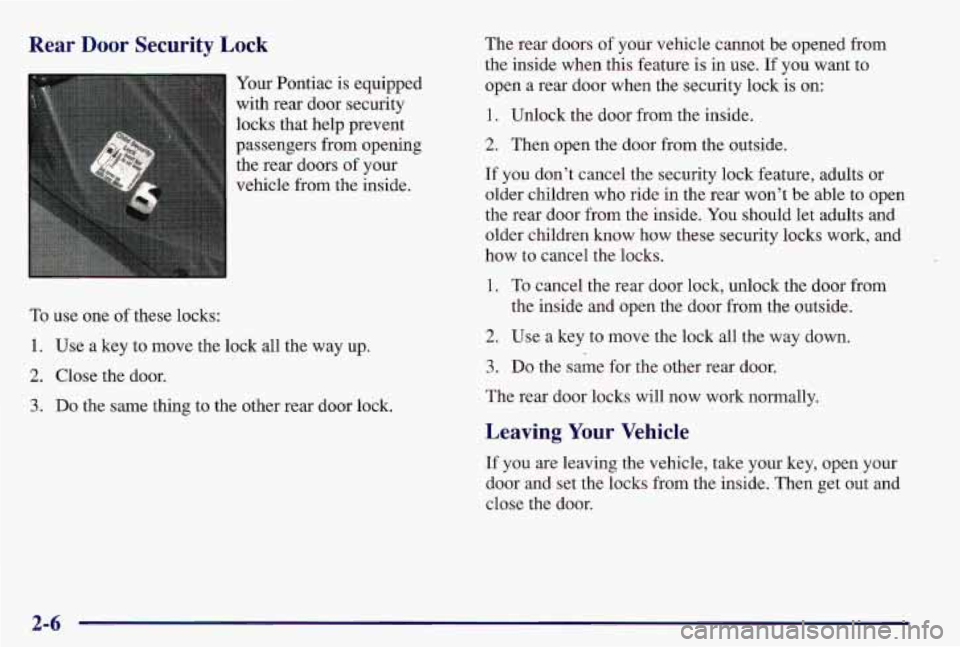

Rear Door Security Lock
Your Pontiac is equipped
with rear door security
locks that help prevent
passengers from opening
the rear doors of your
vehicle from the inside.
To use one of these locks:
1. Use a key to move the lock all the way up.
2. Close the door.
3. Do the same thing to the other rear door lock. The
rear doors of your vehicle cannot be opened from
the inside when this feature is in use. If you want to
open a rear door when the security lock is on:
1. Unlock the door from the inside.
2. Then open the door from the outside.
If you don’t cancel the security lock feature, adults or
older children who ride in the rear won’t be able to open
the rear door from the inside. You should let adults and
older children know how these security locks work, and
how to cancel the locks.
1. To cancel the rear door lock, unlock the door from
the inside and open the door from the outside.
2. Use a key to move the lock all the way down.
3. Do the same for the other rear door.
The rear door locks will now work normally.
Leaving Your Vehicle
If you are leaving the vehicle, take your key, open your
door and set the locks from the inside. Then get out and
close the door.
2-6

Keyless Entry System (If Equipped)
If your Pontiac has this option, you can lock and unlock
your doors or unlock your trunk from about
3 feet (1 m)
up to
30 feet (9 m) away using the remote keyless entry
transmitter supplied with your vehicle.
In addition, the system illuminates the interior lamps for
a set period of time. The Keyless Entry System consists
of a receiver, which is located in the vehicle, and two
hand-held transmitters.
Your Keyless Entry System
operates on a radio
frequency subject to Federal
Communications Commission (FCC) Rules
and with Industry and
Science Canada.
This device complies with
Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and
(2) this device must accept any interference
received, including interference that may cause
undesired operation.
This device complies with RSS-210 of Industry and Science
Canada. Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device
must accept any interference received, including interference
that may cause undesired operation of the device.
Changes
or modifications to this system by other than an
authorized service facility could void authorization to
use this equipment.
This system has a range of about
3 feet (1 m) up to
30 feet (9 m). At times you may notice a decrease
in range. This
is normal for any keyless entry system.
If the transmitter does not work or
if you have to
stand closer to your vehicle for the transmitter to
work,
try this:
Check to determine if battery replacement or
resynchronization
is necessary. See the instructions
that follow.
Check the distance. You may be too far from your
vehicle. You may need to stand closer during rainy
or snowy weather.
Check the location. Other vehicles or objects may be
blocking the signal. Take a few steps to the left or right,
hold the transmitter higher and
try again.
or a qualified technician for service.
If you’re still having trouble, see your Pontiac dealer

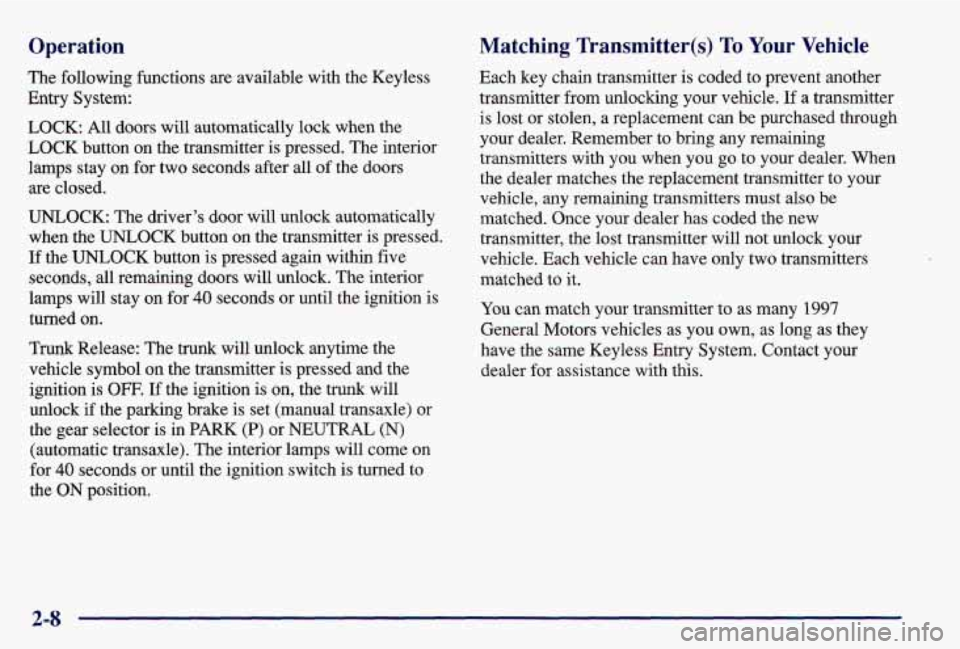

Operation
The following functions are available with the Keyless
Entry System:
LOCK: All doors will automatically lock when the
LOCK button on the transmitter is pressed. The interior
lamps stay on for two seconds after all of the doors
are closed.
UNLOCK: The driver’s door will unlock automatically
when the UNLOCK button on the transmitter is pressed.
If the UNLOCK button is pressed again within five
seconds, all remaining doors will unlock. The interior
lamps will stay on for
40 seconds or until the ignition is
turned on.
Trunk Release: The trunk will unlock anytime the
vehicle symbol
on the transmitter is pressed and the
ignition is
OW. If the ignition is on, the trunk will
unlock
if the parking brake is set (manual transaxle) or
the gear selector
is in PARK (P) or NEUTRAL (N)
(automatic transaxle). The interior lamps will come on
for 40 seconds or until the ignition switch is turned to
the
ON position.
Matching Transmitter(s) To Your Vehicle
Each key chain transmitter is coded to prevent another
transmitter from unlocking your vehicle.
If a transmitter
is lost or stolen, a replacement can be purchased through
your dealer. Remember to bring any remaining
transmitters with you when you go to your dealer. When
the dealer matches the replacement transmitter to your
vehicle, any remaining transmitters must also be
matched. Once your dealer has coded the new
transmitter, the lost transmitter will not unlock your
vehicle. Each vehicle can have only two transmitters
matched to it.
You can match your transmitter to as many 1997
General Motors vehicles as you own, as long as they
have the same Keyless Entry System. Contact your
dealer for assistance with this.
2-8

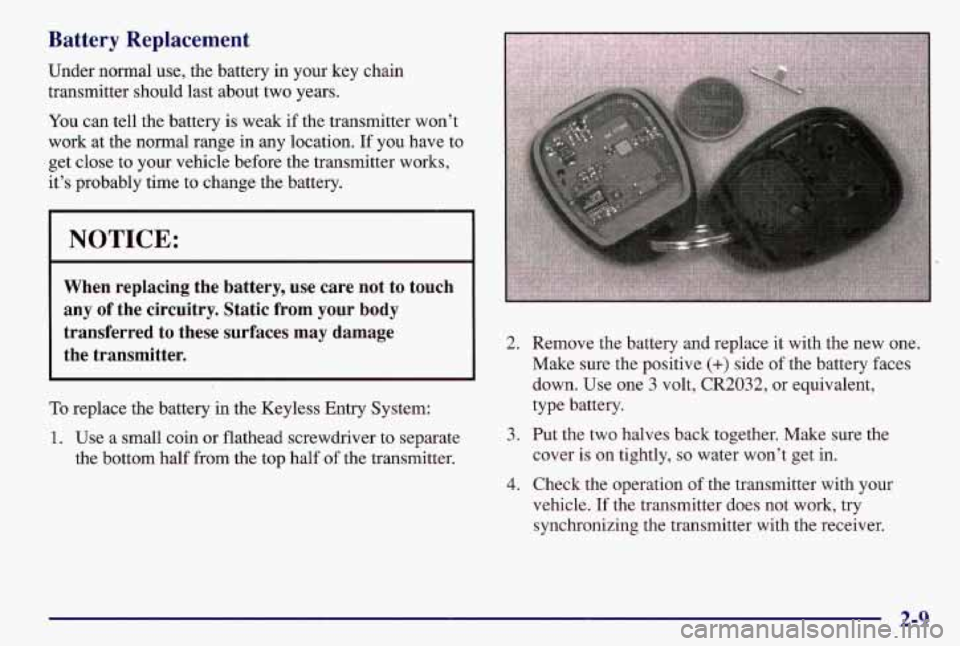

Battery Replacement
Under normal use, the battery in your key chain
transmitter should last about two years.
You can tell the battery is weak if the transmitter won’t
work at the normal range in any location.
If you have to
get close to your vehicle before the transmitter works,
it’s probably time to change the battery.
NOTICE:
When replacing the battery, use care not to touch
any of the circuitry. Static from your body
transferred to these surfaces may damage
the transmitter.
To replace the battery in the Keyless Entry System:
1. Use a small coin or flathead screwdriver to separate
the bottom half from the top half
of the transmitter. 2.
3.
4.
Remove the
battery and replace it with the new one,
Make sure the positive.
(+) side of the battery faces
down. Use one 3 volt, CR2032,
or equivalent,
type battery.
Put the two halves back together.
Make sure the
cover is on tightly,
so water won’t get in.
Check the operation of the transmitter with your
vehicle. If the transmitter does not work, try
synchronizing the transmitter with the receiver.
2-9
