MPI ± Troubleshooting13A-25
INSPECTION PROCEDURE 3
The engine warning lamp does not illuminate right after
the ignition switch is turned to the ON position.
Probable cause
Because there is a burnt-out bulb, the engine-ECU causes the engine warning lamp
to illuminate for five seconds immediately after the ignition switch is turned to ON.
If the engine warning lamp does not illuminate immediately after the ignition switch
is turned to ON, one of the malfunctions listed at right has probably occurred.
Burnt-out bulb

Defective warning lamp circuit

Malfunction of the engine-ECU
MUT-II Data list
16 engine-ECU power supply voltage (Refer to P.13A-58.)NGCheck the engine-ECU power supply and earth circuit.
(Refer to P.13A-53, INSPECTION PROCEDURE 42.)
OK
Measure at the engine-ECU connector C-50.

Disconnect the connector, and measure at the harness side.

Earth the terminal No. 36.
OK:The engine warning lamp illuminates.OKCheck the following
connector. C-50.NG
Repair
OK
Check trouble symptom.
NG
Replace the engine-ECU.
NG
Check a burnt-out bulb.NG
Replace
OK
Measure at the combination meter connector C-06.

Disconnect the connector, and measure at the harness side.

Voltage between 43 and earth (Ignition switch: ON)
OK:System voltageNGCheck the engine warning lamp power supply circuit, and repair
if necessary.
OK
Check the following connectors.
C-04, C-06, C-19, C-50NG
Repair
OK
Check trouble symptom.NGCheck the harness wire between combination meter and engine-
ECU, and repair if necessary.
INSPECTION PROCEDURE 4
The engine warning lamp remains illuminating and never
goes out.
Probable cause
In cases such as the above, the cause is probably that the engine-ECU is detecting
a problem in a sensor or actuator, or that one of the malfunctions listed at right has
occurred.
Short-circuit between the engine warning lamp and
engine-ECU

Malfunction of the engine-ECU
MUT-II Self-Diag code
Are diagnosis codes displayed?Ye sRefer to P.13A-10, INSPECTION CHART FOR DIAGNOSIS
CODES
No
Measure at the combination meter connector C-04.

Disconnect the connector, and measure at the harness side.

Disconnect the engine-ECU connector

Continuity between 8 and earth
OK:No continuityNGCheck the harness wire between combination meter and engine-
ECU connector, and repair if necessary.
OK
Replace the engine-ECU.

MPI ± Troubleshooting13A-30
INSPECTION PROCEDURE 9
Idling speed is high. (Improper idling speed)
Probable cause
In such cases as the above, the cause is probably that the intake air volume during
idling is too great.
Malfunction of the ISC servo system

Malfunction of the throttle body
OK
MUT-II Data list
26 Idle position switch (Refer to P.13A-57.)NGCheck the idle position switch system.
(Refer to P.13A-40, INSPECTION PROCEDURE 25.)
No
Check the ISC servo for operation sound. (Refer to P.13A-90.)NGCheck the ISC servo system.
(Refer to P.13A-45, INSPECTION PROCEDURE 31.)
OK
MUT-II Data list
21 Engine coolant temperature sensor (Refer to P.13A-57.)NGCheck the engine coolant temperature sensor system.
(Refer to P.13A-14, INSPECTION PROCEDURE FOR DIAGNOSIS
CODE 21.)
OK
MUT-II Data list
28 A/C switch (Refer to P.13A-57.)NGCheck the A/C switch and A/C relay system.
(Refer to P.13A-43, INSPECTION PROCEDURE 29.)
OK
Basic idle adjustment (Refer to P.13A-79.)
Check trouble symptom.NGClean the throttle valve area. (Refer to P.13A-78.)
Check and adjust the fixed SAS. (Refer to P.13A-79.)
MUT-II Self-Diag code
Are diagnosis codes displayed?Ye sRefer to P.13A-10, INSPECTION CHART FOR DIAGNOSIS
CODES.

MPI ± Troubleshooting13A-31

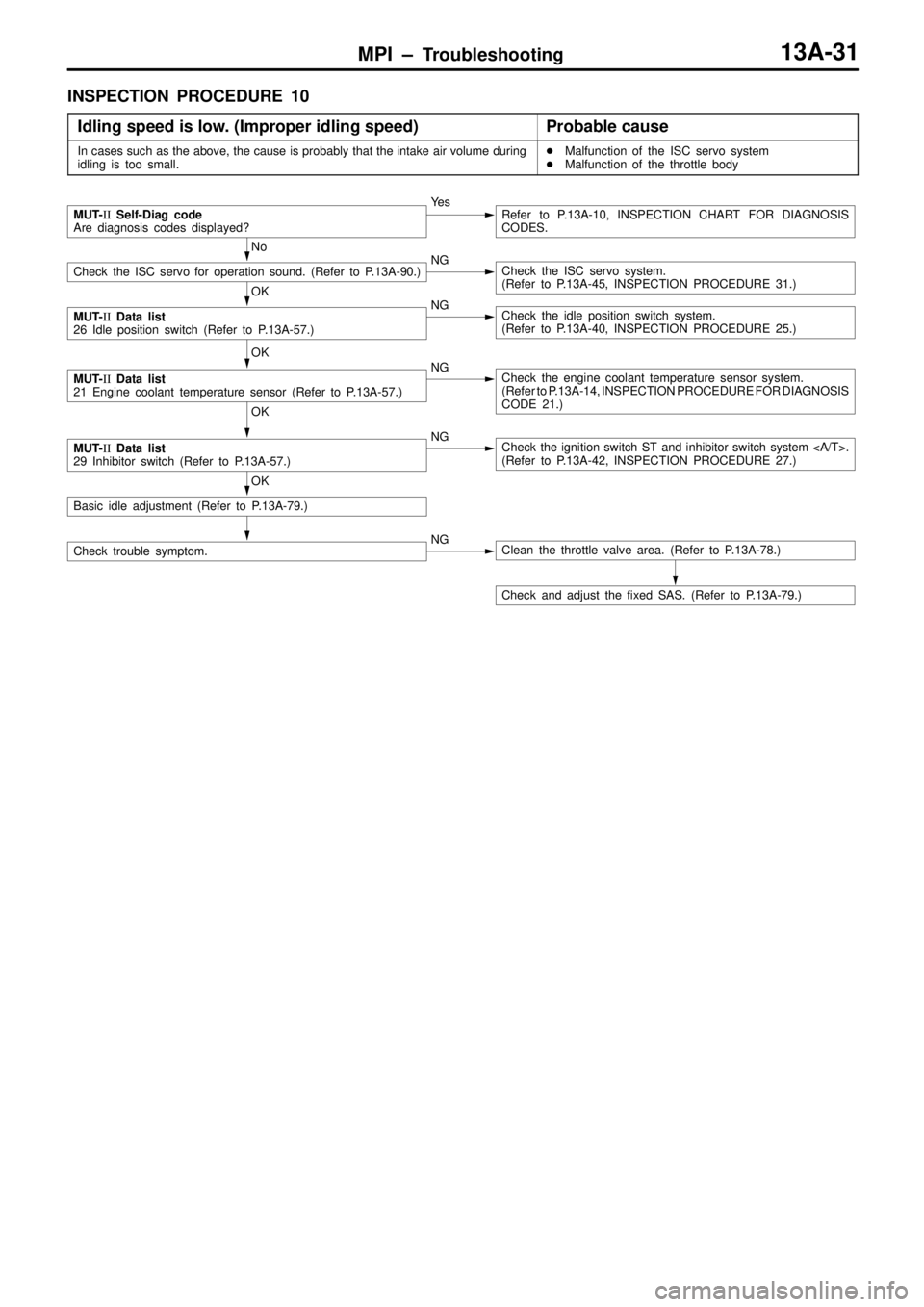

INSPECTION PROCEDURE 10
Idling speed is low. (Improper idling speed)
Probable cause
In cases such as the above, the cause is probably that the intake air volume during
idling is too small.
Malfunction of the ISC servo system

Malfunction of the throttle body
MUT-II Self-Diag code
Are diagnosis codes displayed?Ye sRefer to P.13A-10, INSPECTION CHART FOR DIAGNOSIS
CODES.
No
Check the ISC servo for operation sound. (Refer to P.13A-90.)NGCheck the ISC servo system.
(Refer to P.13A-45, INSPECTION PROCEDURE 31.)
OK
MUT-II Data list
26 Idle position switch (Refer to P.13A-57.)NGCheck the idle position switch system.
(Refer to P.13A-40, INSPECTION PROCEDURE 25.)
OK
MUT-II Data list
21 Engine coolant temperature sensor (Refer to P.13A-57.)NGCheck the engine coolant temperature sensor system.
(Refer to P.13A-14, INSPECTION PROCEDURE FOR DIAGNOSIS
CODE 21.)
OK
MUT-II Data list
29 Inhibitor switch (Refer to P.13A-57.)NGCheck the ignition switch ST and inhibitor switch system .
(Refer to P.13A-42, INSPECTION PROCEDURE 27.)
OK
Basic idle adjustment (Refer to P.13A-79.)
Check trouble symptom.NGClean the throttle valve area. (Refer to P.13A-78.)
Check and adjust the fixed SAS. (Refer to P.13A-79.)

MPI ± Troubleshooting13A-32
INSPECTION PROCEDURE 11
When the engine is cold, it stalls at idling. (Die out)
Probable cause
In such cases as the above, the cause is probably that the air/fuel mixture is inappropriate
when the engine is cold, or that the intake air volume is insufficient.
Malfunction of the ISC servo system

Malfunction of the throttle body

Malfunction of the injector system

Malfunction of the ignition system
Were the battery terminals disconnected?Ye sAfter warming-up, let the engine run at idling for 10 minutes.
No
MUT-II Self-Diag code
Are diagnosis codes displayed?Ye sRefer to P.13A-10, INSPECTION CHART FOR DIAGNOSIS
CODES.
OK
Check the fuel pressure. (Refer to P.13A-81.)
OK
Check the ignition timing.
(Refer to GROUP 11 ± On-vehicle Service.)NGCheck that the distributor is installed properly.
OK
Check the following items.

Check the ignition coil, spark plugs, spark plug cables. (Refer to GROUP 16 ± On-vehicle Service.)

Check the compression pressure. (Refer to GROUP 11 ± On-vehicle Service.)

Check the engine oil viscosity.
OK
MUT-II Data list
26 Idle position switch (Refer to P.13A-57.)NGCheck the idle position switch system.
(Refer to P.13A-40, INSPECTION PROCEDURE 25.)
OK
Check the injector for operation sound.NGCheck the injector system. (Refer to P.13A-19, INSPECTION PRO-
CEDURE FOR DIAGNOSIS CODE 41.)
Ye s
Check the ISC servo for operation sound. (Refer to P.13A-90.)NGCheck the ISC servo system.
(Refer to P.13A-45, INSPECTION PROCEDURE 31.)
No
Is engine-idling stable after the warming-up?NoCheck if the unstable idling (Rough idling, hunting).
(Refer to P.13A-29, INSPECTION PROCEDURE 8.)
No
Does the engine stall right after the accelerator pedal is released?Ye sClean the throttle valve
area. (Refer to P.13A-78.)Check and adjust the
fixed SAS.
(Refer to P.13A-79.)
OK
MUT-II Data list
21 Engine coolant temperature sensor (Refer to P.13A-57.)NGCheck the engine coolant temperature sensor system.
(Refer to P.13A-14, INSPECTION PROCEDURE FOR DIAGNOSIS
CODE 21.)
OK
MUT-II Actuator test
10 EGR control solenoid valve (Refer to P.13A-62.)NGCheck the EGR control solenoid valve system. (Refer to P.13A-46,
INSPECTION PROCEDURE 33.)

MPI ± Troubleshooting13A-33
INSPECTION PROCEDURE 12
When the engine is hot, it stalls at idling. (Die out)
Probable cause
In such cases as the above, the cause is probably that ignition system, air/fuel mixture,
idle speed control (ISC) or compression pressure is defective.
In addition, if the engine suddenly stalls, the cause may also be a defective connector
contact.
Malfunction of the ignition system

Malfunction of air-fuel ratio control system

Malfunction of the ISC system

Drawing air into intake system

Improper connector contact
Were the battery terminals disconnected?Ye sAfter warming-up, let the engine run at idling for 10 minutes.
No
MUT-II Self-Diag code
Are diagnosis codes displayed?Ye sRefer to P.13A-10, INSPECTION CHART FOR DIAGNOSIS
CODES.
No
Check the ISC servo for operation sound. (Refer to P.13A-90.)NGCheck the ISC servo system.
(Refer to P.13A-45, INSPECTION PROCEDURE 31.)
OK
Check the injector for operation sound.NGCheck the injector system. (Refer to P.13A-19, INSPECTION PRO-
CEDURE FOR DIAGNOSIS CODE 41.)
OK
Does the engine stall right after the accelerator pedal is released?Ye sClean the throttle valve
area. (Refer to P.13A-78.)Check and adjust the
fixed SAS.
(Refer to P.13A-79.)
No
Does the engine stall easily again?NoWhile carrying out an intermittent malfunction simulation test (Refer
to GROUP 00 ± Points to Note for Intermittent Malfunctions.), check
for sudden changes in the signals shown below.

Crank angle sensor signal

Air flow sensor signal

Injector drive signal
Primary and secondary
ignition signal

Fuel pump drive signal

Engine-ECU power supply
voltage
Ye s
MUT-II: Engine stalling inspection when the engine is warm and
idling. (Refer to P.13A-50, INSPECTION PROCEDURE 39.)
OK
Check the ignition timing.
(Refer to GROUP 11 ± On-vehicle Service.)NGCheck that the distributor is installed properly.
OK
Check the following items.

Check the ignition coil, spark plugs, spark plug cables. (Refer to GROUP 16 ± On-vehicle Service.)

Check if the injectors are clogged.

Check the compression pressure. (Refer to GROUP 11 ± On-vehicle Service.)

Check if foreign materials (water, alcohol, etc.) got into fuel.

MPI ± Troubleshooting13A-34
INSPECTION PROCEDURE 13
The engine stalls when starting the car. (Pass out)
Probable cause
In cases such as the above, the cause is probably misfiring due to a weak spark,
or an inappropriate air/fuel mixture when the accelerator pedal is depressed.
Drawing air into intake system

Malfunction of the ignition system
MUT-II Self-Diag code
Are diagnosis codes displayed?Ye sRefer to P.13A-10, INSPECTION CHART FOR DIAGNOSIS
CODES.
OK
Check the following items.

Check the ignition coil, spark plugs, spark plug cables. (Refer to GROUP 16 ± On-vehicle Service.)

Check if air was drawn into the intake system.
Broken intake manifold gasket
Broken or disconnected vacuum hose
Improper operation of the PCV valve
Broken air intake hose
No
MUT-II Actuator test
10 EGR control solenoid valve (Refer to P.13A-62.)NGCheck the EGR control solenoid valve system. (Refer to P.13A-46,
INSPECTION PROCEDURE 33.)
INSPECTION PROCEDURE 14
The engine stalls when decelerating.
Probable cause
In cases such as the above, the cause is probably that the intake air volume is insufficient
due to a defective idle speed control (ISC) servo system.
Malfunction of the ISC system
No
MUT-II Data list
26 Idle position switch (Refer to P.13A-69.)NGCheck the idle position switch system.
(Refer to P.13A-49, INSPECTION PROCEDURE 26.)
OK
MUT-II Data list
14 Throttle position sensor (Refer to P.13A-57.)NGCheck the throttle position sensor system. (Refer to P.13A-13, IN-
SPECTION PROCEDURE FOR DIAGNOSIS CODE 14.)
OK
MUT-II Data list
45 ISC servo position

Is the idle speed control (ISC) servo position drops to 0 ± 2
steps when decelerating (engine r/min less than 1,000)?Ye sCheck the vehicle speed sensor system. (Refer to P.13A-17, IN-
SPECTION PROCEDURE FOR DIAGNOSIS CODE 24.)
OK
Check the following items.

Check the ignition coil, spark plugs, spark plug cables. (Refer to GROUP 16 ± On-vehicle Service.)

Check the throttle valve area. (Refer to P.13A-78.)

Check and adjust the fixed SAS. (Refer to P.13A-79.)
No
MUT-II Data list
26 Idle position switch (Refer to P.13A-57.)NGCheck the idle position switch system.
(Refer to P.13A-40, INSPECTION PROCEDURE 25.)
No
MUT-II Actuator test
10 EGR control solenoid valve (Refer to P.13A-62.)NGCheck the EGR control solenoid valve system. (Refer to P.13A-46,
INSPECTION PROCEDURE 33.)
No
MUT-II Self-Diag code
Are diagnosis codes displayed?Ye sRefer to P.13A-10, INSPECTION CHART FOR DIAGNOSIS
CODES.
Were the battery terminals disconnected?Ye sAfter warming-up, let the engine run at idling for 10 minutes.

MPI ± Troubleshooting13A-36
INSPECTION PROCEDURE 17
The feeling of impact or vibration when decelerating.
Probable cause
Malfunction of the ISC system is suspected.
Malfunction of the ISC system
MUT-II Self-Diag code
Are diagnosis codes displayed?Ye sRefer to P.13A-10, INSPECTION CHART FOR DIAGNOSIS
CODES.
No
Check the ISC servo for operation sound. (Refer to P.13A-90.)NGCheck the ISC servo system.
(Refer to P.13A-45, INSPECTION PROCEDURE 31.)
OK
MUT-II Data list
14 Throttle position sensor (Refer to P.13A-57.)NGCheck the throttle position sensor system. (Refer to P.13A-13, IN-
SPECTION PROCEDURE FOR DIAGNOSIS CODE 14.)
OK
MUT-II Data list
26 Idle position switch (Refer to P.13A-57.)NGCheck the idle position switch system.
(Refer to P.13A-40, INSPECTION PROCEDURE 25.)
OK
Clean the throttle valve area. (Refer to P.13A-78.)
INSPECTION PROCEDURE 18
Poor acceleration
Probable cause
Defective ignition system, abnormal air-fuel ratio, poor compression pressure, etc.
are suspected.
Malfunction of the ignition system

Malfunction of air-fuel ratio control system

Malfunction of the fuel supply system

Poor compression pressure

Clogged exhaust system
MUT-II Self-Diag code
Are diagnosis codes displayed?Ye sRefer to P.13A-10, INSPECTION CHART FOR DIAGNOSIS
CODES.
No
Check the injectors for operation sound.NGCheck the injector system. (Refer to P.13A-19, INSPECTION PRO-
CEDURE FOR DIAGNOSIS CODE 41.)
OK
Check the ignition timing.
(Refer to GROUP 11 ± On-vehicle Service.)NGCheck that the distributor is installed properly.
OK
MUT-II: Check if hesitation, sag, stumble or poor acceleration occur.
(Refer to P.13A-51, INSPECTION PROCEDURE 40.)
OK
Check the fuel pressure. (Refer to P.13A-81.)
OK
Check the following items.

Check the ignition coil, spark plugs, spark plug cables. (Refer to GROUP 16 ± On-vehicle Service.)

Check the compression pressure. (Refer to GROUP 11 ± On-vehicle Service.)

Check the fuel filter or fuel line for clogging.

Broken air intake hose

Clogged air cleaner

MPI ± Troubleshooting13A-38
INSPECTION PROCEDURE 22
Too high CO and HC concentration when idling
Probable cause
Abnormal air-fuel ratio is suspected.
Malfunction of the air-fuel ratio control system

Deteriorated catalyst
Check trouble symptom.
No
Check the ignition timing.
(Refer to GROUP 11 ± On-vehicle Service.)NGCheck that the distributor is installed properly.
OK
MUT-II Data list
21 Engine coolant temperature sensor. (Refer to P.13A-57.)NGCheck the engine coolant temperature sensor system.
(Refer to P.13A-14, INSPECTION PROCEDURE FOR DIAGNOSIS
CODE 21.)
OK
MUT-II Data list
13 Intake air temperature sensor (Refer to P.13A-57.)NGCheck the intake air temperature sensor system. (Refer to P.13A-12,
INSPECTION PROCEDURE FOR DIAGNOSIS CODE 13.)
OK
MUT-II Data list
25 Barometric pressure sensor (Refer to P.13A-57.)NGCheck the barometric pressure sensor system. (Refer to P.13A-18,
INSPECTION PROCEDURE FOR DIAGNOSIS CODE 25.)
OK
MUT-II Data list
11 Oxygen sensor
OK:600 ± 1,000 mV when racing suddenly (Refer to P.13A-57.)NGCheck the oxygen sensor system. (Refer to P.13A-11, INSPECTION
PROCEDURE FOR DIAGNOSIS CODE 11.)
OK
MUT-II Data list
11 Oxygen sensor
OK:Repeat 0 ± 400 mV and 600 ± 1,000 mV alternately when
idling. (Refer to P.13A-57.)OK
NG
Check the fuel pressure. (Refer to P.13A-81.)
OK
NG
Check the following items.

Check the injectors for operation sound.

Check the injectors for fuel leakage.

Check the ignition coil, spark plugs, spark plug cables. (Refer to GROUP 16 ± On-vehicle Service.)

Check the compression pressure. (Refer to GROUP 11 ± On-vehicle Service.)

Check the positive crankcase ventilation system. (Refer to GROUP 17 ± Emission Control System.)

Check the purge control system. (Refer to GROUP 17 ± Emission Control System.)

Check the EGR control system. (Refer to GROUP 17 ± Emission Control System.)
Check the trouble symptom.
NG
Replace the catalytic converter.
Replace the oxygen sensor.
MUT-II Self-Diag code
Are diagnosis codes displayed?Ye sRefer to P.13A-10, INSPECTION CHART FOR DIAGNOSIS
CODES.
