FRONT AXLE ± General Information26-2
GENERAL INFORMATION26100010111
2WD
The front hub assembly which uses a double taper
roller bearing is mounted on the knuckle spindle.For vehicles with ABS, a rotor for detecting the
wheel speed is press-fitted into the front hub.
4WD
The front axle consists of the hub assembly, drive
shaft, inner shaft, front differential, freewheel clutch
assembly and actuator. The features are:

The wheel bearing uses a double taper roller
bearing. For vehicles with ABS, a rotor for
detecting the wheel speed is bolted to the brake
disc.

Drive shafts of almost identical length reduce
torque steer. In addition, a D.O.J.-B.J.-type
constant velocity ball joint has high power
transmission efficiency and reduces vibration
and noise.
A vacuum-type freewheel clutch has been
adopted in the freewheel mechanism. Its
solenoid valve and actuator switch powertrain
between 2WD and 4WD.

There are two types of differential gear. The
difference between them is gear ratio.
2WD
ItemSpecifications
Wheel bearingTypeDouble taper roller bearing
Inner bearing (O.D. x I.D.) mm65.1 x 34.9
Outer bearing (O.D. x I.D.) mm50.0 x 21.4
4WD

ItemSpecifications
Wheel bearingTypeDouble taper roller bearing
Inner bearing (O.D. x I.D.) mm73 x 45
Outer bearing (O.D. x I.D.) mm73 x 45
Drive shaftJoint typeOuter: B.J.
Inner: D.O.J.
Shaft length (joint to joint) mmRight: 318
Left: 291
Inner shaftO.D. x length mm31.5 x 304.2
Bearing (O.D. x I.D.) mm62 x 35

FRONT AXLE ± Service Specifications/Lubricants26-4
SERVICE SPECIFICATIONS26100030131
ItemStandard valueLimit
Front axle total backlash mm±11
Drive shaft axial play mm0.4 ± 0.7±
Solenoid valve resistance W36 ± 46±
Hub rotary sliding resistance N7 ± 26±
(Hub rotation starting torque) Nm0.5 ± 1.8±
Amount of movement of far the wheel bearing in an axial
direction mm0.05 or less±
Setting of D.O.J. boot length mm80 + 3±
Clutch gear play (bearing axial play) mm0.05 ± 0.30±
Drive gear backlash mm0.11 ± 0.16±
Differential gear backlash mm0 ± 0.076±
Drive pinion rotation torque NmWithout oil sealWhen replacing (with anti-rust agent)
0.3 ± 0.5±
When replacing or reusing (with gear oil
applied) 0.15 ± 0.25±
With oil sealWhen replacing (with anti-rust agent)
0.5 ± 0.7±
When replacing or reusing (with gear oil
applied) 0.3 ± 0.4±
Drive gear runout mm±0.05
Differential gear backlash mm±0.2
LUBRICANTS26100040141
ItemsSpecified lubricantsQuantity
Front differential gear oilHypoid gear oil API classification
GL-5 or higher SAE viscosity No. 90,
80W0.9

D.O.J. boot greaseRepair kit grease100 g

REAR AXLE ± General Information27-2
GENERAL INFORMATION27100010118

The rear axle is a banjo-type semi-floating type.
The axle shaft bearings are: *Single taper
bearings for vehicles without ABS or rear
differential lock. *Double-taper bearings for
vehicles with ABS or rear differential lock. ABS
rotor is press-fitted to the axle shaft retainer
ring.
Differential gear has 4 different types. A
torque-responsive mechanical-type limited slip
differential has a high performance against
driving on unstable surfaces such as muddy
roads.

Driveability on sand or muddy road has been
improved, and rear differential lock, which is
useful for emergency , has been used.
REAR AXLE
ItemVehicles without rear differential lockVehicles with rear differential lock
Axle housing typeBanjo typeBanjo type
Axle
shaft
Support methodSemi-floating typeSemi-floating type
shaft
Shaft O.D. (Bearing part x
Centre x Length) mm40.0 x 34.5 x 744.540.0 x 34.5 x 723.5 (LH)
40.0 x 34.5 x 761.0 (RH)
Bearing typeSingle taper (double taper)*Double taper
Bearing (O.D. x I.D.) mm80.0 x 40.080.0 x 40.0
NOTE
*: Vehicles with ABS.
DIFFERENTIAL
<2WD>
Item4G634D56
Drive gear typeHypoid gearHypoid gear
Reduction ratio4.6364.222
Limited slip differential typeTorque sensitivity type mechanicalTorque sensitivity type mechanical
Differential gear type
(type x quantity)
Side gearStraight bevel gear x 2Straight bevel gear x 2
(ty e x quantity)
Pinion gearStraight bevel gear x 2 [Straight bevel
gear x 4]Straight bevel gear x 2 [Straight bevel
gear x 4]
Number of teethSide gear5138
Drive pinion119
Side gear1414
Pinion gear1010
Bearing (O.D. x I.D.)
mm
Side80.0 x 45.280.0 x 45.2
mm
Front68.3 x 30.268.3 x 30.2
Rear76.2 x 36.576.2 x 36.5
NOTE
[ ]: Vehicles with limited slip differential

REAR AXLE ± Service Specifications27-4
SERVICE SPECIFICATIONS27100030121
ItemStandard valueLimit
Rear axle total backlash mm±5
Axle shaft axial play mmVehicles without ABS or rear differential lock0.05 ± 0.20±
Vehicles with ABS or rear differential lock0 ± 0.25±
Limited slip differential
p
reload Nm
Using special tool13 or more±
reload Nm
Without using special tool25 or more±
Axle shaft retainer
press-fitting force NVehicles without ABS or rear differential lockInitial press-fitting force
49,000 or more±
Final press-fitting force
78,000±
Vehicles with ABS or rear differential lockInitial press-fitting force
49,000 or more±
Final press-fitting force
98,000 ± 108,000±
Clearance between axle shaft retainer and snap ring mm0 ± 0.166±
Rear differential lock air pump pressure kPa25 ± 40±
Drive gear backlash mm2WD0.08 ± 0.13±
4WD0.13 ± 0.18±
Drive gear runout mm±0.05
Differential gear backlash mm2WD0 ± 0.250.2
4WD0 ± 0.0760.2
Limited slip differential
starting torque Nm
When a new clutch plate is used39 ± 74±
starting torque Nm
When re-installing current clutch plate25 ± 74±
Drive pinion
turning torque NmWithout oil sealWhen replacing
(with anti-rust agent)0.6 ± 0.9±
When replacing or reusing
(with gear oil applied)0.4 ± 0.5±
With oil sealWhen replacing
(with anti-rust agent)0.8 ± 1.1±
When replacing or
reusing (with gear oil applied)0.6 ± 0.7±

FRONT SUSPENSION ± Service Specifications/Sealant33A-3
SERVICE SPECIFICATIONS33200030088
ItemsStandard valueLimit
Toe-inAt the centre of tyre thread mm0 ± 7±
Toe-angle
(per wheel)
2WD0
± 0
19'±
(er wheel)
4WD
205/80 R16 tyre>0
± 0
16'±
4WD
x 10.50 R15 tyre>0
± 0
15'±
Camber0
10' ± 1
10' (Difference between
right and left within 30')±
Caster2WD1
45' ± 3
45' (Difference between
right and left within 30')±
4WD1
15' ± 3
15' (Difference between
right and left within 30')±
Kingpin inclination2WD15
00'±
4WD14
50'±
Shock absorber attaching dimension mm1 ± 2±
Upper arm ball joint starting torque Nm2WD0.8 ± 3.4±
Strut bar attaching dimension mm79±
Lower arm ball joint end play mm±0.5
Lower arm bush press-fitting force kN9.8±
Clearance between bump stopper and
bump stopper bracket mm4WD21 ± 23±
Stabilizer link assembly attaching
dimension mm4WD16 ± 18±
SEALANT33200050015
ItemSpecified sealant
Upper arm ball joint dust cover <2WD>3M ATD Part No. 8661 or equivalent

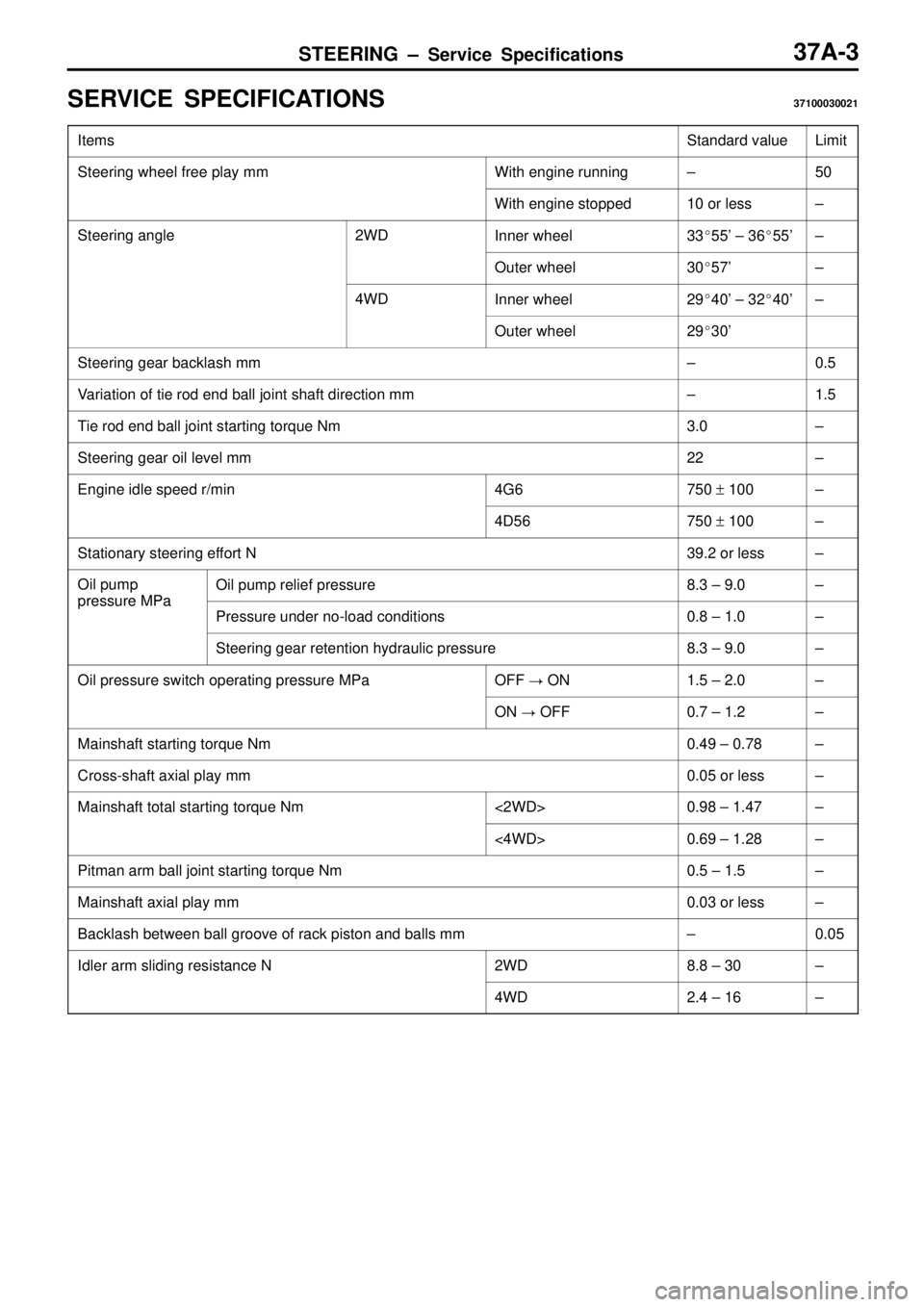

STEERING ± Service Specifications37A-3
SERVICE SPECIFICATIONS37100030021
ItemsStandard valueLimit
Steering wheel free play mmWith engine running±50
With engine stopped10 or less±
Steering angle2WDInner wheel33
55' ± 36
55'±
Outer wheel30
57'±
4WDInner wheel29
40' ± 32
40'±
Outer wheel29
30'
Steering gear backlash mm±0.5
Variation of tie rod end ball joint shaft direction mm±1.5
Tie rod end ball joint starting torque Nm3.0±
Steering gear oil level mm22±
Engine idle speed r/min4G6750 + 100±
4D56750 + 100±
Stationary steering effort N39.2 or less±
Oil pump
p
ressure MPa
Oil pump relief pressure8.3 ± 9.0±
ressure MPa
Pressure under no-load conditions0.8 ± 1.0±
Steering gear retention hydraulic pressure8.3 ± 9.0±
Oil pressure switch operating pressure MPaOFF
ON1.5 ± 2.0±
ON
OFF0.7 ± 1.2±
Mainshaft starting torque Nm0.49 ± 0.78±
Cross-shaft axial play mm0.05 or less±
Mainshaft total starting torque Nm<2WD>0.98 ± 1.47±
<4WD>0.69 ± 1.28±
Pitman arm ball joint starting torque Nm0.5 ± 1.5±
Mainshaft axial play mm0.03 or less±
Backlash between ball groove of rack piston and balls mm±0.05
Idler arm sliding resistance N2WD8.8 ± 30±
4WD2.4 ± 16±

2
SERIVICE SPECIFICATIONS
ItemsStandard value Limit
With engine running - 50Steering W heel free play mm
With engine stopped 10 or less -
Inner wheel 33°55’-36°55’ -2W D
Outer wheel 30°57’ -
Inner wheel 29°40’-32°40’ -
Steering angle
4W D
Outer wheel 29°30’
Steering gear backlash mm - 0.5
Variation of tie rod end ball joint shaft direction mm - 1.5
Tie rod end ball joint starting torque Nm 3.0 -
Steering gear oil level mm 22 -
4G6 750 ± 100 -Engine idle speed r/min
4D56 750 ± 100 -
Stationairy steering effort N 39.2 or less -
Oil pump relief pressure 8.3 - 9.0 -
Pressure under no-load conditions 0.8 - 1.0 -
Oil pump
pressure MPa
Steering gear retention hydraulic pressure 8.3 - 9.0 -
OFF →
ON 1.5 – 2.0 -Oil pressure switch operating pressure Mpa
ON →
OFF 0.7 – 1.2 -
Mainshaft starting torque Nm 0.49 – 0.78 -
Cross-shaft axial play mm 0.05 or less -
<2WD> 0.98 – 1.47 -Mainshaft total starting torque Nm
<4WD> 0.69 – 1.28 -
Pitman arm ball joint starting torque Nm 0.5 – 1.5 -
Mainshaft axial play mm 0.03 or less -
Backlash between ball groove of rack piston and balls mm - 0.05
2WD 8.8 – 30 -Idler arm sliding resistance N
4WD 2.4 – 16 -
STEERING – Service Specifications37A-3
37100030021

13
Items Specifications
Pressure switch activation oil pressure
Mpa (kg/cm2, psi)
OFF
→ ON1.5 – 2.0 (15 – 20, 21-284)
ON
→ OFF0.7 – 1.2 (7.2 – 12, 100-171)
Mainshaft starting torque (Manual steering)
Nm (kgcm, in.lbs.) 0.35 – 0.55 (3.5 – 5.5, 3 – 5)
Mainshaft axial play (Power steering)mm (in.)0.03 – (0.0012) or less
Cross-shaft axial play mm (in.)
Manual steering’ 0.05 (0.0020)
Power steering 0.05 (0.0020)
Mainshaft total starting torque Nm (kgcm, in.lbs.)
Manual steering 0.65 – 0.85 (6.5 – 8.5, 5.7 – 7.3)
Power steering 0.45 – 1.25 (4.5 – 12, 5, 4 – 11)
Ball joint starting torque Nm (kgcm, in.lbs.)
Tie rod end 1 – 3 (10 – 30, 8.9 – 26)
Idler arm 0.5 – 2.0 (5 – 520, 4 – 17)
Idler arm turning torque Nm (kgcm, in.lbs.) 0.3 – 2.0 (3 – 20, 3 – 17)
Spring balance reading N (kg,lbs) 2.3 – 15.4 (0.23 – 1.54, 0.5 – 33.9)
Limit
Steering wheel free play mm (in.)
Manual steering 50 (1.97)
Power steering 50 (1.97)
Steering gear backlash mm (in.) 0.5 (0.020)
Ball joint axia play mm (in.) 1.5 (0.059)
Backlash between ball groove of rack piston
And balls mm (in.) 0.05 (0.0020)
Gap between vane and rotor groove mm (in.) 0.06 (0.0024)
Clearance between oil pump drive shaft
And pump body mm (in.) 0.1 (0.004)
STEERING – Specifications37-3
