1997 MERCEDES-BENZ ML500 sat nav

FERRY
TOLL
After calculation of the route, the navigation processor makes up a list of the streets along the route. This route
list is used for navigation. It can be displayed during navigation by pressing the "I" (INFO) and "RTE" (Route)
buttons.
Route updating
If the driver deviates from the calculated route, a new route list is automatically calculated by the navigation
processor. The current position and the direction of travel are taken into consideration, and the new route is
optimized accordingly. This is accomplished without any message on the display.
Circumventing traffic jams with "Traffic jam" menu key function
After a traffic jam is reported on traffic radio and before reaching the affected section, a route can be calculated
for driving around the traffic jam. For this purpose, activate the "Traffic jam" menu and enter the length of the
traffic jam including the distance to the start of the traffic jam.
The "Traffic jam" function is also available for Federal and State highways as well as for inner city areas.
Trips outside the digitized map area
If the vehicle leaves the digitized DVD map area (e.g. driving into a multi-level car park), then no route can be
calculated or updated. "OFF ROAD" appears on the display. Upon leaving the map boundary, the display "OFF
MAP" appears.
Destinations which lie outside of the digitalized map area cannot be taken into consideration on calculation of
the route.
ROUTE CALCULATION, FUNCTION - GF82.61-P-3011GI
MODEL 163 as of 1.9.01 with CODE (522) Modular control system (MCS) radio USA with CODE (357)
Navigation system - additional unit with CODE (818b) Single CD player - additional unit with CODE
(491) U.S. version
The route is calculated and updated continuously by the navigation processor after entering the destination on
the radio and navigation module (A2/56) It can only be calculated within the digitized map area. The
calculated route is the prerequisite of the guidance system .
Route calculation
The navigation processor calculates the route with the aid of the CD-ROMmap data, the entered destination
Destination guidance,
function GF82.61-P-3012D

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:05 PMPage 89 © 2006 Mitchell Repair Information Company, LLC.

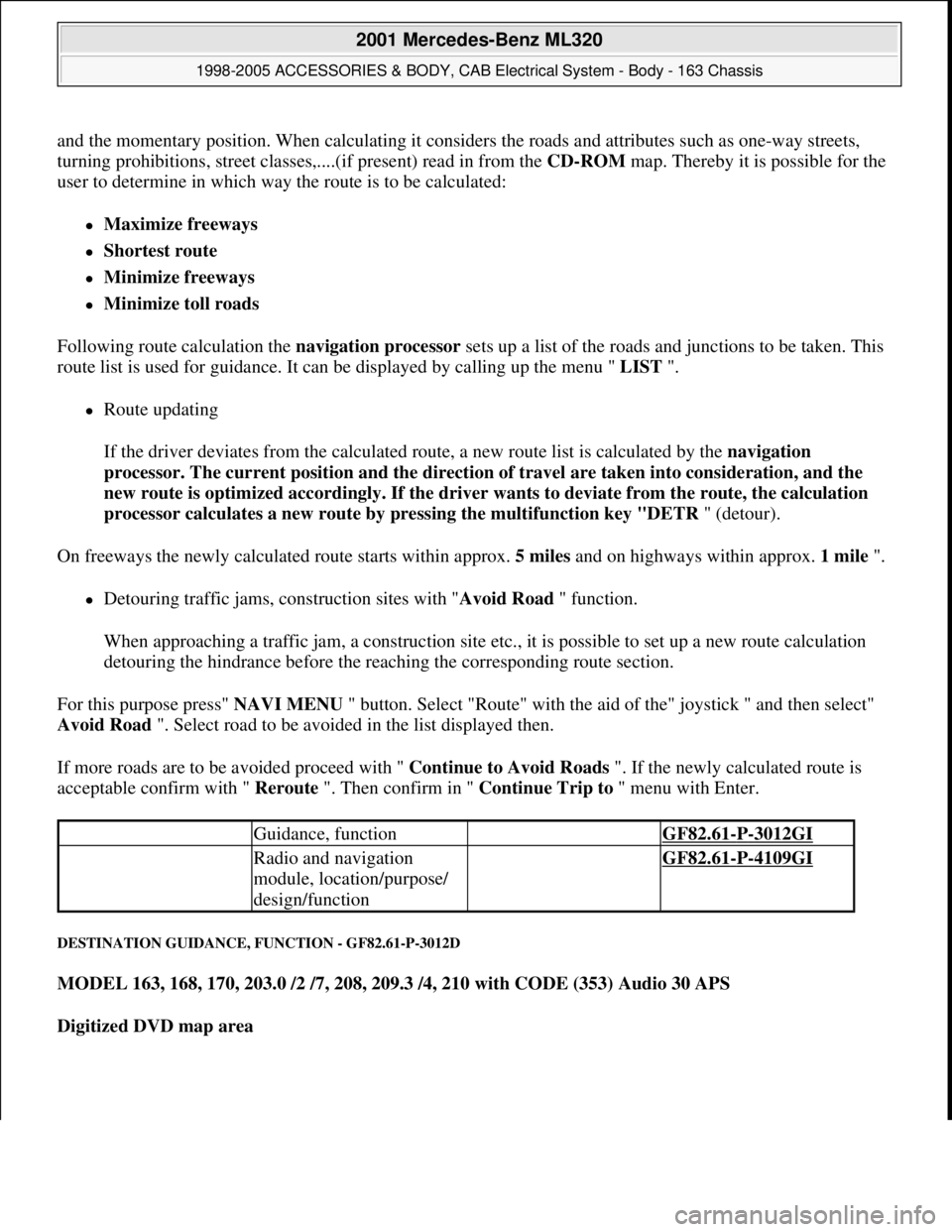

and the momentary position. When calculating it considers the roads and attributes such as one-way streets,
turning prohibitions, street classes,....(if present) read in from the CD-ROM map. Thereby it is possible for the
user to determine in which way the route is to be calculated:
Maximize freeways
Shortest route
Minimize freeways
Minimize toll roads
Following route calculation the navigation processor sets up a list of the roads and junctions to be taken. This
route list is used for guidance. It can be displayed by calling up the menu " LIST ".
Route updating
If the driver deviates from the calculated route, a new route list is calculated by the navigation
processor. The current position and the direction of travel are taken into consideration, and the
new route is optimized accordingly. If the driver wants to deviate from the route, the calculation
processor calculates a new route by pressing the multifunction key "DETR " (detour).
On freeways the newly calculated route starts within approx. 5 miles and on highways within approx. 1 mile ".
Detouring traffic jams, construction sites with "Avoid Road " function.
When approaching a traffic jam, a construction site etc., it is possible to set up a new route calculation
detouring the hindrance before the reaching the corresponding route section.
For this purpose press" NAVI MENU " button. Select "Route" with the aid of the" joystick " and then select"
Avoid Road ". Select road to be avoided in the list displayed then.
If more roads are to be avoided proceed with " Continue to Avoid Roads ". If the newly calculated route is
acceptable confirm with " Reroute ". Then confirm in " Continue Trip to " menu with Enter.
DESTINATION GUIDANCE, FUNCTION - GF82.61-P-3012D
MODEL 163, 168, 170, 203.0 /2 /7, 208, 209.3 /4, 210 with CODE (353) Audio 30 APS
Digitized DVD map area
Guidance, function GF82.61-P-3012GI
Radio and navigation
module, location/purpose/
design/function GF82.61-P-4109GI

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:05 PMPage 90 © 2006 Mitchell Repair Information Company, LLC.

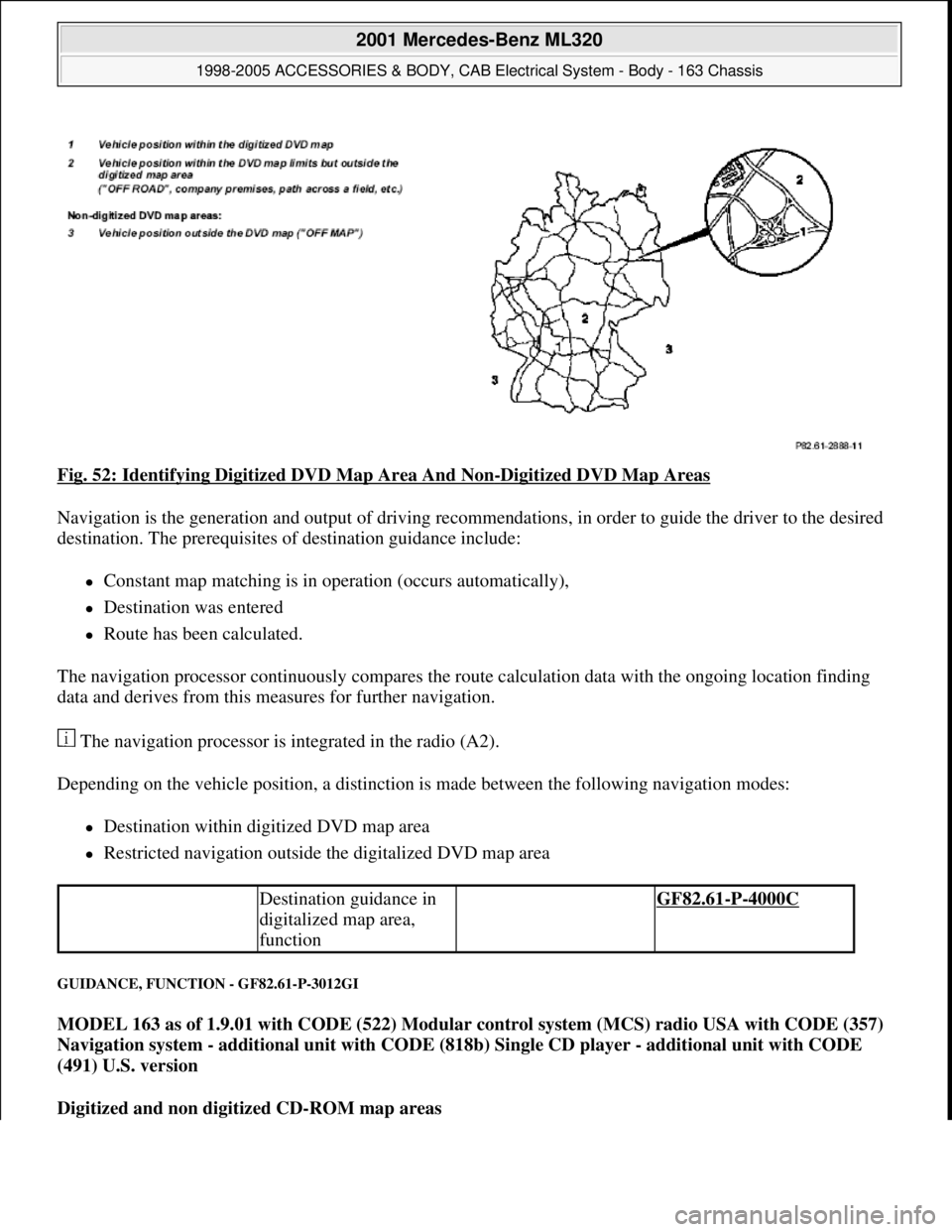

Fig. 52: Identifying Digitized DVD Map Area And Non-Digitized DVD Map Areas
Navigation is the generation and output of driving recommendations, in order to guide the driver to the desired
destination. The prerequisites of destination guidance include:
Constant map matching is in operation (occurs automatically),
Destination was entered
Route has been calculated.
The navigation processor continuously compares the route calculation data with the ongoing location finding
data and derives from this measures for further navigation.
The navigation processor is integrated in the radio (A2).
Depending on the vehicle position, a distinction is made between the following navigation modes:
Destination within digitized DVD map area
Restricted navigation outside the digitalized DVD map area
GUIDANCE, FUNCTION - GF82.61-P-3012GI
MODEL 163 as of 1.9.01 with CODE (522) Modular control system (MCS) radio USA with CODE (357)
Navigation system - additional unit with CODE (818b) Single CD player - additional unit with CODE
(491) U.S. version
Digitized and non digitized CD-ROM map areas
Destination guidance in
digitalized map area,
function GF82.61-P-4000C

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:05 PMPage 91 © 2006 Mitchell Repair Information Company, LLC.

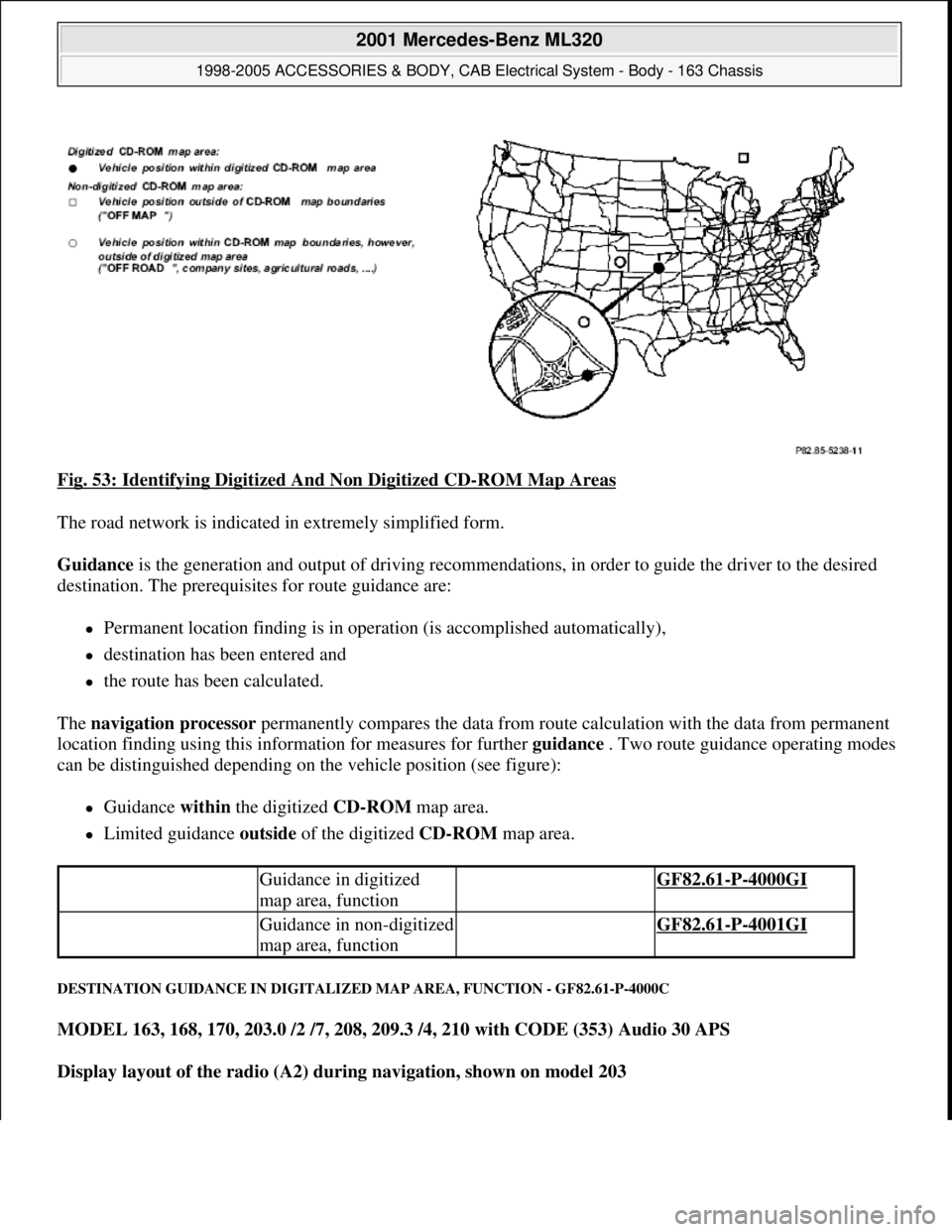

Fig. 53: Identifying Digitized And Non Digitized CD-ROM Map Areas
The road network is indicated in extremely simplified form.
Guidance is the generation and output of driving recommendations, in order to guide the driver to the desired
destination. The prerequisites for route guidance are:
Permanent location finding is in operation (is accomplished automatically),
destination has been entered and
the route has been calculated.
The navigation processor permanently compares the data from route calculation with the data from permanent
location finding using this information for measures for further guidance. Two route guidance operating modes
can be distinguished depending on the vehicle position (see figure):
Guidance within the digitized CD-ROM map area.
Limited guidance outside of the digitized CD-ROM map area.
DESTINATION GUIDANCE IN DIGITALIZED MAP AREA, FUNCTION - GF82.61-P-4000C
MODEL 163, 168, 170, 203.0 /2 /7, 208, 209.3 /4, 210 with CODE (353) Audio 30 APS
Display layout of the radio (A2) during navigation, shown on model 203
Guidance in digitized
map area, function GF82.61-P-4000GI
Guidance in non-digitized
map area, function GF82.61-P-4001GI

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:05 PMPage 92 © 2006 Mitchell Repair Information Company, LLC.

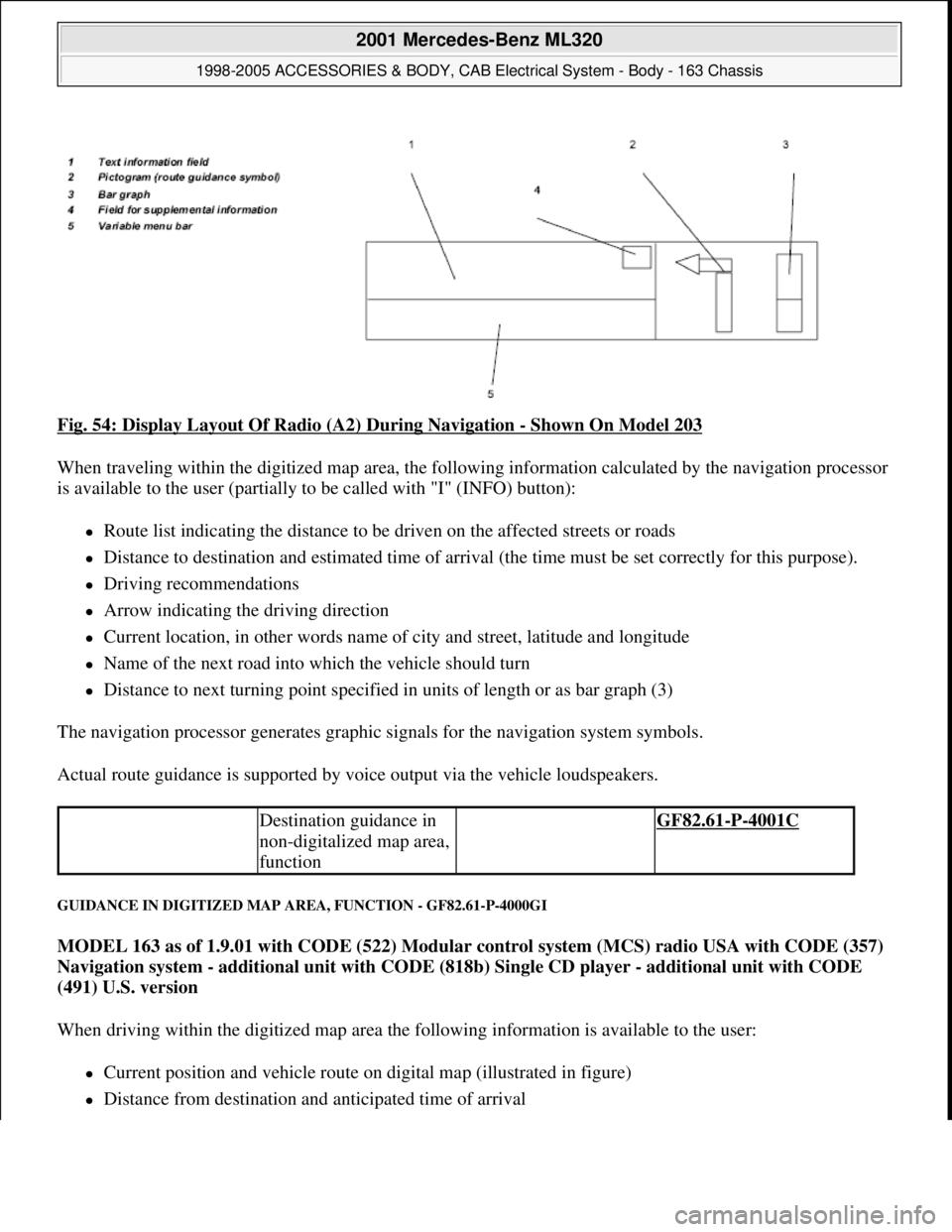

Fig. 54: Display Layout Of Radio (A2) During Navigation - Shown On Model 203
When traveling within the digitized map area, the following information calculated by the navigation processor
is available to the user (partially to be called with "I" (INFO) button):
Route list indicating the distance to be driven on the affected streets or roads
Distance to destination and estimated time of arrival (the time must be set correctly for this purpose).
Driving recommendations
Arrow indicating the driving direction
Current location, in other words name of city and street, latitude and longitude
Name of the next road into which the vehicle should turn
Distance to next turning point specified in units of length or as bar graph (3)
The navigation processor generates graphic signals for the navigation system symbols.
Actual route guidance is supported by voice output via the vehicle loudspeakers.
GUIDANCE IN DIGITIZED MAP AREA, FUNCTION - GF82.61-P-4000GI
MODEL 163 as of 1.9.01 with CODE (522) Modular control system (MCS) radio USA with CODE (357)
Navigation system - additional unit with CODE (818b) Single CD player - additional unit with CODE
(491) U.S. version
When driving within the digitized map area the following information is available to the user:
Current position and vehicle route on digital map (illustrated in figure)
Distance from destination and anticipated time of arrival
Destination guidance in
non-digitalized map area,
function GF82.61-P-4001C

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:05 PMPage 93 © 2006 Mitchell Repair Information Company, LLC.

Driving direction recommendation
Distance to next turning point (specified in units of length)
The data is determined by the navigation processor and transmitted to the radio and navigation module
(A2/56) The current route guidance is primarily supported by the voice output (English).
The scale of the displayed map can be changed in increments. In addition it is possible to select whether the
map is aligned in the direction of motion Head-Up ) or toward the north North-Up ). The graphical signals for
map illustration is generated by the navigation processor.
DESTINATION GUIDANCE IN NON-DIGITALIZED MAP AREA, FUNCTION - GF82.61-P-4001C
MODEL 163, 168, 170, 203.0 /2 /7, 208, 209.3 /4, 210 with CODE (353) Audio 30 APS
When traveling outside of the digitized map area (e.g. company grounds, parking buildings, dirt roads,...),
however still within the DVD map boundaries, the navigation processor switches over to "navigation system in
non-digitized map area".
On the radio (A2) display the following message appears:
"OFF ROAD"
If the vehicle is also outside the DVD map limit, the following message appears:
"OFF MAP"
In both cases, only basic location finding is accomplished with correction using the GPS data.
A (limited) route guidance can be conducted only with specification of the:
Distance from the destination as the crow flies
Direction to the destination (as an arrow)
After reentering the digitized map area, the system automatically continues with "navigation system in digitized
map area". The possible streets/roads on which the vehicle may be located are determined with the aid of GPS
location finding. During this process a slight delay in the route guidance may result.
The road data of several Central European countries are stored on the navigation DVD, so that the "OFF
MAP" message will not appear, if borders between the stored countries are crossed. No special foreign country
DVD has to be inserted.
Voice output, function GF82.85-P-3001GI
Guidance in non-digitized
map area, function GF82.61-P-4001GI

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:05 PMPage 94 © 2006 Mitchell Repair Information Company, LLC.

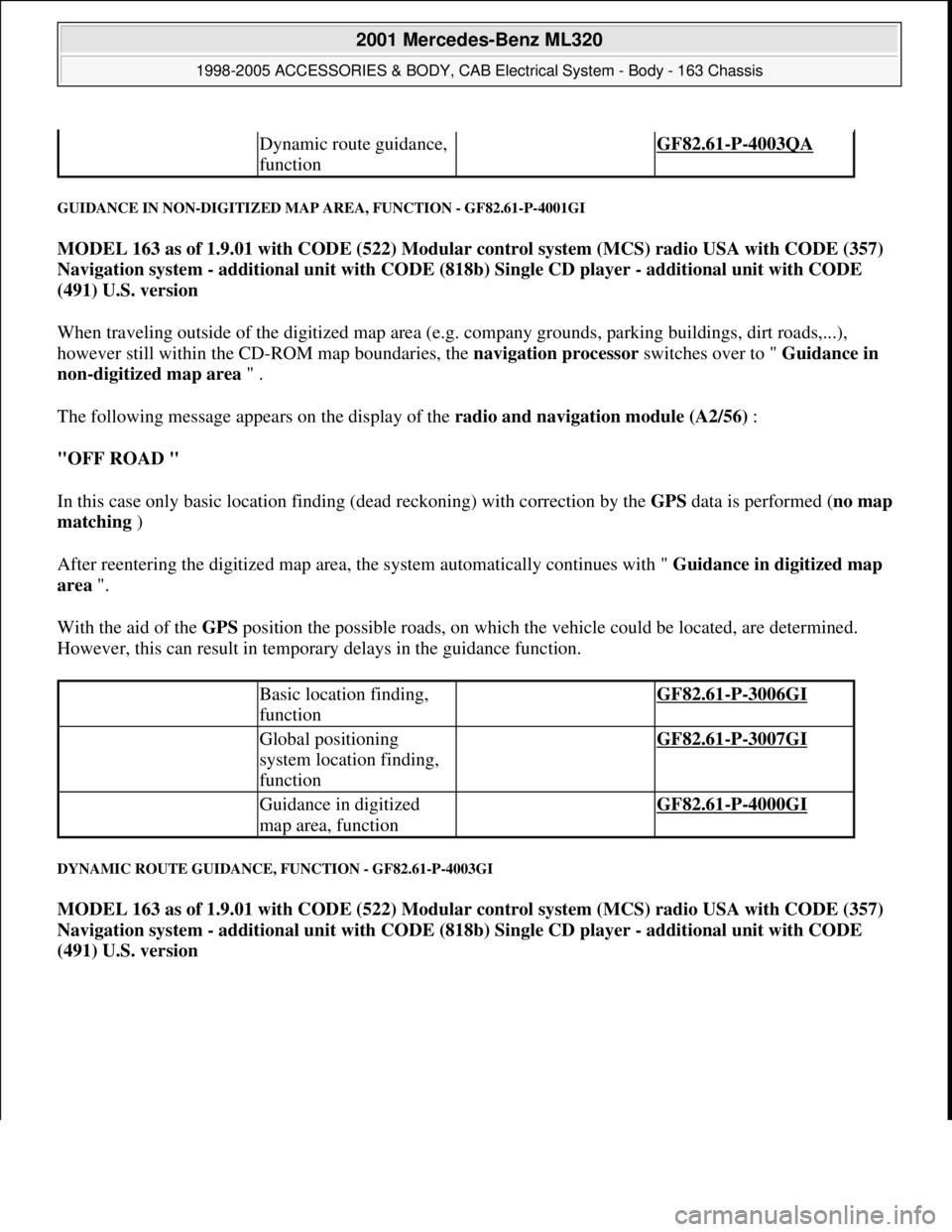

GUIDANCE IN NON-DIGITIZED MAP AREA, FUNCTION - GF82.61-P-4001GI
MODEL 163 as of 1.9.01 with CODE (522) Modular control system (MCS) radio USA with CODE (357)
Navigation system - additional unit with CODE (818b) Single CD player - additional unit with CODE
(491) U.S. version
When traveling outside of the digitized map area (e.g. company grounds, parking buildings, dirt roads,...),
however still within the CD-ROM map boundaries, the navigation processor switches over to " Guidance in
non-digitized map area " .
The following message appears on the display of the radio and navigation module (A2/56) :
"OFF ROAD "
In this case only basic location finding (dead reckoning) with correction by the GPS data is performed (no map
matching )
After reentering the digitized map area, the system automatically continues with " Guidance in digitized map
area ".
With the aid of the GPS position the possible roads, on which the vehicle could be located, are determined.
However, this can result in temporary delays in the guidance function.
DYNAMIC ROUTE GUIDANCE, FUNCTION - GF82.61-P-4003GI
MODEL 163 as of 1.9.01 with CODE (522) Modular control system (MCS) radio USA with CODE (357)
Navigation system - additional unit with CODE (818b) Single CD player - additional unit with CODE
(491) U.S. version
Dynamic route guidance,
function GF82.61-P-4003QA
Basic location finding,
function GF82.61-P-3006GI
Global positioning
system location finding,
function GF82.61-P-3007GI
Guidance in digitized
map area, function GF82.61-P-4000GI

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:05 PMPage 95 © 2006 Mitchell Repair Information Company, LLC.

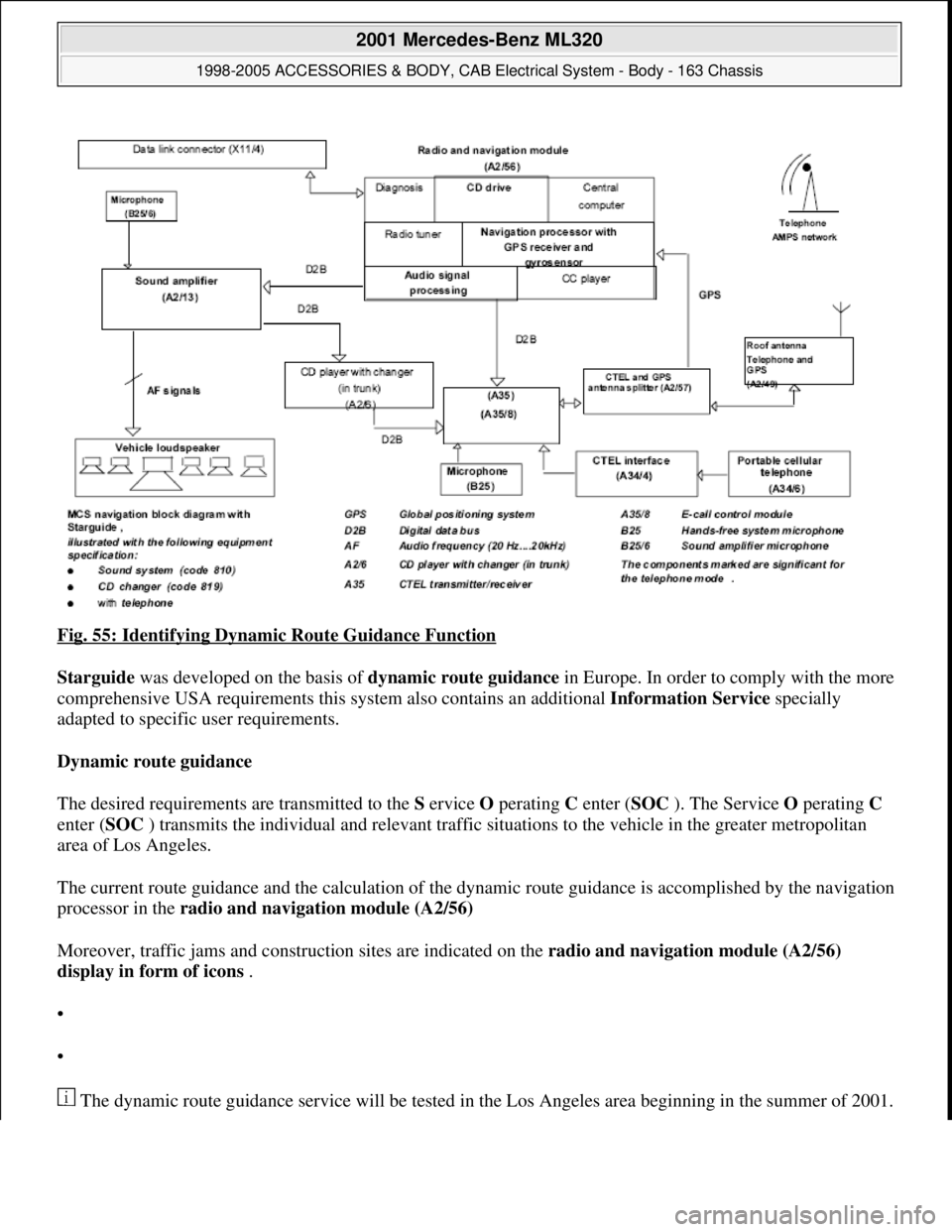

Fig. 55: Identifying Dynamic Route Guidance Function
Starguide was developed on the basis of dynamic route guidancein Europe. In order to comply with the more
comprehensive USA requirements this system also contains an additional Information Service specially
adapted to specific user requirements.
Dynamic route guidance
The desired requirements are transmitted to the S ervice O perating C enter (SOC ). The Service O perating C
enter (SOC ) transmits the individual and relevant traffic situations to the vehicle in the greater metropolitan
area of Los Angeles.
The current route guidance and the calculation of the dynamic route guidance is accomplished by the navigation
processor in the radio and navigation module (A2/56)
Moreover, traffic jams and construction sites are indicated on the radio and navigation module (A2/56)
display in form of icons .
•
•
The dynamic route guidance service will be tested in the Los Angeles area beginning in the summer of 2001.

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:05 PMPage 96 © 2006 Mitchell Repair Information Company, LLC.
