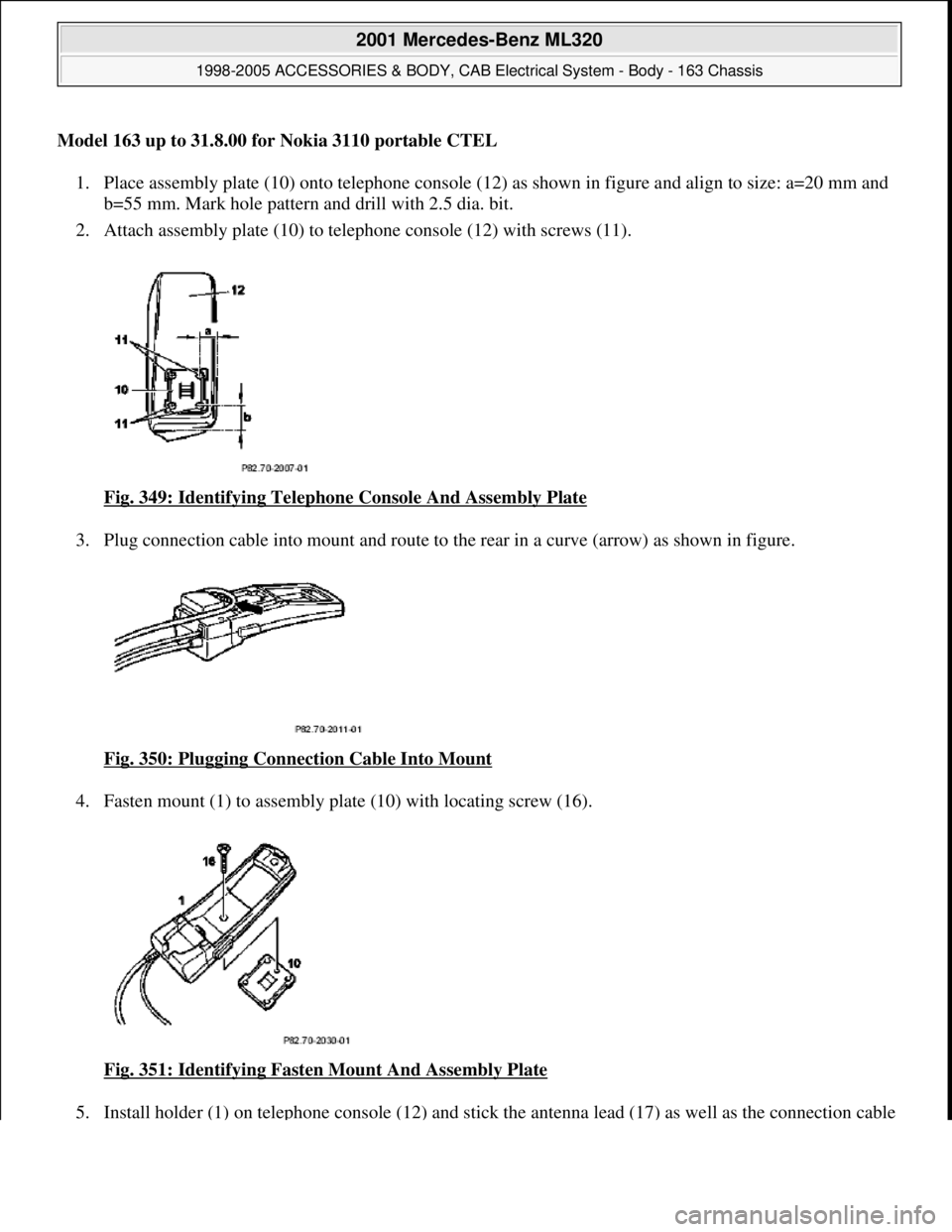

Model 163 up to 31.8.00 for Nokia 3110 portable CTEL 1. Place assembly plate (10) onto te lephone console (12) as shown in figure and align to size: a=20 mm and
b=55 mm. Mark hole pattern and drill with 2.5 dia. bit.
2. Attach assembly plate (10) to tele phone console (12) with screws (11).
Fig. 349: Identifying Telephone Console And Assembly Plate
3. Plug connection cable into mount and route to th e rear in a curve (arrow) as shown in figure.
Fig. 350: Plugging Connection Cable Into Mount
4. Fasten mount (1) to assembly pl ate (10) with locating screw (16).
Fig. 351: Identifying Fasten Mount And Assembly Plate
5. Install holder (1) on telephone console (12) and stick the antenna lead (17) as well as the connection cable
2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electr ical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:13 PMPage 421 © 2006 Mitchell Repair Information Company, LLC.

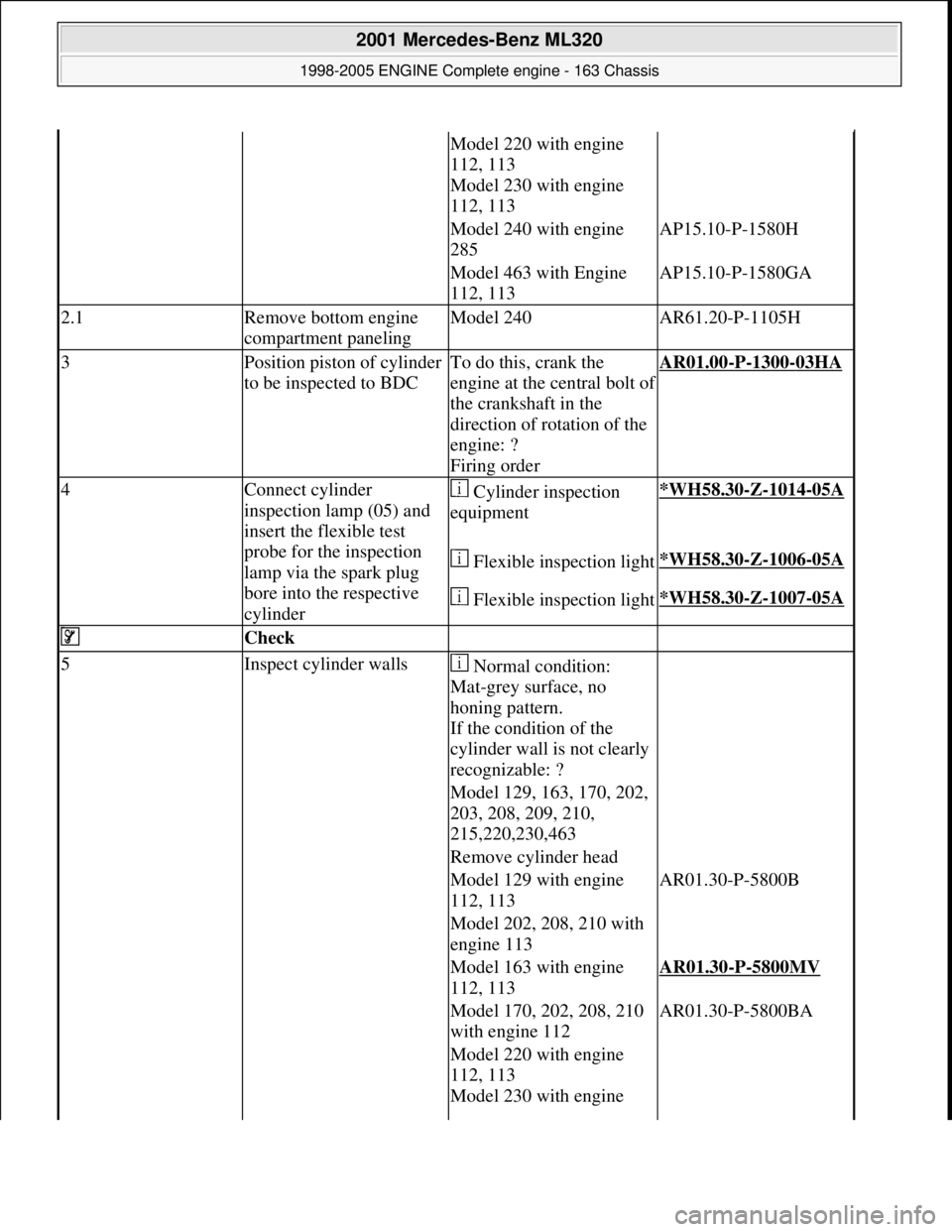

Model 220 with engine
