SI18.00-P-0010A
Service Information: oil sludge
26.3.01

ENGINE
111 in MODELS 124, 163, 170, 202, 203, 208, 210

ENGINE
112 in MODELS 129, 163, 170, 202, 203, 208, 210, 220

ENGINE
112, 113 in MODEL 463

ENGINE
113 in MODELS 129, 163, 202, 208, 210, 215, 220

ENGINE
137 in MODEL 215, 220

ENGINE
166 in MODEL 168

Oil sludging in gasoline engines with ASSYST maintenance

system

Recently we have determined that time and time again oil

sludging occurs in gasoline engines with an ASSYST maintenance

system.

Oil sludging can lead to the following complaints:
D
engine oil consumption

D
engine smoke (white/blue)

D
influencing of oil level indicator

D
clogged oil filter, engine oil thickened like jelly

D
Check engine lamp illuminated

D
oil sludge visible during assembly job, e.g. in oil filter, in cylinder

head covers, condensation sludging
(engine 166) etc.

-----------------------------------------------------------------------------------------
The following list of causes may lead individually or as a combination
to engine oil sludging:

D
Crankcase ventilation inoperable, function orifices, bores,

passages in cylinder head cover, cylinder head, crankcase etc.

are mechanically sealed. A nonfunctioning crankcase

ventilation boosts loads on the engine oil through organic

nitrates. The risk of oil sludging increases.

The mechanical condition of the engine is always to be

checked, i.e. all engine oil drain orifices on the cylinder head

and crankcase and all crankcase ventilation ducts must be free

of obstacles. Crankcase breather lines may not be kinked.
Check the ventilation bores in the cylinder head covers.

-----------------------------------------------------------------------------------------

D
The engine oil used does not comply with the specifications in

Sheet 229.1 or 229.3 of the Specifications for Service Products.

The additive process, e.g. dirt-carrying capability, neutralization

capability and oxidation resistance as well as the quality of the

base stock influence sludging time.

Use of engine oils with best possible resistance to formation of

sludge, i.e. use only tested and approved engine oils (from

Sheet 229.1 or 229.3). The best protection is afforded by the

engine oils on Sheet 229.3, which fulfill more stringent

specifications with regard to preventing sludge and deposits
(see Sheet 221.0, page 11). These oils have a distinctly better

anti-sludge characteristic than other engine oils.

D
Sludging after adding a fuel or engine oil special additive.

Do not use fuel or engine oil special additives. More information

hereto is available on Sheet 219.0 of the Specifications for

Service products. Reference to customer not to use special

additives.

D
Engine oil change not performed according to ASSYST

specifications. At driven distances

exceeding > approx. 3000 km, engine oil sludging may occur.

-----------------------------------------------------------------------------------------
Comply with engine oil and filter change as under ASSYST

specifications. Observe remaining distance.

D
Fuel grade lies outside standard (regionally contingent). If

contaminated, deficient fuel is used, then engine oil sludging

may occur even where approved engine oil is used.

Operation with fuel, e.g. as under DIN EN 228. Clarify refueling

behavior of customer. If engine operation regional, is

temporarily possible with deficient oil only, then the startup

distance has to be individually reduced, i.e. the oil change

temporarily performed at an interval of, e.g. 10,000 km.

D
Radiator antifreeze penetration into engine oil, e.g. through an

internal engine leak (cylinder head gasket, casting porosity).

The engine oil sludges within a short period. The crankcase

ventilation clogs up and stops functioning. Condensation

sludging clogs up the oil separator cells

(engine 166).
Rectify coolant leakage. Clean all sludged engine parts, in

particular the crankcase ventilation parts. If the occurrence

repeats, and casting porosity is suspected, e.g. replace

crankcase.

-----------------------------------------------------------------------------------------

Copyright DaimlerChrysler AG 20.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 1

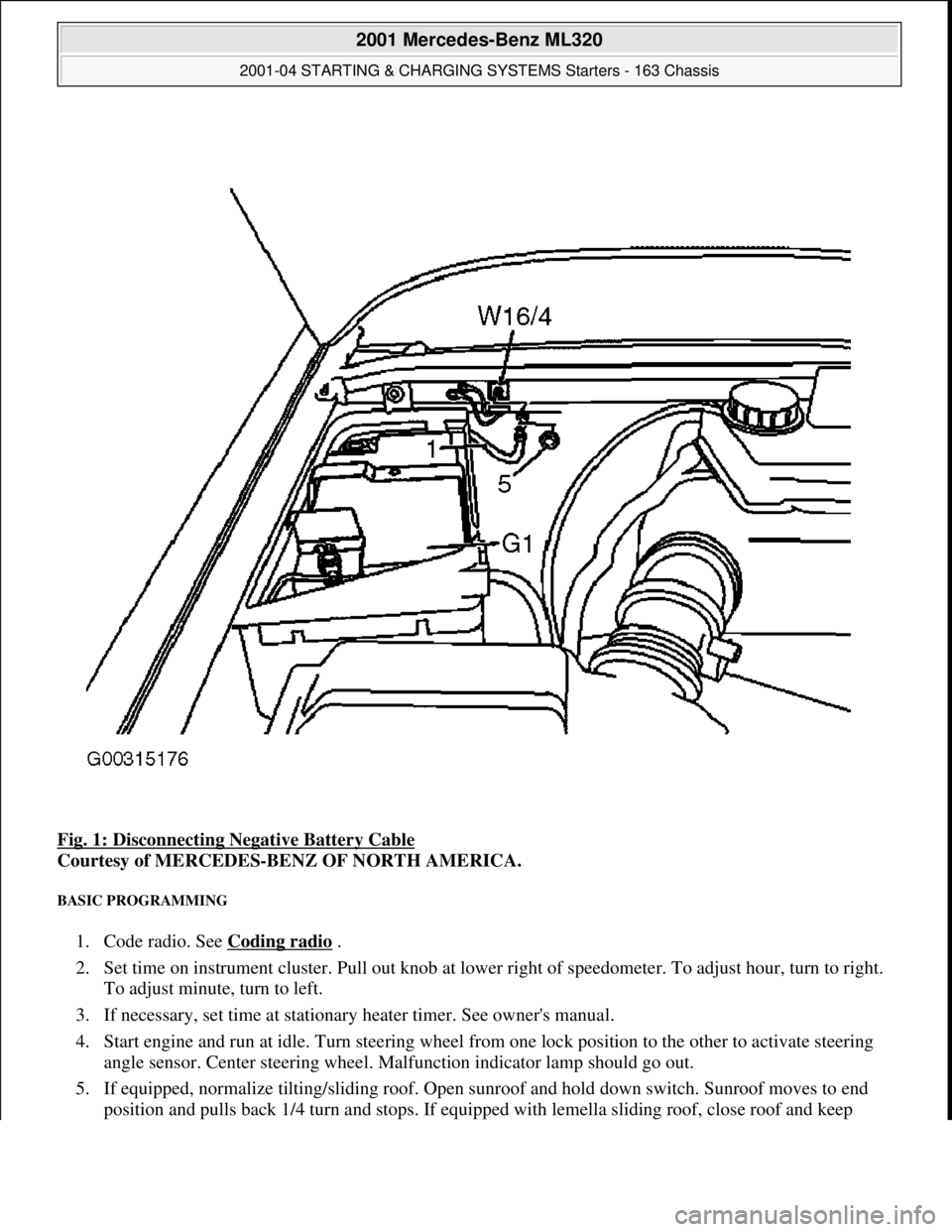

Fig. 1: Disconnecting Negative Battery Cable
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
BASIC PROGRAMMING
1. Code radio. See Coding radio .
2. Set time on instrument cluster. Pull out knob at lowe r right of speedometer. To adjust hour, turn to right.
To adjust minute, turn to left.
3. If necessary, set time at stationary heater timer. See owner's manual.
4. Start engine and run at idle. Turn steering wheel fr om one lock position to the other to activate steering
angle sensor. Center steering wheel. Ma lfunction indicator lamp should go out.
5. If equipped, normalize ti lting/sliding roof. Open sunroof and hold down switch. Sunroof moves to end
position and pulls back 1/4 turn and stops. If equipped with lemella slidin
g roof, close roof and keep

2001 Mercedes-Benz ML320
2001-04 STARTING & CHARGING SYSTEMS Starters - 163 Chassis
me
Saturday, October 02, 2010 3:19:47 PMPage 3 © 2006 Mitchell Repair Information Company, LLC.

GF54.30-P-3009A
Stepper motor, location/design/function
7.7.99

MODEL
129, 140 as of 1.6.96,

163, 168, 170,

202 as of 1.8.96,

208,

210 as of 1.6.96,

215, 220

P54.30-0521-06

General

Stepper motors are motors which, like most

electric motors, consist of a fixed stator and a

moveable rotor. The rotary motion is not

continuous, rather the rotor turns in steps, a

certain angle at a time, for example 90°.

Design

The illustration shows the basic design of a
stepper motor with 1 pole pair and 2 phases.

The stator is made of magnetically soft iron

and holds the windings. Opposite windings

belong together and form a phase (in this

case, a and b). The rotor consists of a

permanent magnet. In the illustration the rotor

has 1 pole pair.

Function

The rotor is turned by applying current

through phase aor b (see illustration). The

magnetism in the stator changes according to

the polarization (I) of the phases.

The rotor will turn so that its south pole (S) is at the north pole (N) of

the stator and its north pole (N) is at the south pole (S) of the stator.

The illustration shows a full rotation of the rotor. The rotor moves in

steps of 90° from positions 1 through 4 and back to its starting

position.

Unlike normal electric motors, the motor can stop in each of these

positions with a certain holding torque. This type of motor is therefore
particularly suitable for use as a servomotor for exact positioning.
The size of the steps can be reduced considerably by increasing the

number of pole pairs and phases.

Theoretically, it is even possible to make the steps infinitely small

with just a few poles and phases by using complicated electronic

phase control (sine-cosine control).

Stepper motors (with sine-cosine control) are used, for example, for

pointing instruments in the instrument cluster (A1).

Copyright DaimlerChrysler AG 04.06.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 1

P88.30-2110-01

Press off detachable body component (2) with long wedge to obtain better access to

remaining glued points.

4
Remove attached part (2) from front fender or rear fender.

P88.30-2114-01

Remove attached part from tailgate:

5
Open tailgate half way and hold in this position.

6
Position pneumatic tool (1) on adhesive tape and insert blade between tailgate and

attached part (3).

7
Cut through bead of glue starting at top all the way around with

slight up and down motions until the attached part is loose.
Insert long wedges in cut area between tailgate and attached part

(3) to obtain better access to remaining bead of glue.

8
Remove attached part (3) from tailgate.

Do not damage paint. Cut through bead of glue between body

and attached part with cutting tool by moving tool up and down at an

angle of 90° to bead of glue.

Stop tool when inserting or removing blade between body and

attached part.

Flat side of blade always points in direction of body when cutting.

Sharpen blade before use. When removing several detachable body

components sharpen blade in between.

Copyright DaimlerChrysler AG 17.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 2
