1997 MERCEDES-BENZ ML430 traction control

AR82.20-P-1100GH
Remove/install front overhead control panel
27.5.97

MODEL
163.113 /128 /136 /154 /157 /172 /174 /175

P68.00-0650-06

1
Garage door opener flap

2
Overhead control panel

3
Cover

4
Glass covers

5
Bolts

6
Retaining clip

7
Clips (black)

N41
Trip computer control module

S13/2
SR switch

X18/2
Interior/roof connector


Remove/install

1
Remove garage door opener flap (1) from

overhead control panel (2)

2
Unclip cover (3) on the sliding/tilting roof

switch (S13/2)
4 clips.

3
Unclip glass covers (4) from interior lights

4
Unscrew screws (5) below garage door

opener flap (1) and glass covers (4)

5
Unclip clips (black) (7) next to the light

switches


Installation:
Counterhold mounting plate
with puller hooks inside of headliner.

Hooked extraction tool

*140589023300

6
Press both retaining clips (6) to rear and

simultaneously press overhead control panel

(2) to front


Position narrow plastic wedge or

screwdriver in front of retaining lugs.

7
Remove overhead control panel (2) downward

8
Remove sliding/tilting roof switch (S13/2)

AR77.20-P-0001GH
9.1
Remove trip computer control module (TRIP)

(N41)

With code 245, trip computer, only.

AR54.50-P-0001GH

10
Detach interior/roof connector (X18/2) from

overhead control panel (2)

11
Remove overhead control panel (2)

12
Install in the reverse order
Hooked extraction tool

140 589 02 33 00

Copyright DaimlerChrysler AG 09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 1

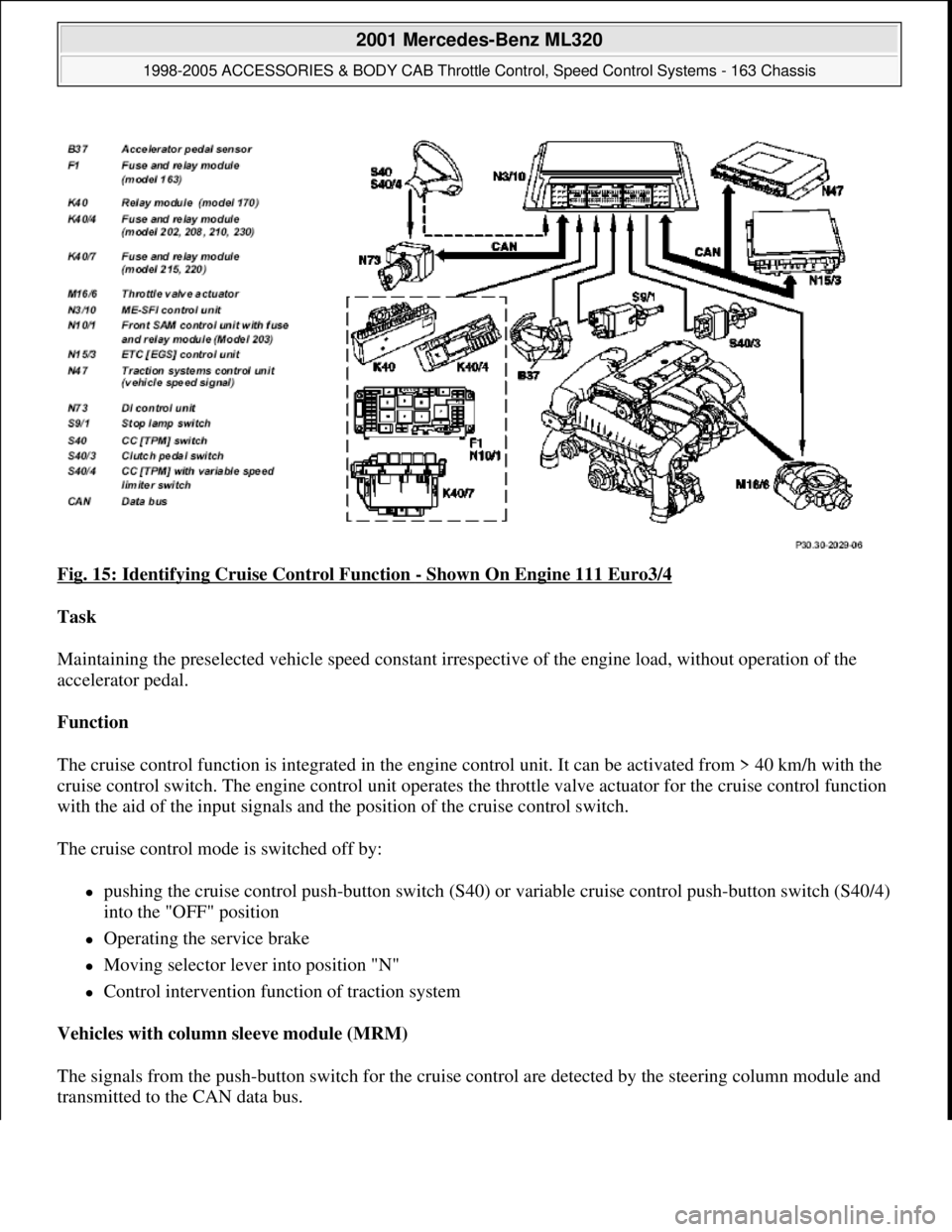

Fig. 15: Identifying Cruise Control Function - Shown On Engine 111 Euro3/4
Task
Maintaining the preselected vehicle speed constant irrespective of the engine load, without operation of the
accelerator pedal.
Function
The cruise control function is integrated in the engine control unit. It can be activated from > 40 km/h with the
cruise control switch. The engine control unit operates the throttle valve actuator for the cruise control function
with the aid of the input signals and the position of the cruise control switch.
The cruise control mode is switched off by:
pushing the cruise control push-button switch (S40) or variable cruise control push-button switch (S40/4)
into the "OFF" position
Operating the service brake
Moving selector lever into position "N"
Control intervention function of traction system
Vehicles with column sleeve module (MRM)
The signals from the push-button switch for the cruise control are detected by the steering column module and
transmitted to the CAN data bus.

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY CAB Throttle Control, Speed Control Systems - 163 Chassis
me
Saturday, October 02, 2010 3:36:27 PMPage 26 © 2006 Mitchell Repair Information Company, LLC.

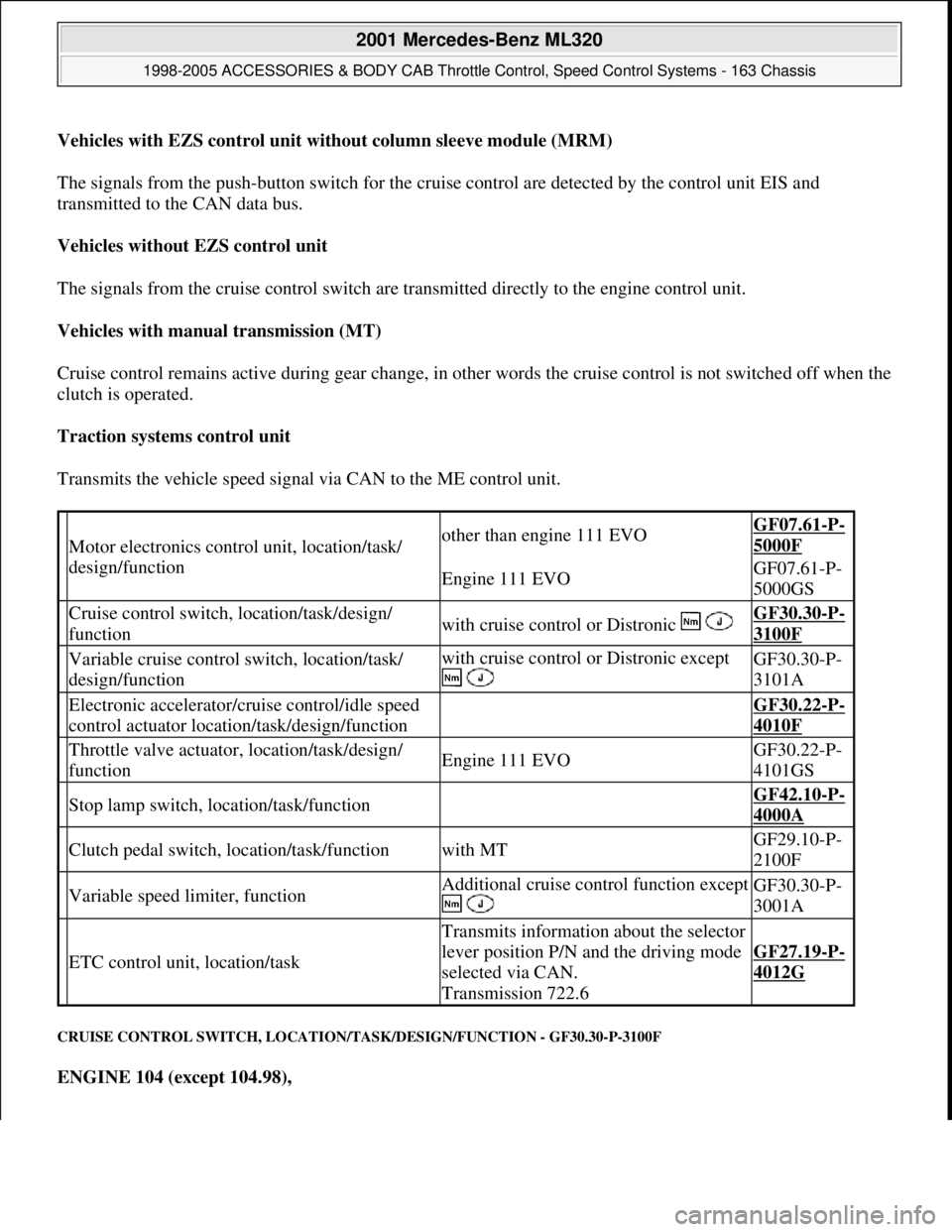

Vehicles with EZS control unit without column sleeve module (MRM)
The signals from the push-button switch for the cruise control are detected by the control unit EIS and
transmitted to the CAN data bus.
Vehicles without EZS control unit
The signals from the cruise control switch are transmitted directly to the engine control unit.
Vehicles with manual transmission (MT)
Cruise control remains active during gear change, in other words the cruise control is not switched off when the
clutch is operated.
Traction systems control unit
Transmits the vehicle speed signal via CAN to the ME control unit.
CRUISE CONTROL SWITCH, LOCATION/TASK/DESIGN/FUNCTION - GF30.30-P-3100F
ENGINE 104 (except 104.98),
Motor electronics control unit, location/task/
design/functionother than engine 111 EVOGF07.61-P-
5000F
Engine 111 EVOGF07.61-P-
5000GS
Cruise control switch, location/task/design/
functionwith cruise control or Distronic GF30.30-P-
3100F
Variable cruise control switch, location/task/
design/functionwith cruise control or Distronic except
GF30.30-P-
3101A
Electronic accelerator/cruise control/idle speed
control actuator location/task/design/function GF30.22-P-
4010F
Throttle valve actuator, location/task/design/
functionEngine 111 EVOGF30.22-P-
4101GS
Stop lamp switch, location/task/function GF42.10-P-
4000A
Clutch pedal switch, location/task/functionwith MTGF29.10-P-
2100F
Variable speed limiter, functionAdditional cruise control function except
GF30.30-P-
3001A
ETC control unit, location/task
Transmits information about the selector
lever position P/N and the driving mode
selected via CAN.
Transmission 722.6
GF27.19-P-
4012G

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY CAB Throttle Control, Speed Control Systems - 163 Chassis
me
Saturday, October 02, 2010 3:36:27 PMPage 27 © 2006 Mitchell Repair Information Company, LLC.

AD54.30-P-5000-02A
Display instruments controlled via CAN

troubleshooting chart IC

The following display instruments or indicator lamps/ malfunction

indicator lamps receive their information from the traction system

control module (N47) via CAN data buses (an appropriate message

appears in the display on vehicles with multi-function display):

D
Total mileage recorder, trip odometer

D
Electronic speedometer

D
Low brake fluid level/parking brake indicator lamp (except model 163

parking brake indicator lamp only via CAN)

D
Brake pad wear indicator lamp

D
ABS MIL

D
ETS, ASR, ESP indicator lamp

D
ETS, ASR, ESP malfunction indicator lamp

Model 163 only:

The
"Low-Range"
indicator lamp receives its information from the

transfer case control module (N78) via CAN data buses.

The
"Fog lamps"
indicator lamp (only model 163 except

I
) receives

its information from the All-activity module (AAM, N10) via CAN data

buses.

Model 168 only:

The
" Gear indicator "
indicator lamp receives its information from the

gear recognition module (A61) or from automatic clutch control module

(N15/4) via CAN data buses.
The following display instruments or indicator lamps/

malfunction indicator lamps receive their information from the

injection system control module (N3) via CAN data buses (an

appropriate message appears in the display on vehicles with

multi-function display):

D
Tachometer

D
Low engine oil level lamp

D
Engine coolant temperature

D
Preglow indicator lamp (diesel only)

D
Vehicle speed warning

D
Vehicle speed limit warning

D
Severe leak warning (

I
only), the fuel reserve indicator lamp

(A1e4) flashes

D
Active Service System (ASSYST):

D
Oil condition

D
Oil level

D
Oil temperature

D
Mass volumetric efficiency (load moment)

D
Engine speed, engine coolant temperature

Copyright DaimlerChrysler AG 05.06.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 1
