1997 MERCEDES-BENZ ML350 trailer

ContentsSafety and Security........................... 57
Occupant safety................................... 58
Airbags ........................................... 59
Seat belts ....................................... 64
Children in the vehicle .................... 67
Blocking of rear door
window operation ........................... 73
Panic alarm .......................................... 75
Activating ....................................... 75
Deactivating ................................... 75
Driving and safety systems .................. 76
ABS ................................................ 76
BAS ................................................ 78
4-ETS .............................................. 79
EBP................................................. 80
ESP ................................................. 80
Anti-theft systems................................ 83
Immobilizer..................................... 83
Anti-theft alarm .............................. 83
Tow-away alarm,
glass breakage sensor.................... 84
Controls in detail............................... 87
Locking and unlocking ......................... 88
Remote control with folding key..... 88
Opening the doors
from the inside ............................... 90
Opening the liftgate ....................... 91
Closing the liftgate ......................... 92
Automatic central locking .............. 93
Locking and unlocking
from the inside ............................... 94
Seats ................................................... 95
Removing and installing
front seat head restraints............... 95
Rear seat head restraints ............... 96
Heated seats* ................................ 98
Rear seats ...................................... 99
Third row seats* .......................... 102
Memory function* ............................. 105
Storing exterior rear view mirror
parking position ........................... 105
Storing positions in memory ........ 106
Recalling positions from memory . 106Lighting ............................................. 107
Combination switch ..................... 107
Fog lamps .................................... 111
Hazard warning flasher ................ 112
Interior lighting ............................ 112
Instrument cluster ............................. 116
Instrument cluster illumination .... 116
Coolant temperature gauge ......... 117
Display in the speedometer ......... 117
Resetting trip odometer ............... 118
Tachometer .................................. 118
Outside temperature indicator ..... 118
Setting the clock .......................... 118
Automatic transmission ..................... 119
One-touch gearshifting ................ 120
Gear ranges ................................. 121
Gear selector lever position ......... 122
Accelerator position ..................... 123
Towing a trailer ............................ 124
Emergency operation
(Limp Home Mode) ...................... 124

ContentsOperation......................................... 191
The first 1000 miles (1500 km) ......... 192
Driving instructions ............................ 193
Drive sensibly – save fuel ............. 193
Drinking and driving ..................... 193
Pedals .......................................... 193
Power assistance ......................... 193
Brakes .......................................... 194
Driving off..................................... 195
Parking ......................................... 196
Tires ............................................. 196
Hydroplaning ................................ 197
Tire traction .................................. 197
Tire speed rating .......................... 198
Winter driving instructions ........... 198
Standing water ............................. 200
Off-road driving ............................ 200
Trailer towing ............................... 206
Passenger compartment .............. 211
Driving abroad .............................. 211
Control and operation of
radio transmitters......................... 211
Catalytic converter ....................... 212
Emission control........................... 212
Coolant temperature .................... 213At the gas station .............................. 214
Refueling ...................................... 214
Check regularly and before
a long trip ..................................... 215
Engine compartment ......................... 217
Hood ............................................ 217
Engine oil ..................................... 218
Transmission fluid level ................ 222
Coolant ........................................ 222
Battery ......................................... 223
Windshield washer system and
headlamp cleaning system* ......... 224
Tires and wheels ................................ 226
Important guidelines .................... 226
Life of tire..................................... 227
Direction of rotation ..................... 227
Checking tire inflation pressure ... 227
Rotating wheels ........................... 228
Winter driving .................................... 230
Winter tires .................................. 230
Block heater (Canada only) .......... 231
Snow chains ................................. 231Maintenance...................................... 232
Clearing the service indicator ...... 232
Service term exceeded ................ 233
Calling up the service indicator .... 233
Resetting the service indicator .... 233
Vehicle care....................................... 234
Cleaning and care of the vehicle .. 234
Practical hints................................. 241
What to do if … .................................. 242
Lamps in instrument cluster ........ 242
Additional indicators in the
speedometer display.................... 256
Where will I find ...? ........................... 257
First aid kit ................................... 257
Vehicle tool kit ............................. 257
Spare wheel (space-saver tire) ..... 259
Unlocking / locking in an emergency . 261
Unlocking the vehicle................... 261
Locking the vehicle ...................... 262
Changing batteries in the
remote control ............................. 262
Fuel filler flap ............................... 263
Manually unlocking the
transmission gear selector lever .. 264

124 Controls in detailAutomatic transmissionTowing a trailer
If you tow a trailer, note the following
points:

Manually shift to a lower gear range
(4,3, 2, 1), if the transmission hunts
between gears on inclines
(page 121).
A lower gear range and reduction of
speed reduces the change to overload
or overheat the engine.


At very steep inclines switch transfer
case to LOW RANGE mode
(page 125).
For more information on trailer towing, see
the “Operation” section (
page 206).Emergency operation (Limp Home
Mode)
If vehicle acceleration worsens or the
transmission no longer shifts, the trans-
mission is most likely operating in limp
home (emergency operation) mode. In this
mode only second gear and reverse gear
can be activated.
Stop the vehicle.

Move gear selector lever to positionP.

Turn off the engine.

Wait at least ten seconds before
restarting.

Restart the engine.

Move selector lever to positionD
(for second gear) orR.

Have the transmission checked at an
authorized Mercedes-Benz Light Truck
Center as soon as possible.

153 Controls in detail
Driving systems
Parktronic system* (Parking assist)
The Parktronic system assists the driver
during parking maneuvers. It visually and
audibly indicates the distance between the
vehicle and an obstacle.
With the ignition on, the Parktronic system
engages automatically at speeds up to ap-
proximately 10 mph (15 km / h) and deac-
tivates during higher speeds.Parktronic system monitors your vehicle’s
environment by means of six sensors in
the front bumper and four sensors in the
rear bumper.

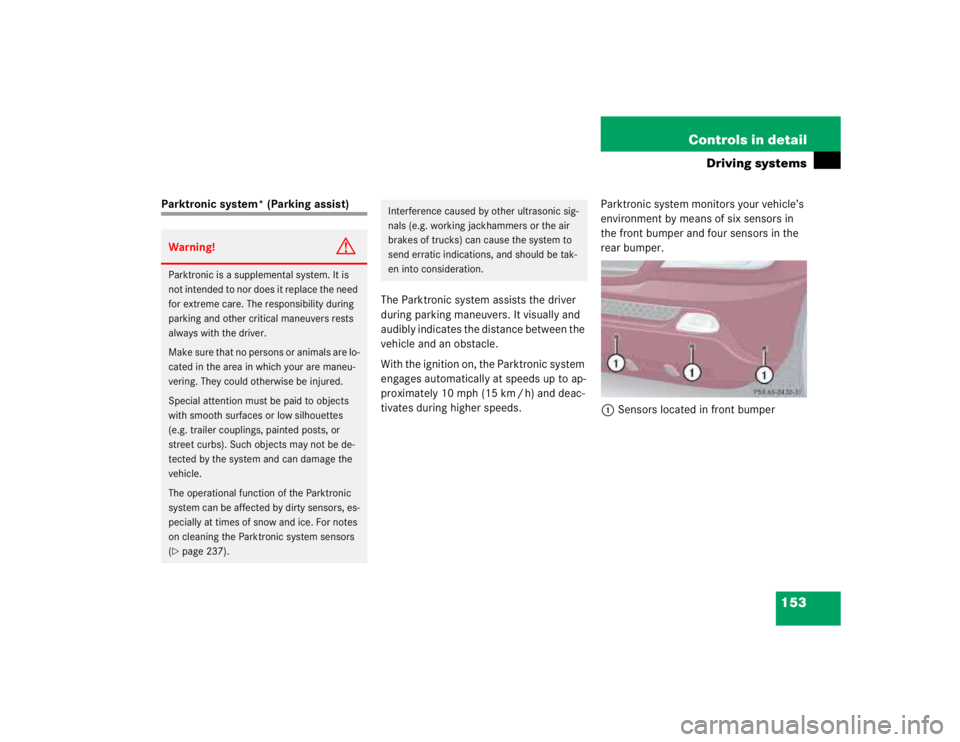

1Sensors located in front bumperWarning!
G
Parktronic is a supplemental system. It is
not intended to nor does it replace the need
for extreme care. The responsibility during
parking and other critical maneuvers rests
always with the driver.
Make sure that no persons or animals are lo-
cated in the area in which your are maneu-
vering. They could otherwise be injured.
Special attention must be paid to objects
with smooth surfaces or low silhouettes
(e.g. trailer couplings, painted posts, or
street curbs). Such objects may not be de-
tected by the system and can damage the
vehicle.
The operational function of the Parktronic
system can be affected by dirty sensors, es-
pecially at times of snow and ice. For notes
on cleaning the Parktronic system sensors
(page 237).
Interference caused by other ultrasonic sig-
nals (e.g. working jackhammers or the air
brakes of trucks) can cause the system to
send erratic indications, and should be tak-
en into consideration.

154 Controls in detailDriving systemsMonitoring reach of sensors
The sensors must be free of dirt, ice and
snow or they will be unable to function
properly. Clean the sensors regularly with-
out scratching or damaging them.Front sensors
Rear sensorsMinimum distance
When an obstacle is located in this area, all
warning displays will light up and a warning
tone will sound. If the vehicle moves closer
than the minimum distance to an object,
the distance may no longer be displayed.
Center
approx. 39 in (100 cm)
Corners
approx. 24 in (60 cm)
Center
approx. 47 in (120 cm)
Corners
approx. 32 in (80 cm)
iDuring parking maneuvers, pay special
attention to objects located above or
below the height of the sensors (e.g.
planters or trailer hitches). The Parktro-
nic system will not detect such objects
at close range and damage to your ve-
hicle or the object may result.
Ultrasonic signals from outside sourc-
es (e.g. truck air brakes or jackham-
mers) may impair the operation of the
Parktronic system.
Center
approx. 8 in (20 cm)
Corners
approx. 6 in (15 cm)

156 Controls in detailDriving systemsSwitching Parktronic system on / off
You can switch Parktronic system off
manually.
The switch is located on the lower part of
the center console.
1Parktronic off
2Indicator lamp
3Parktronic onSwitching Parktronic off

Press switch on the upper part1.
Indicator lamp2 comes on.
Switching Parktronic on

Press switch on the upper part3.
The indicator lamp2 goes out.!If the Parktronic system is malfunction-
ing, all red segments of the warning in-
dicators light up and an additional
warning sounds.
Contact your Mercedes-Benz Light
Truck Center as soon as possible.
iIf you switch the ignition on, the
Parktronic system will be automatically
switched on.
The rear Parktronic sensors will not au-
tomatically disengage when towing a
trailer. Therefore switch the Parktronic
system off.

196 OperationDriving instructionsParking
Tires
Tread wear indicators (TWI) are required by
law. These indicators are located in six
places on the tread circumference and be-
come visible at a tread depth of approxi-
mately
1/16
in (1.6 mm), at which point
the tire is considered worn and should be
replaced.
!Set the parking brake whenever park-
ing or leaving the vehicle. In addition,
move gear selector lever to positionP.
When parking on hills, always turn front
wheels towards the curb.
Warning!
G
To reduce the risk of personal injury, or
damage to the vehicle powertrain, as a re-
sult of vehicle / trailer movement, always:

Keep right foot on brake pedal.


Shift gear selector lever to positionN.


Have a second person place wheel
chocks on downhill side of left and right
trailer wheels.


Slowly release brake pedal and let vehi-
cle and trailer roll into chocks until
stopped.


Firmly depress parking brake pedal.


Move gear selector lever to positionP.


When parked on an incline, turn front
wheel towards the road curb.
Warning!
G
If you feel a sudden significant vibration or
ride disturbance, or you suspect that possi-
ble damage to your vehicle has occurred,
you should turn on the hazard warning flash-
ers, carefully slow down, and drive with cau-
ti o n t o an a r ea wh ic h is a s a fe d is ta n c e fr o m
the road.
Inspect the tires and the vehicle underbody
for possible damage. If the vehicle or tires
appear unsafe, have it towed to the nearest
Mercedes-Benz Light Truck Center or tire
dealer for repairs.

206 OperationDriving instructionsOff-road driving increases strain on the
vehicle.
We recommend that you inspect the vehi-
cle for possible damage after each off-road
trip. Recognizing any damage and a subse-
quent timely repair reduces the chance of
a possible breakdown or accident later on.
Proceed as follows:

Switch off the LOW RANGE mode
(page 125).


Remove excessive dirt from tires,
wheels, wheel housings, and under-
body.
For instance, after driving in mud, clean
the radiator, chassis, engine, brakes,
and wheels from extreme dirt using a
strong jet of water.


Inspect frame, oil pan, brake hoses,
etc., as well as vehicle underbody for
possible damage.


Check tires for possible damage, clean
all exterior lamps, and conduct a brake
test.


Check for brush or branches caught in
the undercarriage.
They could increase the possibility of a
fire, as well as cut fuel and / or brake
lines, puncture rubber bellows of the
axles or drive shafts.


After continued operation in mud,
sand, water or other dirty conditions
clean the brake discs, wheels, brake
pads and check and clean axle joints.
Trailer towingWarning!
G
Failure to use proper equipment and driving
technique can result in a loss of vehicle con-
trol when towing a trailer.
Improper towing or failure to follow the in-
structions contained in this guide can result
in serious injury. Follow the guidelines be-
low carefully to assure safe trailer operation.
Ask your authorized Mercedes-Benz Light
Truck Center should you require an explana-
tion of information contained in this guide.
