1997 MAZDA MX-5 engine

TORQUE SPECIFICATIONS
WIRING DIAGRAM
ApplicationFt. Lbs. (N.m)
Compressor Bracket-To-Engine Bolt28-38 (38-51)
Compressor-To-Compressor Bracket Bolt11-15 (15-21)
Refrigerant Pipe Fittings
Condenser Inlet11-18 (15-24)
Evaporator Outlet15-21 (20-29)
INCH Lbs. (N.m)
Evaporator Unit Nut71-97 (8-11)
Refrigerant Pipe Fittings
Compressor Inlet & Outlet89-132 (10-15)
Evaporator Inlet89-168 (10-19)
Receiver-Drier Inlet & Outlet89-168 (10-19)
Steering Wheel Nut79-121 (9-14)

1997 Mazda MX-5 Miata
A/C-HEATER SYSTEM - MANUAL 1997 Manual A/C-Heater System
Microsoft
Sunday, July 05, 2009 1:41:48 PMPage 9 © 2005 Mitchell Repair Information Company, LLC.

MAINTENANCE SERVICE INFORMATION
SEVERE & NORMAL SERVICE DEFINITIONS
Service is recommended at mileage intervals based on vehicle operation. Service schedules are based on
following primary operating conditions:
Normal Service
Driven More Than 10 Miles Daily
No Operating Conditions From Severe Service Schedule
Severe Service (Unique Driving Conditions)
Repeated Short Distance Driving
Dusty Conditions
Extended Use Of Brakes
Salt Or Other Corrosive Materials On The Roads
Rough Or Muddy Roads
Extended Idling Or Low Speed Operation
Extended Operation In Extreme Temperatures
CAMSHAFT TIMING BELT
Replace camshaft timing belt at 60,000 mile intervals.
The condition of camshaft drive belts should always be checked on vehicles which have more than 50,000
miles. Although some manufacturers do not recommend belt replacement at a specified mileage, others require
it at 60,000-100,000 miles. A camshaft drive belt failure may cause extensive damage to internal engine
components on most engines, although some designs do not allow piston-to-valve contact. These designs are
often called "Free Wheeling".
Many manufacturers changed their maintenance and warranty schedules in the mid-1980's to reflect timing belt
inspection and/or replacement at 50,000-60,000 miles. Most service interval schedules in this manual reflect
these changes.
Belts or components should be inspected and replaced if any of the following conditions exist: NOTE: Use the Severe Service schedule if the vehicle to be serviced is operated under
ANY (one or more) of these conditions:
CAUTION: Failure to replace a faulty camshaft timing belt may result in serious
engine damage.

1997 Mazda MX-5 Miata
MAINTENANCE INFORMATION 1997 MAINTENANCE Mazda Maintenance Information
Microsoft
Sunday, July 05, 2009 1:41:19 PMPage 2 © 2005 Mitchell Repair Information Company, LLC.

Cracks Or Tears In Belt Surface
Missing, Damaged, Cracked Or Rounded Teeth
Oil Contamination
Damaged Or Faulty Tensioners
Incorrect Tension Adjustment
SERVICE POINT LOCATIONS
Fig. 2: Service Point Locations
Courtesy of MAZDA MOTOR OF AMERICA, INC.
LUBRICATION SPECIFICATIONS
LUBRICATION SPECIFICATIONS
MaterialConditionSpecification
Engine Oil (1) Ambient Temperature Above -10°
F (-23°C) To Over 100°F (38°C)SAE 10W-30
Engine Oil (1) Ambient Temperature Less Than -
10°F (-23°C) To 60°F (16°C)SAE 5W-30
Engine CoolantAbove 3°F (-16°C) Above -15°F
(-26°C) Above -40°F (-40°C)35/65 Mixture 45/55 Mixture
55/45 Mixture Distilled Water
Ethylene Glycol
Brake FluidAllDOT 3
Automatic Transaxle FluidAllATF M-III or DEXRON II
Manual Transaxle FluidAllHypoid Gear Oil API
Classification GL-4 or GL-5 SAE
75W-90 Above 50°F (10°C):
80W-90
A/C RefrigerantAllR-134a

1997 Mazda MX-5 Miata
MAINTENANCE INFORMATION 1997 MAINTENANCE Mazda Maintenance Information
Microsoft
Sunday, July 05, 2009 1:41:19 PMPage 3 © 2005 Mitchell Repair Information Company, LLC.

FLUID CAPACITIES
FLUID CAPACITIES
WHEEL & TIRE SPECIFICATIONS
WHEEL TIGHTENING
Tighten wheel lug nuts to 65-87 ft. lbs. (88-118 N.m).
BATTERY SPECIFICATIONS
Vehicle is equipped with a special 9 9/16" x 4 3/4" x 7 3/8" 12-volt battery that is vented to outside of vehicle.
CAUTIONS & WARNINGS
SUPPLEMENTAL RESTRAINT SYSTEM (AIR BAG)
Modifications or improper maintenance, including incorrect removal and installation of the Supplemental
Restraint System (SRS), can adversely affect system performance. DO NOT cover, obstruct or change the
steerin
g wheel horn pad in any way, as such action could cause improper function of the system. Use only plain
(1)Energy conserving oils are recommended, API classification SG", "SH".
ItemConditionSpecification (1)
Engine OilDrained, With Filter4.0 Qts. (3.8L)
Engine OilDrained3.8 Qts. (3.6L)
Engine CoolantDrained6.3 Qts. (6.0L)
Automatic Transaxle FluidCapacity7.1 Qts. (6.7L)
Manual Transaxle FluidCapacity2.1 Qts. (2.0L)
Rear Axle OilCapacity1.1 Qts. (l.0L)
A/C RefrigerantEvacuated1 lb. 3.4 oz. (0.6kg)
Fuel TankCapacity12.6 Gal. (48.0L)
(1)Capacities are recommended or calculated levels. Always use dipstick (if available) to measure level.
CAUTION: When battery is disconnected, vehicles equipped with computers may
lose memory data. When battery power is restored, driveability problems
may exist on some vehicles. These vehicles may require a relearn
procedure. See COMPUTER RELEARN PROCEDURES article in the
GENERAL INFORMATION Section.
NOTE: See the AIR BAG RESTRAINT SYSTEM article in the ACCESSORIES/SAFETY
EQUIPMENT Section.

1997 Mazda MX-5 Miata
MAINTENANCE INFORMATION 1997 MAINTENANCE Mazda Maintenance Information
Microsoft
Sunday, July 05, 2009 1:41:19 PMPage 4 © 2005 Mitchell Repair Information Company, LLC.

REPLACING BLOWN FUSES
BRAKE PAD WEAR INDICATOR
CATALYTIC CONVERTER
ELECTROSTATIC DISCHARGE SENSITIVE (ESD) PARTS
ENGINE OIL
FUEL SYSTEM SERVICE WARNING:When battery is disconnected, vehicles equipped with computers may
lose memory data. When battery power is restored, driveability problems
may exist on some vehicles. These vehicles may require a relearn
procedure. See COMPUTER RELEARN PROCEDURES article in GENERAL
INFORMATION section.
CAUTION: Before replacing a blown fuse, remove ignition key, turn off all lights and
accessories to avoid damaging the electrical system. Be sure to use fuse
with the correct indicated amperage rating. The use of an incorrect
amperage rating fuse may result in a dangerous electrical system
overload.
CAUTION: Indicator will cause a squealing or scraping noise, warning that brake
pads need replacement.
CAUTION: Continued operation of vehicle with a severe malfunction could cause
converter to overheat, resulting in possible damage to converter and
vehicle.
CAUTION: Any modification to the exhaust system on turbo models, which reduces
exhaust backpressure, will lead to lean fuel mixtures and excessive spark
advance. This could cause serious engine damage.
WARNING:Many solid state electrical components can be damaged by static
electricity (ESD). Some will display a warning label, but many will not.
Discharge personal static electricity by touching a metal ground point on
the vehicle prior to servicing any ESD sensitive component.
CAUTION: Never use non-detergent or straight mineral oil.

1997 Mazda MX-5 Miata
MAINTENANCE INFORMATION 1997 MAINTENANCE Mazda Maintenance Information
Microsoft
Sunday, July 05, 2009 1:41:19 PMPage 6 © 2005 Mitchell Repair Information Company, LLC.

HALOGEN BULBS
HEADLIGHT RETRACTOR
RADIATOR CAP
RADIATOR FAN
WARRANTY INFORMATION
BASIC NEW CAR WARRANTY
Basic components are warranted against defects in materials and workmanship for 36 months or 50,000 miles,
whichever occurs first. Tires are covered by a separate warranty offered by tire manufacturer.
ANTI-PERFORATION WARRANTY
Covers body sheet metal panels for 60 months, regardless of mileage, against perforation due to corrosion.
SAFETY RESTRAINT SYSTEM WARRANTY WARNING:Relieve fuel system pressure prior to servicing any fuel system
component (fuel injection models).
WARNING:Halogen bulbs contain pressurized gas which may explode if overheated.
DO NOT touch glass portion of bulb with bare hands. Eye protection
should be worn when handling or working around halogen bulbs.
CAUTION: If headlight retractor freezes during cold weather operation, DO NOT
attempt to force mechanism. Headlights should be kept raised at all times
in cold weather. To raise them, use only headlight retractor switch. DO
NOT use headlight switch.
CAUTION: Always disconnect the fan motor when working near the radiator fan. The
fan is temperature controlled and could start at any time even when the
ignition key is in the OFF position. DO NOT loosen or remove radiator cap
when cooling system is hot.
WARNING:Keep hands away from radiator fan. Fan is controlled by a thermostatic
switch which may come on or run for up to 15 minutes even after engine
is turned off.
CAUTION: Always refer to customer's copy of warranty information for specific
model application and/or coverage limitations.

1997 Mazda MX-5 Miata
MAINTENANCE INFORMATION 1997 MAINTENANCE Mazda Maintenance Information
Microsoft
Sunday, July 05, 2009 1:41:19 PMPage 7 © 2005 Mitchell Repair Information Company, LLC.

Supplemental air bag system, seat belts and related components are warranted for 5 years or 60,000 miles,
whichever comes first, against defects in materials and workmanship.
REPLACEMENT PARTS & ACCESSORIES
Manufacturer-supplied parts and accessories are warranted against defects in material or workmanship for 12
months without regard to mileage. If installed by a Mazda dealer, part or accessory will be repaired or replaced
without charge during warranty period. If not installed by a dealer, part or accessory will be repaired or replaced
without charge for parts, but labor cost will be responsibility of owner.
EMISSION DEFECT WARRANTY (EXCEPT CALIFORNIA)
Warrants that vehicle was designed, built and equipped to conform with applicable Federal emission regulations
at time of sale and that vehicle is free of defects in materials and workmanship which may cause vehicle to fail
to conform with applicable regulations for 5 years or 50,000 miles, whichever occurs first.
EMISSION PERFORMANCE WARRANTY (EXCEPT CALIFORNIA)
Covers all repairs, adjustments and replacements if vehicle fails to conform to applicable emission standards
and such failure results in vehicle owner bearing a penalty or other sanction under local, state or Federal law.
Warranty period is 5 years or 50,000 miles, whichever comes first. After 2 years or 24,000 miles, manufacturer
will make necessary adjustments, repairs and replacements at no cost to owner only when noncompliance is
caused by failure of components which have been installed in vehicle for sole or primary purpose of reducing
vehicle emissions. See copy of warranty for specific components covered.
EMISSION DEFECT WARRANTY (CALIFORNIA)
For 3 years or 50,000 miles, whichever occurs first, any defective emission-related part on vehicle will be
repaired or replaced by manufacturer at no cost to owner. Certain emission-related parts are covered for repair
or replacement for 7 years or 70,000 miles, whichever occurs first. See copy of warranty for specific
components covered.
EMISSION PERFORMANCE WARRANTY (CALIFORNIA)
For 3 years or 50,000 miles, manufacturer will make all necessary repairs and adjustments to ensure vehicle
passes a required Smog Check inspection.
FUSES & CIRCUIT BREAKERS
FUSE PANEL LOCATION
Fuse box is located above driver's left knee, accessible through a removable cover. The main fuse block is
located at the right rear of the engine compartment.
The Trunk Mounted Fuse Panel is located on the ri
ght side of the trunk, near the trunk hinge.

1997 Mazda MX-5 Miata
MAINTENANCE INFORMATION 1997 MAINTENANCE Mazda Maintenance Information
Microsoft
Sunday, July 05, 2009 1:41:19 PMPage 8 © 2005 Mitchell Repair Information Company, LLC.

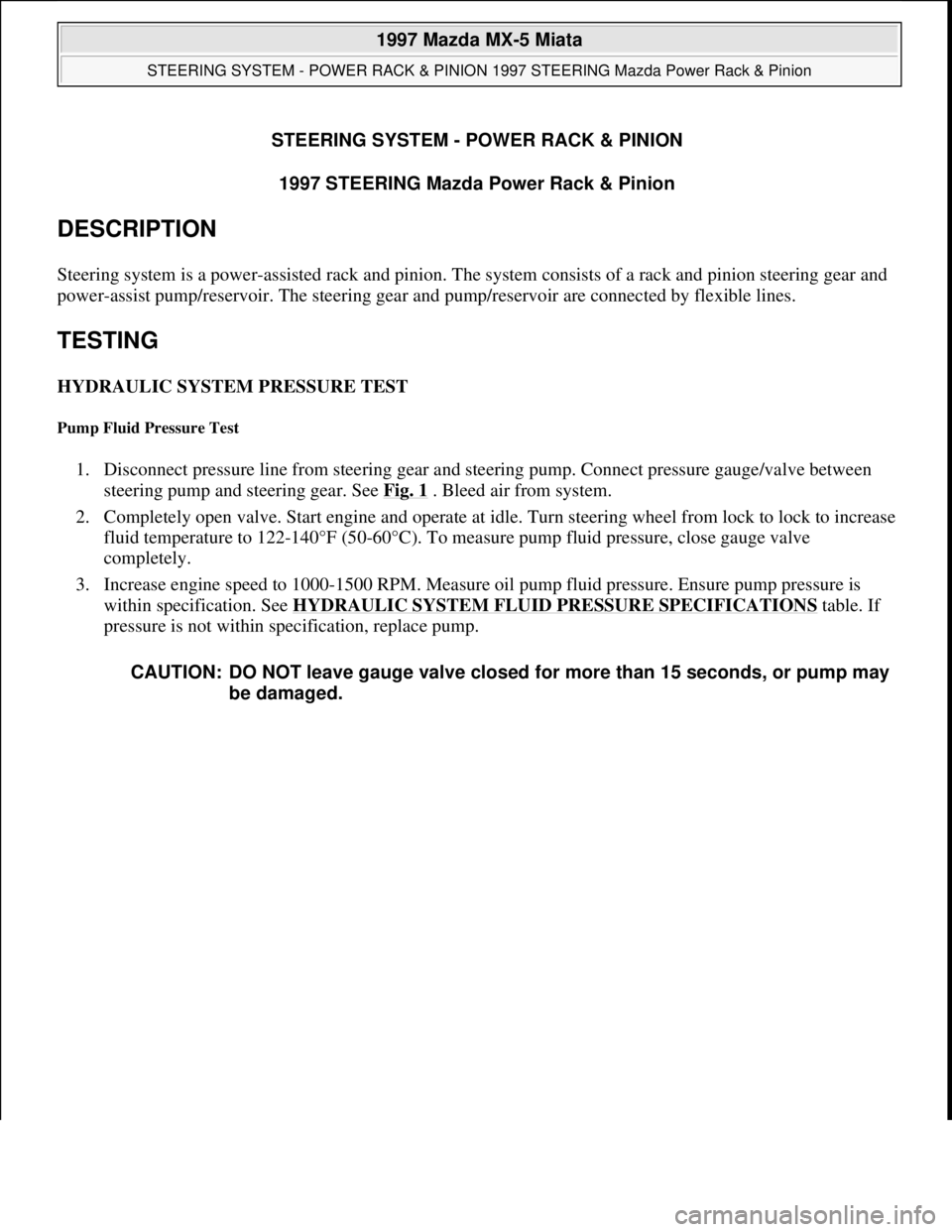

STEERING SYSTEM - POWER RACK & PINION
1997 STEERING Mazda Power Rack & Pinion
DESCRIPTION
Steering system is a power-assisted rack and pinion. The system consists of a rack and pinion steering gear and
power-assist pump/reservoir. The steering gear and pump/reservoir are connected by flexible lines.
TESTING
HYDRAULIC SYSTEM PRESSURE TEST
Pump Fluid Pressure Test
1. Disconnect pressure line from steering gear and steering pump. Connect pressure gauge/valve between
steering pump and steering gear. See Fig. 1
. Bleed air from system.
2. Completely open valve. Start engine and operate at idle. Turn steering wheel from lock to lock to increase
fluid temperature to 122-140°F (50-60°C). To measure pump fluid pressure, close gauge valve
completely.
3. Increase engine speed to 1000-1500 RPM. Measure oil pump fluid pressure. Ensure pump pressure is
within specification. See HYDRAULIC SYSTEM FLUID PRESSURE SPECIFICATIONS
table. If
pressure is not within specification, replace pump.
CAUTION: DO NOT leave gauge valve closed for more than 15 seconds, or pump may
be damaged.

1997 Mazda MX-5 Miata
STEERING SYSTEM - POWER RACK & PINION 1997 STEERING Mazda Power Rack & Pinion

1997 Mazda MX-5 Miata
STEERING SYSTEM - POWER RACK & PINION 1997 STEERING Mazda Power Rack & Pinion
Microsoft
Sunday, July 05, 2009 1:39:26 PMPage 1 © 2005 Mitchell Repair Information Company, LLC.
Microsoft
Sunday, July 05, 2009 1:39:30 PMPage 1 © 2005 Mitchell Repair Information Company, LLC.
