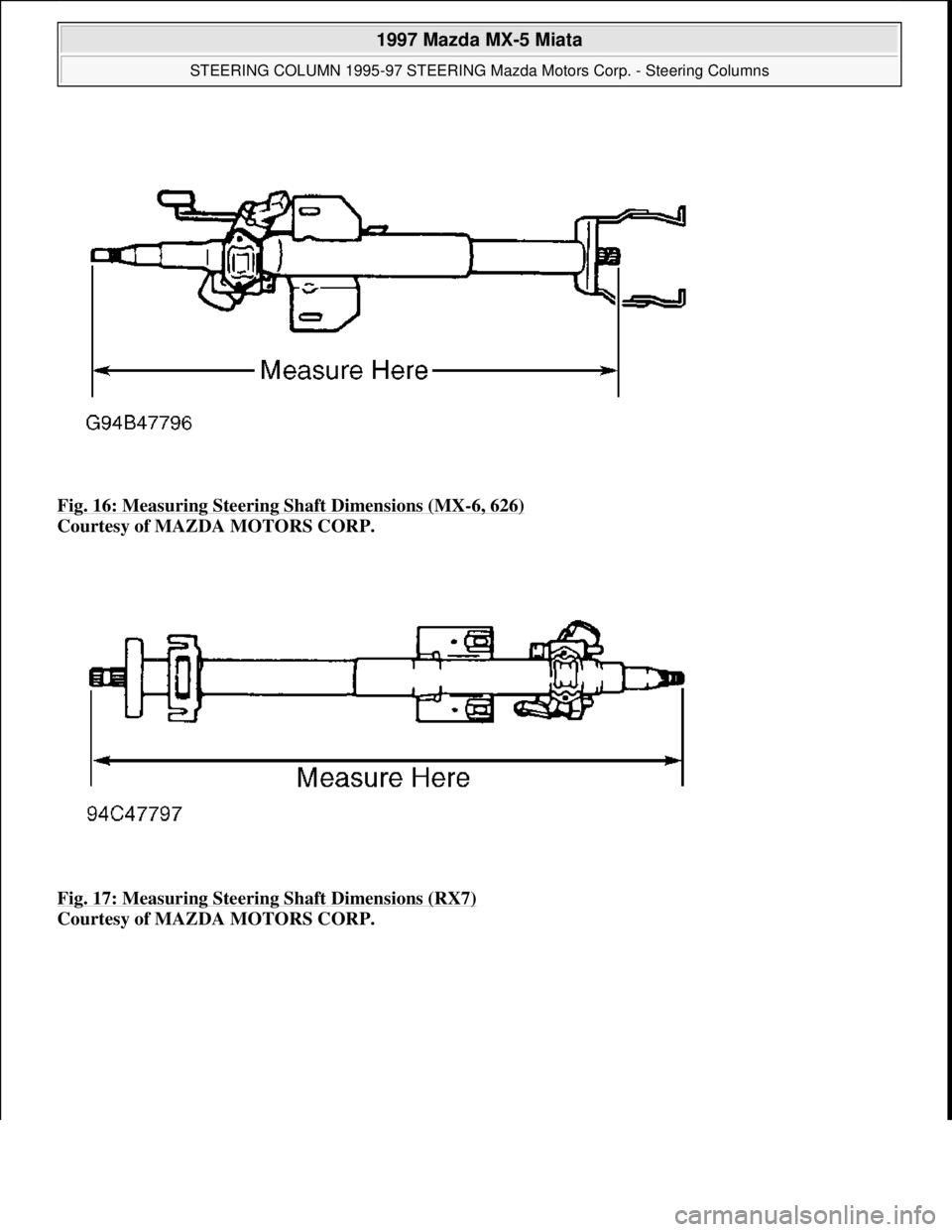

Fig. 16: Measuring Steering Shaft Dimensions (MX-6, 626)
Courtesy of MAZDA MOTORS CORP.
Fig. 17: Measuring Steering Shaft Dimensions (RX7)

Courtesy of MAZDA MOTORS CORP.

1997 Mazda MX-5 Miata
STEERING COLUMN 1995-97 STEERING Mazda Motors Corp. - Steering Columns
Microsoft
Sunday, July 05, 2009 1:40:02 PMPage 19 © 2005 Mitchell Repair Information Company, LLC.

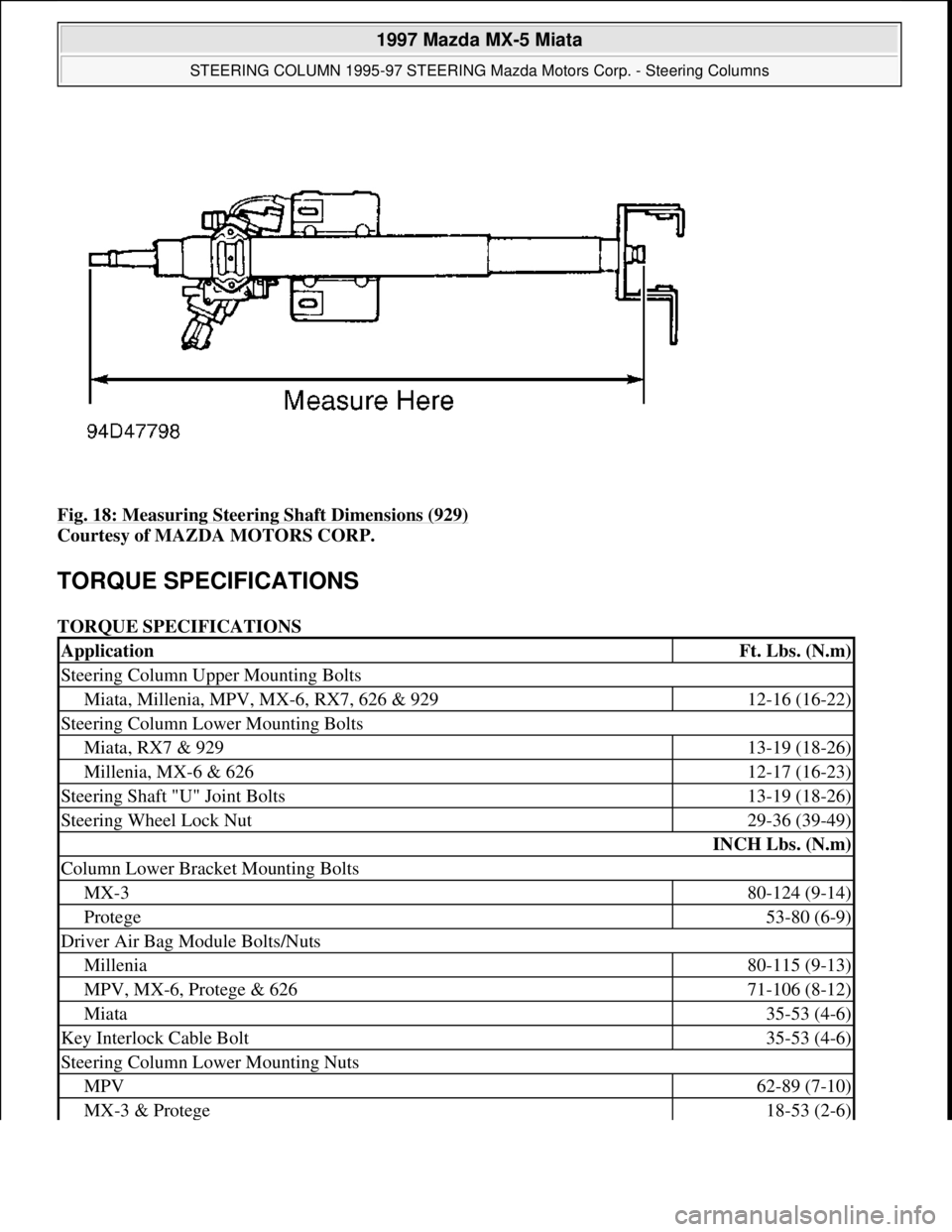

Fig. 18: Measuring Steering Shaft Dimensions (929)
Courtesy of MAZDA MOTORS CORP.
TORQUE SPECIFICATIONS
TORQUE SPECIFICATIONS
ApplicationFt. Lbs. (N.m)
Steering Column Upper Mounting Bolts
Miata, Millenia, MPV, MX-6, RX7, 626 & 92912-16 (16-22)
Steering Column Lower Mounting Bolts
Miata, RX7 & 92913-19 (18-26)
Millenia, MX-6 & 62612-17 (16-23)
Steering Shaft "U" Joint Bolts13-19 (18-26)
Steering Wheel Lock Nut29-36 (39-49)
INCH Lbs. (N.m)
Column Lower Bracket Mounting Bolts
MX-380-124 (9-14)
Protege53-80 (6-9)
Driver Air Bag Module Bolts/Nuts
Millenia80-115 (9-13)
MPV, MX-6, Protege & 62671-106 (8-12)
Miata35-53 (4-6)
Key Interlock Cable Bolt35-53 (4-6)
Steering Column Lower Mounting Nuts
MPV62-89 (7-10)
MX-3 & Protege18-53 (2-6)

1997 Mazda MX-5 Miata
STEERING COLUMN 1995-97 STEERING Mazda Motors Corp. - Steering Columns
Microsoft
Sunday, July 05, 2009 1:40:02 PMPage 20 © 2005 Mitchell Repair Information Company, LLC.

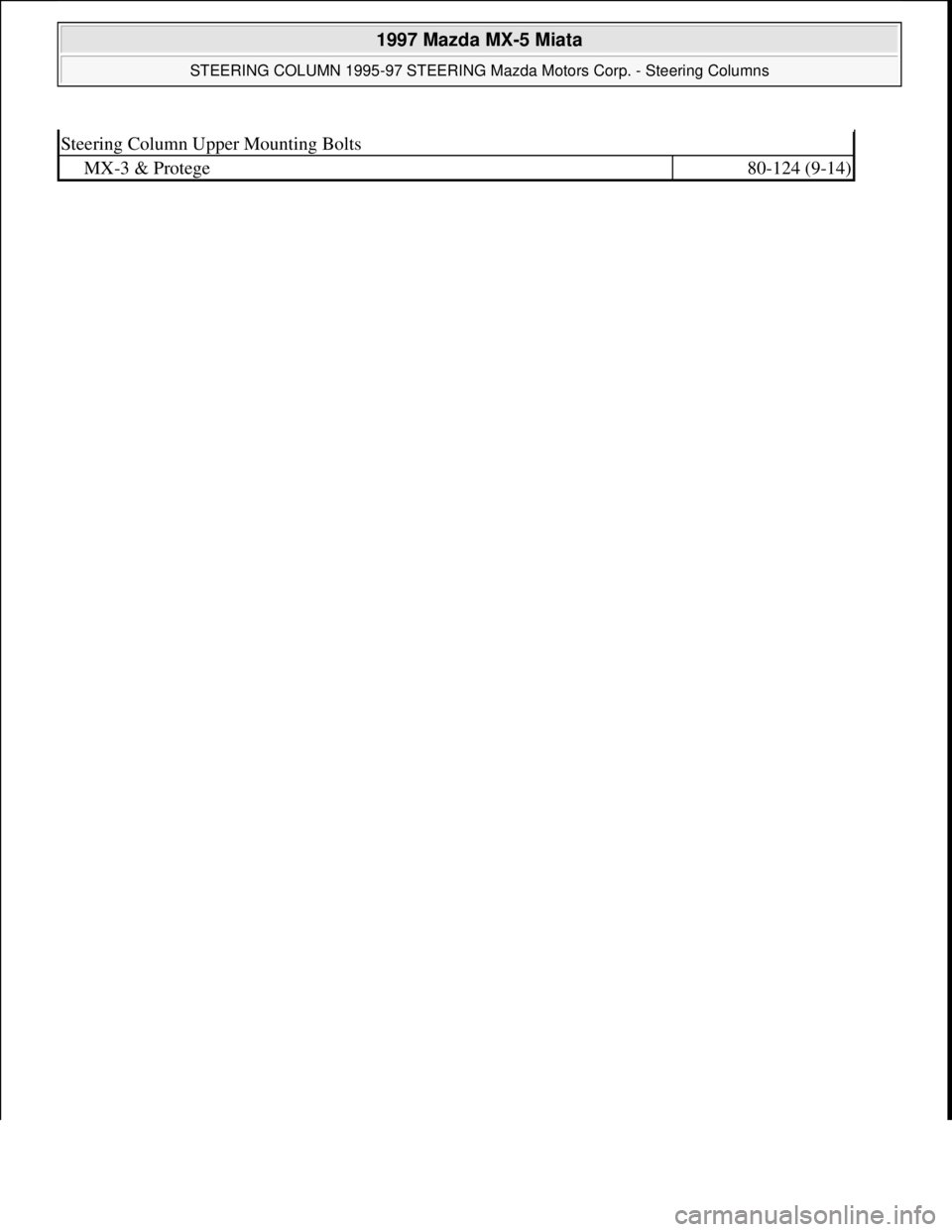

Steering Column Upper Mounting Bolts
MX-3 & Protege80-124 (9-14)

1997 Mazda MX-5 Miata
STEERING COLUMN 1995-97 STEERING Mazda Motors Corp. - Steering Columns
Microsoft
Sunday, July 05, 2009 1:40:02 PMPage 21 © 2005 Mitchell Repair Information Company, LLC.

1997-98 APPLICATIONS & IDENTIFICATION
Oil Pan Gasket Identification
AUTOMATIC TRANSMISSIONS
Fig. 1: Aisin-Warner 03-72LE Pan Gasket

1997 Mazda MX-5 Miata
1997-98 APPLICATIONS & IDENTIFICATION Oil Pan Gasket Identification

1997 Mazda MX-5 Miata
1997-98 APPLICATIONS & IDENTIFICATION Oil Pan Gasket Identification
Microsoft
Sunday, July 05, 2009 1:34:22 PMPage 1 © 2005 Mitchell Repair Information Company, LLC.
Microsoft
Sunday, July 05, 2009 1:34:28 PMPage 1 © 2005 Mitchell Repair Information Company, LLC.

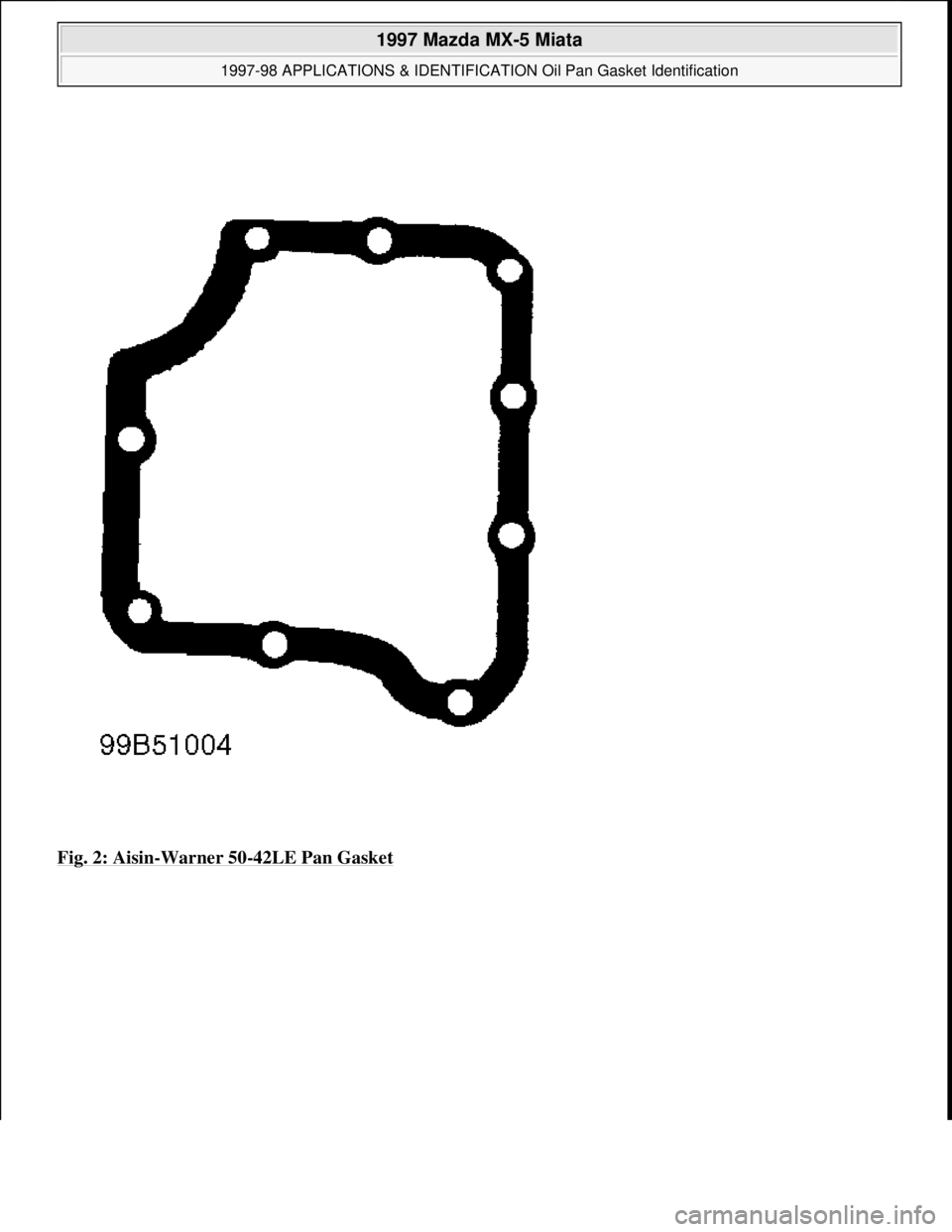

Fig. 2: Aisin-Warner 50-42LE Pan Gasket

1997 Mazda MX-5 Miata
1997-98 APPLICATIONS & IDENTIFICATION Oil Pan Gasket Identification
Microsoft
Sunday, July 05, 2009 1:34:22 PMPage 2 © 2005 Mitchell Repair Information Company, LLC.

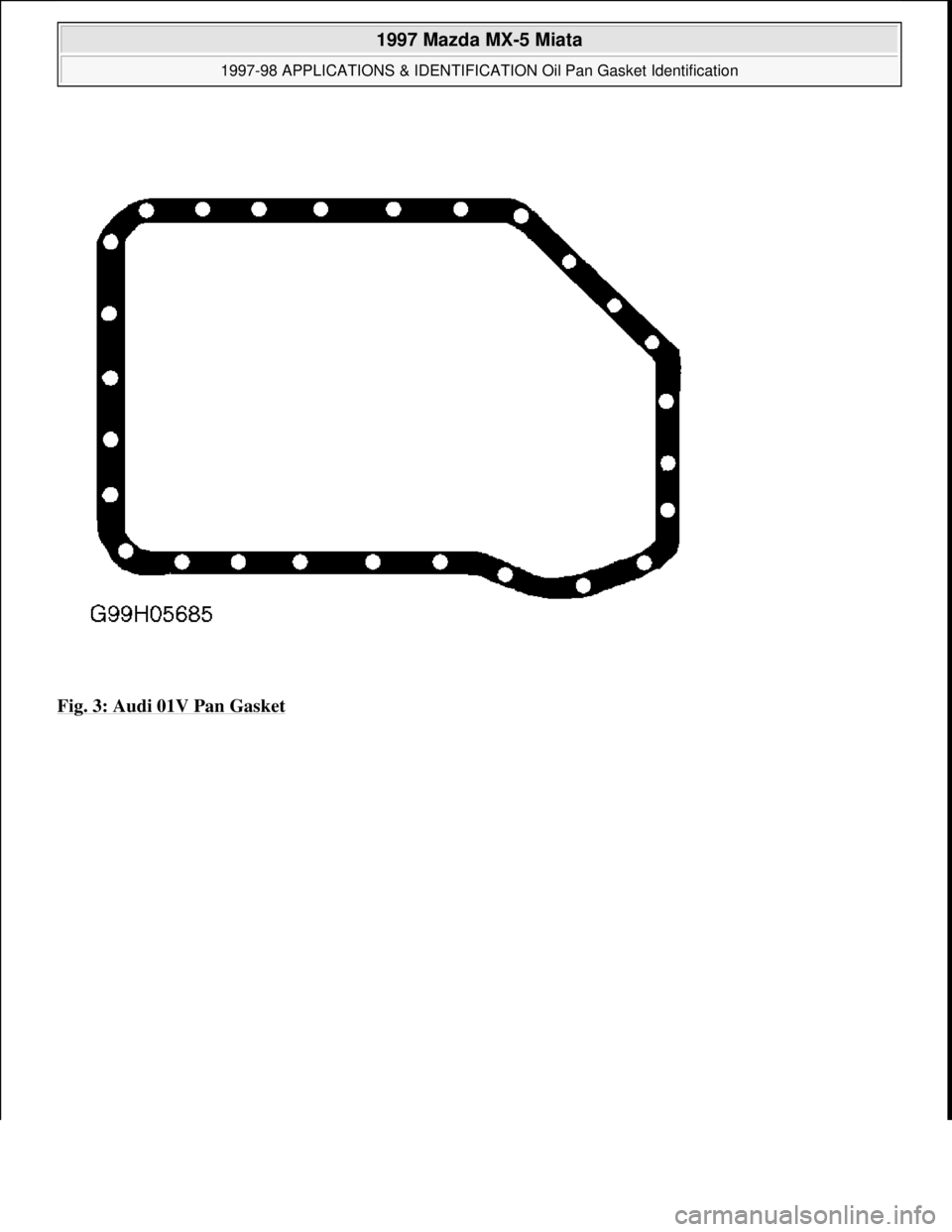

Fig. 3: Audi 01V Pan Gasket

1997 Mazda MX-5 Miata
1997-98 APPLICATIONS & IDENTIFICATION Oil Pan Gasket Identification
Microsoft
Sunday, July 05, 2009 1:34:22 PMPage 3 © 2005 Mitchell Repair Information Company, LLC.

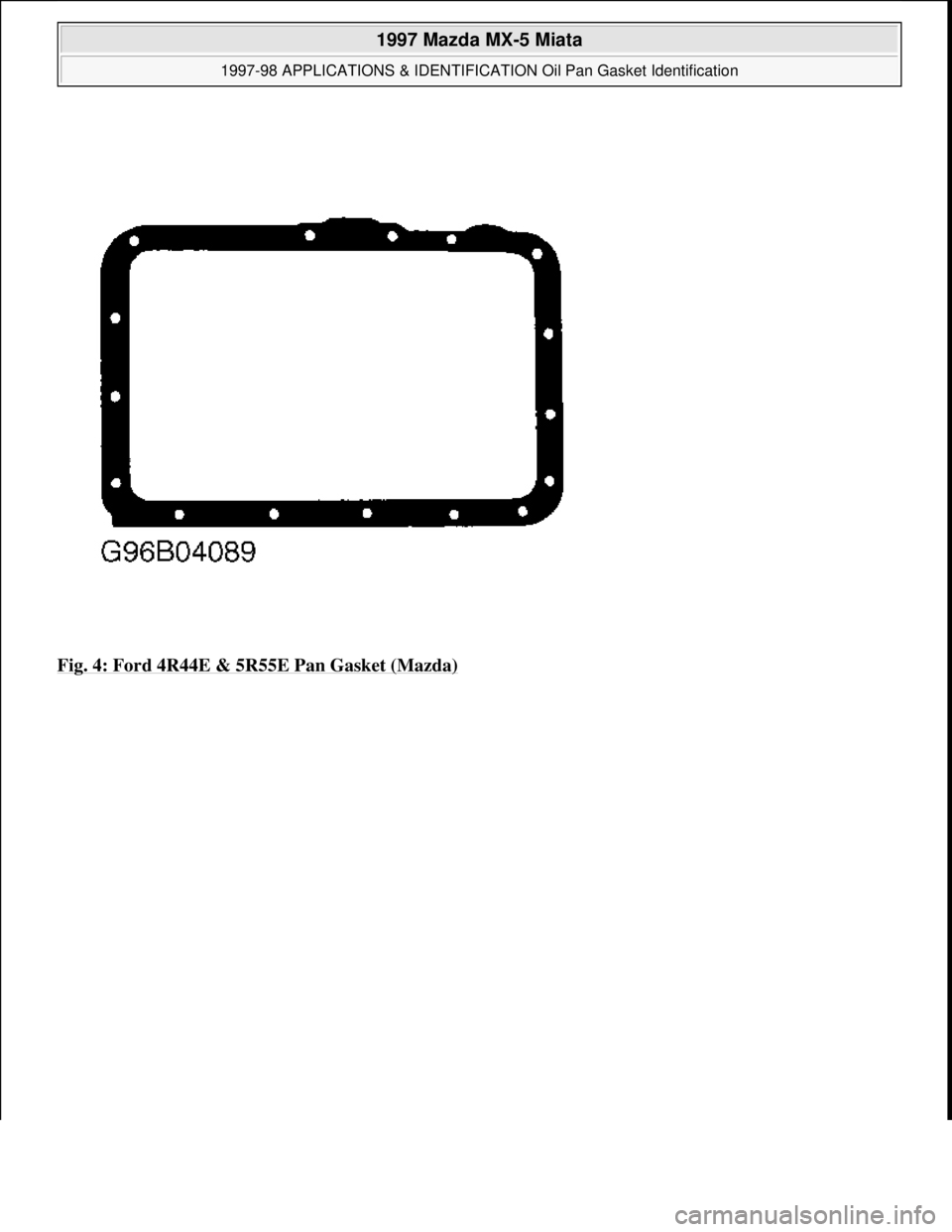

Fig. 4: Ford 4R44E & 5R55E Pan Gasket (Mazda)

1997 Mazda MX-5 Miata
1997-98 APPLICATIONS & IDENTIFICATION Oil Pan Gasket Identification
Microsoft
Sunday, July 05, 2009 1:34:22 PMPage 4 © 2005 Mitchell Repair Information Company, LLC.

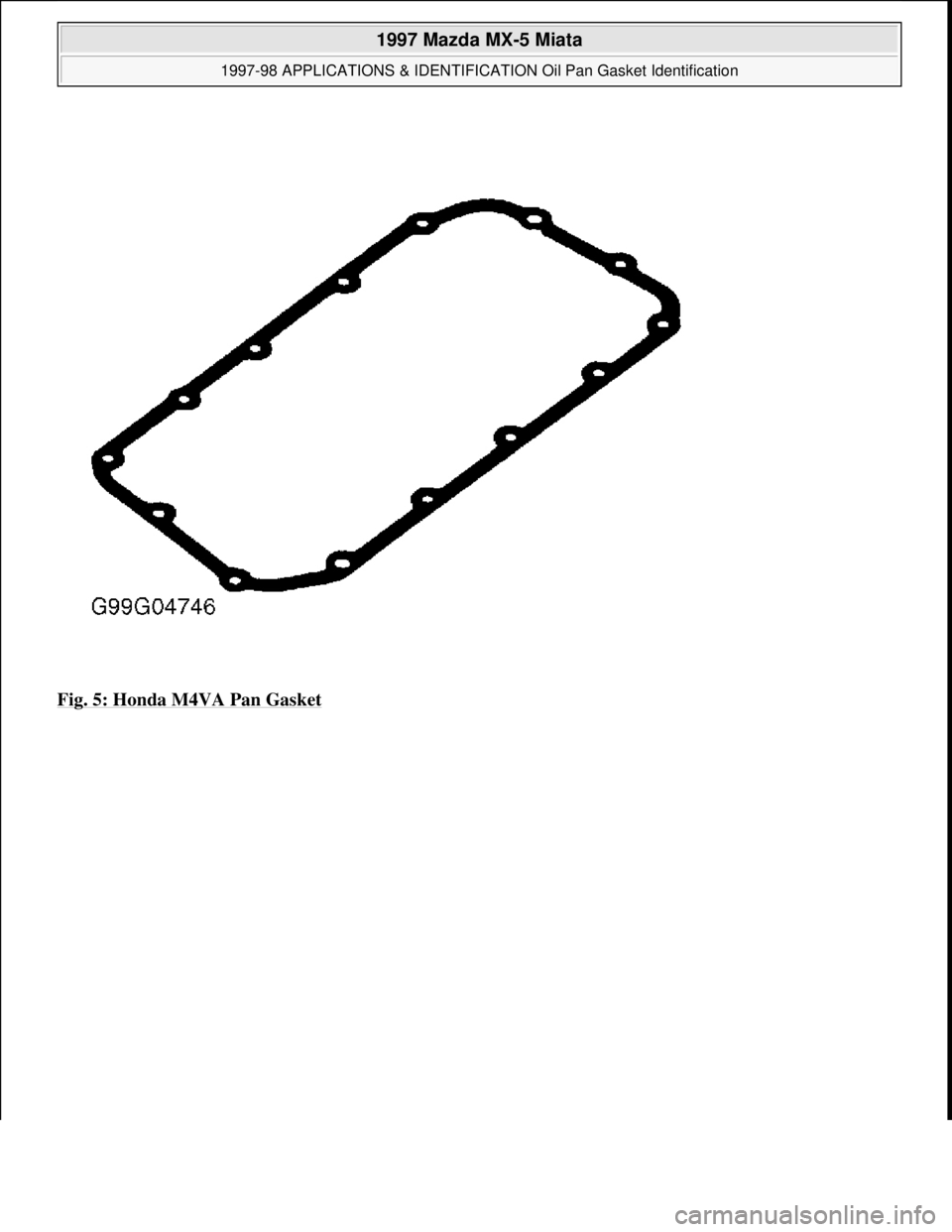

Fig. 5: Honda M4VA Pan Gasket

1997 Mazda MX-5 Miata
1997-98 APPLICATIONS & IDENTIFICATION Oil Pan Gasket Identification
Microsoft
Sunday, July 05, 2009 1:34:22 PMPage 5 © 2005 Mitchell Repair Information Company, LLC.
