1997 ISUZU TFS SERIES 4WD

4C1-92 FRONT WHEEL DRIVE
ITEM NO. ILLUSTRATION PART NO. PART NAME
FAL-42
5-8840-0126-0
(J-8001)Dial indicator
(for 167mm,194mm)
FAL-37
5-8840-2086-0
(J-23597-4)Disc (2 pcs. required)
(for 167mm)
FAL-43
5-8840-0128-0
(J-23597-1)Arbor
(for 167mm, 197mm)
FAL-38
5-8840-2088-0
(J-23597-8)Disc (2 pcs. required)
(for 194mm)
FAL-59
9-8522-1165-0
(J-6133-01)Pinion bearing installer
(for 4WD)
FAL-52
9-8522-1275-0
(J-24250)Pinion oil seal installer
(for 194mm)
FAL-53
5-8522-0046-0
(J-26234)Pinion oil seal installer
(for 167mm)
FAL-55
5-8840-0138-0
(J-29036)Side bearing installer
(for 167mm)
FAL-56
9-8521-1164-0
(J-24244)Side bearing installer
(for 194mm)

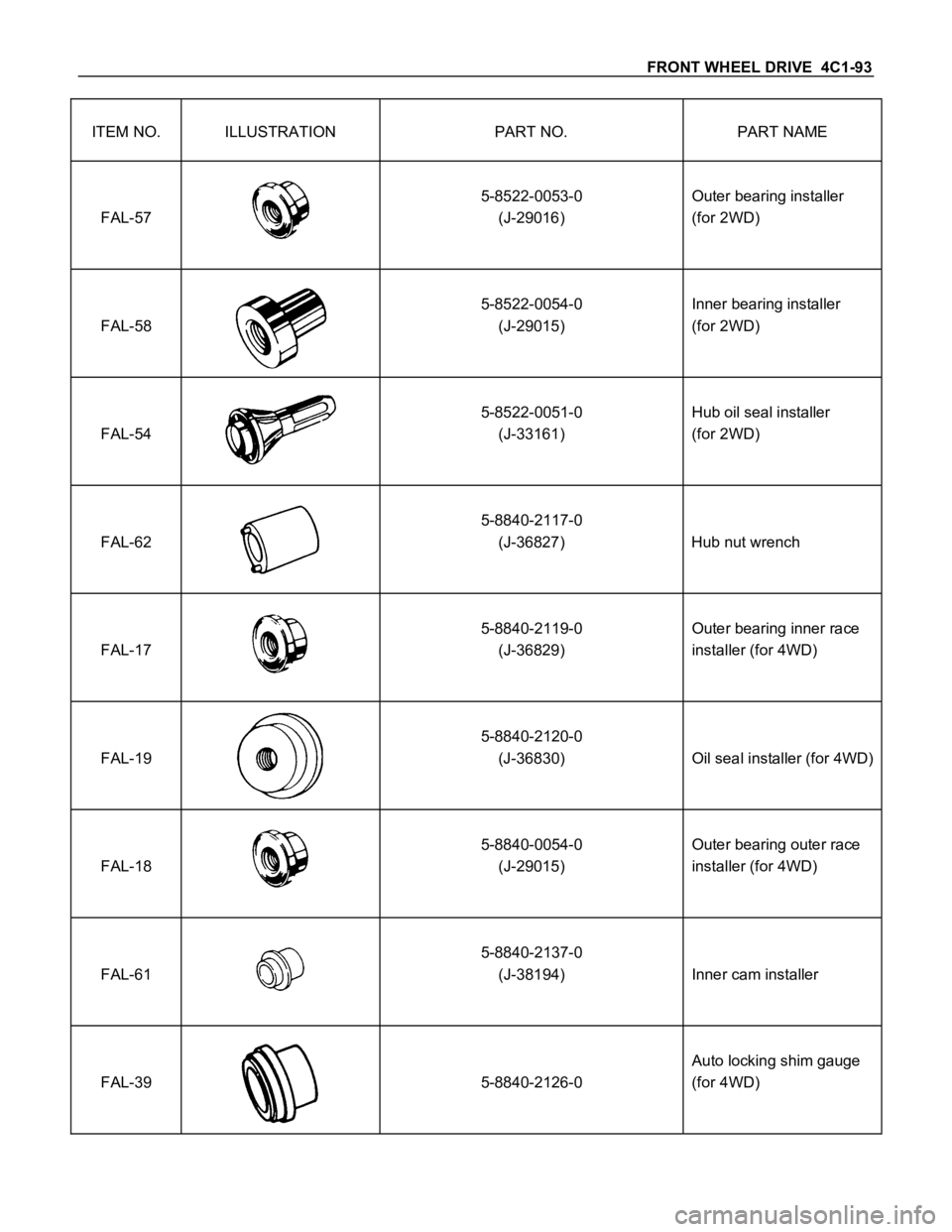

FRONT WHEEL DRIVE 4C1-93
ITEM NO. ILLUSTRATION PART NO. PART NAME
FAL-57
5-8522-0053-0
(J-29016)Outer bearing installer
(for 2WD)
FAL-58
5-8522-0054-0
(J-29015)Inner bearing installer
(for 2WD)
FAL-54
5-8522-0051-0
(J-33161)Hub oil seal installer
(for 2WD)
FAL-62
5-8840-2117-0
(J-36827) Hub nut wrench
FAL-17
5-8840-2119-0
(J-36829)Outer bearing inner race
installer (for 4WD)
FAL-19
5-8840-2120-0
(J-36830) Oil seal installer (for 4WD)
FAL-18
5-8840-0054-0
(J-29015)Outer bearing outer race
installer (for 4WD)
FAL-61
5-8840-2137-0
(J-38194) Inner cam installer
FAL-395-8840-2126-0Auto locking shim gauge
(for 4WD)

4C1-94 FRONT WHEEL DRIVE
ITEM NO. ILLUSTRATION PART NO. PART NAME
FAL-605-8840-2125-0Snap ring installer
(for 4WD)
