Voltmeter Gage
When your engine is not
running. but the ignition is
on (in the RUN position).
this gage shows
your
battery’s state of charge in
DC volts.
VOLTS
When the engine is running, the gage shows the
condition
of the. charging system. Readings between the
low and high warning zones indicate the normal
operating range. Readings
in the
low warning mne may occur when a
large number of electrical accessories are operating in
the vehicle and the engine is left at an idle for an
extended period. This condition is normal since
the
charging system is not able to provide full power at
engine idle. As engine speeds are increased, this
condition should correct itself
as higher engine speeds
allow the charging system to create maximum power.
You can only drive for a short time with the reading in
either warning zone. If you must drive, turn off all
unnecessary accessories.
Readings
in either warning zone indicate a possible
problem
in the electrical system. Have the vehicle
serviced
as soon as possible.
2-74

Brake System Warning Light
Your vehicle’s hydraulic brake system is divided into
two parts.
If one part isn’t working, the other part can
still work and stop you. For good braking, though, you
need both parts working well.
If the warning light comes on, there could be
a brake
problem. Have your brake system inspected right away.
I
This light should come on
briefly when you turn the
ignition key to RUN. If it
doesn’t come on then, BRAKE
(a) (@)
:;;::::$d;:n1::: if
have it fixed so it will be
If the light comes on while you are driving, pull off the
road and stop carefully. You may notice that the pedal is
harder to push. Or, the pedal may go closer to
the floor.
It may take longer to stop. If the light is still on, have the
vehicle towed for service. (See “Towing Your Vehicle“
in the Index.)
Your brake system may not be working properly
if the brake system warning light is on. Driving
with the brake system warning light on can lead
to an accident. If the light is still on after you’ve
pulled
off the road and stopped carefully, have
the vehicle towed for service.
When the ignition is on, the brake system warning light
will
also come on when you set your parking brake. The
light will stay on
if your parking brake doesn’t release
fully. If it stays on after your parking brake is fully
released,
it means you have a brake problem.
2-75

Anti-Lock Brake System Warning Light
With the anti-lock brake
system. this light
will CC)IIIC
engine and may stay
on for several seconds.
That's normal.
011 when you start y0LIr
Engine Coolant Temperature Gage
2-76

Anti-Lock Brakes (ABS)
If there’s ;1 problem with the
anti-lock
brake system. this
warning light
will stay on.
See “Anti-Lock Brake
System Warning Light”
in
the Index.
4-7

If your vehicle starts to slide, ease your foot off the
accelerator pedal and quickly steer the way you want the
vehicle
to go. If you start steering quickly enough, your
vehicle may straighten out. Always be ready for
a
second skid if il occurs.
Of course, traction is reduced when water. snow, ice,
gravel or other material is
on the road. For safety. you'll
want to slow down
and adjust your driving to these
conditions.
It is important to slow down on slippery
surfaces because stopping distance will be longer
and
vehicle control more lilnited.
While driving
on a surface with reduced traction. try
your best to avoid sudden steering, acceleration
or
braking (inclucling engine braking by shifting to a lower
gear).
Any sudden changes could cause the tircs lo slide.
You may not realize the surface is slippery until yo11r
vehicle is skidding. Learn to recognize warning
clues
-- such as enough water. ice or packed snow on
the road to make a "mirrored surface" -- and slow down
when you
have any doubt.
Remember:
Any anti-lock brake system (ABS) helps
avoid only the braking skid.
Driving Guidelines
This multipurpose passenger vehicle is defined as a utility
vehicle in Consumer Information Regulations issued by
the National Highway Traffic Safety Administration (NHTSA)
of the United States Department of
Transportation.
Utility vehicles have higher ground
clearance
and a narrower track to make them capable of
performing
in a wide variety of off-road applications.
Specific design characteristics give them
a higher center of
gravity than ordinary cars. An advantage of the higher
ground clearance is
a better view of the road allowing yo11
to anticipate problems. They are not designed for
cornering at the same speeds
as conventional
two-wheel-drive vehicles any more than low-slung sports cars are dcsigned
to perform satisfactorily under off-road
conditions.
If at all possible. avoid shalp turns or abrupt
manewers. As with other vehicles
of this type. failure to
operate this vehicle correctly may result
in loss of control
or vehicle rollover.
4-14

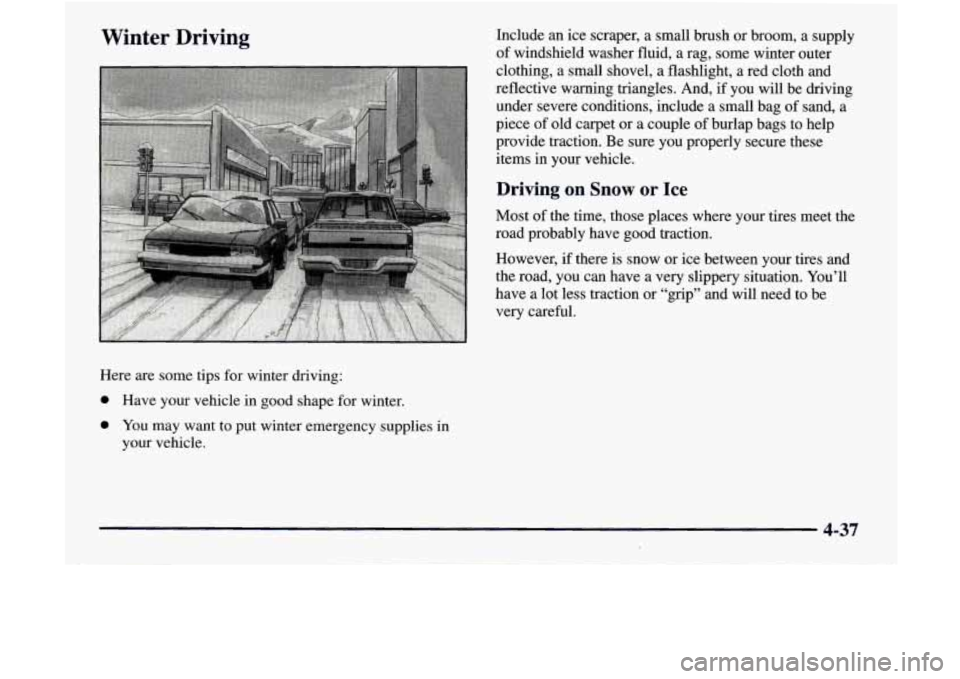

Winter Driving
Here are some tips for winter driving:
0 Have your vehicle in good shape for winter.
0 You may want to put winter emergency supplies in
your vehicle. Include an ice scraper, a small brush or broom, a supply
of windshield washer fluid,
a rag, some winter outer
clothing, a small shovel, a flashlight, a red cloth and
reflective warning triangles. And, if you will be driving
under severe conditions, include a small bag
of sand, a
piece
of old carpet or a couple of burlap bags to help
provide traction. Be sure you properly secure these
items in your vehicle.
Driving on Snow or Ice
Most of the time, those places where your tires meet the
road probably have good traction.
However, if there is snow or ice between your tires and
the road, you can have a very slippery situation. You’ll
have a lot less traction or “grip” and will need to be
very careful.
4-37

When towing a trailer, the ~~rrows on your instrument
panel
will flash for turns even if the bulbs on the trailer
itre burned out. Thus. you may think drivers behind you
are seeing your signal when they are not. It's important
to check occasionally to be sure the trailer bulbs arc
still working.
Driving On Grades
On a long uphill grade, shift down and reducc your
speed
to around 45 mph (70 km/h) to reduce the
possibility
of engine and transmission ovc.rheating.
If you have an automatic transmission. you should use
DRIVE
(D) when towing a trailer. Operating your
vehicle
in DRIVE (D) when towing a trailer will
minimize heat buildup and extend the life
of your
trrmsmission. Or:
if you have ;1 manual transmission. it's
better not to use FIFTH (5) gear. just drive in
FOURTH (4) gear (or, as you need to, a I~MW gear). Whcn
towins at high altitude
on steep uphill grades,
consider the following: Engine coolant will boil at a
lower temperature than at normal altitudes. If yo^^ turn
your engine off immediately after towing
at high altitude
on steep uphill grades, your \:ellicle may show signs
similar to engine overheating.
To avoid this. let the
engine
r~~n while parked (preferably on level grout1d)
with the automatic transmission in PARK (Pj (or the
1manuaI transmission out of
gear and the parking brake
applied) 1'01-
;I few minutes before turning the engine off.
If you do get the overheat warning. see "Engine
Overheating"
in the Index.
Parking on Hills
You really should not park your vehicle. with a trailer
attached.
on a hill. If something goes wrong, your rig
could start
to move. People can be injured, and both
yo~~r vehicle and the trailer can
be damaged.
4-52

Hazard Warning Flashers
Other Warning Devices
