1997 FORD WINDSTAR windshield wipers

100
*
[CF14400(ALL)04/96]
NOTE: Do not place heavy objects in the cupholders.
*
[CF14500(ALL)05/96]
The controls on the steering column and wheel are designed to
give you easy access to the controls while you are driving.
*
[CF14600(ALL)01/96]
Ignition
%*
[CF14700(ALL)01/96]
Understanding the Positions of the Ignition
*
[CF14800(ALL)01/96]
13-1/2 pica
art:0040047-D
The ignition positions
% [CF14900(ALL)12/95]
ACCESSORY allows you to operate some of your vehicle's
electrical accessories while the engine is not running. For
example, you can use ACCESSORY to turn on the radio or
windshield wipers without starting the engine.
[CF15000(ALL)12/95]
LOCK locks the steering wheel and the gearshift lever.
*
[CF15100(ALL)06/96]
OFF allows you to shut off the engine and all accessories
without locking the steering wheel, or the gearshift lever.
*
[CF15200(ALL)01/96]
ON allows you to test your vehicle's warning lights to make
sure they work before you start the engine. The key returns to
the ON position once the engine is started and remains in this
position while the engine runs.
File:05wncfs.ex
Update:Wed Jul 31 15:55:37 1996

102
*
[CF16400(ALL)01/96]
Turn Signal Lever
*
[CF16500(ALL)02/96]
You can use the turn signal lever on the left side of the steering
column to:
*
[CF16600(ALL)01/96]
n
operate the turn signals.
*
[CF16700(ALL)01/96]
n
turn the headlamps to high beam.
*
[CF16800(ALL)01/96]
n
flash the headlamps.
*
[CF16900(ALL)01/96]
n
turn the windshield wipers and washer on/off.
%*
[CF17000(ALL)01/96]
Turn Signals
[CF17100(ALL)01/96]
To turn on the right turn signal, push the turn signal lever up.
The right-side arrow on the instrument panel will flash.
[CF17200(ALL)01/96]
To turn on the left turn signal, pull the turn signal lever down.
The left-side arrow on the instrument panel will flash.
*
[CF17300(ALL)01/96]
7-1/2 pica art:0040085-D

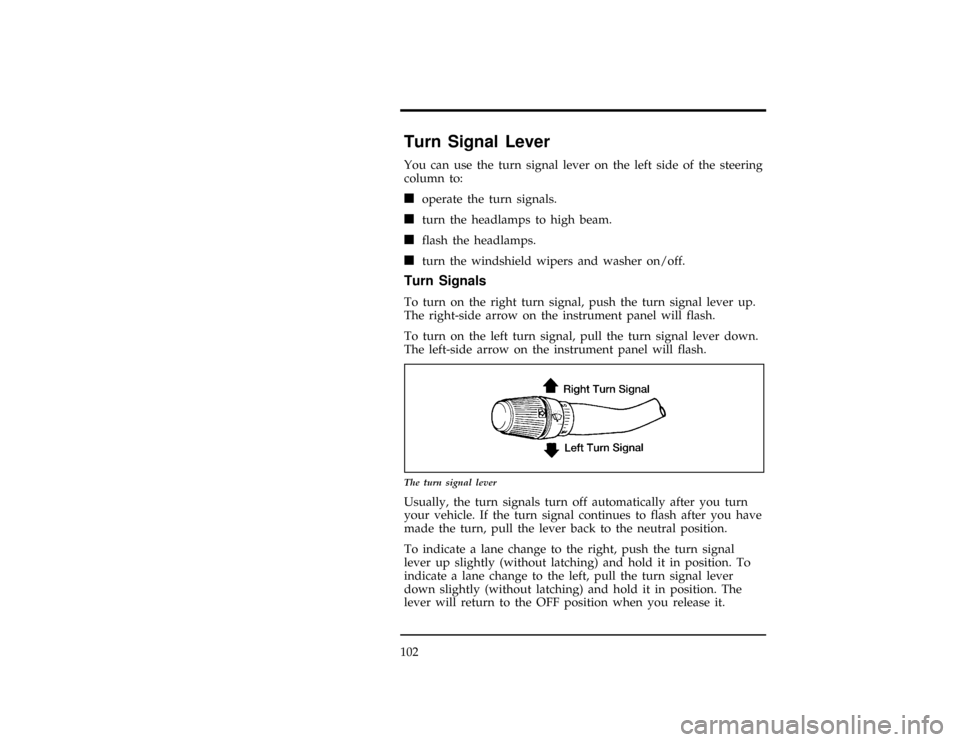

The turn signal lever
[CF17400(ALL)01/96]
Usually, the turn signals turn off automatically after you turn
your vehicle. If the turn signal continues to flash after you have
made the turn, pull the lever back to the neutral position.
[CF17500(ALL)01/96]
To indicate a lane change to the right, push the turn signal
lever up slightly (without latching) and hold it in position. To
indicate a lane change to the left, pull the turn signal lever
down slightly (without latching) and hold it in position. The
lever will return to the OFF position when you release it.
File:05wncfs.ex
Update:Wed Jul 31 15:55:37 1996

104
%*
[CF18300(ALL)01/96]
Windshield Wipers and Washer
%*
[CF18400(ALL)06/96]
Variable Interval Wipers
[CF18500(ALL)01/96]
Your vehicle has wipers that operate at varying intervals. For
example, you can set the interval so they wipe less often in
light rain or more often in heavier rain. The wiper delays range
from about 1.5 to 20 seconds.
*
[CF18600(ALL)01/96]
10-1/2 pica art:0040087-E

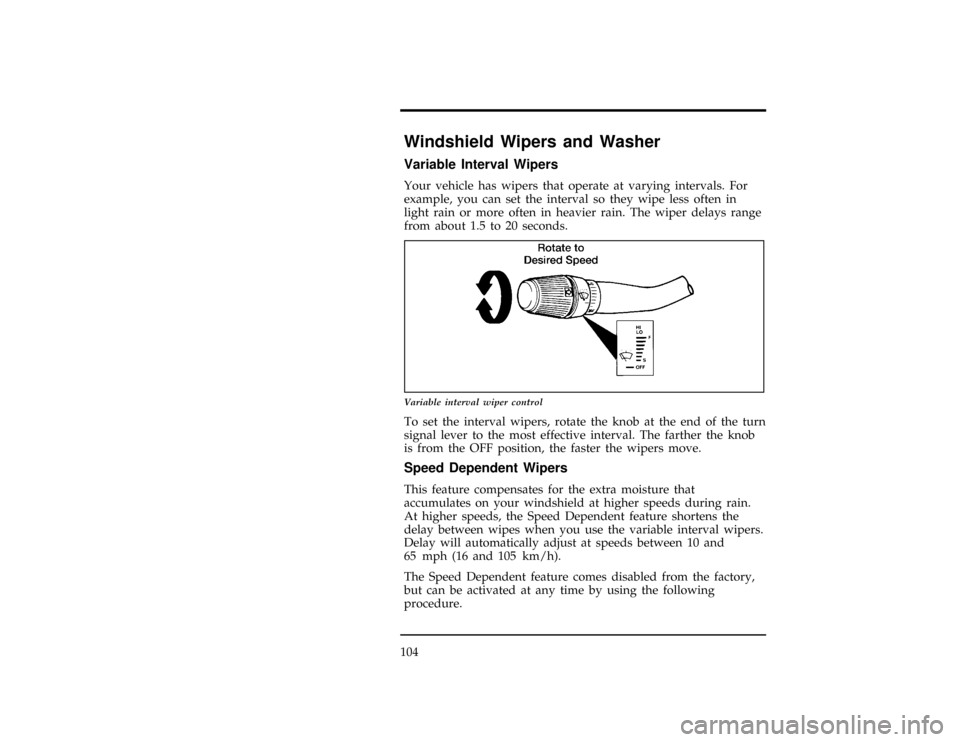

Variable interval wiper control
*
[CF18700(ALL)01/96]
To set the interval wipers, rotate the knob at the end of the turn
signal lever to the most effective interval. The farther the knob
is from the OFF position, the faster the wipers move.
[CF18800(ALL)01/96]
Speed Dependent Wipers
[CF18900(ALL)01/96]
This feature compensates for the extra moisture that
accumulates on your windshield at higher speeds during rain.
At higher speeds, the Speed Dependent feature shortens the
delay between wipes when you use the variable interval wipers.
Delay will automatically adjust at speeds between 10 and
65 mph (16 and 105 km/h).
[CF19000(ALL)01/96]
The Speed Dependent feature comes disabled from the factory,
but can be activated at any time by using the following
procedure.
File:05wncfs.ex
Update:Wed Jul 31 15:55:37 1996

Controls and Features
105
[CF19100(ALL)01/96]1.
Make sure the two front doors are securely closed.
[CF19200(ALL)01/96]2.
Insert the key into the ignition and turn first to the ON
position (the gauges on the instrument panel willnot
illuminate) and then back to the OFF position. Remove the
key and within 30 seconds:
[CF19300(ALL)01/96]3.
Press and hold the washer button on the end of the turn
signal lever.
[CF19400(ALL)01/96]4.
Within two seconds, put the key back in the ignition and
turn to the ON position.
[CF19500(ALL)01/96]5.
Hold the washer button down until a long (two second) tone
is heard. Release the button while the tone is active.
[CF19600(ALL)01/96]6.
After the long tone, a confirmation sequence will be heard.
One beep indicates the feature is inactive. Two beeps
indicates the feature is active.
[CF19700(ALL)01/96]
Repeat this procedure any time you want to cancel or reactivate
the Speed Dependent feature.
*
[CF19800(ALL)01/96]
Windshield Washer
[CF19900(ALL)01/96]
To clean the windshield, push in the washer button on the end
of the turn signal lever. For a constant spray, push and hold the
button. If the windshield wipers are off, one momentary push
results in one wipe and a longer push in three wipes and
activation of washer fluid. If the windshield wipers are in
interval mode a quick tap results in two wipe cycles and a
longer tap in three wipes and washer fluid activation.
*
[CF20000(ALL)01/96]
Do not try to clean the windshield when the washer fluid
container is empty and never activate the washers for more than
fifteen seconds continuously. This could damage the washer
pump system.
File:05wncfs.ex
Update:Wed Jul 31 15:55:37 1996

106
*
[CF20100(ALL)01/96]
RWARNING
Always warm up the windshield with the defroster
before you use the washer fluid. In freezing weather, the
washer solution may freeze on the windshield and
obscure your vision.
*
[CF20200(ALL)03/96]
For information about refilling the washer fluid or replacing
your windshield wiper blades, seeWindshield washer fluid and
Wipersin the Index.
%*
[CF20300(ALL)01/96]
Gearshift Lever
[CF20400(ALL)01/96]
The gearshift lever on your vehicle is mounted on the steering
column. On the end of the gearshift lever is the Overdrive
On/Off button and the OVERDRIVE OFF lamp. For additional
information about the gearshift lever and the Overdrive On/Off
button, see theDrivingchapter.
[CF20500(ALL)01/96]
13-1/2 pica
art:0050016-A

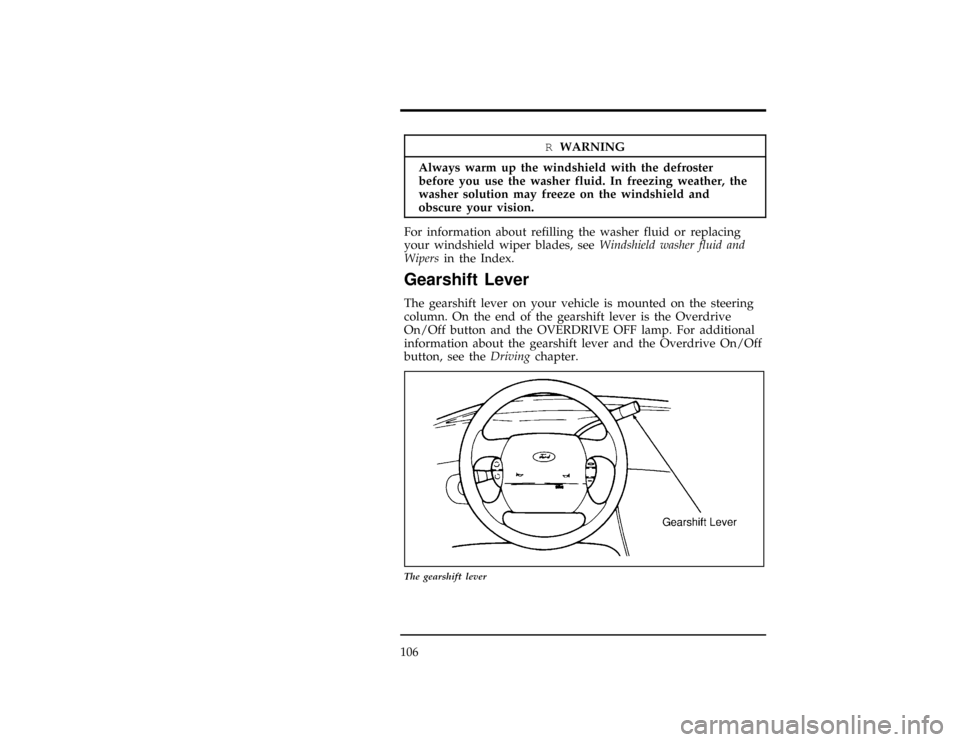

The gearshift lever
File:05wncfs.ex
Update:Wed Jul 31 15:55:37 1996

Maintenance and Care
303
[MC16700(ALL)07/96]
Wiper Blade Replacement
*
[MC16800(ALL)01/96]
If the wipers still do not work properly after you clean them,
you may need to replace the wiper blade assembly. When
replacing the wiper blade assembly always use a Motorcraft part
or equivalent.
*
[MC16900(ALL)08/95]
To replace the wiper blades:
*
[MC17000(ALL)01/96]1.
Pull the wiper arm away from the windshield and into the
lock position.
[MC17100(ALL)01/96]2.
Turn the blade at an angle from the wiper arm. Squeeze the
lock tabs of the plastic clip together to release the blade and
pull the wiper blade down toward the windshield to remove
it from the arm.
*
[MC17200(ALL)08/95]3.
Attach a new wiper blade to the wiper arm and press it into
place until you hear it click.
%*
[MC17300(ALL)01/96]
Tires
[MC17400(ALL)04/96]
Look at your tires each time you fill your fuel tank. If one tire
looks lower than the others, check the pressure in all of them.
[MC17500(ALL)01/96]
n
Keep your tires inflated to the recommended pressures. See
Checking the pressure of the tireslater in this chapter.
*
[MC17600(ALL)01/96]
n
Stay within the recommended load limits. SeeDriving with a
heavy loadin the Index.
*
[MC17700(ALL)03/96]
n
Make sure the weight of your load is evenly distributed.
*
[MC17800(ALL)03/96]
n
Adjust tire pressure to recommended specifications found on
the Safety Compliance Certification Label.
*
[MC17900(ALL)03/96]
If you do not take these precautions, your tires may fail or go
flat.
File:11wnmcs.ex
Update:Mon Jul 8 14:29:32 1996

387
