1997 FORD WINDSTAR lock

202
*
[SS29300(ALL)05/96]
Installing Child Safety Seats in the Front Seat and Rear
Window Passenger Seating Positions
[SS29400(ALL)12/95]
Your vehicle is equipped with a dual locking mode retractor on
the shoulder belt portion of the combination lap/shoulder safety
belt for the front seat passenger and for the rear window
passengers.
[SS29500(ALL)12/95]
If you choose to install a forward-facing child seat or infant
carrier in the front seating positions, move the seat as far back
as possible.
*
[SS29600(ALL)01/96]
For seating positions equipped with a dual-locking mode
retractor, use the following procedure:
[SS29700(ALL)12/95]1.
Position the child seat in the center of passenger seat.
*
[SS29800(ALL)02/96]2.
Pull down on shoulder belt, then grasp shoulder belt and lap
belt together. See Figure 1.
File:06wnsss.ex
Update:Thu Jul 18 11:00:49 1996

Seating and Safety Restraints
205
[SS30200(ALL)12/95]4.
Insert the belt into the proper buckle for that seating position
until you hear and feel the latch engage. See Figure 3. Make
sure the tongue is latched securely to buckle by pulling on
the tongue.
[SS30300(ALL)12/95]
17-1/2 pica
art:0050278-A
Buckling the belt
*
[SS30400(ALL)12/95]5.
Grasp the shoulder portion of the belt and pull downward
until all of the belt is extracted and a click is heard. At this
time, the retractor is in the automatic locking mode (child
restraint mode). See Figure 4.
[SS30500(ALL)12/95]
NOTE: The dual-locking mode retractor must be in the
automatic locking mode to properly restrain a child
seat.
File:06wnsss.ex
Update:Thu Jul 18 11:00:49 1996

206
[SS30600(ALL)12/95]
17-1/2 pica
art:0050279-A
Setting the retractor to automatic locking mode
[SS30700(ALL)12/95]6.
Allow the belt to retract. A clicking sound will be heard as
the belt retracts. This indicates the retractor is in the
automatic locking mode. Pull on the lap belt portion across
the child seat towards the buckle and continue to pull up on
the shoulder belt portion while pushing down on the child
seat allowing the shoulder belt to retract, to remove any
slack in seat belt. See Figures 5 and 6.
File:06wnsss.ex
Update:Thu Jul 18 11:00:49 1996

210

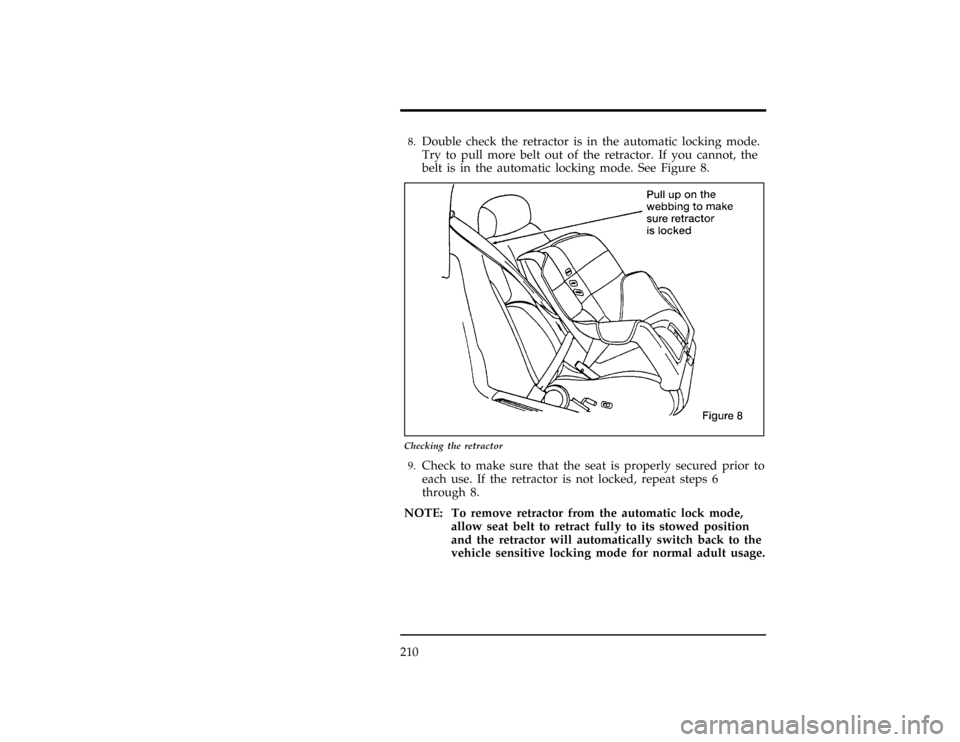

[SS31200(ALL)12/95]8.
Double check the retractor is in the automatic locking mode.
Try to pull more belt out of the retractor. If you cannot, the
belt is in the automatic locking mode. See Figure 8.
[SS31300(ALL)12/95]
17-1/2 pica
art:0050283-A
Checking the retractor
[SS31400(ALL)12/95]9.
Check to make sure that the seat is properly secured prior to
each use. If the retractor is not locked, repeat steps 6
through 8.
[SS31500(ALL)12/95]
NOTE: To remove retractor from the automatic lock mode,
allow seat belt to retract fully to its stowed position
and the retractor will automatically switch back to the
vehicle sensitive locking mode for normal adult usage.
File:06wnsss.ex
Update:Thu Jul 18 11:00:49 1996

Seating and Safety Restraints
211
*
[SS31600(ALL)05/96]
Installing a Child Safety Seat at the Center Seating
Position with Locking Adjustable Lap Belt
*
[SS31700(ALL)01/96]1.
Lengthen the lap belt. To lengthen the belt, hold the tongue
so that its bottom is perpendicular to the direction of
webbing while sliding the tongue up the webbing.
*
[SS31800(ALL)01/96]2.
Place the child safety seat in the center seating position.
*
[SS31900(ALL)01/96]3.
Route the tongue and webbing through the child seat
according to the child seat manufacturer's instructions.
*
[SS32000(ALL)01/96]4.
Insert the belt tongue into the proper buckle for the center
seating position until you hear a snap and feel it latch. Make
sure the tongue is securely fastened to the buckle by pulling
on tongue.
*
[SS32100(ALL)01/96]5.
Push down on the child seat while pulling on the loose end
of the lap belt webbing to tighten the belt.
[SS32200(ALL)12/95]6.
Before placing the child into the child seat, forcibly tilt the
child seat from side to side and in forward directions to
ensure that the seat is held securely in place. If the child seat
moves excessively, repeat steps 5 through 6 or properly
install the child seat in a different seating position.
%*
[SS32300(ALL)04/96]
Attaching Safety Seats With Tether Straps
*
[SS32400(ALL)04/96]
Some manufacturers make safety seats that include a tether
strap that goes over the back of the vehicle seat and attaches to
an anchoring point. Other manufacturers offer the tether strap
as an accessory. Contact the manufacturer of your child safety
seat for information about ordering a tether strap.
[SS32500(ALL)12/95]
You can attach a tether strap to the front passenger or second
row seats by using the built-in tether anchors provided on the
back of the seats as described below.
[SS32600(ALL)12/95]
Follow the child seat manufacturer's instructions to attach the
tether strap to the tether anchor.
File:06wnsss.ex
Update:Thu Jul 18 11:00:49 1996

223
Driving
%*
[GF00200(ALL)05/96]
Brakes
*
[GF00300(ALL)01/96]
When the foot (service) brake pedal is depressed, the
high-mount brake lamp should illuminate.
*
[GF00400(ALL)01/96]
Front Disc Brakes
[GF00500(ALL)01/96]
The front disc brakes are self-adjusting. They only require
periodic inspection for pad wear.
[GF00600(ALL)01/96]
Rear Disc Brakes (If equipped)
[GF00700(ALL)01/96]
The rear disc brakes are self-adjusting. They only require
periodic inspection for pad wear.
[GF00800(ALL)01/96]
The rear disc parking brakes need to be adjusted manually.
*
[GF00900(ALL)03/96]
Rear Drum Brakes
*
[GF01000(ALL)01/96]
The rear drum brakes are self-adjusting. Automatic adjustment
occurs through normal use of the brakes.
*
[GF01100(ALL)05/96]
Four-Wheel Anti-lock Brakes
*
[GF01200(ALL)01/96]
The Anti-lock Brake System (ABS) prevents wheels from
completely locking up by automatically releasing and
re-applying the brakes. During ABS braking, slight brake pedal
pulsations may be felt on the driver's foot. These pulsations
represent the rapid cycling of the ABS valves. The pedal
pulsations are considered normal ABS operation, and will stop
when normal braking is resumed or when the vehicle comes to
a stop.
%*
[GF01300(ALL)01/96]
During ABS activation, a mechanical noise may be heard as the
ABS system cycles. This is normal ABS operation.
*
[GF01400(ALL)01/96]
The ABS system has self-check capabilities. The system turns on
the ABS warning light each time you start the engine. After the
engine is started and the ABS warning light turns off, the
system performs another test the first time the vehicle reaches
File:09wngfs.ex
Update:Thu Jul 18 11:01:42 1996

242
[GF17500(ALL)12/95]

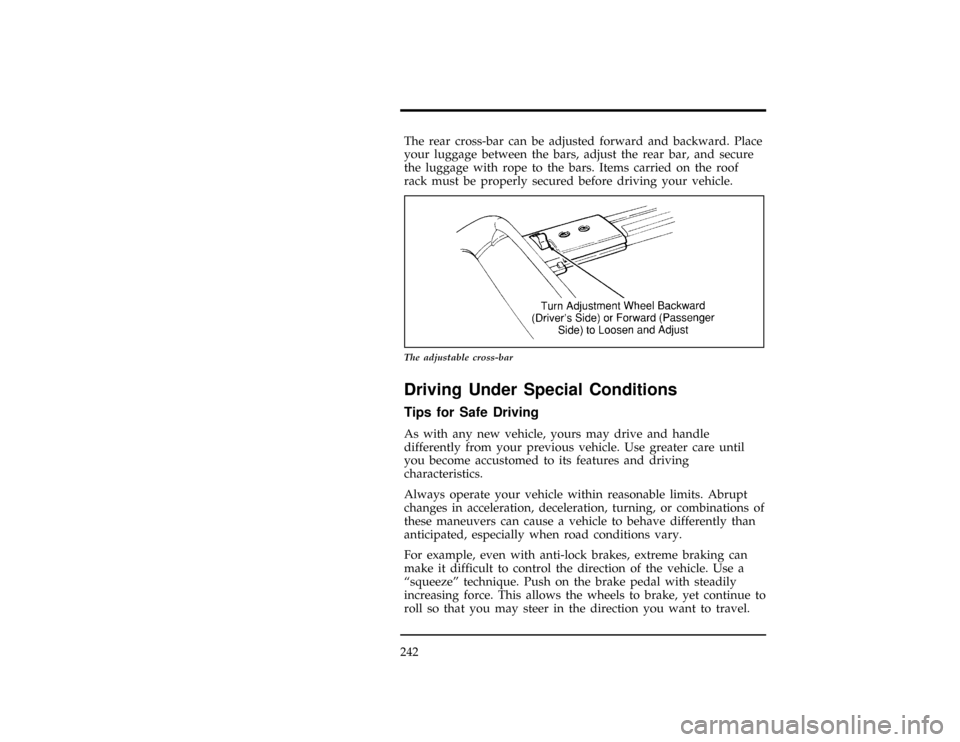

The rear cross-bar can be adjusted forward and backward. Place
your luggage between the bars, adjust the rear bar, and secure
the luggage with rope to the bars. Items carried on the roof
rack must be properly secured before driving your vehicle.
[GF17600(ALL)12/95]
10-1/2 pica
art:0050032-B
The adjustable cross-bar
%*
[GF17700(ALL)01/96]
Driving Under Special Conditions
%*
[GF17800(ALL)01/96]
Tips for Safe Driving
[GF17900(ALL)04/96]
As with any new vehicle, yours may drive and handle
differently from your previous vehicle. Use greater care until
you become accustomed to its features and driving
characteristics.
[GF18000(ALL)04/96]
Always operate your vehicle within reasonable limits. Abrupt
changes in acceleration, deceleration, turning, or combinations of
these maneuvers can cause a vehicle to behave differently than
anticipated, especially when road conditions vary.
[GF18100(ALL)04/96]
For example, even with anti-lock brakes, extreme braking can
make it difficult to control the direction of the vehicle. Use a
ªsqueezeº technique. Push on the brake pedal with steadily
increasing force. This allows the wheels to brake, yet continue to
roll so that you may steer in the direction you want to travel.
File:09wngfs.ex
Update:Thu Jul 18 11:01:42 1996

Roadside Emergencies
261
[ER06800(ALL)01/96]
Removing the spare tire
*
[ER06900(ALL)01/96]1.
Open the liftgate and find the plastic hex nut cover in the
carpeting of the cargo area. Lift the cover to expose the hex
nut.
[ER07000(ALL)01/96]
17-1/2 pica
art:0050024-B
The spare tire cover
*
[ER07100(ALL)05/96]2.
Find the lug wrench in the tool kit located behind the jack in
the right cargo area side panel.
*

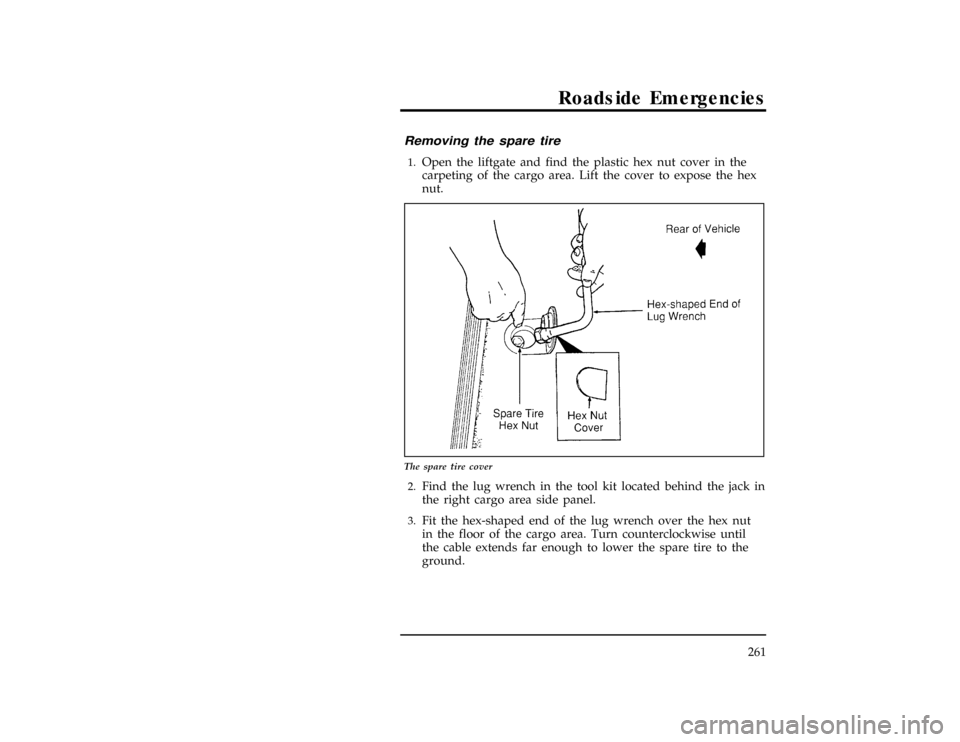

[ER07200(ALL)01/96]3.
Fit the hex-shaped end of the lug wrench over the hex nut
in the floor of the cargo area. Turn counterclockwise until
the cable extends far enough to lower the spare tire to the
ground.
File:10wners.ex
Update:Tue Jul 9 12:14:55 1996
