Fuses and Maxi-Fuses
[ER02000(ALL)01/96]
Fuses and maxi-fuses (high-current fuses) protect your vehicle's
electrical system from overloading. If electrical parts in your
vehicle are not working, the system may have been overloaded
and caused a blown fuse. Before you replace or repair any
electrical parts, check the appropriate fuses.
[ER02100(ALL)01/96]
17-1/2 pica
art:0050026-A

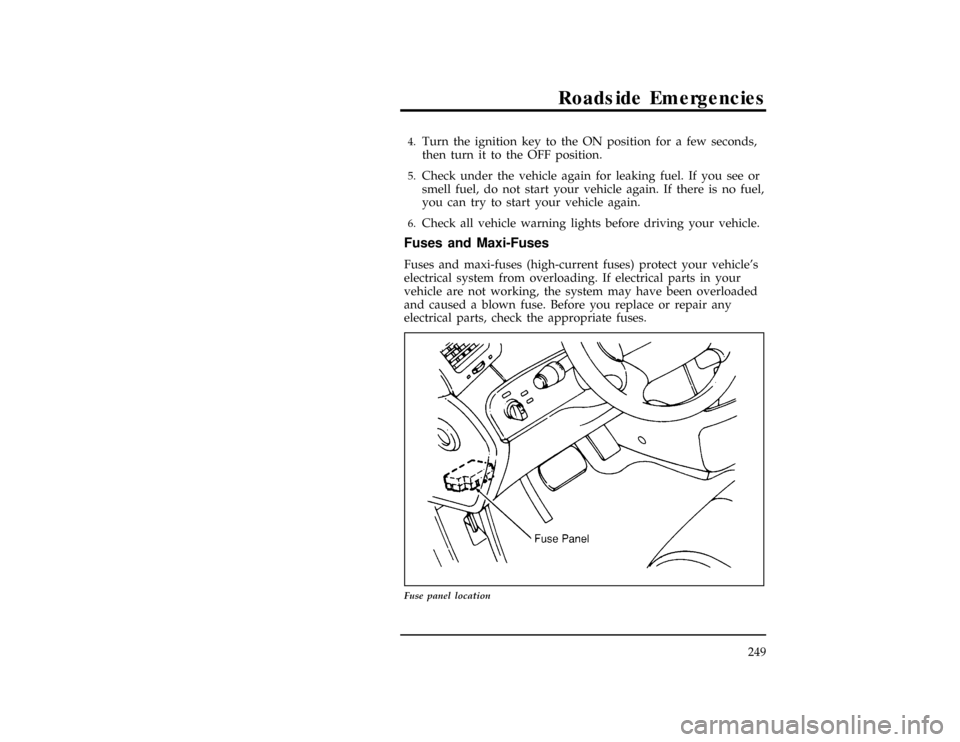

Fuse panel location
File:10wners.ex
Update:Tue Jul 9 12:14:55 1996

250
[ER02200(ALL)01/96]
The following charts tell you which fuses protect each electrical
part of your vehicle. If a fuse blows (opens) a circuit, all the
parts of your vehicle that use that circuit will not work.
[ER02300(ALL)01/96]
Once you have determined which fuses to check, follow the
procedures underChecking and replacing fuses.
[ER02400(ALL)04/96]
NOTE: Fuse links should only be repaired by your dealer.
%*
[ER02500(ALL)01/96]
Checking and Replacing Fuses
*
[ER02600(ALL)01/96]
If you need to check a fuse, find the fuse panel for the electrical
system, which is located under the instrument panel, and follow
these steps:
*
[ER02700(ALL)01/96]1.
To remove the fuse panel cover, pull down on the fuse panel
cover handle.
[ER02800(ALL)01/96]
17-1/2 pica
art:0050027-A

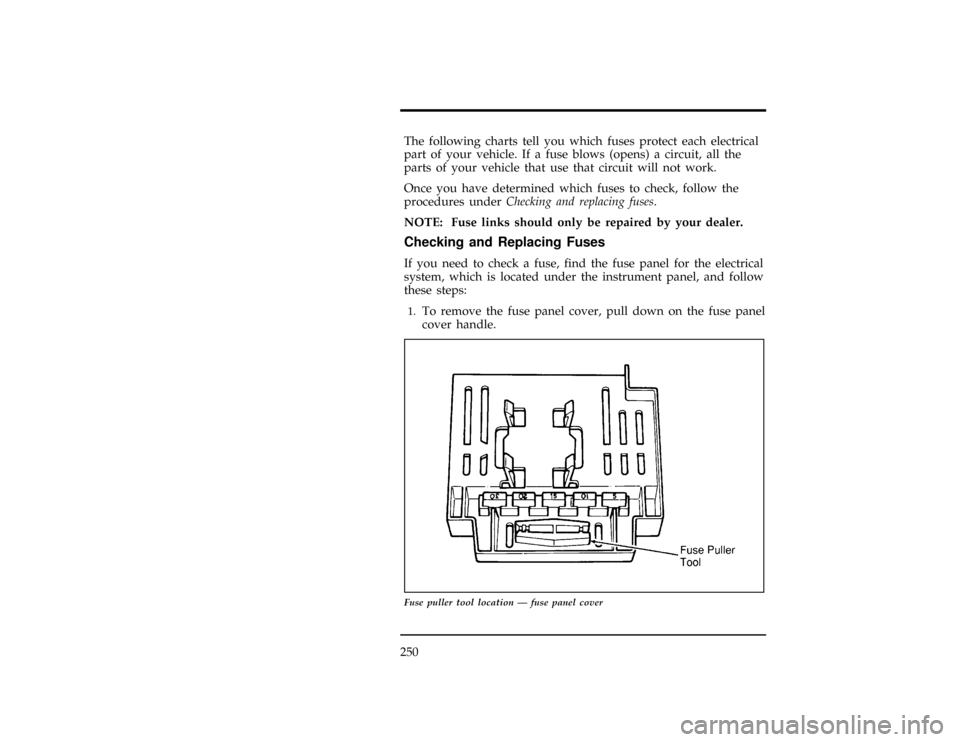

Fuse puller tool location Ð fuse panel cover
File:10wners.ex
Update:Tue Jul 9 12:14:55 1996

Roadside Emergencies
251
[ER02900(ALL)01/96]2.
On the fuse panel, find the number of the fuse you want to
check.
[ER03000(ALL)01/96]
17-1/2 pica
art:0050112-B

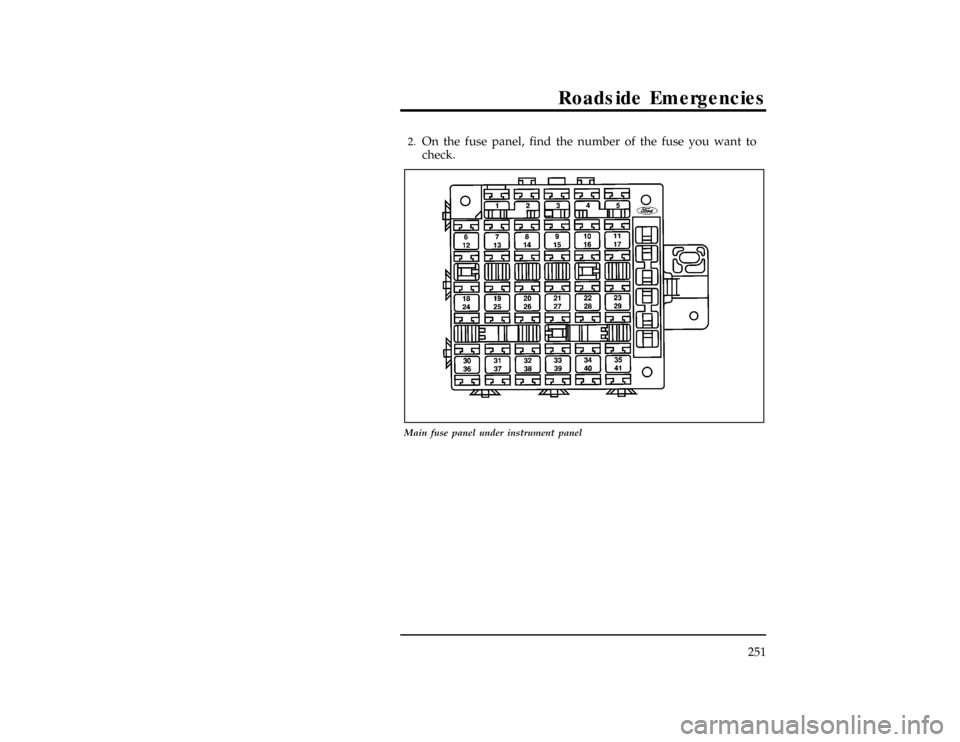

Main fuse panel under instrument panel
File:10wners.ex
Update:Tue Jul 9 12:14:55 1996

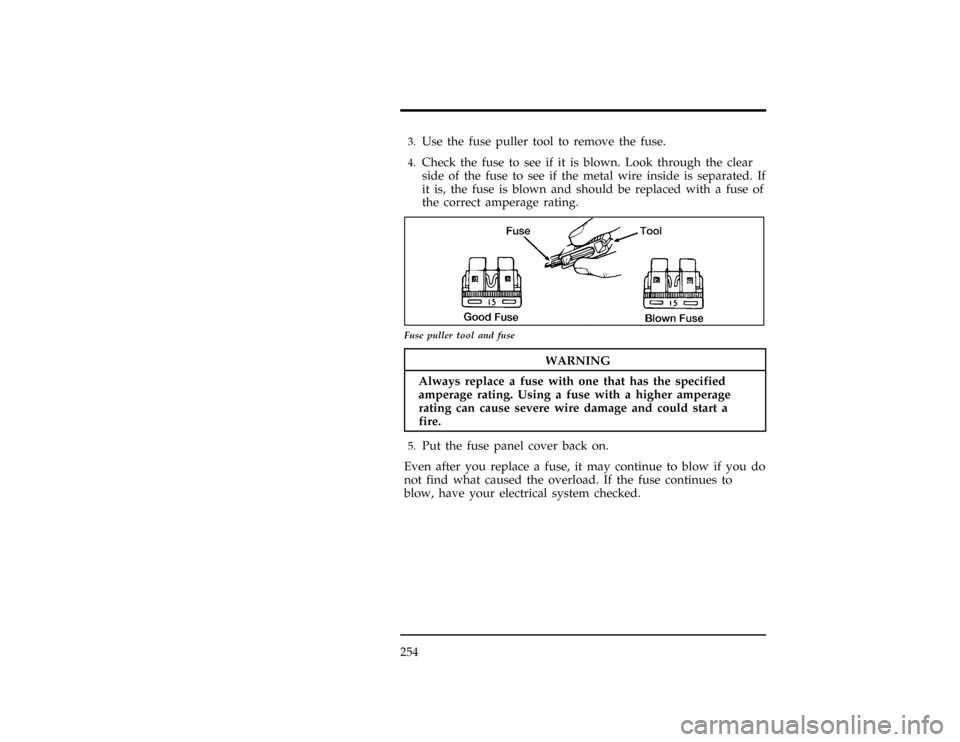

254
*WARNING
Alwaysreplac eafusewit hon etha tha sth especified

Roadside Emergencies
255
*
[ER03900(ALL)01/96]

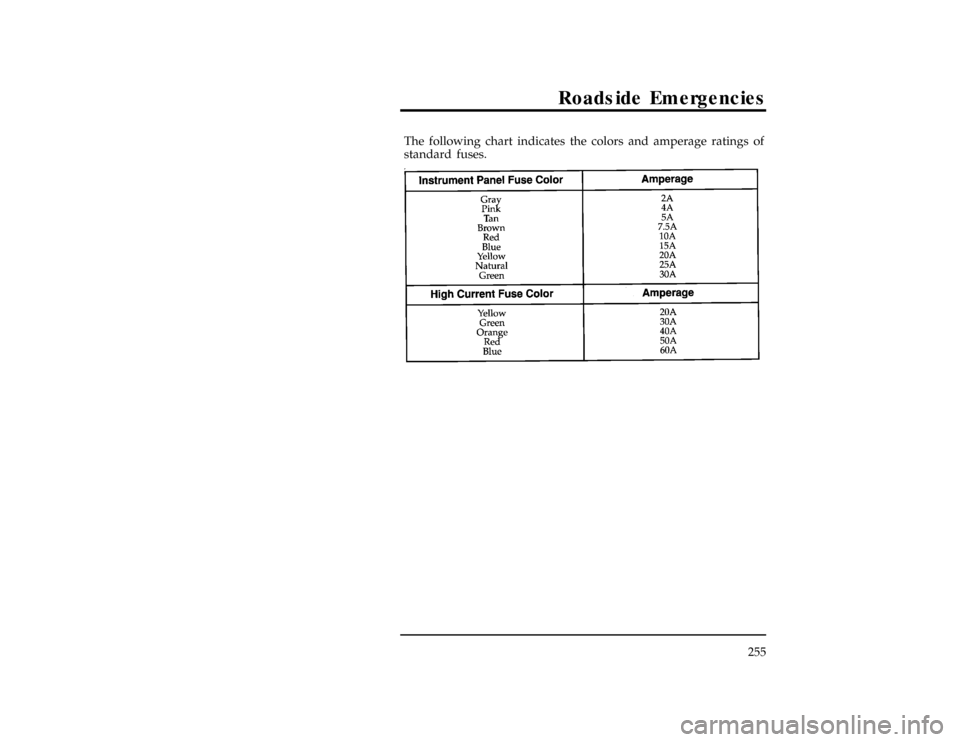

The following chart indicates the colors and amperage ratings of
standard fuses.
[ER04000(ALL)01/96]
fourteen pica
chart:0050113-BFile:10wners.ex
Update:Tue Jul 9 12:14:55 1996

256
%*
[ER04100(ALL)01/96]
Engine Compartment Main Fuse Panel
[ER04200(ALL)01/96]
17-1/2 pica
art:0050039-B
Engine compartment main fuse panel located on driver's side of engine
compartment
[ER04300(ALL)01/96]
10-1/2 pica
art:0050114-C
Engine compartment main fuse and relay panel
File:10wners.ex
Update:Tue Jul 9 12:14:55 1996
