1997 FORD WINDSTAR turn signal

104
%*
[CF18300(ALL)01/96]
Windshield Wipers and Washer
%*
[CF18400(ALL)06/96]
Variable Interval Wipers
[CF18500(ALL)01/96]
Your vehicle has wipers that operate at varying intervals. For
example, you can set the interval so they wipe less often in
light rain or more often in heavier rain. The wiper delays range
from about 1.5 to 20 seconds.
*
[CF18600(ALL)01/96]
10-1/2 pica art:0040087-E
Variable interval wiper control
*
[CF18700(ALL)01/96]
To set the interval wipers, rotate the knob at the end of the turn
signal lever to the most effective interval. The farther the knob
is from the OFF position, the faster the wipers move.
[CF18800(ALL)01/96]
Speed Dependent Wipers
[CF18900(ALL)01/96]
This feature compensates for the extra moisture that
accumulates on your windshield at higher speeds during rain.
At higher speeds, the Speed Dependent feature shortens the
delay between wipes when you use the variable interval wipers.
Delay will automatically adjust at speeds between 10 and
65 mph (16 and 105 km/h).
[CF19000(ALL)01/96]
The Speed Dependent feature comes disabled from the factory,
but can be activated at any time by using the following
procedure.
File:05wncfs.ex
Update:Wed Jul 31 15:55:37 1996

Controls and Features
105
[CF19100(ALL)01/96]1.
Make sure the two front doors are securely closed.
[CF19200(ALL)01/96]2.
Insert the key into the ignition and turn first to the ON
position (the gauges on the instrument panel willnot
illuminate) and then back to the OFF position. Remove the
key and within 30 seconds:
[CF19300(ALL)01/96]3.
Press and hold the washer button on the end of the turn
signal lever.
[CF19400(ALL)01/96]4.
Within two seconds, put the key back in the ignition and
turn to the ON position.
[CF19500(ALL)01/96]5.
Hold the washer button down until a long (two second) tone
is heard. Release the button while the tone is active.
[CF19600(ALL)01/96]6.
After the long tone, a confirmation sequence will be heard.
One beep indicates the feature is inactive. Two beeps
indicates the feature is active.
[CF19700(ALL)01/96]
Repeat this procedure any time you want to cancel or reactivate
the Speed Dependent feature.
*
[CF19800(ALL)01/96]
Windshield Washer
[CF19900(ALL)01/96]
To clean the windshield, push in the washer button on the end
of the turn signal lever. For a constant spray, push and hold the
button. If the windshield wipers are off, one momentary push
results in one wipe and a longer push in three wipes and
activation of washer fluid. If the windshield wipers are in
interval mode a quick tap results in two wipe cycles and a
longer tap in three wipes and washer fluid activation.
*
[CF20000(ALL)01/96]
Do not try to clean the windshield when the washer fluid
container is empty and never activate the washers for more than
fifteen seconds continuously. This could damage the washer
pump system.
File:05wncfs.ex
Update:Wed Jul 31 15:55:37 1996

108
%*
[CF21200(ALL)05/96]
Horn
[CF21300(ALL)01/96]
To sound the horn, press the center of the steering wheel. Check
the horn regularly to make sure it operates properly.
[CF21400(ALL)01/96]
13-1/2 pica
art:0050017-A

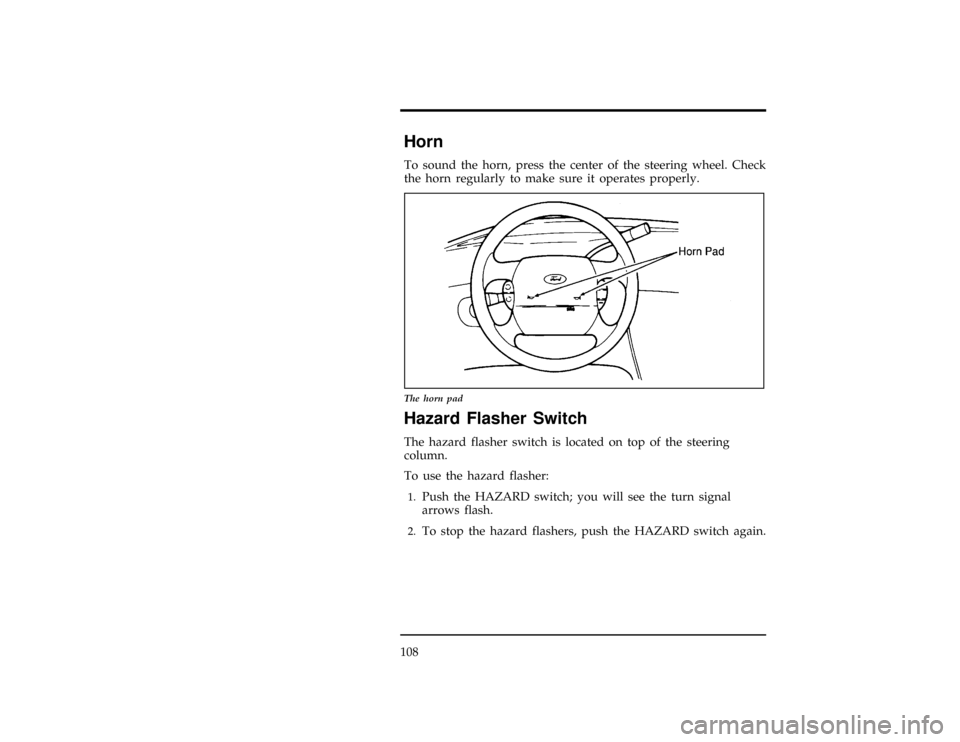

The horn pad
%*
[CF21500(ALL)05/96]
Hazard Flasher Switch
[CF21600(ALL)01/96]
The hazard flasher switch is located on top of the steering
column.
*
[CF21700(ALL)01/96]
To use the hazard flasher:
*
[CF21800(ALL)01/96]1.
Push the HAZARD switch; you will see the turn signal
arrows flash.
*
[CF21900(ALL)01/96]2.
To stop the hazard flashers, push the HAZARD switch again.
File:05wncfs.ex
Update:Wed Jul 31 15:55:37 1996

247
Roadside Emergencies
*
[ER00200(ALL)01/96]
The hazard flasher is used to alert other drivers to hazardous
situations.
*
[ER00300(ALL)01/96]
The hazard flasher switch operates the same lamps as the turn
signal lever. When the hazard flasher is activated, all of these
lamps will flash on and off. The turn signal indicators cannot be
used when the hazard lamps are flashing. Operation of the
hazard flashers does not affect operation of the brakelamps.
*
[ER00400(ALL)01/96]
The flashers work even with the key out of the ignition. The
flashers will work for up to two hours when the battery is fully
charged and in good condition. They will not drain the battery
excessively. If the flashers run for longer than two hours or if
your battery is not fully charged, your battery may be drained
to the point where the vehicle will not start.
%*
[ER00500(ALL)01/96]
What To Do If The Engine Does Not Start
%*
[ER00600(ALL)01/96]
Fuel Pump Shut-Off Switch
*
[ER00700(ALL)03/96]
If the engine cranks but does not start or does not start even
after a small collision, the fuel pump shut-off switch may have
been activated. The shut-off switch is a device intended to stop
the fuel pump when your vehicle has been involved in a
substantial jolt.
*
[ER00800(ALL)03/96]
Once the shut-off switch is activated, you must reset the switch
by hand before you can start your vehicle.
[ER00900(ALL)12/95]
The fuel pump shut-off switch reset button is located behind the
jack access cover under the jack in the cargo compartment.
File:10wners.ex
Update:Tue Jul 9 12:14:55 1996

Maintenance and Care
321
%*
[MC31700(ALL)03/96
]
How to Prepare Your Vehicle for
Inspection/Maintenance (I/M) Testing
*
[MC31800(ALL)07/96]
In some localities it may become a legal requirement to pass an
Inspection/Maintenance (I/M) test of the On-Board Diagnostic
(OBD) II system. If the vehicle's powertrain system or its battery
has just been serviced, the OBD II system is reset to a not ready
for I/M testing condition. To prepare for I/M testing, the law
specifies that additional mixed city and highway driving is
required to complete the check of the OBD II system.
*
[MC31825(ALL)07/96]
The driving modes required to reach the ready condition consist
of a minimum of 30 minutes of city and highway driving as
described below:
*
[MC32000(ALL)07/96]
n
At least twenty minutes driving in stop and go, city type
traffic with at least four idle periods.
*
[MC32100(ALL)07/96]
n
At least ten minutes of driving on an expressway or
highway.
*
[MC32200(ALL)07/96]
Before completing the above driving modes, the engine must be
warmed up and at operating temperature. Once started, the
vehicle must not be turned off during these driving modes.
[MC33200(ALL)01/96]
Lights
*
[MC33300(ALL)01/96]
It is a good idea to check the operation of the following lights
frequently:
*
[MC33400(ALL)01/96]
n
headlamps
*
[MC33500(ALL)01/96]
n
tail lamps
*
[MC33600(ALL)01/96]
n
brakelamps
*
[MC33700(ALL)01/96]
n
hazard flasher
*
[MC33800(ALL)01/96]
n
turn signals
*
[MC33900(ALL)05/96]
n
license plate lamps
*
[MC34000(ALL)01/96]
n
fog lamps
