1997 CHEVROLET EXPRESS jump start

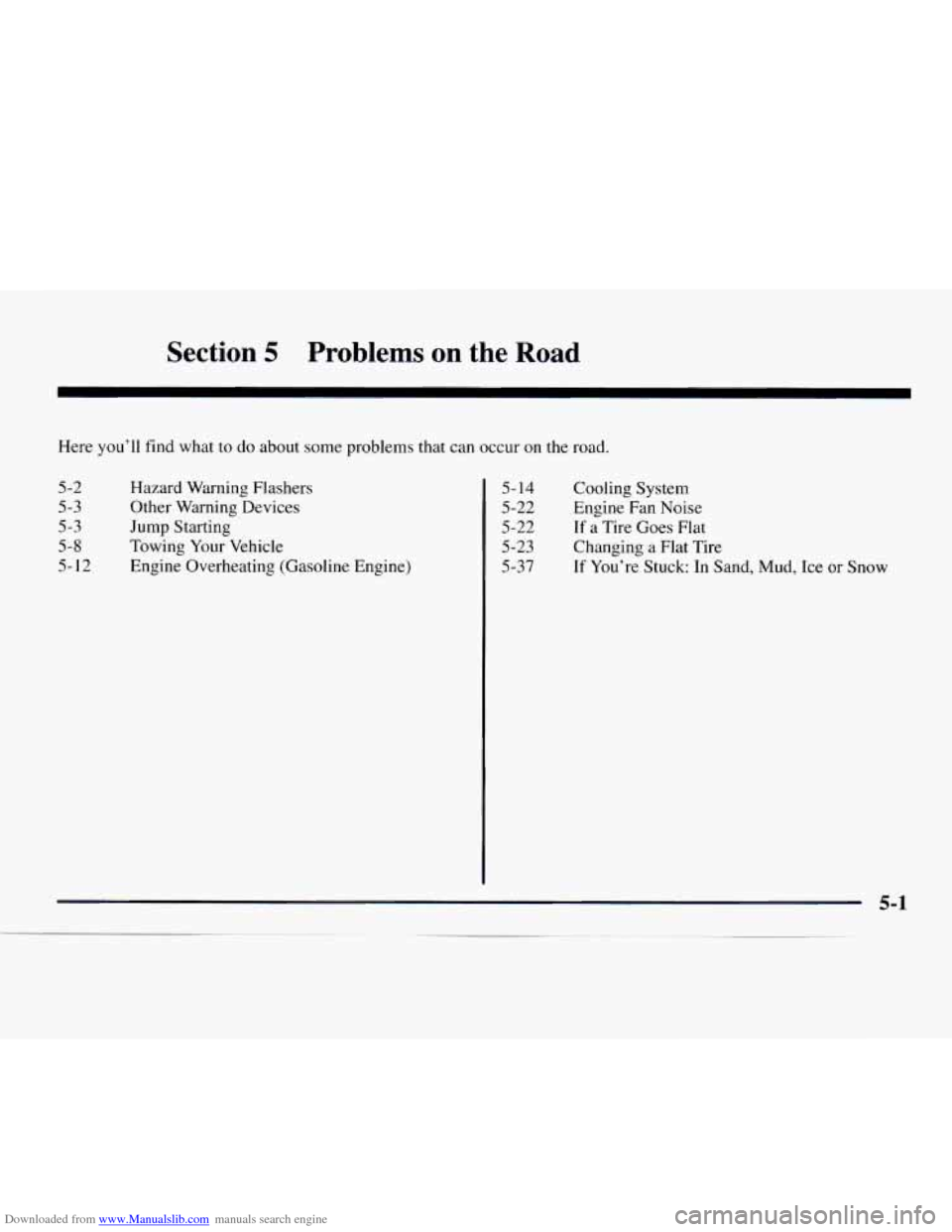

Downloaded from www.Manualslib.com manuals search engine Section 5 Problems on the Road
Here you’ll find what to do about some problems that can
5-2
5-3
5-3
5-8
5- 12 Hazard
Warning Flashers
Other Warning Devices
Jump Starting
Towing Your Vehicle
Engine Overheating (Gasoline Engine) occur
on the road.
5- 14 Cooling System
5-22 Engine Fan Noise
5-22
If a Tire Goes Flat
5-23 Changing a Flat Tire
5-37 If You’re Stuck: In Sand, Mud, Ice or Snow

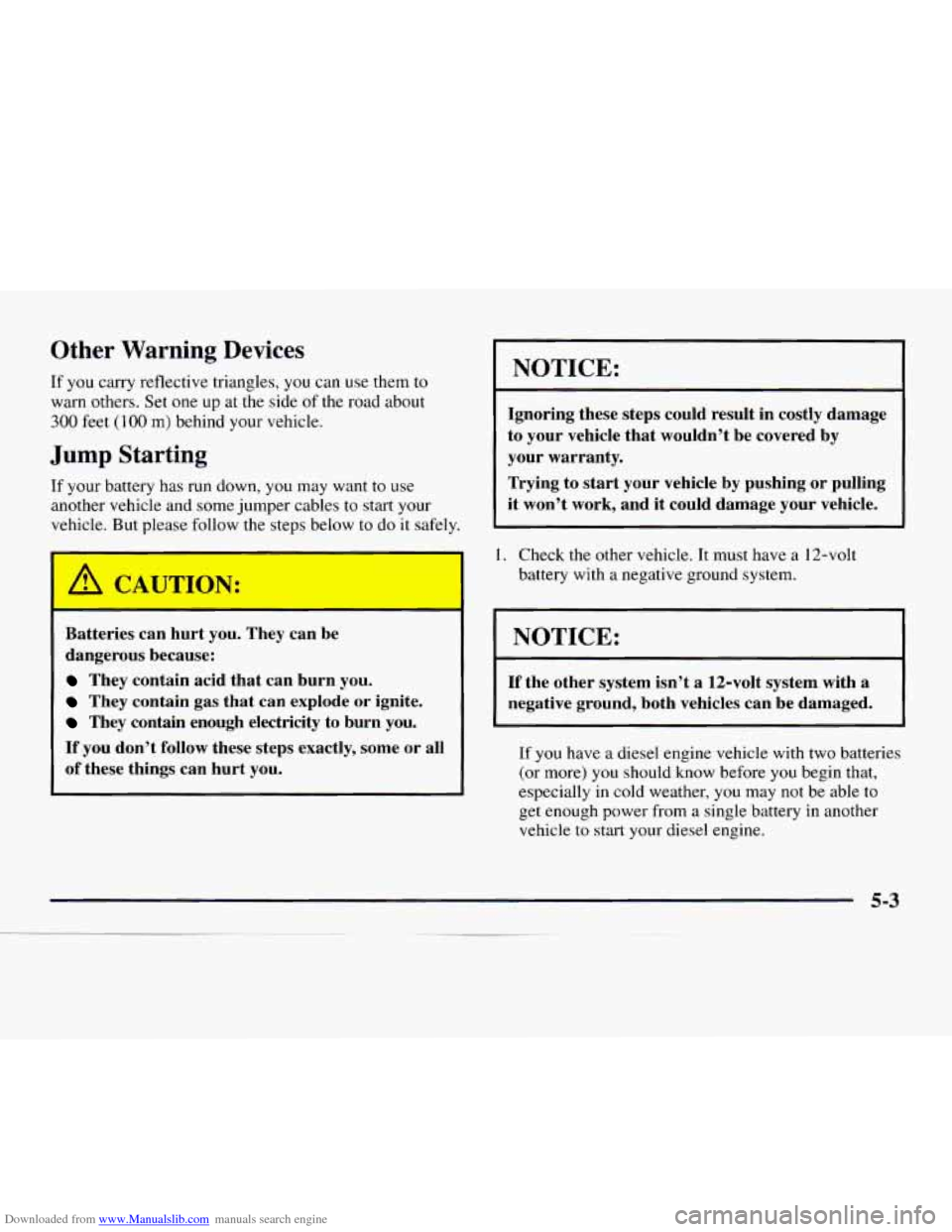

Downloaded from www.Manualslib.com manuals search engine Other Warning Devices
If you carry reflective triangles, you can use them to
warn others. Set one up at the side of the road about
300 feet (100 m) behind your vehicle.
Jump Starting
If your battery has run down, you may want to use
another vehicle and
some jumper cables to start your
vehicle. But please follow the steps below
to do it safely.
I I
/1 CAJTION:
Batteries can hurt you. They can be
dangerous because:
They contain acid that can burn you.
They contain gas that can explode or ignite.
They contain enough electricity to burn you.
If you don’t follow these steps exactly, some or all
of these things can hurt
you.
NOTICE:
Ignoring these steps could result in costly damage
to your vehicle that wouldn’t be covered by
your warranty.
Trying to start your vehicle by pushing or pulling
it won’t work, and it could damage your vehicle.
1. Check the other vehicle. It must have a 12-volt
battery with a negative ground system.
NOTICE:
If the other system isn’t a 12-volt system with a
negative ground, both vehicles can be damaged.
If you have a diesel engine vehicle with two batteries
(or more)
you should know before you begin that,
especially in cold weather, you may not be able to
get enough power from a single battery in another
vehicle
to start your diesel engine.

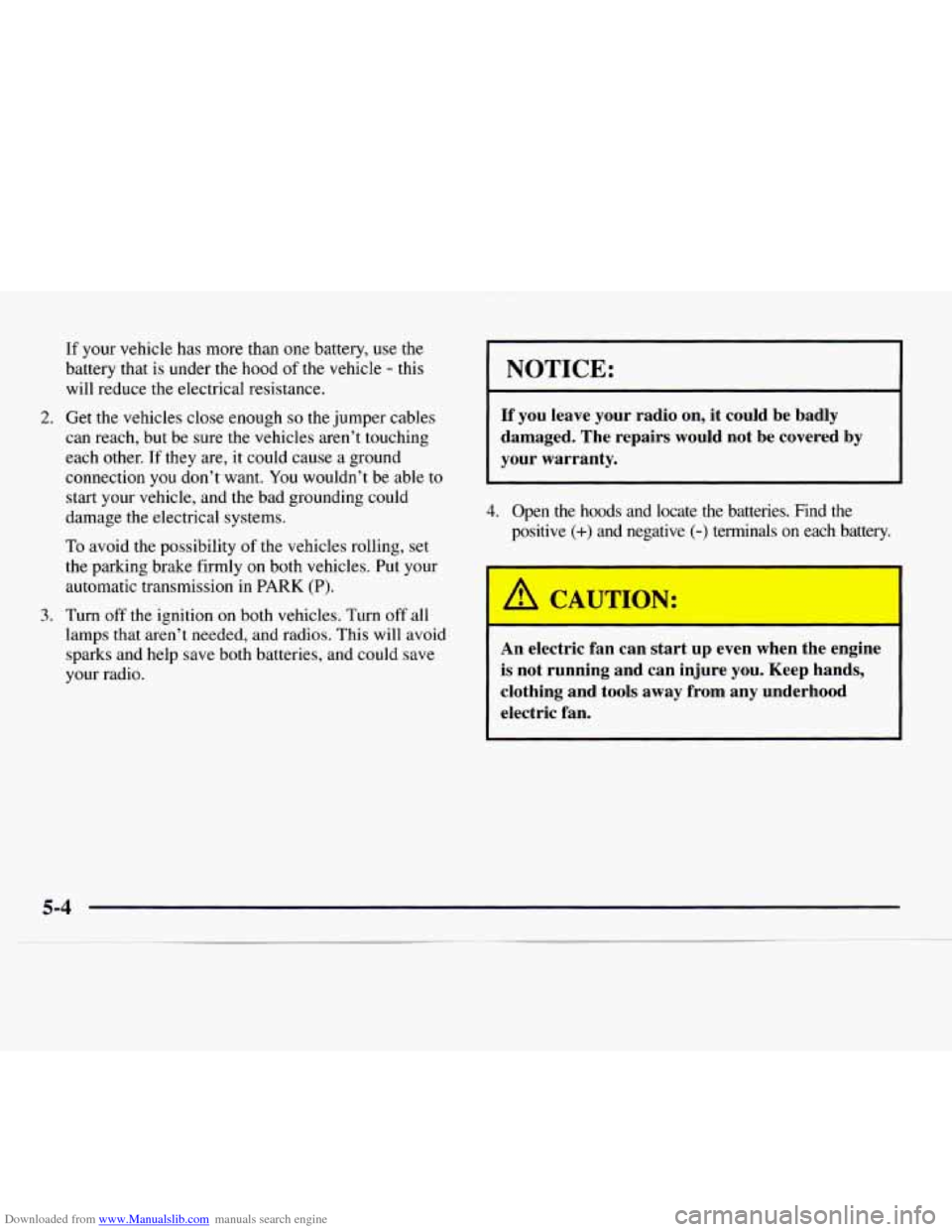

Downloaded from www.Manualslib.com manuals search engine If your vehicle has more than one battery, use the
battery that is under the hood of the vehicle
- this
will reduce the electrical resistance.
2. Get the vehicles close enough so the jumper cables
can reach, but be sure the vehicles aren’t touching
each other.
If they are, it could cause a ground
connection
you don’t want. You wouldn’t be able to
start your vehicle, and the bad grounding could
damage the electrical systems.
To avoid the possibility of the vehicles rolling, set
the parking brake firmly on both vehicles. Put your
automatic transmission in PARK
(P).
3. Turn off the ignition on both vehicles. Turn off all
lamps that aren’t needed, and radios. This will avoid
sparks and help save both batteries, and could save
your radio.
1 NOTICE:
If’ you leave your radio on, it could be badly
damaged. The repairs would not be covered by
your warranty.
4. Open the hoods and locate the batteries. Find the
positive
(+) and negative (-) terminals on each battery.
An electric fan can start up even when the engine
is not running and can injure you. Keep hands,
clothing and tools away from any underhood
electric fan.

Downloaded from www.Manualslib.com manuals search engine Battery
Every new vehicle has a Delco Freedom@ battery. You
never have
to add water to one of these. When it’s time
for a new battery, we recommend a Delco Freedom
battery. Get one that
has the replacement number shown
on the original battery’s label.
Vehicle Storage
If’ you’re not going to drive your vehicle for 25 days or more,
take
off the black, negative (-) cable from the battery. This
will help keep your battery from running down.
Batteries have acid that can burn you and gas
that can explode. You can be badly hurt
if you
aren’t careful. See “Jump Starting” in the Index
for tips on working around
a battery without
getting hurt.
Contact your dealer to learn how to prepare your vehicle
for longer storage periods.
Also, for your audio system, see “Theft-Deterrent
Feature’’ in the Index.
Bulb Replacement
Before you replace any bulbs, be sure that all the lamps
are
off and the engine isn’t running. See “Replacement
Bulbs”
in the index for the proper types of bulbs to use.
Halogen Bulbs
Halogen bulbs have pressurized gas inside and
can burst if you drop
or scratch the bulb. You or
others could be injured. Be sure
to read and
follow the instructions on the bulb package.

Downloaded from www.Manualslib.com manuals search engine ROADSIDE Courtesy Care PROVIDES:
0 Roadside Basic Care services (as outlined above)
Plus:
0 FREE Non-Warranty Towing (to the closest dealer
@ FREE LocksmithKey Service (when keys are lost
from a legal roadway)
on the road or locked inside)
0 FREE Flat Tire Service (spare installed on the road)
FREE Jump Start (at
home or on the road)
0 FREE Fuel Delivery ($5 of fuel delivered on
the road) ChevroletlGeo offers Courtesy Transportation for
customers needing warranty service. Courtesy
Transportation will be offered in conjunction with the coverage provided by the Bumper to Bumper
New Vehicle Limited Warranty to eligible purchasers
of
1997 ChevroletlGeo passenger car and light duty
trucks. (Please
see your selling dealer for details.)
Note:
Courtesy Care is available to Retail and Retail Lease
Customers operating
1997 and newer ChevroletlGeo
vehicles for a period of 3 years/36,000 miles
(60 0o0 km),
whichever occurs first. All Courtesy Care services must
be pre-arranged by Chevrolet Roadside or dealer
Service Management.
Basic Care and Courtesy Care are not part of or
included in the coverage provided
by the New Vehicle
Limited Warranty. Chevrolet reserves the right to
modify or discontinue
Basic Care and Courtesy Care
at any time.

Downloaded from www.Manualslib.com manuals search engine Section 9 Index
Adjustable Mast Antenna ........................ 3-28
AirBag
....................................... 1-25
Adding Equipment
............................ 1-32
How Does
it Restrain .......................... 1-30
How it Works
................................ 1-28
Location
.................................... 1-28
Readiness Light
......................... 1.27. 2-51
Servicing
................................... 1-31
What Makes it Inflate
.......................... 1-29
What Will
You See After it Inflates ............... 1-30
When Should it Inflate
......................... 1-29
Aircleaner
.................................... 6-17
Air Conditioning Refrigerants
..................... 6-67
Alignment and Balance. Tire
...................... 6-47
Aluminum Wheels. Cleaning
...................... 6-55
Antenna. Adjustable Mast
........................ 3-28
Antenna. Power
................................ 3-28
Antifreeze
..................................... 6-22
Anti-Lock Brake System Warning Light
................ 2-53. 4-7
Brakes
...................................... 4-7
Appearancecare
............................... 6-49
Air Conditioning
................................ 3-7
Air Control. Climate Control System
................. 3-3 Appearance
Care Materials
....................... 6-57
Arbitration Program
.............................. 8-9
Ashtrays ...................................... 2-43
Audio Systems
.................................. 3-8
Automatic Transmission
Transmission Check
........................... 7-46
Transmission Fluid
............................ 6-18
Transmission Operation
........................ 2-20
Shifting
..................................... 2-20
Transmission Park Mechanism Check
............. 7-48
Axle. Locking Rear
............................. 2-23
Axle. Rear
.................................... 6-22
Battery
...................................... 6-32
Jump Starting
................................. 5-3
Replacement. Remote Keyless Entry
............... 2-8
Warnings
.................................... 5-3
Warnings
.................................... 5-3
BBB Auto Line
................................. 8-9
Before Leaving on a Long Trip
.................... 4-21
Better Business Bureau Mediation
................... 8-9
Blizzard. Driving In
............................. 4-25
9-1

Downloaded from www.Manualslib.com manuals search engine Halogen Bulbs ................................ 6-32
Hazard Warning Flashers
.......................... 5-2
Head Restraints
................................. 1-5
Bulb Replacement ............................ 6-33
High/Low Beam Changer ...................... 2-34
OnReminder
................................ 2-40
Hearing Impaired. Customer Assistance
.............. 8-4
Heating
........................................ 3-7
High-Beam Headlamps
.......................... 2-34
Highway Hypnosis
.............................. 4-22
Hill and Mountain Roads
......................... 4-22
Hitches. Trailer
................................. 4-33
Hood
Checking Things Under
......................... 6-7
Prop
........................................ 6-8
Release
...................................... 6-7
Horn
......................................... 2-32
Hydroplaning
.................................. 4- 18
Headlamps .................................... 2-39
Wiring
..................................... 6-59
Ignition Switch
................................ 2- 16
Inflation. Tire .................................. 6-42
Inside Daymight Rearview Mirror
................. 2-43
Inspections
.................................... 7-49
Brakesystem
................................ 7-50
Exhaust Systems
............................. 7-49
Radiator and Heater Hose
...................... 7-49
RearAxle
................................... 7-50
Ignition Transmission
Lock Check
................. 7-47 Steering
.................................... 7-49
Suspension
.................................. 7-49
Throttle Linkage
.............................. 7-49
Cleaning
.................................... 6-52
Cluster
..................................... 2-48
FuseBlock
.................................. 6-60
Interior Lamps
................................. 2-40
Brightness Control
............................ 2-38
.................................... J ack. . Tire 5-25
Jump Starting ................................... 5-3
Keyless Entry System
........................... 2-6
Keys
.......................................... 2-2
Labels 4-27
Certification
................................. 4-27
Certification/Tire
............................. 4-27
Service Parts Identification
..................... 6-58
Tire-Loading Information
...................... 4-27
Vehicle Identification Number
................... 6-58
Dome
...................................... 2-40
Interior
..................................... 2-40
OnReminder
................................ 2-40
Panel
....................................... 2-40
Underhood
.................................. 2-42
Lalnps
........................................ 2-38
Leaving
Your Vehicle with the Engine Running ....... 2-26
Lighter
....................................... 2-45
