1997 CHEVROLET CORVETTE buttons

Downloaded from www.Manualslib.com manuals search engine changer except the EJECT button for ejecting the CD
magazine.
PREV (1): Press this button or the SEEK left arrow to
go to the previous track if the current selection has been
playing for less than eight seconds.
If the PREV button
is pressed and the current selection has been playing for
more than eight seconds, it will go to the beginning of
the current selection. If you hold or press this button
more than once, the player will continue moving back
through the disc. The sound will mute while seeking.
PROG (2): Press this button to select a disc. The disc
number and track number will be displayed.
NEXT (3): Press this button or the SEEK right arrow to
go to the next track. If you hold the button
or press it
more than once, the player will continue moving
forward through the disc. The sound will mute while
seeking.
REV (4): Press and hold this button to reverse quickly
through a track selection. Release it to resume playing.
FWD (6): Press and hold this button to advance quickly
through a track selection. Release
it to resume playing.
SEEK: Press the right arrow to seek to the next
selection on the
CD. Press the left mow to search for
the previous selection on the CD. The sound will mute
while seeking.
SCAN: When you press SCAN while playing a CD, you.
will hear the first few seconds of each disc. Press SCAN
again to stop on
a CD. The CD will mute while scanning
and SCAN will appear on the display.
P.SCAN: Press this button to hear the tracks in random,
rather than sequential, order. RANDOM will appear on
the display. Press P.SCAN again to turn off random play.
TAPE AUX: Press this button if you have a disc loaded
in the changer and the radio is turned on, to play a
compact disc. Press AM-FM to return
to the radio when
a compact disc is playing. Press TAPE AUX to switch
between the tape and compact disc if both are loaded.
To eject the disc holder in the trunk mounted CD
changer, slide the CD changer door all the way open and
the disc holder will automatically eject.
If your vehicle is equipped with the AM-FM Stereo with
CD Player and Automatic Tone Control, the following
buttons are used for the trunk mounted
CD changer
except the EJECT button for ejecting the
CD magazine.
PREV (1): Press this button or the SEEK left arrow to
go to the previous track if the current selection has been
playing for less than eight seconds. If the PREV button
is pressed and the current selection has been playing
for
more than eight seconds, it will go to the beginning of
3-24

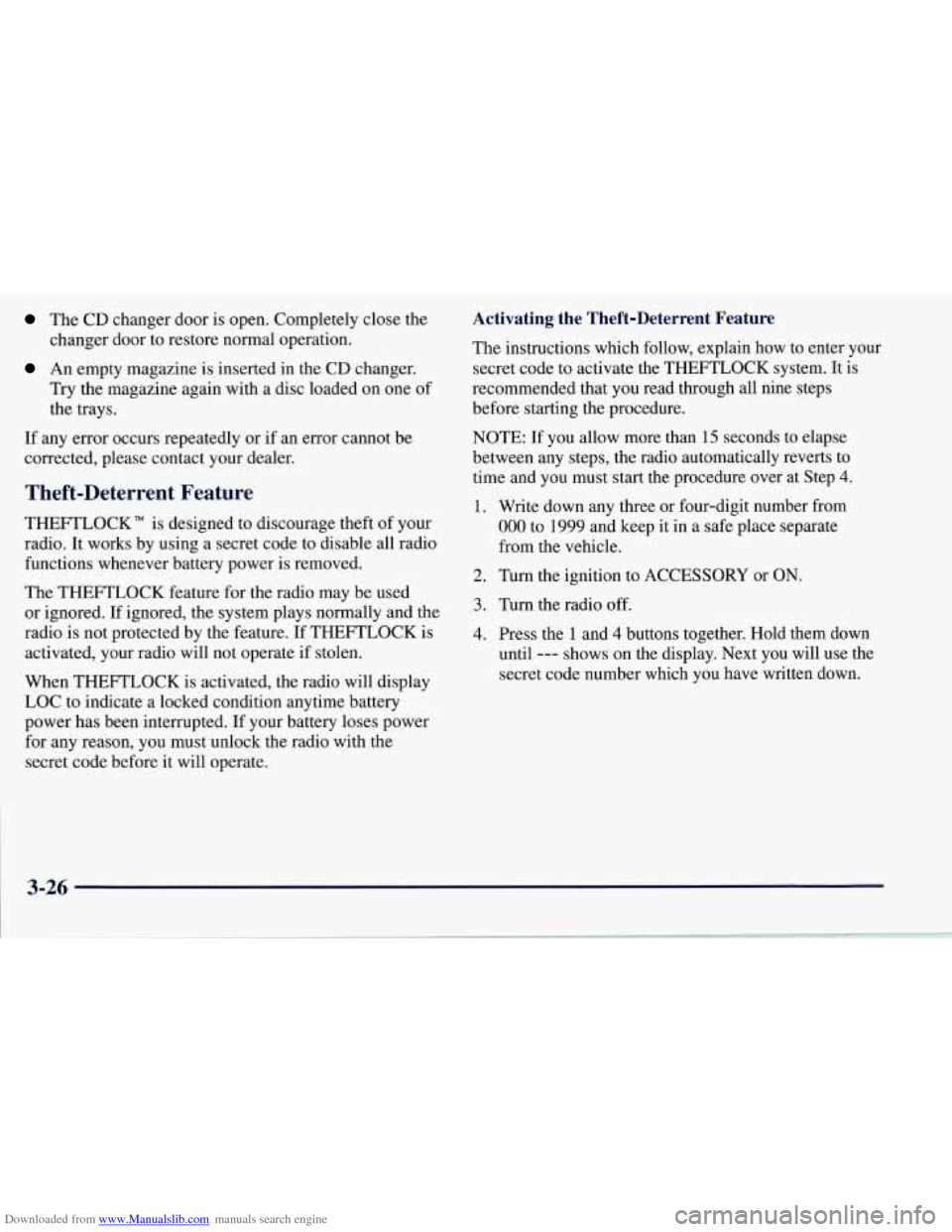

Downloaded from www.Manualslib.com manuals search engine The CD changer door is open. Completely close the
changer door to restore normal operation.
An empty magazine is inserted in the CD changer.
Try the magazine again with a disc loaded on one of
the trays.
If any error occurs repeatedly or if an error cannot be
corrected, please contact your dealer.
Theft-Deterrent Feature
THEFTLOCK" is designed to discourage theft of your
radio. It works by using a secret code to disable all radio
functions whenever battery power is removed.
The THEFTLOCK feature for the radio may be used
or ignored. If ignored, the system plays normally and the
radio is not protected by the feature. If THEFTLOCK is
activated, your radio will not operate if stolen.
When THEFTLOCK is activated, the radio will display
LOC to indicate a locked condition anytime battery
power has been interrupted. If your battery loses power
for any reason, you must unlock the radio with the
secret code before it will operate.
Activating the Theft-Deterrent Feature
The instructions which follow, explain how to enter your
secret code to activate the THEFTLOCK system. It is
recommended that you read through all nine steps
before starting the procedure.
NOTE: If you allow more than
15 seconds to elapse
between any steps, the radio automatically reverts to
time and you must
start the procedure over at Step 4.
1.
2.
3.
4.
Write down any three or four-digit number from
000 to 1999 and keep it in a safe place separate
from the vehicle.
Turn the ignition to ACCESSORY or
ON.
Turn the radio off.
Press the
1 and 4 buttons together. Hold them down
until
--- shows on the display. Next you will use the
secret code number which you have written down.

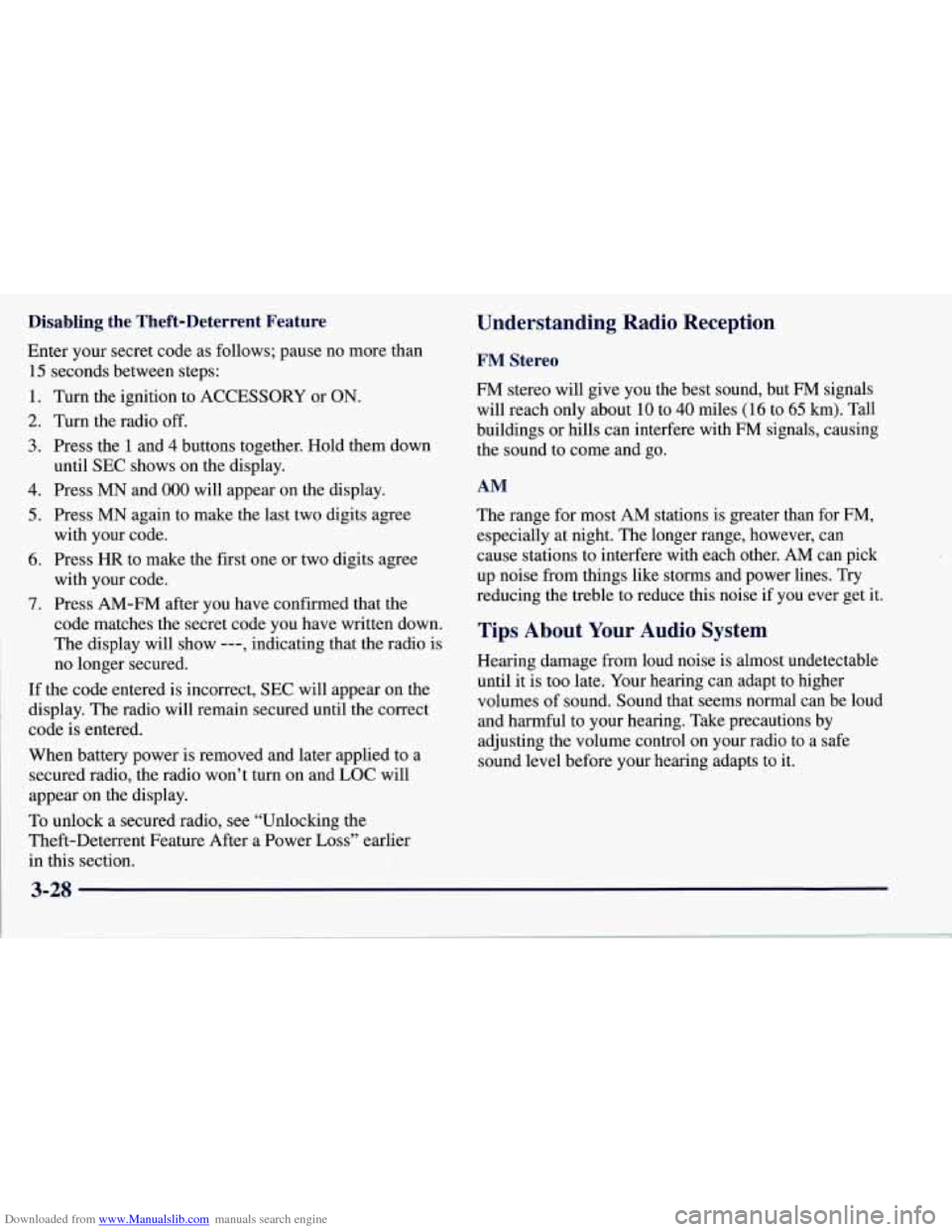

Downloaded from www.Manualslib.com manuals search engine Disabling the Theft-Deterrent Feature
Enter your secret code as follows; pause no more than
15 seconds between steps:
1. Turn the ignition to ACCESSORY or ON.
2. Turn the radio off.
3. Press the 1 and 4 buttons together. Hold them down
4. Press MN and 000 will appear on the display.
5. Press MN again to make the last two digits agree
6. Press HR to make the first one or two digits agree
7. Press AM-FM after you have confirmed that the
until SEC
shows on the display.
with your code. with your code.
code matches the secret code you have written down.
The display will show
---, indicating that the radio is
no longer secured.
If the code entered is incorrect, SEC will appear on the
display. The radio will remain secured until the correct
code is entered.
When battery power is removed and later applied to a
secured radio, the radio won’t turn on and LOC will
appear
on the display.
To unlock a secured radio, see “Unlocking the
Theft-Deterrent Feature After a Power
Loss” earlier
in this section.
Understanding Radio Reception
FM Stereo
FM stereo will give you the best sound, but FM signals
will reach only about
10 to 40 miles (16 to 65 km). Tall
buildings or hills can interfere with
FM signals, causing
the sound to come and go.
AM
The range for most AM stations is greater than for FM,
especially
at night. The longer range, however, can
cause stations to interfere with each other.
AM can pick
up noise from things like storms and power lines. Try
reducing the treble to reduce this noise if you ever get it.
Tips About Your Audio System
Hearing damage from loud noise is almost undetectable
until
it is too late. Your hearing can adapt to higher
volumes of sound. Sound that seems normal can be loud
and harmful to your hearing. Take precautions by
adjusting the volume control on your radio to
a safe
sound level before your hearing adapts to it.
3-28

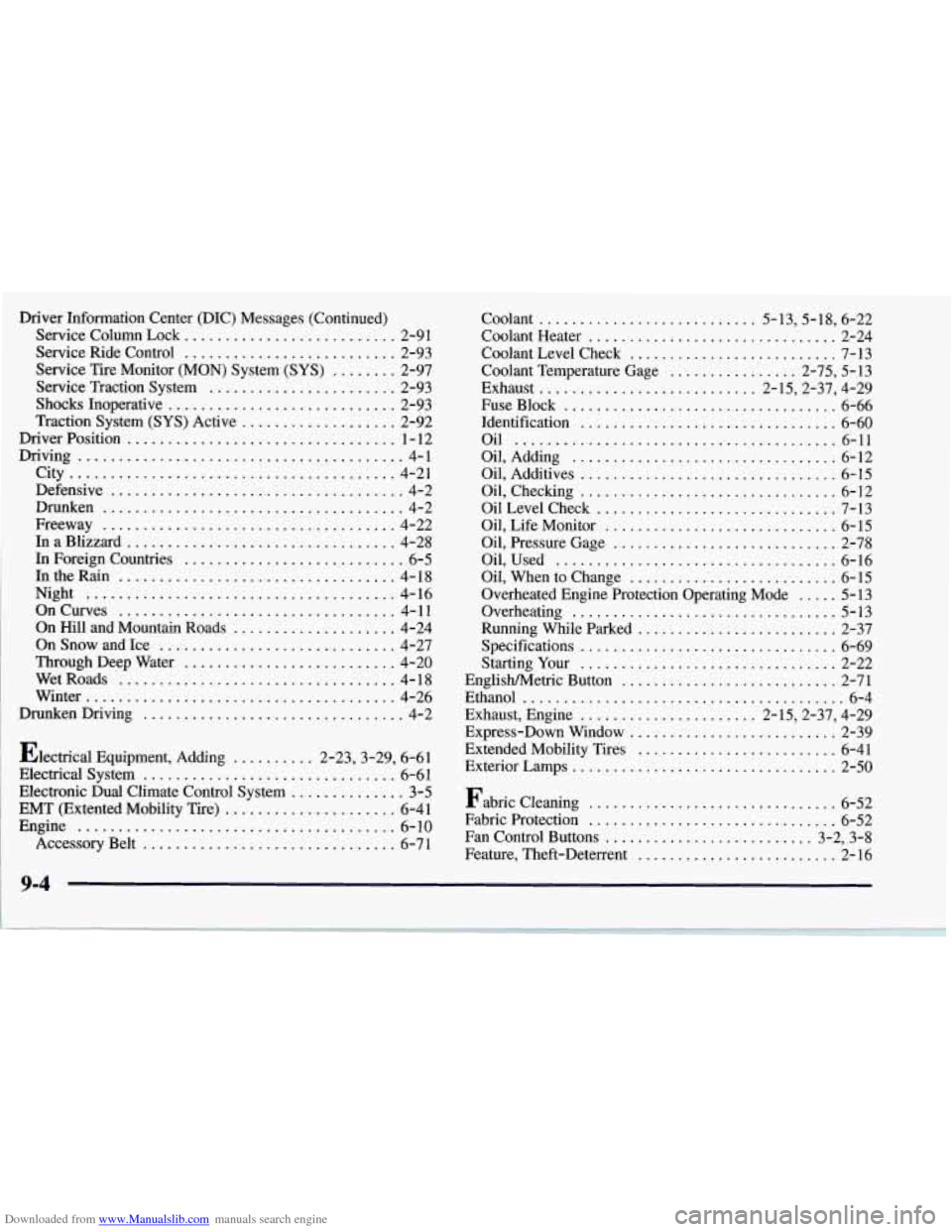

Downloaded from www.Manualslib.com manuals search engine Driver Information Center (DIC) Messages (Continued)
Service Column Lock
.......................... 2-91
Service Ride Control
.......................... 2-93
Service Tire Monitor (MON) System
(SYS) ........ 2-97
Service Traction System
....................... 2-93
Shocks Inoperative
............................ 2-93
Traction System
(SYS) Active ................... 2-92
Driving
........................................ 4-1
DriverPosition
................................. 1-12
City
........................................ 4-21
Defensive
.................................... 4-2
Drunken
..................................... 4-2
Freeway
.................................... 4-22
InaBlizzard
................................. 4-28
In Foreign Countries
........................... 6-5
In the Rain
.................................. 4- 18
Night
...................................... 4-16
OnCurves .................................. 4-11
On Hill and Mountain Roads .................... 4-24
On Snow and Ice
............................. 4-27
Through Deep Water
.......................... 4-20
WetRoads
.................................. 4-18
Winter
...................................... 4-26
Drunken Driving
................................ 4-2
Electrical Equipment. Adding
.......... 2-23,3-29, 6-61
Electrical System
............................... 6-61
Electronic Dual Climate
Control System .............. 3-5
EMT (Extented Mobility Tire)
..................... 6-41
Engine
....................................... 6-10
AccessoryBelt
............................... 6-71 Coolant
........................... 5.13.5.18. 6.22
Coolant Heater
............................... 2-24
Coolant Level Check
.......................... 7-13
Coolant Temperature Gage
................ 2.75. 5. 13
Exhaust
........................... 2.15.2.37. 4.29
FuseBlock
.................................. 6-66
Identification
................................ 6-60
Oil
........................................ 6-11
Oil, Adding
................................. 6-12
Oil, Additives
................................ 6-15
Oil. Checking
................................ 6-12
OilLevelCheck .............................. 7-13
Oil, Life Monitor
............................. 6-15
Oil, Pressure Gage
............................ 2-78
Oil, Used
................................... 6-16
Oil, When to Change
.......................... 6-15
Overheated Engine Protection Operating Mode
..... 5-13
Overheating
................................. 5-13
Running While Parked
......................... 2-37
Specifications
................................ 6-69
StartingYour
................................ 2-22
EnglishMetric Button
........................... 2-71
Ethanol
........................................ 6-4
Exhaust, Engine
...................... 2-15,2-37, 4-29
Express-Down Window
.......................... 2-39
Extended Mobility Tires
......................... 6-41
Exterior Lamps
................................. 2-50
Fabric Protection
............................... 6-52
Fan Control Buttons
.......................... 3-2, 3-8
Feature, Theft-Deterrent ......................... 2-16
Fabric
Cleaning
............................... 6-52
