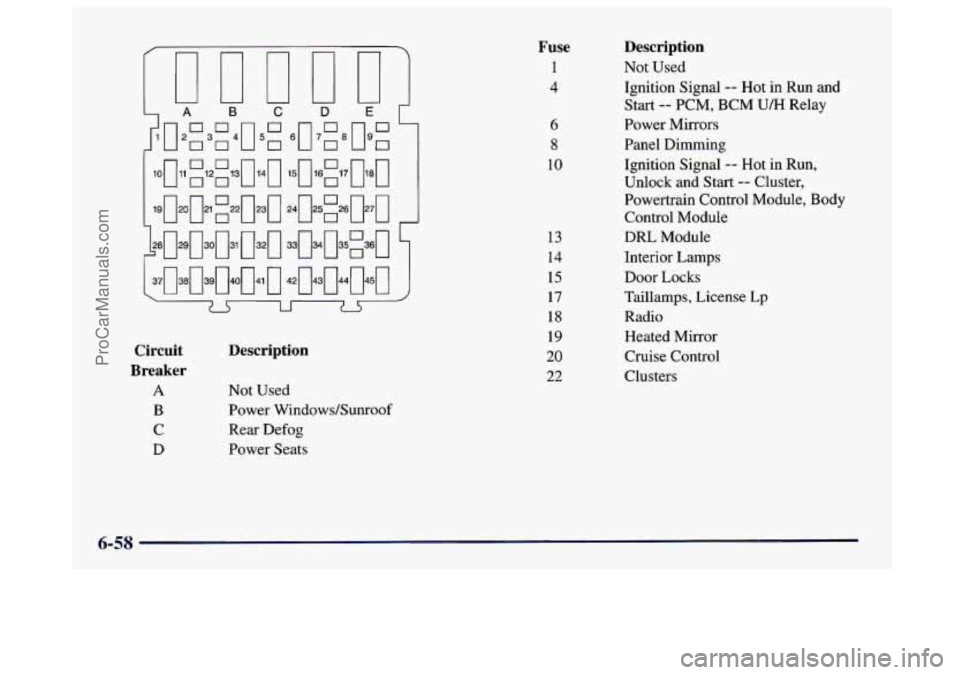

Circuit
Breaker
A
B
C
D
Description
Not Used
Power Windows/Sunroof
Rear Defog
Power Seats
Fuse
1
4
6
8
10
13
14
15
17
18
19
20
22
Description
Not Used
Ignition Signal
-- Hot in Run and
Start
-- PCM, BCM U/H Relay
Power Mirrors
Panel Dimming
Ignition Signal
-- Hot in Run,
Unlock and Start -- Cluster,
Powertrain Control Module, Body
Control Module
DRL Module
Interior Lamps
Door Locks
Taillamps, License Lp
Radio Heated Mirror
Cruise Control
Clusters
6-58
ProCarManuals.com

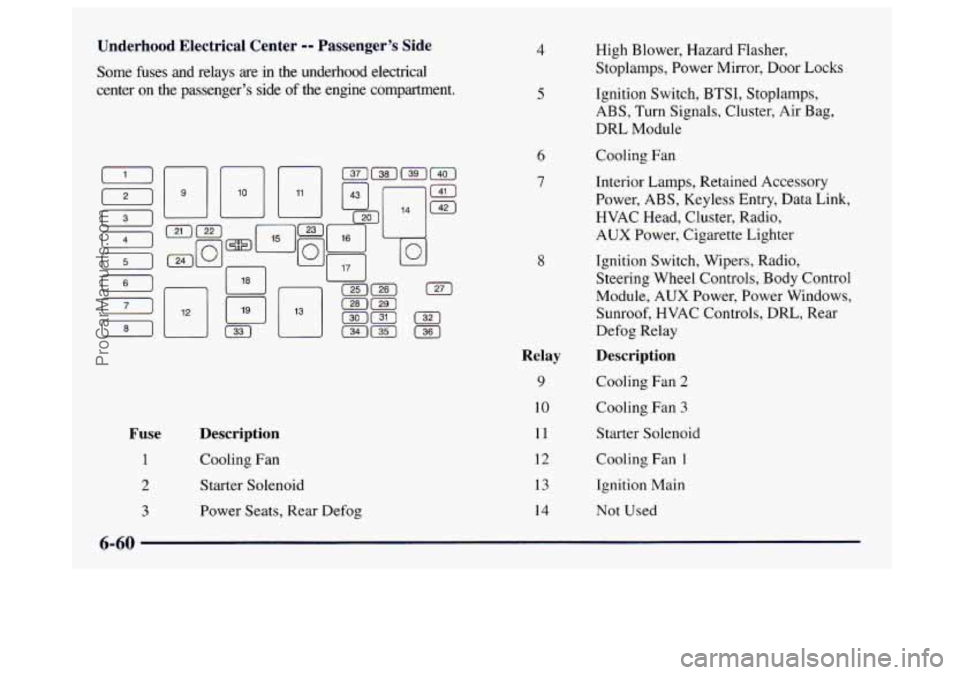

Underhood Electrical Center -- Passenger's Side
Some fuses and relays are in the underhood electrical
center on the passenger's side
of the engine compartment.
D
121
(31
(41
(51 F I I I I
m
[61
18j
(71 [TI
Fuse
1
2
3
Description
Cooling Fan
Starter Solenoid
Power Seats, Rear Defog
4
5
6
7
8
Relay
9
10
11
12
13
14
High Blower, Hazard Flasher,
Stoplamps, Power Mirror, Door Locks
Ignition Switch, BTSI, Stoplamps,
ABS, Turn Signals, Cluster, Air Bag,
DRL Module
Cooling Fan
Interior Lamps, Retained Accessory
Power, ABS, Keyless Entry, Data Link,
HVAC Head, Cluster, Radio,
AUX Power, Cigarette Lighter
Ignition Switch, Wipers, Radio,
Steering Wheel Controls, Body Control
Module, AUX Power, Power Windows,
Sunroof, HVAC Controls, DRL, Rear
Defog Relay
Description
Cooling Fan 2
Cooling Fan 3
Starter Solenoid
Cooling Fan
1
Ignition Main
Not Used
ProCarManuals.com

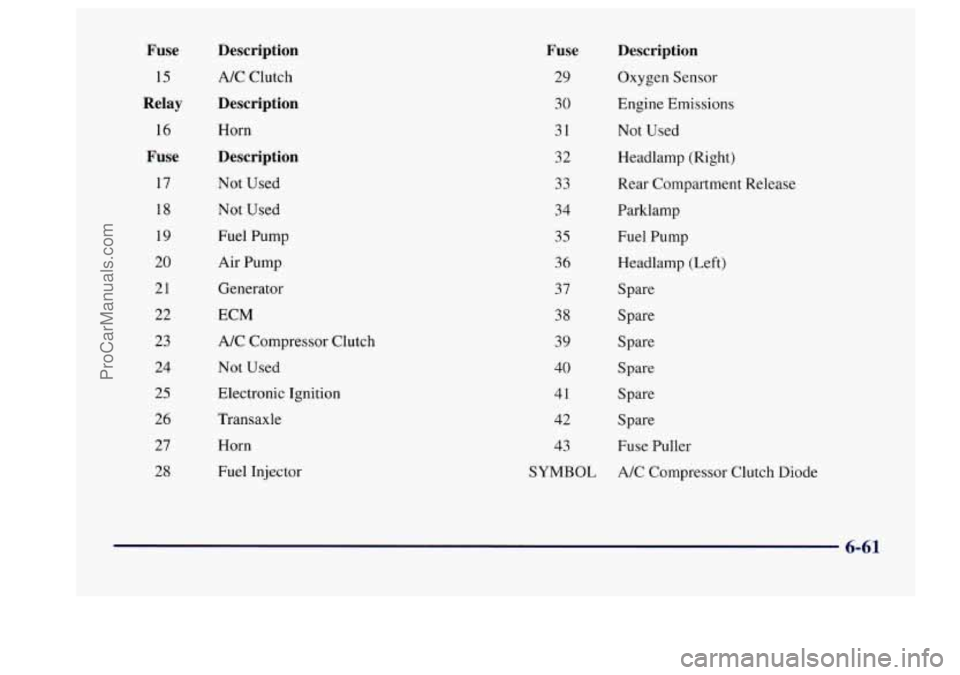

Fuse
15
Relay
16
Fuse
17 18
19
20
21 22
23
24
25
26
27
28
Description
NC Clutch
Description
Horn
Description
Not Used Not Used
Fuel Pump
Air Pump
Generator
ECM
A/C Compressor Clutch
Not Used
Electronic Ignition
Transaxle
Horn
Fuel Injector
Fuse
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
SYMBOL
Description
Oxygen Sensor
Engine Emissions
Not Used
Headlamp (Right)
Rear Compartment Release
Parklamp
Fuel Pump
Headlamp (Left)
Spare
Spare
Spare
Spare
Spare
Spare
Fuse Puller
A/C Commessor Clutch Diode
